The design of the remote control may vary due to catalog updates.
Daikin TXF42F split air conditioning unit
To air condition a room with a wall-mounted split: 3,612 frigories/h (4.2 kW) nominal in cooling.
- Pipe
- 1/4″ / 3/8″
- Wi-Fi
- Yes, included.
- kcal/h
- ≈ 3.612
- Refrigerant
- R32
Description
To climate control a room with a wall-mounted split: 3,612 frigories/h (4.2 kW) nominal cooling capacity. Daikin TXF42F includes one indoor and one outdoor unit; it is not a system for distributing cold independently between multiple rooms. Check the load of the room and the installation space before choosing. Installation not included.
The choice of power depends on the space, its orientation, and its insulation. A split unit located in one room does not guarantee the same temperature in adjacent rooms; to serve multiple rooms, it is advisable to consider a multisplit system or a ducted installation.
Wi-Fi is included to manage the equipment from the manufacturer's compatible application.
What does Daikin TXF42F include?
Indoor unit, outdoor unit, and control of the indicated set.
| Model | Component | Supply scope |
|---|---|---|
| FTXF42F | Indoor unit | 1 included |
| RXF42F | Outdoor unit | 1 included |
| ARC480A93 | Infrared remote control included | 1 included |
Include the infrared remote control ARC480A93.

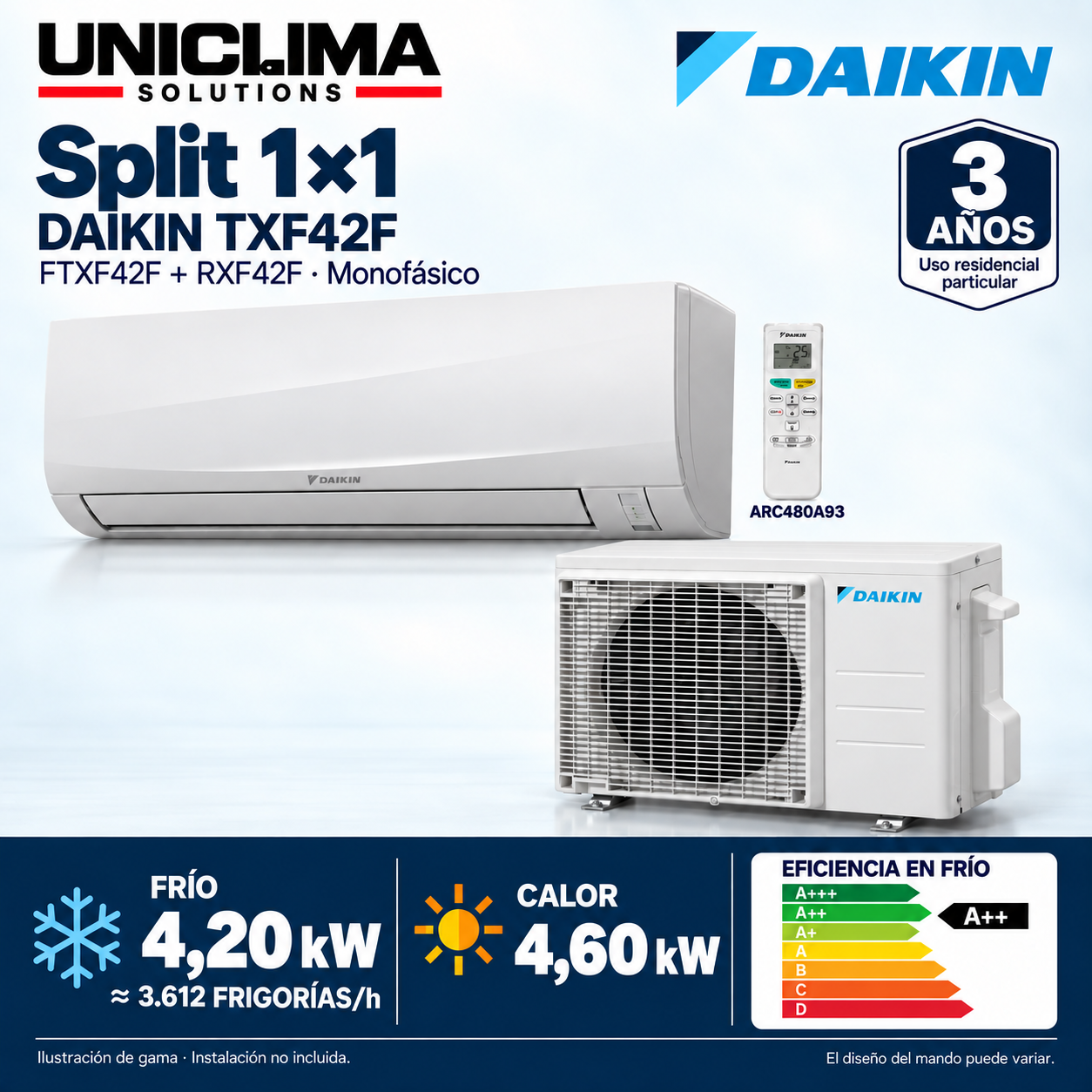

Illustrative cover of the range, without scale. Individual images of the family with visual adjustment of color and lighting. The design of the control may vary due to catalog updates.
What to check before installing Daikin TXF42F?
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the internal space (770 × 286 × 225 mm) and external space (740 × 556 × 343 mm) plus the clearances from the manual.
- Refrigerant line 1/4″ / 3/8″; run up to 20 m and elevation up to 12 m. Pre-charge for 10 m; check the additional charge in the manual.
- The nominal power guides the selection; the thermal load calculation and installation are carried out separately.
Daikin TXF42F
- Brand
- Daikin
- Model and composition
- Daikin TXF42F
- Supply scope
- FTXF42F + RXF42F + ARC480A93
- Installation
- Not included
- Availability and transport
- In stock. VAT and shipping to mainland Spain included. Installation not included.
Installation at a glance
- Interior
- 770 × 286 × 225 mm width × height × depth
- Exterior
- 740 × 556 × 343 mm width × height × depth
- Indoor unit
- FTXF42F
- Pipe · liquid / gas
- 1/4″ / 3/8″
- Acceptable travel distance
- 1.5 m–20 m
- Maximum slope
- 12 m
- Factory published load
- 0.75 kg
- Length covered by precharge
- 10 m
- Additional load
- 20 g/m above 10 m Check the manual of the provided revision.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Set
- TXF42F
Identification and control - Indoor unit
- FTXF42F
Identification and control - Outdoor unit
- RXF42F
Identification and control - Type
- 1×1 split wall-mounted unit · cooling and heating
Identification and control - Published supply
- 220 V · single-phase
Identification and control - Infrared remote control
- ARC480A93
Identification and control · The design of the control may vary due to catalog updates. - Connectivity
- Wi-Fi control with the Onecta app included.
Identification and control · Daikin Spain · tariff update 2025 · PDF page 15. - Nominal power in cold conditions
- 4.20 kW
Power and efficiency - approximate nominal cooling capacity
- 3,612 KILOCALORIES/h
Power and efficiency · Indicative conversion: kW × 860. - Nominal heat output
- 4.60 kW
Power and efficiency - Energy class in cold
- A++
Power and efficiency - Energy class in heating
- A+ · average climate
Power and efficiency - SEER
- 6,50
Power and efficiency - SCOP · average climate
- 4,30
Power and efficiency - Interior · width × height × depth
- 770 × 286 × 225 mm
Dimensions and sound - Exterior · width × height × depth
- 740 × 556 × 343 mm
Dimensions and sound - Internal weight
- 9.0 kg
Dimensions and sound - External weight
- 28 kg
Dimensions and sound - Interior sound pressure in silent mode
- 22 dB(A)
Dimensions and sound · Sound pressure level, not sound power. - Pipe · liquid / gas
- 1/4″ / 3/8″
Pipe and refrigerant - Acceptable travel distance
- 1.5 m–20 m
Pipe and refrigerant - Maximum slope
- 12 m
Pipe and refrigerant - Refrigerant
- R32
Pipe and refrigerant - Factory published load
- 0.75 kg
Pipe and refrigerant - Length covered by precharge
- 10 m
Pipe and refrigerant - Additional load
- 20 g/m above 10 m
Piping and refrigerant · Check the manual provided for the review. - Cooling
- 1270 W
Nominal electrical consumption · Nominal electrical power, not thermal capacity. - Heating
- 1240 W
Nominal electrical consumption · Nominal electrical power, not thermal capacity. - Cooling
- 226 kWh/year
Annual reference consumption - Heating · average climate
- 1,075 kWh/year
Annual reference consumption - Residential use
- 3 years
Daikin warranty · According to the manufacturer's conditions. - Other uses
- 2 years of material replacement
Daikin warranty · Check the scope and exclusions in the Daikin terms and conditions.
Before purchasing
- Daikin Spain, tariff update 2025, PDF page 15. Nominal testing capacities; dimensions in width × height × depth.
Documentation
Questions about Daikin TXF42F
How many frigories does it have and how many rooms is it suitable for?
This unit has a nominal cooling capacity of 3,612 frigories/h (4.2 kW) and a single indoor unit (FTXF42F). It is designed for a room or an open space that has been sized as such. It is not equivalent to a 2x1 for two closed rooms.
Is it an option if I am looking for an air conditioning unit with 3,500 frigories?
The exact figure for this combination is approximately 3,612 frigories/h nominal (4.2 kW), above 3,500. If the calculation for your room requires at least 3,500 frigories/h, also compare the capacity at the expected outdoor temperature and the margin indicated by the installer.
Is it suitable for a bedroom with a lot of sunlight?
It can be useful, but it's important to know how much your bedroom heats up, especially if it gets afternoon sun or is under the roof. If you need a bit more power, compare the Daikin TXF50FIt goes from about 3,612 to 4,300 frigories/h. Tell us the square meters and if the ceiling is insulated: we help you choose the power and check the noise of the split for sleeping.
How do I know if it has enough power for my living room?
To choose the power, you need to consider the size of the living room, how much sunlight it receives, and the insulation. If the living room is spacious or continues to retain a lot of heat, compare the Daikin TXF50FIt goes from about 3,612 to 4,300 frigories/h. Tell us the square meters and how much sun it receives, and we will help you choose.
What noise will I have to compare to use it at night?
The technical sheet of FTXF42F states 22 dB(A) of indoor sound pressure in cold conditions. Compare the speed and testing conditions: the lowest value does not describe the noise at full power nor guarantees that measured level in your bed. Do not confuse it with sound power.
What units are included?
It is the 1×1 set with interior FTXF42F and exterior RXF42F. The inspection of the outdoor unit is confirmed upon delivery.
What pipe do you need?
Liquid and gas: 1/4″ / 3/8″. The maximum published distance is 20 m; the installation requires checking the exact manual.
Is the installation included?
No. Piping, supports, installation, and commissioning are valued separately.
