Daikin TXF50F split air conditioning unit
To air condition a room with a wall-mounted split: 4,300 frigories/h (5 kW) nominal in cooling.
- Pipe
- 1/4″ / 1/2″
- Wi-Fi
- Yes, included.
- kcal/h
- ≈ 4.300
- Refrigerant
- R32
Description
To climate control a room with a wall-mounted split: 4,300 frigories/h (5 kW) nominal cooling capacity. Daikin TXF50F includes one indoor and one outdoor unit; it is not a system for distributing cold independently between multiple rooms. Check the load of the room and the installation space before choosing. Installation is separate.
The choice of power depends on the space, its orientation, and its insulation. A split unit located in one room does not guarantee the same temperature in adjacent rooms; to serve multiple rooms, it is advisable to consider a multisplit system or a ducted installation.
Wi-Fi is included to manage the equipment from the manufacturer's compatible application.
What does Daikin TXF50F include?
Indoor unit, outdoor unit, and control of the indicated set.
| Model | Component | Supply scope |
|---|---|---|
| FTXF50F | Indoor unit | 1 included |
| RXF50F | Outdoor unit | 1 included |
| ARC480A93 | Infrared remote control included | 1 included |
Composition of the Daikin Spain tariff for July 2026: FTXF50F + RXF50F, with remote control ARC480A93.

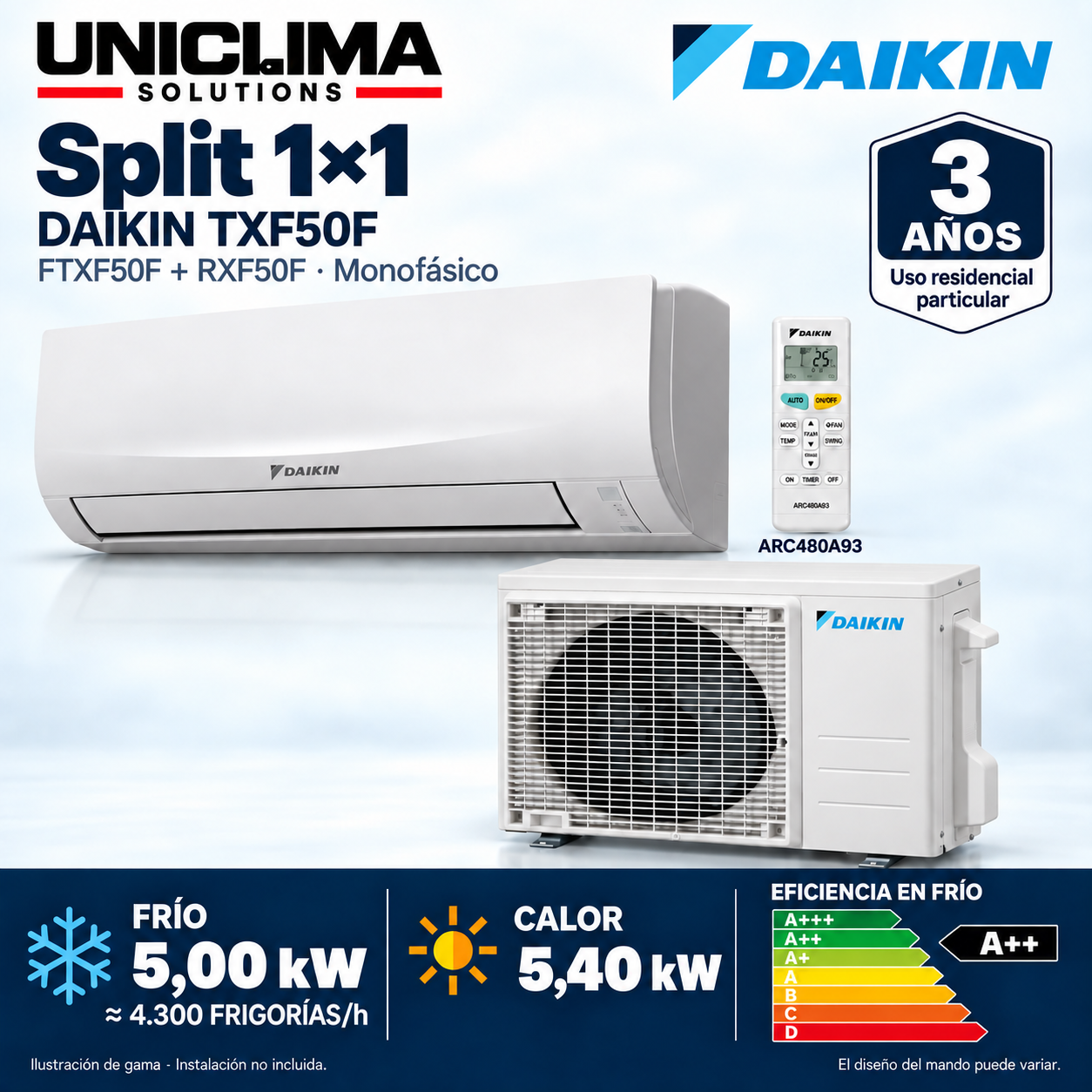

Illustrative cover of the range, without scale. Individual images of the family with visual adjustment of color and lighting. The design of the control may vary due to catalog updates.
What to check before installing Daikin TXF50F?
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Interior: 770 × 286 × 225 mm. Exterior RXF50F: 923 × 610 × 367 mm. Also reserve the installation clearances from the manual.
- Refrigerant line 1/4″ / 1/2″; run up to 30 m and elevation up to 20 m. Pre-charge for 10 m; check the additional charge in the manual.
- The nominal power guides the selection; the thermal load calculation and installation are carried out separately.
Technical sheet: Daikin TXF50F
- Brand
- Daikin
- Model and composition
- Daikin TXF50F
- Supply scope
- FTXF50F + RXF50F + ARC480A93
- Installation
- Not included
- Availability and transport
- In stock. VAT and shipping to mainland Spain included. Installation not included.
Installation at a glance
- Interior
- 770 × 286 × 225 mm width × height × depth
- Exterior
- 923 × 610 × 367 mm width × height × depth
- Indoor unit
- FTXF50F
- Pipe · liquid / gas
- 1/4″ / 1/2″
- Acceptable travel distance
- 1.5 m–30 m Daikin official price list July 2026, PDF page 14.
- Maximum slope
- 20 m
- Factory published load
- 0.80 kg Daikin official price list July 2026, PDF page 14.
- Length covered by precharge
- 10 m
- Additional load
- 20 g/m above 10 m Check the manual of the provided revision.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Set
- TXF50F
Identification and control - Indoor unit
- FTXF50F
Identification and control - Outdoor unit
- RXF50F
Identification and control · Official Daikin price list July 2026, PDF page 14. - Type
- 1×1 split wall-mounted unit · cooling and heating
Identification and control - Published supply
- 220 V · single-phase
Identification and control - Infrared remote control
- ARC480A93
Identification and control · The design of the control may vary due to catalog updates. - Connectivity
- Wi-Fi control with the Onecta app included.
Identification and control · Daikin Spain · July 2026 price list · PDF page 14. - Nominal power in cold conditions
- 5.00 kW
Power and efficiency - approximate nominal cooling capacity
- 4,300 Frigories/h
Power and efficiency · Indicative conversion: kW × 860. - Nominal heat output
- 5.40 kW
Power and efficiency · Official Daikin rate July 2026, PDF page 14. - Energy class in cold
- A++
Power and efficiency - Energy class in heating
- A+ · average climate
Power and efficiency - SEER
- 6,50
Power and efficiency · Official Daikin rate July 2026, PDF page 14. - SCOP · average climate
- 4,10
Power and efficiency · Official Daikin rate July 2026, PDF page 14. - Interior · width × height × depth
- 770 × 286 × 225 mm
Dimensions and sound - Exterior · width × height × depth
- 923 × 610 × 367 mm
Dimensions and sound · Official Daikin price list July 2026, PDF page 14. - Internal weight
- 9.0 kg
Dimensions and sound · FTXF50F5V1B, according to the current Daikin table. - External weight
- 40 kg
Dimensions and sound · Official Daikin price list July 2026, PDF page 14. - Interior sound pressure in silent mode
- 31 dB(A)
Dimensions and sound · Sound pressure level, not sound power. - Pipe · liquid / gas
- 1/4″ / 1/2″
Pipe and refrigerant - Acceptable travel distance
- 1.5 m–30 m
Pipe and refrigerant · Daikin official price list July 2026, PDF page 14. - Maximum slope
- 20 m
Pipe and refrigerant - Refrigerant
- R32
Pipe and refrigerant - Factory published load
- 0.80 kg
Pipe and refrigerant · Daikin official price list July 2026, PDF page 14. - Length covered by precharge
- 10 m
Pipe and refrigerant - Additional load
- 20 g/m above 10 m
Piping and refrigerant · Check the manual provided for the review. - Cooling
- 1520 W
Nominal electrical consumption · Nominal electrical power; rate July 2026. - Heating
- 1460 W
Nominal electrical consumption · Nominal electrical power; rate July 2026. - Cooling
- 269 kWh/year
Annual reference consumption · Standardized conditions; July 2026 rate. - Heating · average climate
- 1,297 kWh/year
Annual reference consumption · Standardized conditions; July 2026 rate. - Residential use
- 3 years
Daikin warranty · According to the manufacturer's conditions. - Other uses
- 2 years of material replacement
Daikin warranty · Check the scope and exclusions in the Daikin terms and conditions.
Before purchasing
- Exact combination data of the official Daikin Spain rate, July 2026, PDF page 14. Dimensions in width × height × depth; normalized annual consumption.
Documentation
Questions about Daikin TXF50F
How many frigories does it have and how many rooms is it suitable for?
This unit has a nominal cooling capacity of 4,300 frigories/h (5 kW) and a single indoor unit (FTXF50F). It is designed for a room or an open space that has been sized as such. It does not equate to a 2x1 for two closed rooms.
Is it an option if I am looking for an air conditioning unit of 4,500 frigories?
The exact figure for this combination is approximately 4,300 frigories/h nominal (5 kW), below 4,500. If the calculation for your space requires at least 4,500 frigories/h, do not choose it just because it belongs to a similar range: a unit that meets that load under the conditions of use is necessary.
Is it suitable for a bedroom with a lot of sunlight?
It can be useful, but it's important to know how much your bedroom heats up, especially if it gets afternoon sun or is under the roof. If you need a bit more power, compare the Daikin TXF60FIt goes from about 4,300 to 5,160 frigories/h. Tell us the square meters and if the ceiling is insulated: we help you choose the power and check the noise of the split for sleeping.
How do I know if it has enough power for my living room?
To choose the power, you need to consider the size of the living room, how much sunlight it receives, and the insulation. If the living room is spacious or continues to retain a lot of heat, compare the Daikin TXF60FIt goes from about 4,300 to 5,160 frigories/h. Tell us the square meters and how much sun it receives, and we will help you choose.
What noise will I have to compare to use it at night?
The technical sheet of FTXF50F states 31 dB(A) of indoor sound pressure in cold conditions. Compare the speed and testing conditions: the lowest value does not describe the noise at full power nor guarantees that measured level in your bed. Do not confuse it with sound power.
What units are included?
Includes indoor unit FTXF50F, outdoor unit RXF50F, and remote control ARC480A93. Composition published by Daikin Spain in July 2026.
What pipe do you need?
Liquid and gas: 1/4″ / 1/2″. The maximum published distance is 30 m; the installation requires checking the exact manual.
Is the installation included?
No. Piping, supports, installation, and commissioning are valued separately.
