3 years Domestic use Up to 5 years 30-day registration* Indicative image of the remote control. Its design may vary due to updates in the TCL catalog.

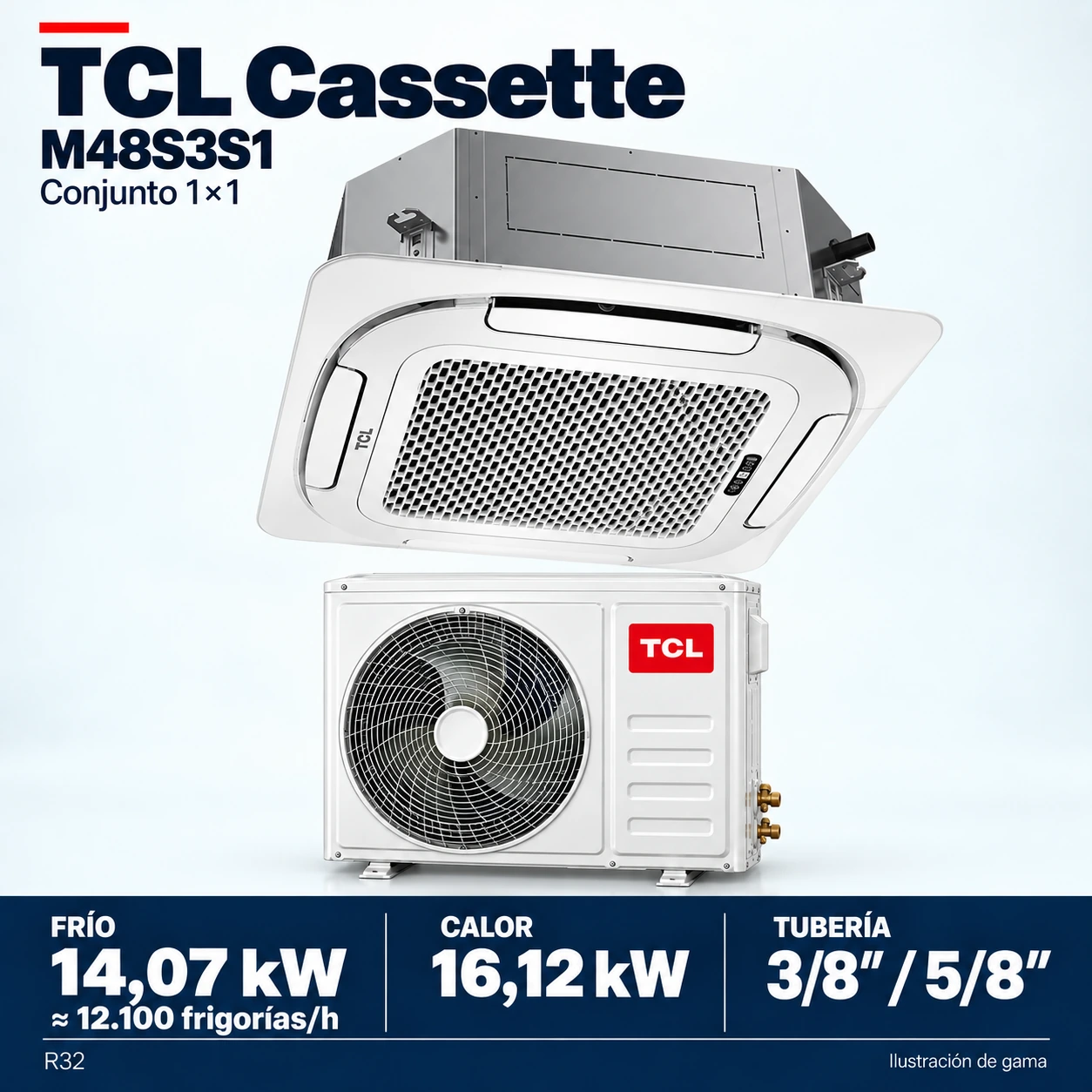

TCL M48S3S1 cassette air conditioning
To air condition an open area from the ceiling: cassette TCL M48S3S1 with 12,100 frigories/h (14.07 kW) nominal cooling capacity.
- Pipe
- 3/8″ / 5/8″
- Wi-Fi
- Yes, included.
- kcal/h
- ≈ 12.100
- Refrigerant
- R32
Description
To air condition an open area from the ceiling: TCL M48S3S1 cassette with 12,100 frigories/h (14.07 kW) nominal cooling capacity. It is an alternative to consider when there is a false ceiling and you want to free up the walls; it does not replace several splits for closed rooms. Check height, mounting space, and air distribution. Installation is separate.
Before choosing it, it is advisable to check the available height above the ceiling and the location of the equipment. The panel and the control are part of the configuration: in "What is included" you can see which ones are supplied with this reference.
Wi-Fi is included to manage the equipment from the manufacturer's compatible application.
What does TCL M48S3S1 include?
Cassette Set 1×1: components grouped according to the TCL table.
| Model | Component | Supply scope |
|---|---|---|
| MN48S3S1 | Cassette indoor unit 28.0 kg | 1 included |
| MT4831 | Outdoor unit 1010 × 858 × 436 mm | 1 included |
| NPAN90S1 | Cassette panel 950 × 45 × 950 mm · width × height × depth | 1 included |
Wired control included as per the documented supply of the set. Installation, piping, supports, wiring, and commissioning are budgeted separately.
Illustrative images of the range, not to scale. The indicated measurements correspond to this set; the appearance may vary depending on the supplied revision. Indicative image of the control. Its design may vary due to updates in the TCL catalog.
What to check before installing TCL M48S3S1?
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the cassette body and the NPAN90S1 panel separately. The dimensions of the panel do not match the ceiling cutout; ensure access to drainage and maintenance.
- 3/8″ / 5/8″ pipe. Documented pre-charge for 5 m; maximum run 60 m and maximum height difference 30 m according to the assembly technical sheet. The additional load per meter is not indicated: it must be obtained from the exact manual before installation.
- The outdoor unit requires three-phase power supply; the catalog distinguishes between indoor power supply of 220 V and outdoor of 380 V. The installer will check the network, protections, and PCB.
- Includes wired control according to the documentation of the set; the image and design are for reference only.
TCL M48S3S1
- Brand
- TCL
- Model and composition
- TCL M48S3S1
- Supply scope
- MN48S3S1 + MT4831 + NPAN90S1
- Installation
- Not included
- Availability and transport
- In stock. VAT and shipping to mainland Spain included. Installation not included.
Installation at a glance
- Exterior
- 1010 × 858 × 436 mm width × height × depth
- Pipe
- 3/8″ · 5/8″ liquid · gas
- Maximum range
- 60 m
- Maximum slope
- 30 m
- Precharge up to
- 5 m
- Factory charge · R32
- 1.90 kg
- Additional load
- Consult the manual of the provided revision.
Load calculation and documentation
Outdoor unit: MT4831. Check PCB and maintenance.
The additional load per length is not confirmed for this reference. Please consult your manual before intervening.
L is the one-way length between interior and exterior, not the sum of both pipes. Outer diameters of refrigerant piping in liquid / gas order.
Check the PCB, review, and manual. Installation and handling of refrigerant by a qualified professional; do not add gas only due to lack of cooling.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Set
- M48S3S1
Set and power supply - Indoor unit
- MN48S3S1
Set and power supply - Outdoor unit
- MT4831
Set and power supply - Type
- 1×1 cassette · cooling and heating
Set and power supply - Power supply
- Exterior 380 V · three-phase / interior 220 V
Set and power supply - Nominal power in cold conditions
- 14.07 kW
Power and efficiency · Technical catalog TCL 2025–2026. Set and components: PDF page 35 (printed 34). - Approximate nominal cooling capacity
- 12,100 kcal/h
Power and efficiency · Conversion: kW × 860. - Nominal heat output
- 16.12 kW
Power and efficiency · Technical catalog TCL 2025–2026. Set and components: PDF page 35 (printed 34). - Energy class in cold
- A++
Power and efficiency - Energy class in heating
- A+
Power and efficiency - Body · published dimensions
- 840 × 840 × 290 mm
Measures to prepare the installation · Body without panel; confirm dimensions and space in the installation plan. - Exterior · width × height × depth
- 1010 × 858 × 436 mm
Measures to prepare the installation - Net internal weight
- 28.0 kg
Measures to prepare the installation - Net external weight
- To be confirmed
Measures to prepare the installation · Catalog: 74 kg. Web TCL: 78 kg. Discrepant documents; confirm the PCB of the supplied unit before ordering. - Panel
- NPAN90S1
Measures to prepare the installation - Panel · width × height × depth
- 950 × 45 × 950 mm
Measures to prepare the installation · This does not correspond to the cut-out dimensions. The S series technical sheet states 950 × 950 × 45 mm in width × depth × height order. - Pipe · liquid / gas
- 3/8″ / 5/8″
Pipe and refrigerant · Technical catalog TCL 2025–2026. Assembly and components: PDF page 35 (printed 34). - Refrigerant
- R32
Pipe and refrigerant - Factory published load
- 1.90 kg
Pipe and refrigerant · Catalog data; check the revision plate provided. - SEER
- 6,1
Efficiency, consumption, and air circulation - SCOP · average climate
- 4
Efficiency, consumption, and air circulation - Nominal consumption in cold
- 4540 W
Efficiency, consumption, and air circulation · Nominal electrical power, not thermal capacity. - Nominal heat consumption
- 4810 W
Efficiency, consumption, and air circulation · Nominal electrical power, not thermal capacity. - External sound power
- 70 dB(A)
Efficiency, consumption, and air circulation · Sound power, not sound pressure. - Interior sound power · S/H/M/L/silence
- 64/61/60/58/54 dB(A)
Efficiency, consumption, and air circulation · Sound power, not sound pressure. - Indoor air flow
- 1800 m³/h
Efficiency, consumption, and air circulation - Pipe covered by the precharge
- 5 m
Limits for preparing the installation · TCL Catalog 2026 Portugal, PDF page 12; this is not the maximum distance. - Maximum documented range
- 60 m
Limits for preparing the installation · TCL M42–M55 technical sheet hosted by Lowclima, exact column M48S3S1 / MN48S3S1 / MT4831. Check revision before installation. - Maximum documented slope
- 30 m
Limits for preparing the installation · TCL M42–M55 technical sheet hosted by Lowclima, exact column M48S3S1 / MN48S3S1 / MT4831. Check revision before installation. - Wi-Fi
- Wi-Fi included
Control and connectivity · Wi-Fi included. TCL releases Wi-Fi control for this reference, and the Spanish distributor announces it integrated into the set. It requires a compatible network and configuring TCL Home. - Application
- TCL Home
Control and connectivity · Requires a compatible network and configuration. - TCL warranty
- 3 years · extendable to 5 with registration
Warranty and conditions · Extension subject to eligible purchase, registration within 30 days, and TCL validation. Check the conditions in Documentation.
Before purchasing
- Data from the linked documentation for the indicated reference. Check the PCB and the installation manual of the supplied revision before sizing gaps, connections, or refrigerant charge. The images are not assembly drawings. Some dimensions, weights, or loads differ between the 2025–2026 catalog and the current TCL sheet. Confirm the revision and its drawing before preparing the installation. External weight: 74 kg in the Spanish catalog and 78 kg on the TCL website. Confirm the revision before sizing supports.
Documentation
Questions about TCL M48S3S1
How many frigories does this cassette have?
The TCL M48S3S1 unit has a nominal cooling capacity of 12,100 frigories/h (14.07 kW). The power refers to the complete unit, not to each air outlet of the cassette.
Is a cassette better than a wall-mounted split for my living room or premises?
This cassette is an option if the space and the false ceiling allow for the installation of MN48S3S1 and proper air distribution. It offers 14.07 kW nominal cooling; it is not inherently better than a wall-mounted unit. To choose, compare the thermal load, height, position of people, and installation cost.
Does it cool several closed rooms?
It should not be chosen for that purpose just because it has 12,100 frigories/h. An interior cassette distributes air in the area where it is installed; doors and partitions limit access to other rooms. For closed spaces, consider a multisplit or a duct network designed for them.
What should I check if the space receives a lot of sunlight?
Look at the square meters of the space, the large windows, and the hours of sunlight. If the premises or living room overheats and more capacity is needed, compare the TCL M55S3S1It goes from about 12,100 to 13,760 frigories/h. Before deciding, we will review the power and the available space in the false ceiling with you.
What conditions the replacement of an old cassette?
In addition to the panel and the ceiling opening, check the external three-phase power supply, the refrigerant connections, and the drainage. The similarity of the front does not guarantee compatibility with the existing piping or wiring.
What does the set include?
Indoor unit cassette MN48S3S1, outdoor unit MT4831, cassette panel NPAN90S1. Includes wired control as per the documentation of the set; the image and design are for reference only.
What pipe do you need?
Liquid 3/8″ and gas 5/8″. The document states a maximum run of 60 m and a height difference of 30 m; the pre-charge covers 5 m. It does not indicate additional grams per meter: this information should be verified in the maintenance manual provided.
Are the dimensions of the panel the ceiling opening?
No. The NPAN90S1 panel measures 950 × 45 × 950 mm (width × height × depth), but the space and clearances are taken from the installation plan of the unit.
Is it single-phase or three-phase?
The exterior is three-phase (380 V published); the table indicates 220 V for the interior. The schematic and the label of the supplied equipment must be checked.
Can I buy it with installation?
The price includes VAT and shipping to mainland Spain. Installation is quoted separately based on location, route, and necessary work. The equipment can be purchased now.
Does it come with Wi-Fi included?
Wi-Fi included. TCL releases Wi-Fi control for this reference and the Spanish distributor announces it integrated into the set. It requires a compatible network and configuring TCL Home.
How many years of warranty does the TCL M48S3S1 have?
TCL indicates a standard 3-year warranty, and this model is listed for a free extension up to 5 years. The extension requires an eligible purchase in Spain from April 1, 2025, domestic use, registration in the TCL account within 30 calendar days, and validation of the invoice and serial numbers of both units. It is not an automatic 5 years; check TCL's terms and exclusions. Consumer legal rights are not affected.
What data is used when TCL publications differ?
External weight: 74 kg in the Spanish catalog and 78 kg on the TCL website. Confirm revision before sizing supports. The data is identified by source; revisions are not exchanged, nor is a discrepant figure used as a recharge instruction.
