Why two wires, the same brand, or Wi-Fi are not enough to choose?
When looking for a spare part or upgrade for the heating control, it is common to rely on the appearance of the old support, the brand of the boiler, or the fact that only two wires come out of the wall. However, none of these elements alone defines how the devices communicate or what voltage their PCBs can handle.
In a climate control system, three distinct layers coexist that should not be confused: the type of command received by the boiler, the link between the regulator's display and its receiver, and the device's connection to the internet for mobile management. A thermostat marketed as universal or smart may solve connectivity with the home network but could be incompatible with the control input of your specific boiler model.Resideo T6R-HW).
| Technical concept | What does it really indicate? | What mistake should you avoid when buying? |
|---|---|---|
| ON/OFF output (full/nothing) | Send a basic demand order (start or stop) to the heat generator. | Assume that any ON/OFF output operates at the same voltage; it does not specify whether the circuit is potential-free or under voltage. |
| Dry contact vs. 230 V signal | Define whether the relay closes a circuit without providing external voltage (potential-free contact) or if it switches mains voltage. | Connecting a voltage output to a boiler input designed for dry contact or low voltage may damage the PCB. |
| Digital or modulating bus | Data communication between the controller and the boiler to manage demand or parameters according to the functions allowed by each model. | Assuming that all digital controls speak the same language or regulate the same functions; it requires exact protocol compatibility. |
| Wi-Fi connectivity | Allow the control to connect to the home router and a mobile application. | Confusing the internet connection with electrical or protocol compatibility with the boiler. |
| Wireless link (RF) | Radio frequency communication between the room thermostat and an integrated receiver or separate module. | Thinking that being wireless means it doesn't require installation; the power supply and connection of the receiver to the boiler depend on the documentation of each unit. |
Sources of consultation: OpenTherm and Resideo (control and connectivity specifications).
Modulating control, OpenTherm, and proprietary buses such as eBUS
It is important to distinguish between the internal modulation of the boiler and the modulating control from the thermostat. Even with an ON/OFF thermostat that only sends demand signals, many boilers internally modulate their burner according to the water temperature in the circuit. However, a compatible modulating control allows the room thermostat itself to communicate data to the generator to adjust the flow setpoint or manage advanced functions depending on the model.
For that digital communication to work, both devices must use the same protocol. OpenTherm It is a protocol for modulating control adopted by various manufacturers, but it should not be confused with proprietary buses nor should complete compatibility be assumed solely based on the generic name. It is advisable to always check the documentation for the specific functions supported by the chosen combination.
Manufacturers like Vaillant use protocols such as eBUS in documented references like the controls. VRC 700 and VRC 700fThis shows that not all thermostats operate the same way, nor does a regulator from the same brand automatically work for any boiler without first verifying the exact compatibility of the model.
Thermostat power supply versus receiver power supply: a critical nuance
Another point that generates returns and purchase errors is confusing how the display you place in the room is powered with the power supply and connection of the rest of the system. The fact that a thermostat operates on batteries or connects to two existing wires does not, by itself, confirm how the entire system is powered or linked to the boiler.
The technical documentation from manufacturers illustrates this difference. In the installer information from Vaillant in the United Kingdom regarding controls VRC 700 and VRC 700fThe wired model VRC 700 with eBUS connection and the wireless variant VRC 700f powered by batteries are listed. Similarly, the British manual for radio frequency control Resideo Y87RF distinguish between the thermostat and its receiver or relay, specify its power supply, and refer to the boiler instructions.
These documents serve as a technical example —without extrapolating British manuals as a universal scheme or direct recommendation for Spain—: in a wireless system, the receiver can be integrated or be a separate module, and its power supply and connection must always be verified according to the documentation of the boiler and the control.
What functions might you lose when switching to a basic or different control?
Just because a thermostat can send start and stop commands to the heating system does not mean it maintains all the features offered by a specific digital control. If a modulating regulator from the manufacturer is replaced by a basic ON/OFF thermostat, the boiler may continue to modulate its burner internally according to the water temperature, but it will only receive a simple demand command from the room.
Depending on the boiler model and the installation design, switching to a basic or different control may involve:
- Loss of modulating control from the control panel: the adjustment of the flow temperature calculated from the room thermostat or the climate compensation management is lost if it depended on that control.
- Lack of management of domestic hot water (DHW) from the regulator: some proprietary or specific controls (or models with domestic hot water function like the Resideo T6R-HW in compatible installations) allow programming or managing the domestic hot water; a heating-only thermostat will not control that function from the screen.
- Lack of coordination in multi-zone systems: If there are zone valves or specific control units, the thermostat must be compatible with the existing control architecture, not just with the boiler.
- Absence of parameter readings or alerts on the control panel: an open or closed contact does not transmit status information that some bus controls display depending on the model.
What information should be gathered without disassembling anything before requesting a quote or making a purchase?
To verify compatibility safely, you should not open the boiler casing, manipulate electrical terminals, bridge terminals, or take measurements with the terminals exposed. An incorrect connection between 230 V inputs and low voltage or bus inputs can damage the equipment's PCB.
Instead, gather this visual and documentary information from the outside:
- Photograph of the external rating plate of the boiler: it is usually located at the bottom, side, or behind the user control flap (without using tools or removing sealed covers). Note the exact commercial model, product code, and serial number.

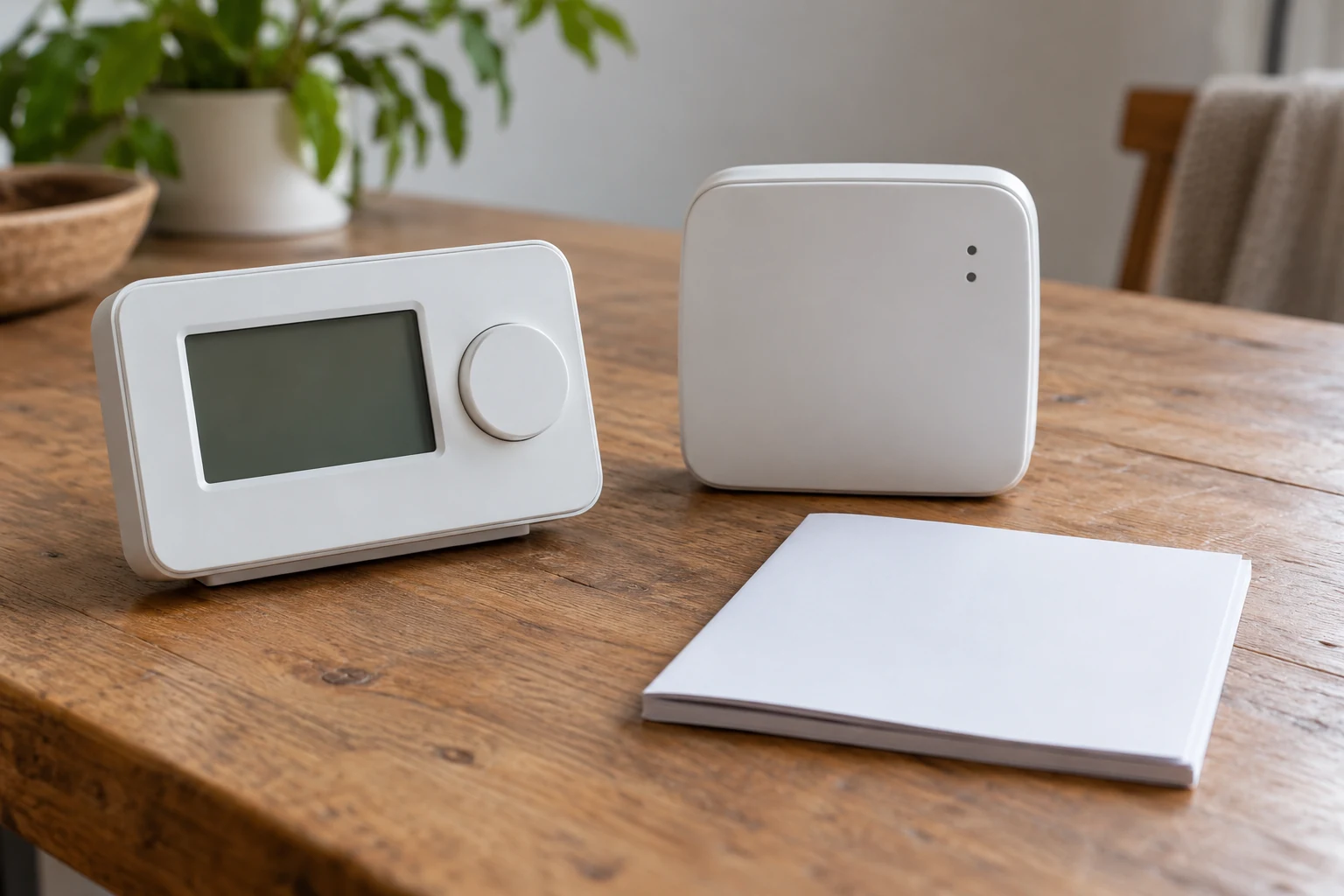

- Exact reference of the current thermostat and its receiver: check the model printed on the casing or in the documentation you have, indicating if there is a receiver box next to the boiler.
- Installation manuals for both units: Locate the section on electrical connections and regulation in the boiler manual so that the technician can verify which inputs are accepted (eBUS, OpenTherm, potential-free contact, 230 V, etc.).
- List of services you need to monitor: define whether you only want to program a radiator circuit or if you also require domestic hot water control, management of multiple zones, or reading of an external sensor.
With this information, request that the professional or supplier confirm in writing the compatibility between the exact references and indicate which system functions will remain operational after the change. If you are looking for technical assistance to evaluate and install the appropriate regulation in your home, you can consult the professional services from Uniclima.
When the problem is not related to the thermostat compatibility.
Sometimes it is considered to replace the thermostat because the home does not heat evenly or the boiler does not respond, when the real cause is a lack of effective demand or an issue unrelated to the control. Before purchasing a new regulator thinking that the current one has become incompatible, perform three basic checks without touching the wiring:
- Review of setpoint and programming: check that the thermostat is in heating mode, that the target temperature exceeds the ambient temperature, and that there is no time lock or vacation mode active. If it uses batteries, verify that it does not show a low battery warning.
- Boiler panel alerts: If the generator display shows a lock or fault code, changing the thermostat will not resolve the shutdown. In that case, it is advisable to consult the fault guides for boilers by brand and model to identify the warning.
- Thermal distribution problems in the installation: If the boiler starts when the thermostat calls for heat but there are cold rooms or radiators that do not heat evenly, it may be due to the presence of air, lack of hydraulic balancing, flow issues, or other circuit faults that need to be assessed before spending on a new control.
Frequently asked questions
No. The presence of two wires only indicates the number of conductors run to the room, but it does not reveal what type of signal travels through them. These two wires may correspond to a dry contact (potential-free), a line with mains voltage (230 V), or a digital communication bus (such as eBUS or OpenTherm). Connecting a thermostat without first checking the boiler manual for what that specific input accepts may cause it not to function or damage the PCB.
No. The Wi-Fi specification only describes how the thermostat or its gateway communicates with your home router and with the mobile application.ResideoThe actual compatibility with the boiler depends on the control output of the device (voltage-free relay, 230 V, OpenTherm, or manufacturer's proprietary protocol) and how its receiver is connected to the generator.
Not necessarily. The fact that the room control operates on batteries does not confirm the power supply or the type of connection of the rest of the system.VaillantIn radio frequency controls, there is a receiver —which depending on the equipment can be a separate module or integrated according to the system— whose power supply and connection to the boiler must be carried out following the technical documentation of both devices.Resideo).
They are not equivalent. OpenTherm it is a protocol for modulating control, but it should not be confused with eBUS (used, for example, in controls such as the Vaillant VRC 700Compatibility should not be assumed solely based on sharing a generic name. Each combination of boiler and regulator requires checking their manuals to determine which protocol and specific functions are supported.
It depends on the boiler model and the control installed. If you switch from a specific modulating regulator to an ON/OFF thermostat, the boiler can still internally modulate its burner according to the heating water temperature, but you will lose the modulation and fine adjustment managed from the control, as well as domestic hot water (DHW) programming functions or zone management that depended on that digital communication.
