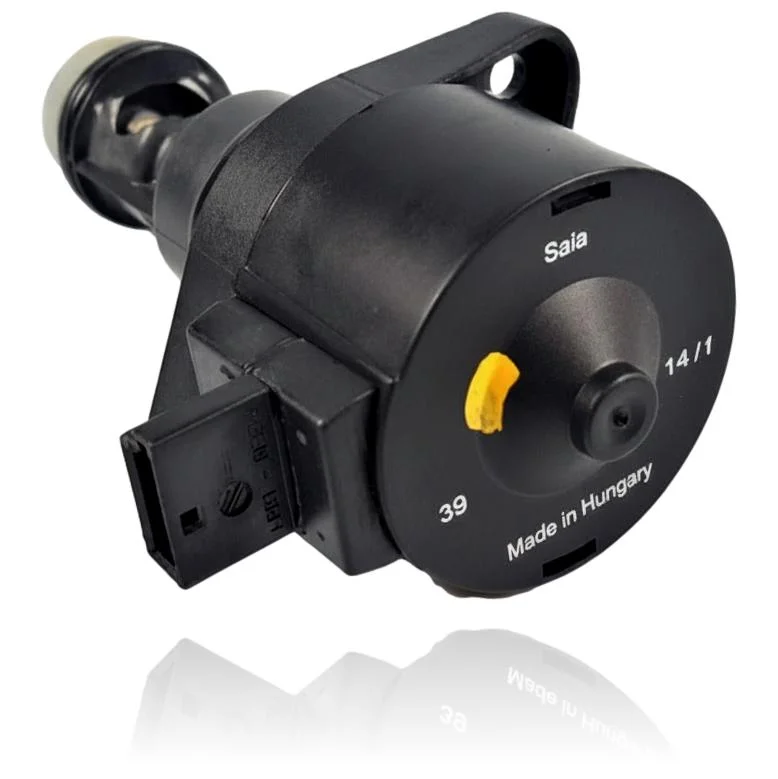

Chaffoteaux 3-Way Valve Motor MC FF Ref. 60081953

Chaffoteaux boilers compatible with reference 60081953

3-way valve with reference 60081953. 21 verified compatibilities: Calydra 23 CF and Calydra 23 FF.

Verified compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if the part number 60081953 is the one for your boiler.

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference 60081953. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms that require diagnosis in the 3-way valve 60081953

The 3-way valve diverts water between heating and domestic hot water. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  The boiler does not switch properly between heating and domestic hot water: it seems to get 'stuck' in one function.

  Cause: The motor of the 3-way valve does not move the diverter from one end to the other of the travel.

  Measure with a multimeter if the motor receives current at its terminals when the boiler requests the circuit change, before replacing it.

• 02

  The valve motor does not rotate or makes noise when activated, even though the boiler sends the command.

  Cause: It could be the motor itself (burnt winding) or the shaft may be blocked by scale buildup in the body of the gas valve.

  Disconnect the valve motor and check if it spins freely without load; if it spins loosely without the body, the fault is likely due to scale, not the motor.

• 03

  The display shows a warning or lock related to the 3-way valve.

  Cause: The control board does not receive the end-of-travel signal from the motor and cuts off operation for safety reasons.

  Check that the motor's electrical connector is properly fitted and free of corrosion before replacing the part.

• 04

  The domestic hot water takes a long time to come out hot or cools down intermittently while the heating continues to operate.

  Cause: The diverter does not completely close the flow to heating, so part of the water is distributed between the two circuits.

  With the boiler in DHW, touch the supply pipes to the radiators: if they are warm, the diverter is not closing that side properly.

Chaffoteaux fault codes that require diagnosis

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Data sheet for the Chaffoteaux 3-way valve 60081953

Catalogue reference

60081953

Uniclima internal SKU

MV3VCMCFF

Brand

Chaffoteaux

Type of part

3-way valves

Units in stock

0 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

manufacturer

Saia

material

Made in Hungary

voltage

14 V

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Chaffoteaux SIAM 2.28 FF Manual (PDF) Document © Chaffoteaux, provided as a technical reference.
