Modulating Fan Vaillant Extractor Turbomax Plus VMW ES 24 282 3 5 Ref. 114196

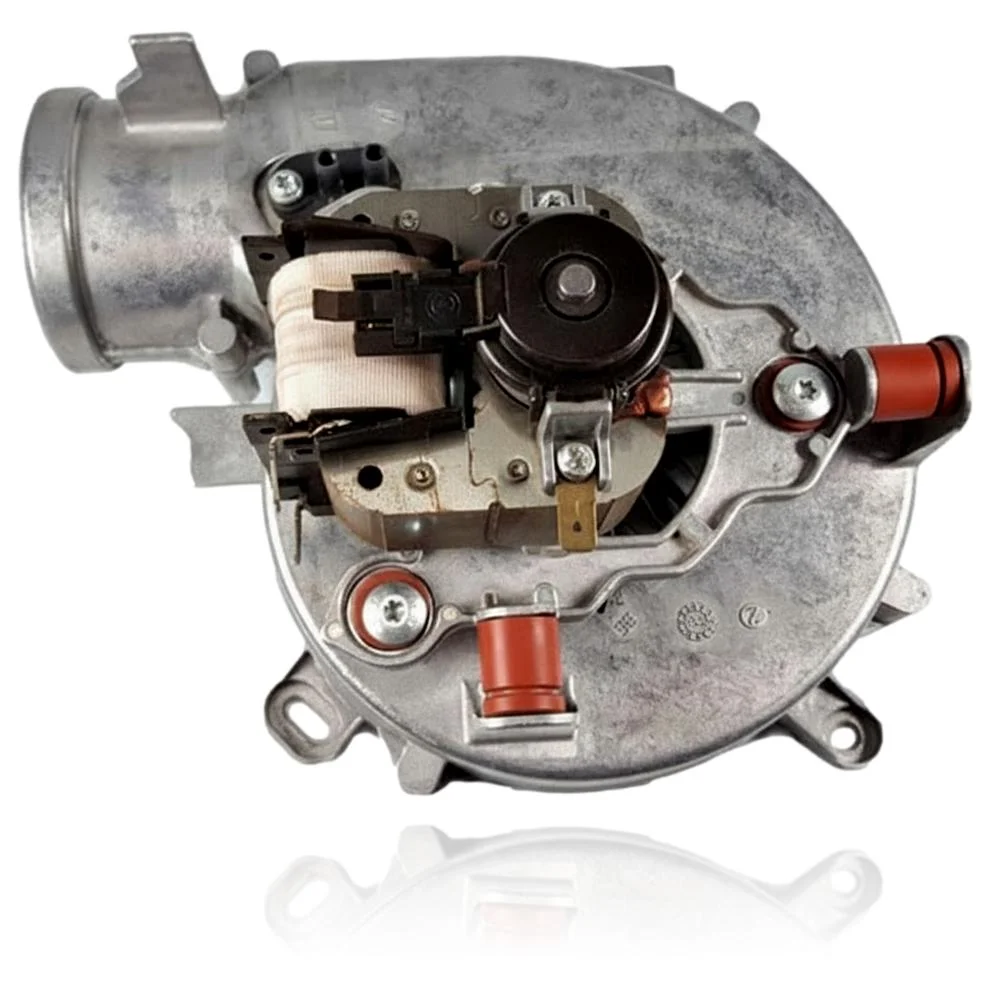

The Modulating Fan Vaillant Extractor Turbomax Plus VMW ES 24 282 3 5 Ref. 114196 is a component that acts as a flue gas extractor in the boiler, evacuating combustion gases and generating the necessary draft for its ignition. When this part fails, the boiler may not ignite or may lock out due to issues with flue gas evacuation, which can manifest with faults such as F.32, F.33, or F.37. This fan is compatible with models such as VMW 24/282/3-5 and VMW 282/3-5, among others in the Turbomax Plus range. It is recommended to replace it if the mentioned symptoms occur or if a fault in its operation is detected.
VAT included
Consult via WhatsAppVaillant boilers compatible with reference 114196
Extractor with reference 114196. Two confirmed compatibilities: VMW 24/282/3-5 and VMW 282/3-5.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Vaillant VMW 24/282/3-5 | Turbomax Plus (VMW) | Contrasted |
| Vaillant VMW 282/3-5 | Turbomax Plus (VMW) | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. 114196 is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 114196. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the extractor 114196 resolves.
The extractor evacuates the combustion gases with forced draft. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler attempts to ignite and shuts off after a few seconds, without producing a flame.
Cause: The extractor does not reach the necessary speed for the pressure switch to allow the gas to pass.
Check the flue terminal outside: accumulated combustion dirt may indicate that you should also inspect the duct before replacing the part.
- 02
The fan does not spin; it remains completely still.
Cause: The motor is seized due to a buildup of soot on the shaft or has an internal fault in the winding.
With the boiler unplugged, try turning the fan manually; if it's blocked or very stiff, the motor is the problem.
- 03
Loud humming or vibration with the fan operating.
Cause: The bearings are worn out or the turbine is dirty and unbalanced.
Thoroughly clean the intake mouth and the blades before replacing; accumulated combustion dirt may be the cause of the noise and not the motor itself.
- 04
The boiler locks out or displays a flue extraction or draft error.
Cause: The extractor spins but does not reach the minimum speed required by the safety system.
Check that the flue pipe is not blocked and that the connection to the air pressure switch is secure before considering the part faulty.
Fault codes from Vaillant that this part resolves.
| Code | Fault | Diagnosis and solution |
|---|---|---|
| F.32 | Fan fault. | The modulating fan does not start, is not connected, or its Hall/RPM signal is out of tolerance; check power supply and harness to the fan, RPM reading in diagnostics, and possible obstruction of the flue duct. |
| F.33 | The pressure switch does not activate (missing air pressure switch signal). | If the fan does not generate the correct depression or does not spin, the pressure switch does not switch; check the fan's rotation/RPM, pressure switch hoses/capsule, and air path/exhaust. |
| F.37 | The fan speed is too high or too low (RPM divergence during operation). | Fan fault or its Hall/control feedback: the PCB detects RPM out of range; check RPM in diagnostics, Hall sensor, wiring, and ensure there is no blockage in air/smoke. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Vaillant 114196 fan datasheet
- Catalogue reference
- 114196
- Brand
- Vaillant
- Type of part
- Extractor fans
- Units in stock
- 4 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Vaillant VMW 24/282/3-5 Manual (PDF)Document © Vaillant, provided as a technical reference.
