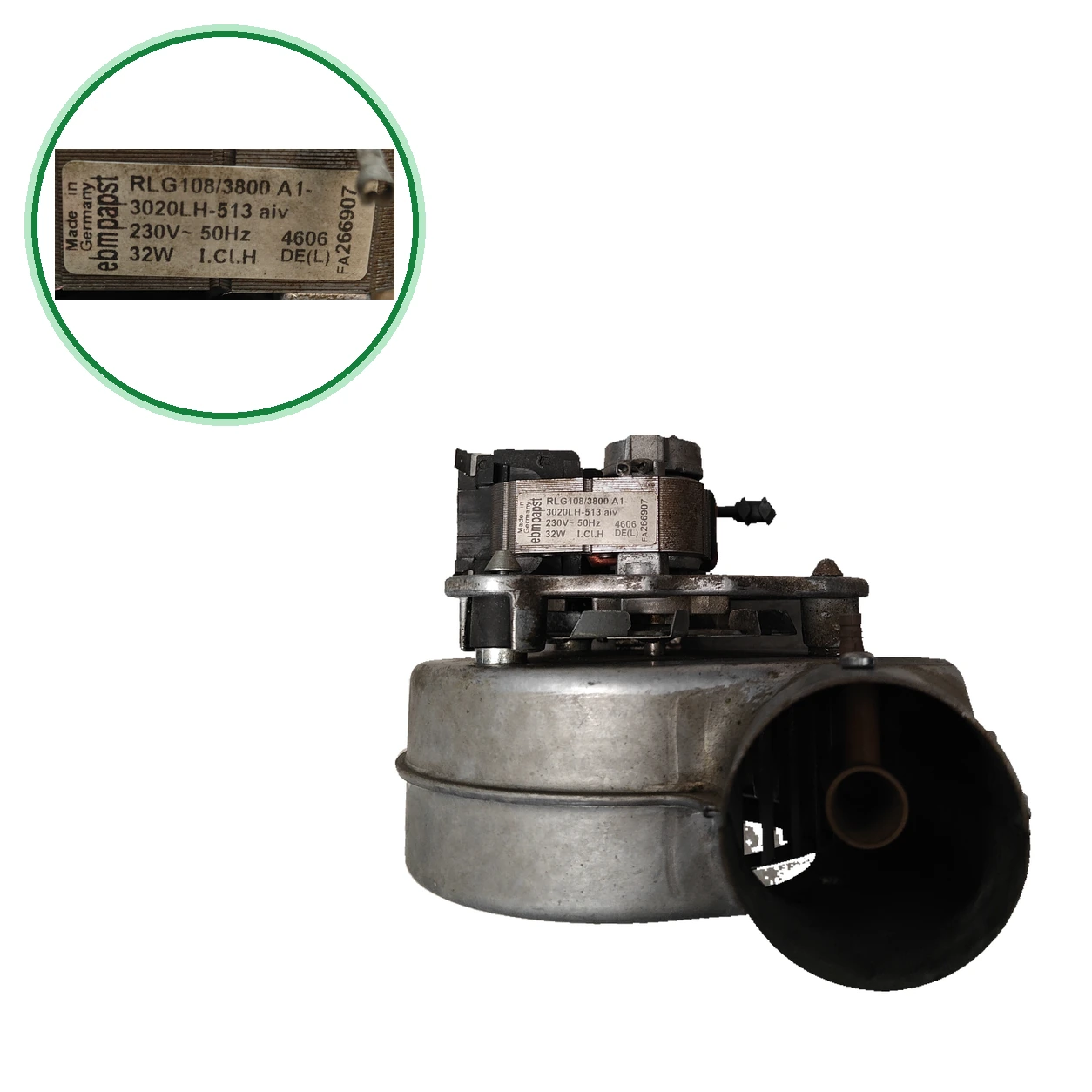

Ebm-papst extractor RLG108/3800 A1-3020LH-513 Aiv for Ferroli DIVATECH F24, used and refurbished.
El extractor es el ventilador que evacúa los humos de la combustión de la caldera. Esta unidad es un motor radial (centrífugo) ebm-papst de 230 V y 32 W; Confirmación registrada: su compatibilidad con la Ferroli DIVATECH F24. Al sustituirlo importa más el sufijo exacto del tipo (A1) que la familia RLG108/3800.
- Type of part
- Extractor fans
- Status
- Refurbished
- internal SKU
- EXT001
- Warranty
- 1 year
VAT included Stock · 1 unit
ebm-papst compatible boilers
Extractor. A proven compatibility: Ferroli DIVATECH F24. There are 3 other models that we are still verifying.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| ebm-papst Ferroli DIVATECH F24 | ebm-papst | Contrasted |
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| ebm-papst Ferroli (modelo sin indicar) | ebm-papst | Unconfirmed |
|---|---|---|
| ebm-papst Ferroli Domiproject F24 | ebm-papst | Unconfirmed |
| ebm-papst Ferroli Domicompact F24 | ebm-papst | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Read the complete type on the motor label: RLG108/3800 A1-3020LH-513 aiv. This unit also includes FA266907 and 4606.
- Check the suffix: A1 is not A2, A3, or C1. They are different revisions of the RLG108/3800.
- No te fíes solo de 39817550 o 36601851: son códigos Ferroli de kit, lo dan como A2 y algunos los usan con otros ventiladores.
- Note the model and the appliance code from the rating plate of your boiler to compare them with the compatibility list.
- Any questions? Send us a photo of the label of your extractor and the data plate of the boiler from Contact.
ebm-papst extractor
- Uniclima internal SKU
- EXT001
- Brand
- ebm-papst
- Type of part
- Extractor fans
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Registered designation
- RLG108/3800 A1-3020LH-513 aiv
- Voltage
- 230 V~
- Frequency
- 50 Hz (transcribed in; without OEM sheet for this exact variant)
- Power
- 32 W (data from; matches exact commercial listing)
- Insulation
- Class H; marked I.CL.H (; class H confirmed for the RLG 97/108 family, not for exact revision)
- Marking
- FA266907 (could not be identified as OEM reference)
- Additional marking
- 4606 (meaning not determined)
- Datos técnicos confirmados (concuerdan con del mismo tipo) — Alimentación
- 230 V · 50 Hz · Confirmado; lo concuerda
- Datos técnicos confirmados (concuerdan con del mismo tipo) — Potencia
- 32 W · Confirmado; lo concuerda
- Datos técnicos confirmados (concuerdan con del mismo tipo) — Aislamiento
- Clase H · Confirmado; lo concuerda
- compatible with reference Ferroli
- DIVATECH F24 · compatible with reference according to the validated inventory.
- Technical sheet: Registered designation
- RLG108/3800 A1-3020LH-513 aiv
- Technical sheet: Voltage
- 230 V~
- Technical sheet: Frequency
- 50 Hz (transcribed in; without OEM sheet for this exact variant)
- Technical sheet: Power
- 32 W (data from; matches exact commercial listing)
- Technical sheet: Insulation
- Class H; marked I.CL.H (; class H confirmed for the RLG 97/108 family, not for exact revision)
- Marcaje
- FA266907 (could not be identified as OEM reference)
- Technical sheet: Additional marking
- 4606 (meaning not determined)
- Related references — Ferroli DIVATECH F24 (list ES-PT 05/07/2006)
- 39817550 / 36601851 · The list registers the kit; it does not demonstrate equivalence with the A1 extractor of this technical sheet.
- Related references — Ferroli DIVATECH D F24 (appliance code 0DAF4YYA)
- 39846780 / 36602070 · Official BOM of variant D; do not transfer to DIVATECH F24 or RLG108 A1.
- Related references — Ferroli DIVAPROJECT F24 (appliance code 0AEF4BWA)
- 39817550 · Official BOM for that model; no proven crossover with extractor A1 from this sheet.
- Pending applications to verify
- FERROLI DIVATECH F24 (compatibilidad indicada; pendiente de confirmación independiente). Aplicación registrada: para su producto 11519 («Extractor Caldera ebm-papst RLG108/3800 A1-3020LH-513 aiv»): DOMIcondens F24. Pendiente de contraste con documentación del fabricante para la referencia y variante física; esta declaración comercial no certifica compatibilidad ni intercambiabilidad.
Before purchasing
- Por confirmar: Ferroli (modelo sin indicar): de del tipo exacto
- Por confirmar: Ferroli Domiproject F24: de con RLG108/3800 (sin sufijo)
- To be confirmed: Ferroli Domicompact F24: ventilador EBM RLG108 con 39817550 (sin sufijo)
- Not compatible or excluded at source: Ferroli DIVATECH D F24 — Its official parts list includes a different fan kit: 39846780 / 36602070
- Do not confuse: RLG108/3800 A2-3020LH-513 — Variant A2 of the same extractor (Ferroli kit 39817550) — Another revision: A1 and A2 are sold as different products.
- Do not confuse: RLG108/3800C1-3020LH/4-C3 akf — Variant C1 of the same extractor — Another revision, with a different suffix.
- Do not confuse: RLG108/3800A3-3020LH-513 amo — Variant A3, announced for the Cointra Supreme 11 VI TS — Another revision: it is not the A1.
- Do not confuse: 39846780 — RLG108/3800 fan for the F24 D; in the breakdown of the DIVATECH D F24 it goes with 36602070 — It is for the D variant; it has not been proven to be the A1.
- describen el 39817550 como RLG108/3800 A2, no A1. No está probado que el kit sea esta pieza.
- citan el tipo exacto; la DIVATECH F24 la confirma. Sin confirmar: la variante A1 con ese modelo y dan el kit 39817550 como A2.
Frequently asked questions about the extractor
How do I identify the extractor RLG108/3800 A1-3020LH-513 aiv?
Lee el tipo completo en la etiqueta del motor: RLG108/3800 A1-3020LH-513 aiv. Esta unidad lleva además FA266907 y 4606. Fíjate en el sufijo: un comercio de recambios vende por separado las revisiones A1, A2, A3 y C1 del RLG108/3800, así que el RLG108/3800 solo no basta.
Is it compatible with my Ferroli DIVATECH F24?
Sí. Confirmación registrada: este extractor para la Ferroli DIVATECH F24. Sin confirmar: ese modelo con la variante A1: más parecido dice solo «per caldaie a gas FERROLI/FER». Si tu caldera es otra, envíanos desde Contacto una foto del extractor y de la placa de la caldera, o llama al 911 17 77 77.
Is it the same as the Ferroli fan kit 39817550 (ex 36601851)?
To be confirmed: No está demostrado. Figura en la lista de piezas de la DIVATECH F24 (05-07-2006), en el despiece oficial de la Divaproject F24 (0AEF4BWA) y en para la DIVATECH F24 . Pero (una lista de recambios Ferroli, ) lo describen como RLG108/3800 A2, no A1.
What do RLG108/3800, FA266907, and 4606 mean?
RLG108/3800 es el modelo de motor radial de ebm-papst, así lo citan; el resto del tipo (A1-3020LH-513 aiv) distingue la revisión. sin confirmación adicional desglosa ese sufijo ni explica FA266907 o 4606: son marcajes de la pieza sin referencia Ferroli identificada, no los trates como códigos de recambio.
What voltage, power, and insulation does it have?
Confirmación registrada: 230 V, 50 Hz, 32 W y clase H para esta unidad; del mismo tipo da los mismos valores. No hay ficha de ebm-papst de esta variante. El kit 39817550 A2 da también 230 V y 32 W (lista Ferroli), pero otros ventiladores con ese código declaran 53 W (Sohon) o 55 W (FIME): el código solo no fija la potencia.
Is it compatible with the Ferroli F24 D, like the DIVAtech D F24?
No lo asumas. el despiece oficial de la DIVAtech D F24 (código de aparato 0DAF4YYA) lleva el kit 39846780 / 36602070, y (Termoclima ) da el 39846780 como ventilador RLG108/3800 de los F24 D. Esta A1 no está confirmada para ellos: compara la etiqueta y el código de aparato.
Who should install it and what precautions should be taken?
A qualified technician: it is a 230 V part of the flue gas exhaust system of a gas boiler. A Polish retailer (DeLaWi) indicates that the installation should only be carried out by professionals qualified in gas and electrical equipment, that the boiler should be disconnected from the power supply beforehand, and that after installing gas line components (valves, seals), a tightness test should be performed.
Which boiler is it compatible with?
Ferroli DIVATECH F24, compatibility validated in the inventory. The identification of the service kit as an exact substitute for variant A1 is a separate issue and is not demonstrated by the consulted lists.
Is FA266907 the OEM reference?
No documentation has been found to support this; it is recorded as a marking of the part.
Is 39817550 / 36601851 the confirmed spare part for this extractor?
To be confirmed: No. Aparece como kit de ventilador para una lista DIVATECH F24 de 2006, pero comercial lo identifica con una variante RLG108 A2; esta ficha declara una A1. No se ha probado que sean equivalentes.
Is 39846780 / 36602070 compatible?
This technical sheet cannot be attributed: the official documentation consulted links it to DIVATECH D F24, a different variant.
What electrical values have been verified?
A commercial listing of the exact type matches 230 V and 32 W. The 50 Hz is transcribed in; the found public OEM documentation does not cover the exact suffix.
