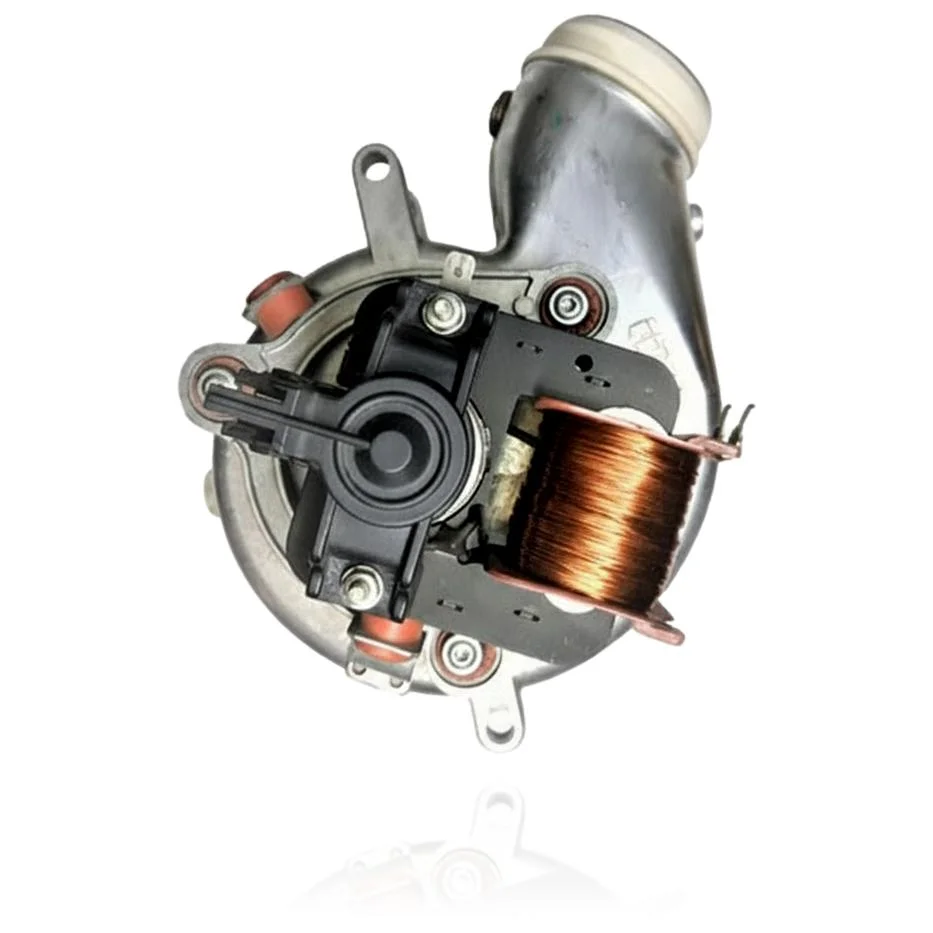

Saunier Duval Isofast F30 H MOD Fime Extractor Fan Ref. S1072500
If your boiler does not ignite or gets blocked due to a flue gas evacuation fault, a technical diagnosis must confirm if you need the Saunier Duval Isofast F30 H MOD Extractor Fan Ref. S1072500. This flue fan evacuates combustion gases and creates the necessary draft for the boiler to start. When it fails, you may receive fault codes such as F2, 02, or 10. It is compatible with models such as Themafast F 30 E, Isofast F 30 E H-MOD, and Isotwin F 30 H-MOD, among others. A technician must confirm through diagnosis if it is necessary to replace it when it malfunctions, preventing proper flue gas evacuation.
- Type of part
- Extractor fans
- Status
- Refurbished
- Catalogue reference
- S1072500
- Warranty
- 1 year
Saunier Duval boilers compatible with reference S1072500
Extractor with reference S1072500. Six confirmed compatibilities: Themafast F 30 E and Themafast F 30 E H-MOD.
Verified compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Saunier Duval Themafast F 30 E | Themafast | Verified |
| Saunier Duval Themafast F 30 E H-MOD | Themafast | Verified |
| Saunier Duval Isofast F 30 E H-MOD | Isofast | Verified |
| Saunier Duval Isofast F 35 E H-MOD | Isofast | Verified |
| Saunier Duval Isotwin F 30 H-MOD | Isotwin | Verified |
| Saunier Duval Themaclassic F AS 30 E | Themaclassic | Verified |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. S1072500 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference S1072500. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis in the extractor S1072500
The extractor evacuates the combustion gases with forced draft. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The extractor does not start and the boiler does not ignite at all.
Cause: The extractor motor may be damaged, preventing the PCB from initiating the ignition.
Measure with a multimeter if current is reaching the connector of the fan; if it is and it doesn't spin, the motor is faulty.
- 02
A strange noise is heard when turning it on, different from the usual one.
Cause: The wear of the bearings or the accumulation of dust in the turbine prevents the proper rotation of the blades.
Clean the turbine of soot or dust before replacing the part; sometimes, that is enough.
- 03
The boiler locks out with a fault warning from the fan when trying to ignite.
Cause: If the extractor does not reach the correct speed, the PCB cuts off the ignition for safety.
Check that the flue pipe is not blocked by nests, ice, or dirt before considering the part as broken.
- 04
The boiler does not ignite and the fan shows no movement.
Cause: A fan that does not start indicates a possible burnt motor or a seized shaft.
With the boiler turned off, try to turn the turbine by hand; if it doesn't move, the problem is with the motor.
Fault codes Saunier Duval that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| F2 | Air deficiency safety (airflow/air intake fault). | The faulty, blocked, or unpowered extractor (fan) does not generate the necessary depression, the pressure switch does not switch, and the boiler enters F2; check voltage to the motor, free rotation/noise, and switching of the air pressure switch. |
| 02 | Airflow safety (extraction/aspiration fault) in ISOFAST ranges F. | Extractor fault prevents correct airflow/smoke flow and activates safety 02; check power supply to the fan, ensure it rotates without friction, check the condition of pressure tubes and pressure switch, and ensure the duct is not obstructed. |
| 10 | Fan fault in ISOFAST ranges F. | Fault in the extractor (motor/wiring/tachometer) detected by the electronics; check power supply and signal return, motor continuity, and ensure the fan is not blocked. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Saunier Duval S1072500 fan datasheet
- Catalogue reference
- S1072500
- Uniclima internal SKU
- EIF30HMOD
- Brand
- Saunier Duval
- Type of part
- Extractor fans
- Units in stock
- 7 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
- The reference S1072500 is the one currently listed in the catalog, without verifying against the part.
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Saunier Duval Isofast F 35 E H-MOD Manual (PDF) Document © Saunier Duval, provided as a technical reference.
Frequently asked questions about the extractor S1072500
Does this fan fit my Saunier Duval Isofast F30 E H-MOD?
Does this fan also work for an Isotwin F30 H-MOD or a Themafast F30 E?
When should this extractor fan of the Isofast F30 H-MOD be replaced?
