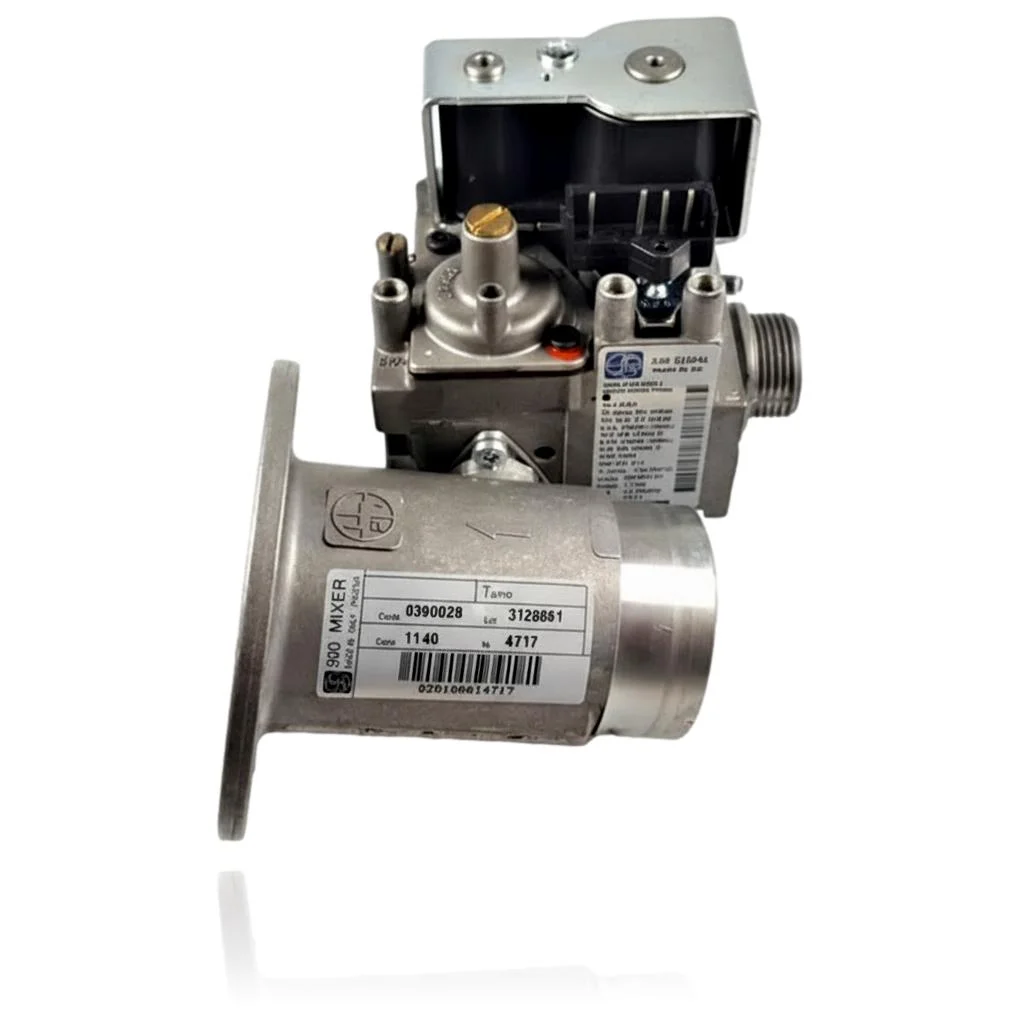

Chaffoteaux Pigma Green 25 Gas Valve Ref. 60001612
The Chaffoteaux Pigma Green 25 gas valve regulates and allows the flow of gas to the burner, following the commands of the control board. When it fails, the boiler does not ignite, there may be flame lockouts, or the gas modulation is incorrect, which can result in fault codes such as 5 01: Absence of flame or 5 02: Flame detected with gas valve closed. This valve is compatible with other models in the Pigma Green range, as well as with Talia Green, Urbia Green, Niagara Green, Alixia Green boilers, and several from Ariston. It is recommended to replace it when the mentioned symptoms or related fault codes occur.
VAT included
Consult via WhatsAppChaffoteaux boilers compatible with reference 60001612
Gas valve with reference 60001612. 20 verified compatibilities: Pigma Green 25 and Pigma Green 30.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Chaffoteaux Pigma Green 25 | Chaffoteaux Pigma Green | Contrasted |
| Chaffoteaux Pigma Green 30 | Chaffoteaux Pigma Green | Contrasted |
| Chaffoteaux Pigma Green 35 | Chaffoteaux Pigma Green | Contrasted |
| Chaffoteaux Talia Green 25 | Chaffoteaux Talia Green | Contrasted |
| Chaffoteaux Talia Green System | Chaffoteaux Talia Green | Contrasted |
| Chaffoteaux Urbia Green 25 | Chaffoteaux Urbia Green | Contrasted |
| Chaffoteaux Urbia Green 30 | Chaffoteaux Urbia Green | Contrasted |
| Chaffoteaux Urbia Green 35 | Chaffoteaux Urbia Green | Contrasted |
| Chaffoteaux Niagara C Green 25 | Chaffoteaux Niagara Green | Contrasted |
| Chaffoteaux Niagara C Green 35 | Chaffoteaux Niagara Green | Contrasted |
| Chaffoteaux Alixia Green 24 | Chaffoteaux Alixia Green | Contrasted |
| Chaffoteaux Alixia Green 29 | Chaffoteaux Alixia Green | Contrasted |
| Chaffoteaux Genus Premium Evo 24 | Ariston Genus Premium Evo | Contrasted |
| Chaffoteaux Genus Premium Evo 30 | Ariston Genus Premium Evo | Contrasted |
| Chaffoteaux Genus Premium Evo 35 | Ariston Genus Premium Evo | Contrasted |
| Chaffoteaux Clas Premium Evo 24 | Ariston Clas Premium Evo | Contrasted |
| Chaffoteaux Clas Premium Evo 30 | Ariston Clas Premium Evo | Contrasted |
| Chaffoteaux Clas B Premium Evo 35 | Ariston Clas Premium Evo | Contrasted |
| Chaffoteaux Egis Premium 24 | Ariston/Chaffoteaux Egis | Contrasted |
| Chaffoteaux Egis Premium 30 | Ariston/Chaffoteaux Egis | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the part number 60001612 is the one for your boiler.
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 60001612. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the gas valve 60001612 resolves
The gas valve regulates and modulates the gas flow to the burner. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler tries to ignite, you can hear the spark, but the burner does not catch fire.
Cause: The gas valve does not open or does not allow enough gas to pass for the flame to form.
Check that the main gas valve is fully open and that other gas appliances in the house are functioning normally.
- 02
The flame appears unstable, yellowish, or goes out by itself a few seconds after being ignited.
Cause: The gas valve does not regulate the gas flow properly, and the air-gas mixture is unbalanced.
Look at the color of the flame through the sight glass and note when it changes; take it noted if you consult with an installer.
- 03
The boiler always operates at maximum power, without modulating, even when you request little heat.
Cause: The modulation solenoid of the valve gets stuck in one position and does not adjust the flow.
Check the display to see if the modulation fault matches a specific fault code before replacing the gas valve.
- 04
There is a slight smell of gas near the boiler, even if it is weak.
Cause: A gasket or the body of the gas valve is losing tightness and allowing a small amount of gas to escape.
In case of any gas smell, turn off the main valve and ventilate; have a technician confirm the source before purchasing the part.
- 05
A small thud or dry click is heard when starting, louder than usual.
Cause: The valve opening mechanism is worn out and the closing disc hits when moving.
Compare the sound with that of a normal start to be able to describe it well if you need technical assistance.
Fault codes Chaffoteaux that this part resolves
| Code | Fault | Diagnosis and solution |
|---|---|---|
| 5 01 | Flame absence (ionisation not detected during ignition). | The gas valve may not open/modulate (coil fatigued, shaft/shutter seized), preventing gas from reaching the burner and thus ionisation. Check coil power supply during ignition attempt and measure pressures at valve/gauge ports; if it does not open with correct voltage, the valve is faulty. |
| 5 02 | Flame detected with gas valve closed. | If the gas valve remains partially open or loses tightness when the electronics close it, combustion persists and the electrode detects a flame "with the valve closed." Check that there is no voltage in the coil and, even so, there is pressure/gauge in the manifold; perform a tightness and closure test of the valve. |
| 5 P1 | First ignition attempt failed. | A gas block/valve that does not open on the first attempt (coil or mechanism seized) prevents gas from reaching and causes an immediate ignition fault. Check the ignition sequence: presence of voltage at the valve during 5P1 and absence of flow/pressure at the outlet; if there is correct control and it does not open, replace the valve. |
| 5 P2 | Second ignition attempt failed. | If the gas valve fails intermittently or continues not to open after the first attempt, the second attempt also does not provide sufficient gas and 5P2 is recorded. Confirm control voltage and measure pressure at the valve outlet during the attempt; if there is no flow with control present, the valve is the cause. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the gas valve Chaffoteaux 60001612
- Catalogue reference
- 60001612
- Brand
- Chaffoteaux
- Type of part
- Gas valves
- Units in stock
- 6 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Data read on the part and in the manufacturer's documentation
What we have not been able to verify does not appear here.
- Code
- 0390028
- Lot
- 3128861
- Series / N
- 1140 / 4717
- The data Code 0390028, Batch 3128861, and Series 1140/4717 are manufacturing traceability; they do not identify the manufacturer nor allow for equivalences to be searched.
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Chaffoteaux Pigma Green 25 Manual (PDF)Document © Chaffoteaux, provided as a technical reference.
Frequently asked questions about the gas valve 60001612
Is this gas valve from Chaffoteaux suitable for a Pigma Green 25?
Does this valve also work for an Alixia Green IN 24 EU?
What data from the label is known for this valve 60001612?
