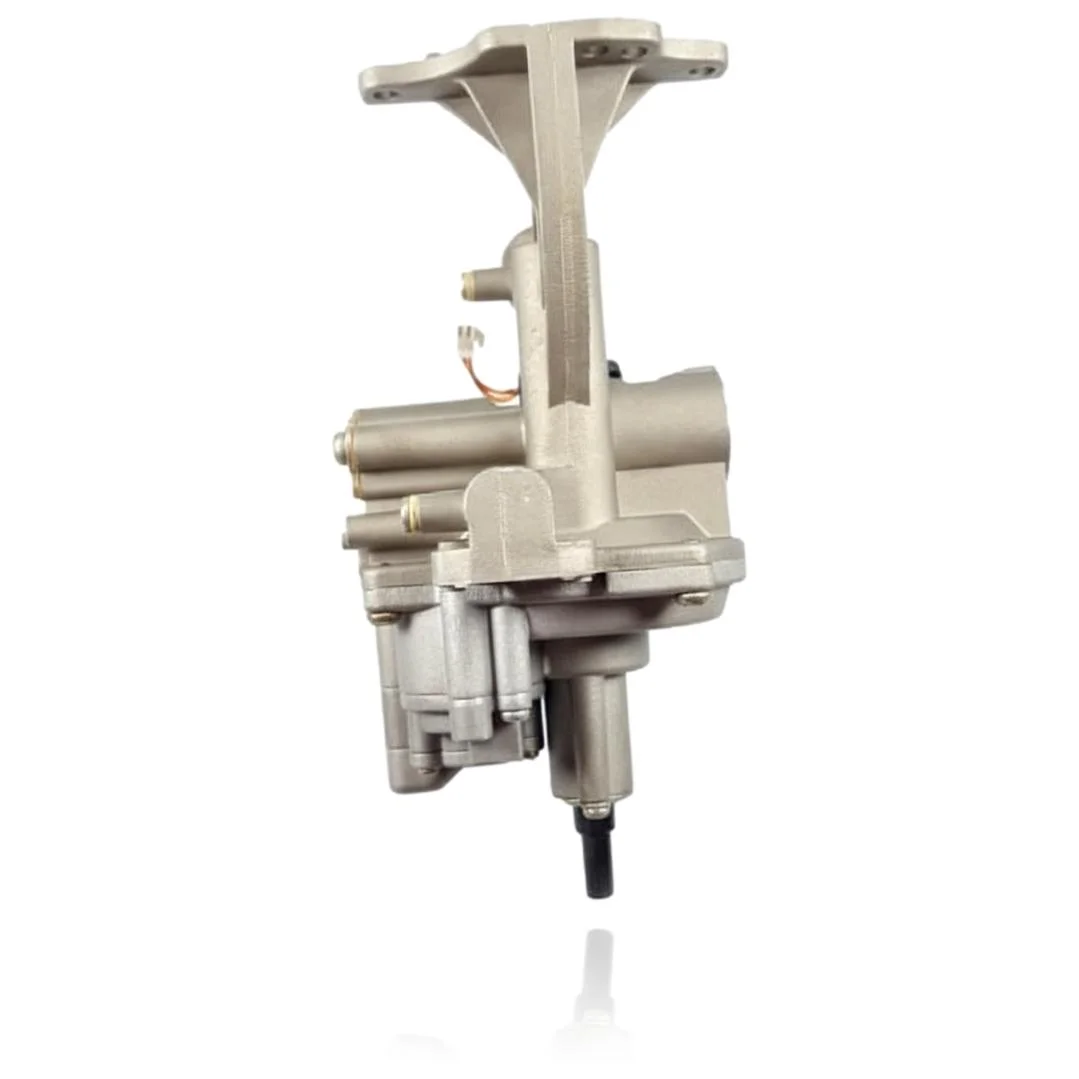

Fagor Gas Valve FE 11DL N Ref. CA1709110
The gas valve Fagor FE 11DL N, reference CA1709110, regulates and allows the flow of gas to the burner according to the commands from the control board. When it fails, the boiler may not ignite, experience flame lockouts, or have modulation issues. This can manifest with faults such as F1, F6, or F10. This valve is compatible with Fagor boilers from the FE 11DL N range, among others. It is recommended to replace it when these symptoms or associated faults occur.
VAT included
Consult via WhatsAppFagor boilers compatible with reference CA1709110
Gas valve with reference CA1709110. A proven compatibility: FE 11DL N.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Fagor FE 11DL N | Fagor | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. CA1709110 is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference CA1709110. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the gas valve CA1709110 resolves
The gas valve regulates and modulates the gas flow to the burner. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler does not ignite, or it tries and fails several times in a row.
Cause: The gas valve does not allow gas to pass to the burner when the control unit gives the ignition command.
Check that the main shut-off valve is fully open and that there is no air in the system before blaming the gas valve.
- 02
A buzzing sound is heard in the area of the valve when trying to ignite, but the boiler does not turn on.
Cause: The coil that opens the valve is failing and cannot move the internal mechanism with enough force.
With the boiler turned off, gently move the electrical connector of the valve to rule out a loose connection before replacing it.
- 03
The flame goes out by itself after a few seconds of operation.
Cause: The gas valve does not keep the gas flow open, and the unit cuts off the supply as it does not detect a stable flame.
Check the ionization or detection electrode, because the same fault warning can originate from there and not from the valve.
- 04
The gas flow is irregular, with the flame varying in intensity without the user touching anything.
Cause: The mechanism of the gas valve does not properly regulate the continuous flow of gas to the burner.
Check that the gas inlet filter of the boiler is not dirty before replacing the gas valve.
Fault codes for Fagor that this part resolves.
| Code | Fault | Diagnosis and solution |
|---|---|---|
| F1 | Lockout due to ignition fault (flame not detected). | A faulty or improperly adjusted gas valve prevents the correct flow/mixture and the flame does not establish; check gas pressure and regulation (minimum) and ensure the valve receives control/power during the ignition attempt. |
| F6 | Flame detection when the burner should be off. | Incomplete closure of the gas valve allows residual gas to pass and the flame does not extinguish; check the valve's tightness/closure and coil continuity, observing if the flame persists when the control board is turned off. |
| F10 | Fault in the control/closure of the gas valve. | Mechanical or electrical fault of the valve (or its control circuit) prevents proper opening/closing; check voltage at valve connector during demand, coil continuity, and opening/closing response with a pressure gauge on the ramp. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the gas valve Fagor CA1709110
- Catalogue reference
- CA1709110
- Brand
- Fagor
- Type of part
- Gas valves
- Units in stock
- 3 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
