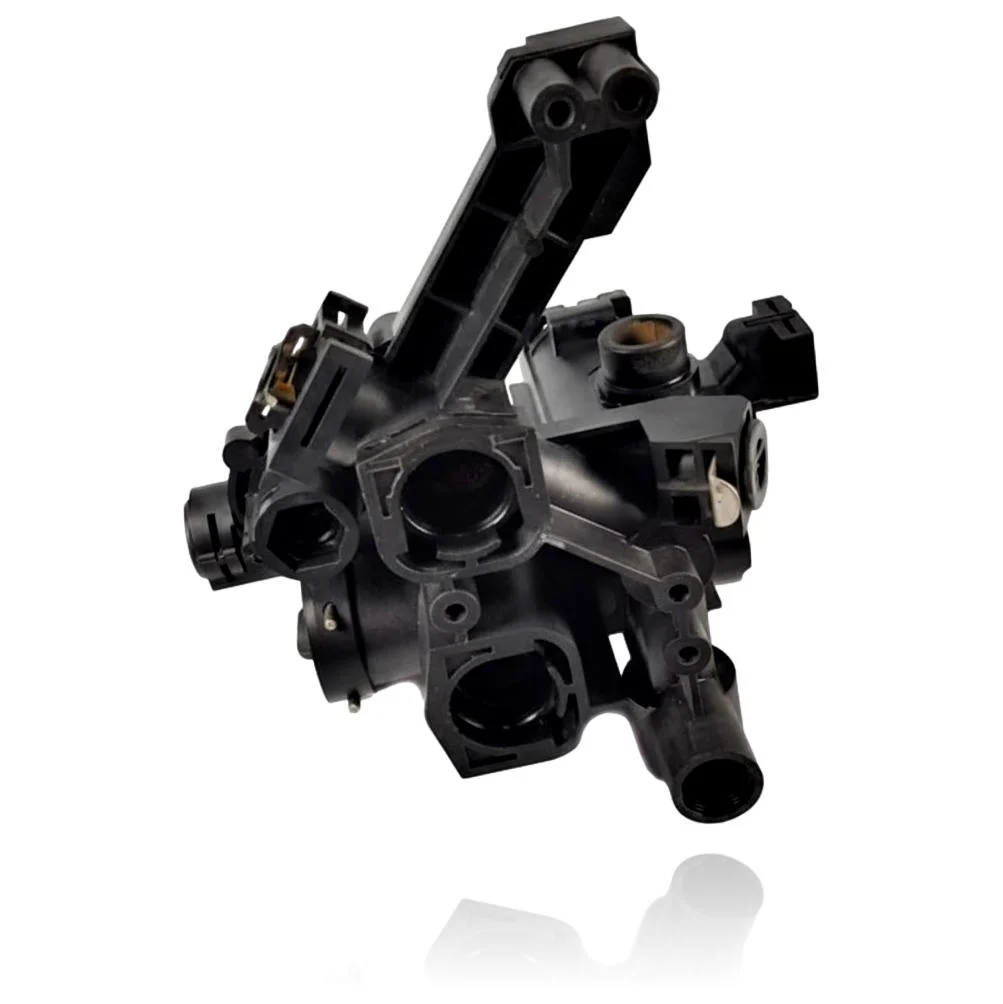

Chaffoteaux Alixia 24 FF NG Return Hydraulic Group Ref. 60000845 3310059

Chaffoteaux boilers compatible with reference 60000845

Hydraulic group with reference 60000845. 24 verified compatibilities: Alixia 24 CF and Alixia 24 FF.

Verified compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if the part number 60000845 is the one for your boiler.

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference 60000845. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms that require diagnosis in the hydraulic group 60000845

The hydraulic group includes the valve, the by-pass, and the water connections. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  When opening the hot water tap, the boiler does not switch to domestic hot water mode or takes several seconds to do so.

  Cause: The flow sensor of the hydraulic group does not detect the passage of water and the PCB does not command the switch to domestic hot water.

  Make sure that the flow at the tap reaches the minimum required by the boiler before considering the hydraulic group defective.

• 02

  There is a constant drip below the boiler, in the area of the inlet and return connections.

  Cause: The O-rings in the hydraulic group lose elasticity over time and stop sealing.

  Dry the area well, leave the boiler running for a while, and locate the exact point of the leak before replacing the assembly.

• 03

  There is a knocking or vibration in the pipe when opening or closing the hot water tap.

  Cause: The internal switching mechanism of the hydraulic group wears out and stops closing cleanly.

  First, rule out a water hammer from the installation by slowly opening and closing other taps in the house.

• 04

  The heating works normally, but the hot water comes out intermittently or at a lower temperature than usual.

  Cause: The internal passage of the hydraulic group is becoming obstructed or the mixing between circuits is no longer correct.

  Check the mains pressure and the cold water inlet filter before assuming that the problem is in the hydraulic group.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Hydraulic group data Chaffoteaux 60000845

Catalogue reference

60000845

Uniclima internal SKU

GHRA24FF

Brand

Chaffoteaux

Type of part

Hydraulic units

Units in stock

7 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days
