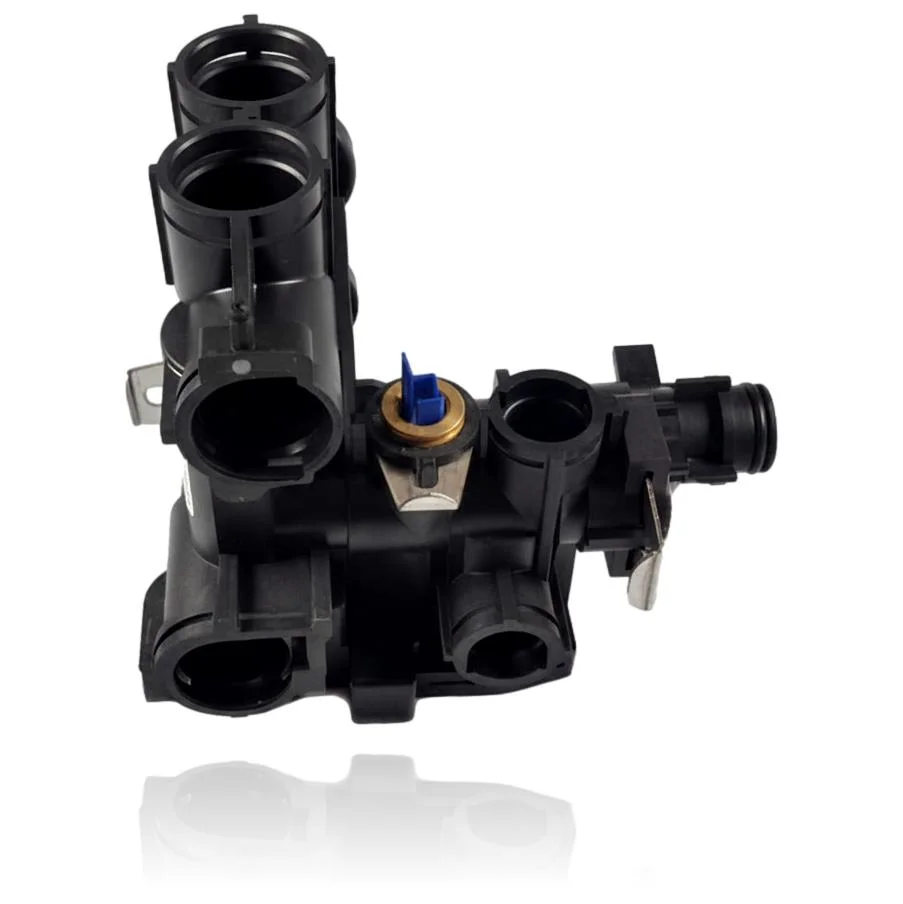

Chaffoteaux Pigma Green 25 FF NG Hydraulic Group Ref. 60002319
Chaffoteaux Pigma Green includes the Hydraulic Group Chaffoteaux Pigma Green 25 FF NG Ref. 60002319, a component that conducts and distributes water between the boiler circuits. When this part fails, you may notice leaks, loss of pressure, or issues with domestic hot water production. It is compatible with models from the Pigma Green range, such as the Pigma Green 25 FF, among others. It is recommended to replace the hydraulic group upon detecting these symptoms to avoid further damage to the system.
VAT included
Consult via WhatsAppChaffoteaux boilers compatible with reference 60002319
Hydraulic group with reference 60002319. A proven compatibility: Pigma Green 25 FF.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Chaffoteaux Pigma Green 25 FF | Pigma Green | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. 60002319 is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 60002319. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the hydraulic group 60002319 resolves.
The hydraulic group includes the valve, the by-pass, and the water connections. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler gradually loses pressure and the circuit needs to be refilled every so often.
Cause: A joint or fitting of the hydraulic group is losing tightness and water is leaking in small amounts, sometimes without forming a puddle.
Visually inspect the hydraulic group body and the fittings with dry paper to locate any moisture before handling anything.
- 02
Water is seen dripping or a damp ring is visible under the boiler, in the area of the inlet pipes.
Cause: The hydraulic group body has a gasket or the plastic itself is cracked due to pressure and the passage of time.
Locate the exact point of the leak with the cold boiler and then with the hot boiler, because some leaks only appear when hot.
- 03
The domestic hot water comes out with a very low flow or in bursts, even though the tap is fully open.
Cause: The water flow within the hydraulic group is partially obstructed, usually due to limescale or debris from the installation.
First, check the flow rate at a tap near the boiler and see if the cold water inlet filter is dirty.
- 04
There is no domestic hot water at all, although the heating does work.
Cause: The domestic hot water circuit within the hydraulic group is blocked or the flow sensor does not detect consumption.
Open and close the tap several times and check if the boiler reacts with any sound or tap icon on the display.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Chaffoteaux hydraulic group 60002319
- Catalogue reference
- 60002319
- Brand
- Chaffoteaux
- Type of part
- Hydraulic units
- Units in stock
- 6 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Frequently asked questions about the hydraulic group 60002319
Is this hydraulic group Chaffoteaux Pigma Green 25 FF NG Ref. 60002319 compatible with other Chaffoteaux boiler models?
How many boiler models are compatible with the Chaffoteaux Pigma Green 25 FF NG hydraulic group?
What is the reference for the Chaffoteaux Pigma Green 25 FF hydraulic group?
Are there documented fault codes for the Chaffoteaux Pigma Green 25 FF NG hydraulic group?
Can I use the Chaffoteaux Pigma Green 25 FF NG hydraulic group in a boiler from another range?
