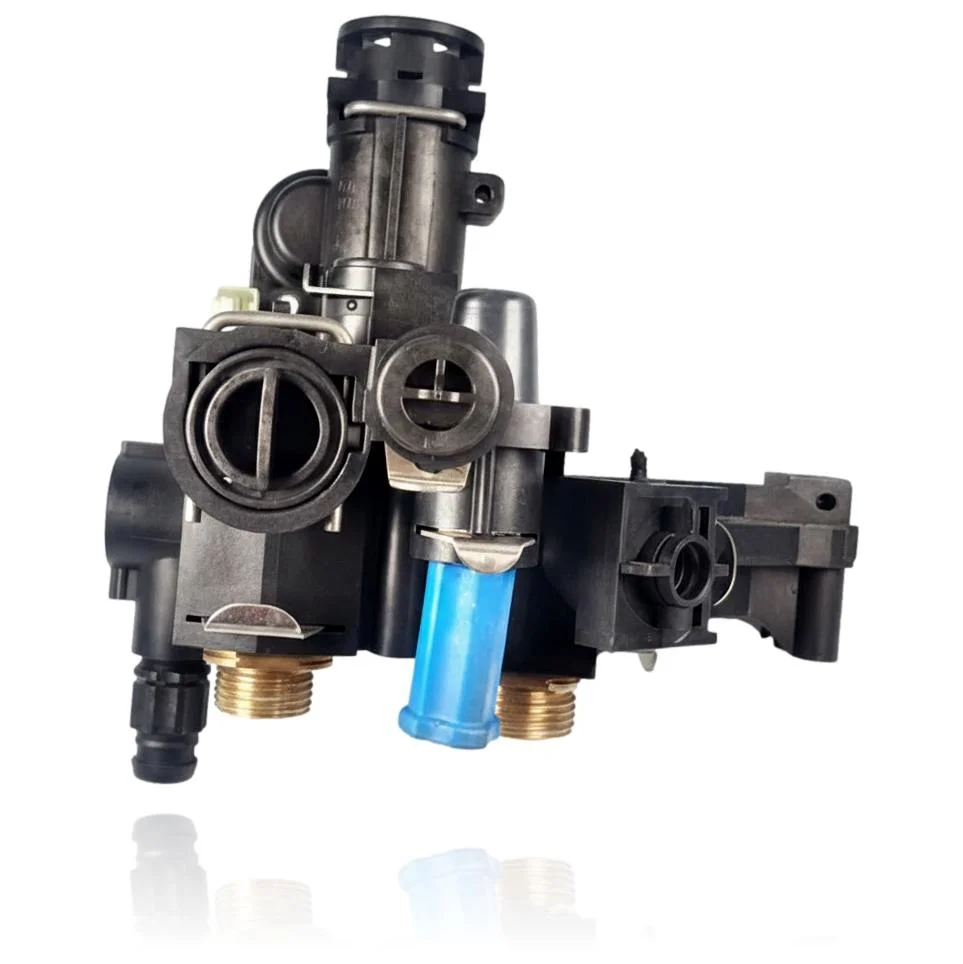

Chaffoteaux Pigma Green 25 EU Hydraulic Body Ref. 60001952
The Chaffoteaux boilers from the Pigma Green range include the Chaffoteaux Pigma Green 25 EU Hydraulic Body, a component responsible for conducting and distributing water between the circuits. When this part has faults, you may notice leaks, pressure loss, or issues with hot water production. This hydraulic body is compatible with the Pigma Green 25 and Pigma Green 25 EU models. It is recommended to replace it when these symptoms are detected, as its malfunction can affect the boiler's performance.
VAT included
Consult via WhatsAppChaffoteaux boilers compatible with reference 60001952
Hydraulic group with reference 60001952. Two confirmed compatibilities: Pigma Green 25 and Pigma Green 25 EU.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Chaffoteaux Pigma Green 25 | Chaffoteaux | Contrasted |
| Chaffoteaux Pigma Green 25 EU | Chaffoteaux | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the part number 60001952 is the one for your boiler.
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 60001952. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the hydraulic group 60001952 resolves.
The hydraulic group includes the valve, the by-pass, and the water connections. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
A water ring or drops appear under the boiler, near the fittings.
Cause: The gaskets or the brass threading of the hydraulic body lose tightness with use and temperature changes.
Dry the area well and check both cold and hot to locate the exact fitting that is leaking.
- 02
The boiler gradually loses pressure and the circuit needs to be refilled every few days.
Cause: An internal leak in the hydraulic body, even if minimal, empties the circuit without any water being visible on the ground.
First, rule out the safety valve and the expansion vessel, which are the other two typical causes of slow pressure loss.
- 03
Are there still bubbles or air noise in the radiators even after bleeding them several times?
Cause: The integrated bleeder in the hydraulic body is stuck or does not close properly.
Manually bleed several times in a row and check if clean water comes out without air.
- 04
There is visible rust or scale buildup around the brass connections.
Cause: The continuous flow of hard water promotes corrosion in the threaded connections of the hydraulic body.
Clean the area and check if the ring reappears in 24-48 hours.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Hydraulic group data Chaffoteaux 60001952
- Catalogue reference
- 60001952
- Brand
- Chaffoteaux
- Type of part
- Hydraulic units
- Units in stock
- 3 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Chaffoteaux Pigma Green 25 Manual (PDF)Document © Chaffoteaux, provided as a technical reference.
Frequently asked questions about the hydraulic group 60001952
Is this hydraulic body Chaffoteaux Pigma Green 25 EU Ref. 60001952 compatible with other models?
What fault does this hydraulic body resolve?
Does this hydraulic body work for the Chaffoteaux Pigma Green 25 EU boiler?
What is the reference for this hydraulic body?
How many models are compatible with this hydraulic body?
Are there documented fault codes for this product?
