Cointra Excellent Low NOx Hydraulic Connection

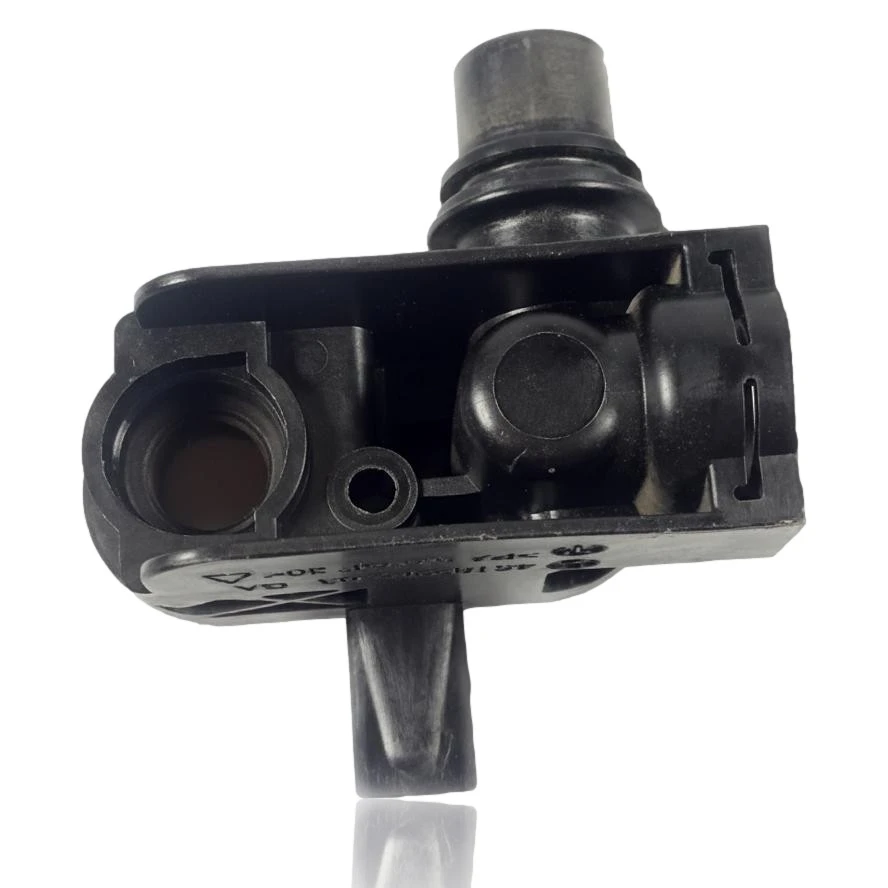

The Hydraulic Connection Cointra Excellent Low NOx is a hydraulic component of the boiler that is responsible for directing and distributing water among the different circuits. If it has faults, you may notice leaks, loss of pressure, or issues with domestic hot water production. This part is compatible with several models in the Excellent range, including the D Micro LOW NOx – 24 E and 32 E, as well as the Micro Low NOx – 24 E and 32 E. It is advisable to replace it when you observe symptoms of malfunction or water leaks.
VAT included
Consult via WhatsAppCompatible Cointra boilers
Hydraulic group. Four verified compatibilities: D Micro LOW NOx – 24 E and D Micro LOW NOx – 32 E.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Cointra D Micro LOW NOx – 24 E | Excellent | Contrasted |
| Cointra D Micro LOW NOx – 32 E | Excellent | Contrasted |
| Cointra Micro Low NOx – 24 E | Excellent | Contrasted |
| Cointra Micro Low NOx – 32 E | Excellent | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference —. If it is not visible, do not identify the part by its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the hydraulic group resolves
The hydraulic group includes the valve, the by-pass, and the water connections. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
Water is leaking right at the joint of the black plastic, more at the beginning of the heating cycle.
Cause: The O-ring of that connection has hardened or cracked due to heat and no longer seals properly.
Gently tighten the clamp or fitting of that joint and check if the leak stops before replacing the entire part.
- 02
There is lime or dry white residue around the fitting, although it is not currently leaking.
Cause: There have been intermittent leaks in the past that have dried up and left limescale marks at the connection.
Clean the area and leave the boiler running for a while to see if humidity reappears before purchasing the part.
- 03
The pressure in the circuit gradually decreases, and the system needs to be refilled every few weeks.
Cause: A small and constant leak in this connection empties the pressure without a large puddle being noticeable.
Check the entire area with dry paper or a tissue after a couple of hours of operation to locate the exact point of the leak.
- 04
When moving or handling the tube near the part, it feels loose or wobbly.
Cause: The plastic of the connection has fatigued with the cycles of heat and cold and has lost firmness in the fitting.
Check that the clamps are properly tightened before assuming that the part is damaged.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Hydraulic group data sheet Cointra
- Brand
- Cointra
- Type of part
- Hydraulic units
- Units in stock
- 3 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Frequently asked questions about the hydraulic group
Does this connection work for an Excellent Micro Low NOx 32 E?
When should this hydraulic connection of the Excellent D Micro be changed?
Does this black plastic connection have CE marking?
