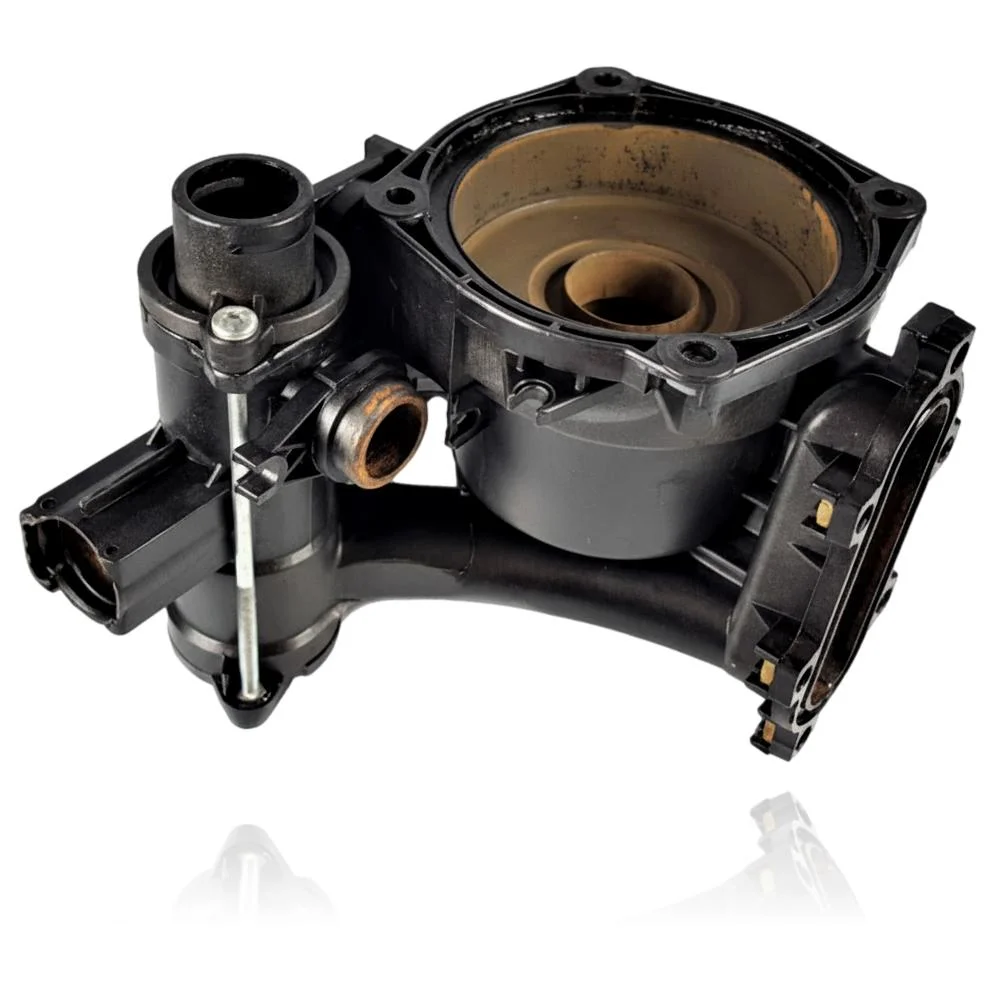

Hydraulic Group Circulating Pump Fagor FE 24AE 1N
The hydraulic group of the Fagor FE 24AE 1N boiler is responsible for directing and distributing water among the circuits. When this part has faults, you may notice leaks, loss of pressure, or difficulties in producing hot water. It is compatible with the FE-24AE and FE-24AE/1N models, among others. It is advisable to replace it if you observe any of these symptoms to avoid larger issues.
VAT included
Consult via WhatsAppCompatible Fagor boilers
Hydraulic group. Two confirmed compatibilities: FE-24AE and FE-24AE/1N.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Fagor FE-24AE | FE-24AE | Contrasted |
| Fagor FE-24AE/1N | FE-24AE/1N | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference —. If it is not visible, do not identify the part by its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the hydraulic group resolves
The hydraulic group includes the valve, the by-pass, and the water connections. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler does not ignite the burner even though there is a demand for heating or domestic hot water.
Cause: The sensor in the hydraulic group does not detect water circulation, and the control board does not allow the gas to pass for safety reasons.
Make sure that the inlet tap is fully open and that the water filter is not blocked before replacing the group.
- 02
Water is intermittently leaking from the area of the red bleed valve.
Cause: The automatic bleeder does not close properly after releasing the air and allows water to pass through with it.
Check that the bleed cap is in the correct position and not damaged before replacing the entire assembly.
- 03
The boiler is showing a fault code related to the sensor or the electrical connector of the hydraulic group.
Cause: The connector is making a poor connection or the internal wiring has degraded due to the heat from the boiler.
Turn off the power, disconnect and reconnect the connector, and check for any corrosion on the pins before replacing the part.
- 04
The circuit gradually loses pressure without any visible leaks outside the boiler.
Cause: An internal seal of the hydraulic group loses tightness with use, and water leaks inside.
Dry the area around the group, leave the boiler off for a few hours, and check if moisture reappears before replacing it.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Fagor hydraulic group datasheet
- Brand
- Fagor
- Type of part
- Hydraulic units
- Units in stock
- 5 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Frequently asked questions about the hydraulic group
Is this hydraulic group compatible with my Fagor FE-24AE boiler?
Is the circular relief on the piece the reference for the hydraulic group of the FE-24AE?
What does the hydraulic group of the Fagor FE-24AE/1N physically look like?
