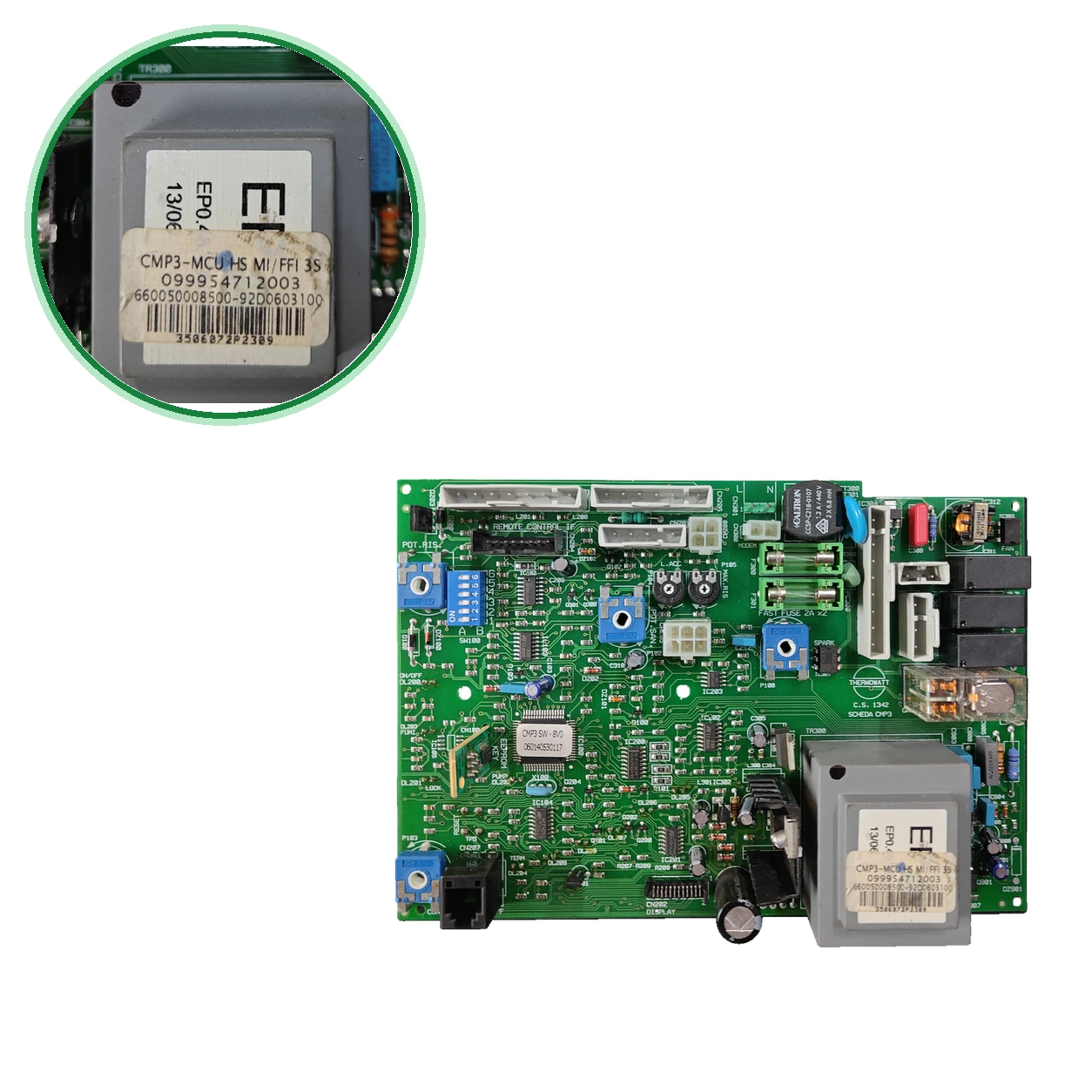

Thermowatt CMP3-MCU HS MI/FFI 3S · 099954712003 for Ariston Microgenus Plus 24 MFFI

Aplicación a la variante exacta pendiente de confirmar. Placa de control de las Ariston Microgenus y de su familia; la clasifica como de control y de encendido. pide completar el diagnóstico de la caldera antes de cambiarla.

Type of part: Ariston
Status: Refurbished
Catalogue reference: 65101732
Warranty: 1 year

VAT included Stock · 3 units

Compatibility

Ariston boilers compatible with reference 65101732

Ariston con referencia 65101732. 0 compatibilidades contrastadas. Hay otros 9 modelos que todavía estamos comprobando.

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Ariston Ecoflam Linda+ 24 II and 28 II CPR	Ariston	Unconfirmed
Ariston Microgenus II 31 MFFI	Ariston	Unconfirmed
Ariston Microgenus Plus 24 MFFI	Ariston	Unconfirmed
Ariston Microgenus Plus 28 MFFI and Plus 31 MFFI	Ariston	Unconfirmed
Ariston Microgenus Plus 24 MI and Plus 28 MI	Ariston	Unconfirmed
Ariston Microgenus 23 MFFI and 27 MFFI	Ariston	Unconfirmed
Ariston Microgenus II 24 MFFI and 28 MFFI	Ariston	Unconfirmed
Ariston Mini, Mini II, Minicodex, Selecta, New Rugiada and New Ermetica	Ariston	Unconfirmed
Ariston Alya and Alya IN, 24 FF and 28 FF	Ariston	Unconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

Guide

How to check if ref. 65101732 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

Look for the THERMOWATT plate, SCHEDA CMP3 and CMP3-MCU HS MI/FFI 3S. The circuit code is 099954712003.
Compare also 060140530117, 660050008500 - 92D0603100, 3506072P2309 and C.S. 1342, marked on the label.
Check that your boiler is a Microgenus Plus 24 MFFI or is among the compatible boilers. The Ariston reference is 65101732; the spare parts list from 2003 (copy) includes 65100708.
Do not confuse it with the CMP3 display board (65100709). The 65103422 (SCHEDA CMP3-MCU MI/FFI/R HE) is another designation from the official catalog of 2017 and we do not consider it equivalent.
coinciden, llámanos al 911 17 77 77 con el modelo de tu caldera.

Technical data

Ariston 65101732

Catalogue reference: 65101732
Uniclima internal SKU: PLC279
Brand: Ariston
Type of part: Ariston
Units in stock: 3 units
Status: Refurbished
Warranty: 1 year
Shipping: Delivery time shown at checkout
Return: 14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Inventory — PCB Marking: THERMOWATT · C.S. 1342 · CMP3
Inventory — Application indicated in inventory: Ariston Microgenus Plus 24 MFFI (application indicated on the bag)
Inventory — Marked code: CMP3 SW - 8V0; 060140530117; 660050008500 - 92D0603100; 3506072P2309
Datos adicionales — Código EAN: 5414849094536 ·,
Identification — Marked designation: CMP3-MCU HS MI/FFI 3S
Identification — Marked code: CMP3 SW - 8V0
Identification — Marked code: 060140530117
Identification — Marked code: 099954712003
Identification — Marked code: 660050008500 - 92D0603100
Identification — Marked code: 3506072P2309
Identification — Marked code: C.S. 1342
Identification — Marked code: CMP3
Inventory data — PCB marking: THERMOWATT · C.S. 1342 · CMP3
Inventory data — Application indicated in inventory: Ariston Microgenus Plus 24 MFFI (application indicated on the bag)
Inventory data — Marked code: CMP3 SW - 8V0; 060140530117; 660050008500 - 92D0603100; 3506072P2309
Pending applications to verify: Ariston Microgenus Plus 24 MFFI — aplicación indicada en bolsa; pendiente de confirmar para la variante exacta. Declaraciones de (documentación 23/10/2026; revisión 24/10/2026), pendientes de confirmación por fabricante. Comprobar referencia, revisión y número de serie antes de usar: MICROGENUS 23 MFFI · MICROGENUS 23 MI · MICROGENUS 27 MFFI · MICROGENUS 27 MI · MICROGENUS II 24 MFFI · MICROGENUS II 24 MI · MICROGENUS II 28 MFFI · MICROGENUS II 28 MI · MICROGENUS PLUS 24 MI · MICROGENUS PLUS 28 MFFI · MICROGENUS PLUS 28 MI · MICROGENUS PLUS 31 MFFI · MINI 23 MCSI · MINI 23 MI · MINI 27 MCSI · MINI 27 MI · MINI II 24 MCSI · MINI II 24 MI · MINI II 28 MCSI · MINI II 28 MI · MINI II 31 MCSI · MINICODEX 23 MFFI · MINICODEX 23 MI · MINICODEX 27 MFFI · MINICODEX 27 MI · NEW ERMETICA 24 MFFI

Before purchasing

cita como causas de fallo de la placa la humedad, las subidas de tensión de la red y el rayo.
To be confirmed: Ecoflam Linda+ 24 II y 28 II CPR — 2 webs con la potencia; otras 2 la dan para Linda
To be confirmed: Ariston Microgenus II 31 MFFI — 2 webs:; una tercera con título dudoso
Do not confuse: 65100709 — CMP 3 DISPLAY BOARD: screen (official catalog 2017, pos. 0616) — It is not the control board.
Do not confuse: 65103422 — CMP3-MCU MI/FFI/R HE PCB, another designation in the official catalog 2017 — We do not consider it equivalent.
To be confirmed: escribe 09954712003 y 660050008500-92D1106100; tu etiqueta, 099954712003 y 660050008500 - 92D0603100. No los damos por iguales.
65101732: catálogo oficial de Ariston 2017 y 8 webs; Plus 24 MFFI, 5 webs; 099954712003, 1 web.: marca Ariston (nuestro inventario: THERMOWATT). (060140530117): Micro genios 23 MFF I, modelo MI/FFI 35. y no mencionan la Plus 24 MFFI.
Aplicaciones registradas pendientes de confirmar por modelo, variante o programación: Ariston Microgenus Plus 24 MFFI; Ariston Microgenus Plus 28 MFFI y Plus 31 MFFI; Ariston Microgenus Plus 24 MI y Plus 28 MI; Ariston Microgenus 23 MFFI y 27 MFFI; Ariston Microgenus II 24 MFFI y 28 MFFI; Ariston Mini, Mini II, Minicodex, Selecta, New Rugiada y New Ermetica; Alya y Alya IN, 24 FF y 28 FF.

Frequently Asked Questions

Frequently asked questions: ariston 65101732

Where is the code on this PCB and what does each marking mean?

En el circuito se lee THERMOWATT, SCHEDA CMP3 y CMP3-MCU HS MI/FFI 3S. El código del circuito es 099954712003; la referencia Ariston es 65101732, que el catálogo oficial de Ariston (2017) lista como SCHEDA CMP3-MCU HS MI/MFFI 3S. de segunda mano une 060140530117 a la CMP3-MCU; sin confirmación adicional explica 660050008500 - 92D0603100, 3506072P2309, C.S. 1342 ni CMP3 SW - 8V0.

Is it compatible with my Ariston Microgenus Plus 24 MFFI?

La compatibilidad de esta variante está pendiente de confirmar. registrada: para la Microgenus Plus 24 MFFI. También la dan para esa caldera, con la 65101732, y otra web.

What previous codes does 65101732 have and which one is listed in 2003?

To be confirmed: La lista de recambios de la Plus 24 MFFI (ed. 1, agosto de 2003; copia en un sitio de aficionados) trae la placa como 95 · 65100708 «Scheda CMP3 MI/FFI»; como anterior a la 65101732 («EX 65100708»), que el catálogo oficial de 2017 lista en la pos. 0615. Otros anteriores: 996163 (6 webs; otras 2 lo listan), 998947 (4 webs; otra lo lista), 998946 y 65100871 (2 webs cada uno; otra los lista).

Does it also work for other Microgenus or other boilers?

La compatibilidad de esta variante está pendiente de confirmar. Según webs de recambios, sí para las Plus 28 y 31 MFFI (4 webs), Plus 24 y 28 MI (3), Microgenus 23 MFFI (9) y 27 MFFI (8), Microgenus II 24 MFFI (5) y 28 MFFI (6) y Alya (3).

What is the difference between 65101732, 65100709, and 65103422?

65101732 is the CMP3-MCU HS MI/MFFI 3S control board (pos. 0615 of the official Ariston 2017 catalog). 65100709 is the CMP 3 DISPLAY BOARD (pos. 0616), the screen. 65103422, CMP3-MCU MI/FFI/R HE BOARD, is another designation from the official 2017 catalog: we do not consider it equivalent.

Who should install it and what should be checked before replacing it?

Un técnico cualificado. pide un instalador Gas Safe (registro británico) para la carcasa y los componentes de gas, completar antes el diagnóstico de la caldera y confirmar edición y nº de serie.
