Beretta Junior 24 CSI Control Board PCB Ref. 20005569
Refurbished Beretta PCBs (control boards)

Beretta Junior 24 CSI Control Board PCB Ref. 20005569

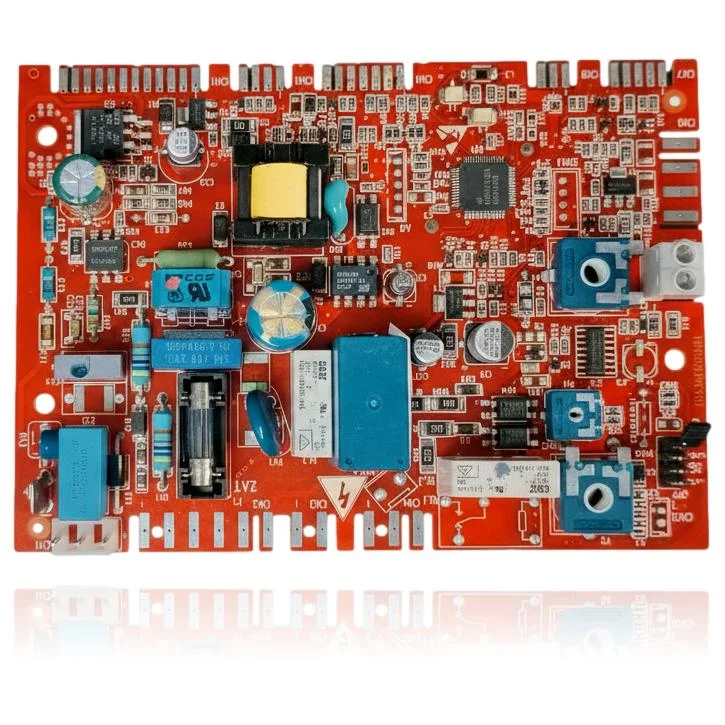

The PCB of the Beretta Junior 24 CSI, reference 20005569, controls functions such as ignition, burner modulation, and the pump in the boiler. If it fails, the boiler may not start, may lock out, or may exhibit erratic behavior. This part is compatible with models such as the Junior 24 CSI, Junior 24 CAI, among others in the Beretta range. A technician must confirm through diagnosis whether it needs to be replaced when these malfunction symptoms occur.

Type of part
PCBs (control boards)
Status
Refurbished
Catalogue reference
20005569
Warranty
1 year
VAT included Stock · 4 units
Compatibility

Beretta boilers compatible with reference 20005569

PCB with reference 20005569. Six confirmed compatibilities: Ciao J 24 CSI and Ciao J 24 CAI.

Verified compatibility

Boiler modelFamilyVerification
Beretta Ciao J 24 CSIBeretta Ciao JVerified
Beretta Ciao J 24 CAIBeretta Ciao JVerified
Beretta Junior 24 CSIBeretta JuniorVerified
Beretta Junior 24 CAIBeretta JuniorVerified
Beretta Simply 24 CSIBeretta SimplyVerified
Beretta Simply 24 CAIBeretta SimplyVerified

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if the ref. 20005569 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference 20005569. If it is not visible, do not identify the part from its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms that require diagnosis on the PCB 20005569

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    The boiler is completely dead, it doesn't even light up a single indicator.

    Cause: The F1 fuse on the PCB has blown and cuts off all power to the control board.

    Measure with a multimeter if the fuse F1 is blown and if there is continuity before replacing the entire PCB.

  • 02

    You change the fuse and it blows again immediately.

    Cause: There is a short circuit in a component that powers the PCB, not in the PCB itself.

    Disconnect the pump, fan, and gas valve one by one and check if the fuse holds before declaring the PCB faulty.

  • 03

    The boiler ignites but does not respond to the thermostat or the control.

    Cause: The PCB is not processing the heating demand signal it receives.

    Check that the wiring of the thermostat or control is properly connected to the terminal block of the PCB before replacing it.

  • 04

    The burner ignites and turns off after a few seconds, in lockout.

    Cause: The PCB does not keep the gas relay closed for the necessary time to validate the ignition.

    Check that the sensors connected to the PCB (sensor, pressure switch) do not give an erratic reading before replacing the board.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Data sheet for the Beretta 20005569 PCB.

Catalogue reference
20005569
Uniclima internal SKU
PECBJ2812
Brand
Beretta
Type of part
PCBs (control boards)
Units in stock
4 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Fuse F1
2AT
Frequently asked questions

Frequently asked questions about the PCB 20005569

Does this PCB work for the Beretta Junior 24 CSI?
Yes, the Junior 24 CSI is on the list of boilers compatible with this PCB, along with Junior 24/28 CAI and Ciao J 24 CAI/CSI.
What fuse does the PCB of the Beretta Ciao J 24 CAI use?
The fuse F1, 2AT.
Does this PCB work for the Beretta Junior 28 CSI in addition to the 24 CSI?
Yes, the Junior 28 CSI is listed among the compatible boilers along with the Junior 24 CSI.

Spare parts related to Beretta Beretta Ciao J

Delivery calculated by destination Delivery time shown at checkout
1-year warranty inspected and tested
14-day return uninstalled parts
Technical support we verify your model
Beretta Junior 24 CSI Control Board PCB Ref. 20005569
