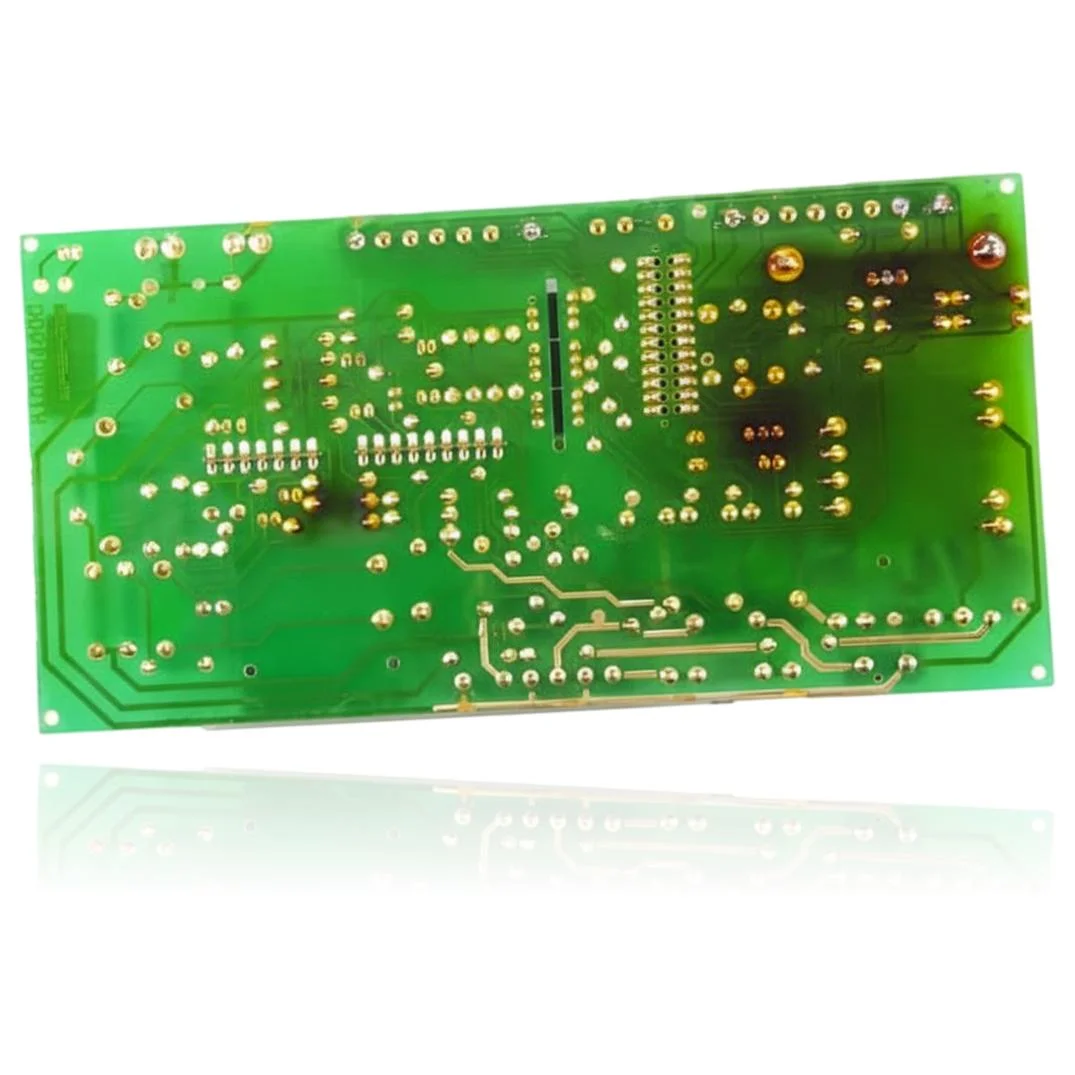

Beretta PCB Ref. 80190460C
The control PCB of the Beretta Brahma boiler manages the ignition, burner modulation, pump, and system safety features. When it fails, the boiler may not start, lock out, or behave erratically, causing inconvenience to the user. It is installed in boilers from the Beretta range, such as the Brahma model, among others. It is advisable to replace it upon detecting any issues with its operation to prevent further damage to the system.
VAT included
Consult via WhatsAppBeretta boilers compatible with reference 80190460C
PCB with reference 80190460C. A proven compatibility: Brahma.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Beretta Brahma | Beretta | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the part number 80190460C is the one for your boiler.
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 80190460C. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the PCB 80190460C resolves.
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler does not turn on and the display does not light up, as if it is not receiving power.
Cause: The PCB has stopped supplying voltage to the rest of the circuit, often due to a fault in the input stage or in the transformer.
Measure with a multimeter that 220V is reaching the input of the PCB and the primary of the transformer before declaring it faulty.
- 02
The thermostat or the programmer indicates a demand for heat, but the boiler does not start.
Cause: The PCB is not processing the demand signal and is not sending the ignition command to the burner.
Check that the thermostat wiring is properly connected to the terminals of the PCB and rule out a blown fuse before replacing it.
- 03
The boiler locks itself or loses programming after a power outage.
Cause: The PCB does not properly retain the operating state after a power interruption.
Perform a complete reset by disconnecting the boiler from the power supply for one minute before concluding that the PCB is damaged.
- 04
The burner or the pump keeps running even when the boiler is off.
Cause: A relay on the PCB has stuck and continues to give the start command.
Cut the main power supply and check if the relay is stuck or if the component is abnormally hot before replacing the PCB.
Fault codes for Beretta that this part resolves.
| Code | Fault | Diagnosis and solution |
|---|---|---|
| E36 | Internal error in the PCB (internal fault). | Hardware/firmware fault or loss of communication in PCB 80190460C; check 230 V power supply and 5/12 V voltages of the PCB, communication BUS, and if it persists, test with a known good board or reprogram/update. |
| A06 | Internal error (Slave). | The slave PCB 80190460C detects an internal fault/safety relays; check LEDs/diagnostics on the board, power supply, and BUS wiring; if it persists after a reset, replace the PCB and validate with a cross-test. |
| A07 | Internal error (Slave). | Internal anomaly in the slave PCB (microcontroller/relays/communication); check Master-Slave bus and voltages on the board; confirm by temporarily replacing with an operational PCB. |
| A08 | Internal error (Slave). | Documented internal fault of the slave PCB (80190460C); check power supply and connections, and if the error persists, replace/recodify the board. |
| A10 | Internal error (software). | Software error associated with the slave PCB; rule out electrical network and BUS issues, and if it reappears after resets, replace/program the PCB 80190460C. |
| A12 | Internal error (Slave). | The slave PCB registers a persistent internal anomaly; confirm voltages and communications, and if it does not restore after the auto-reset time, replace the board 80190460C. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Beretta 80190460C PCB.
- Catalogue reference
- 80190460C
- Brand
- Beretta
- Type of part
- PCBs (control boards)
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Data read on the part and in the manufacturer's documentation
What we have not been able to verify does not appear here.
- Transformer code
- COD. 0110
- Transformer voltage
- 220 Volts
Frequently asked questions about the PCB 80190460C
What does "COD. 0110" printed on the Beretta Brahma PCB mean?
Does this PCB work for any Beretta Brahma or only for a specific model in the range?
