Siemens LMU83.08AMP PCB · Beretta MP08 20005569 for Junior 24 CSI
Tarjeta electrónica con microprocesador que controla el funcionamiento de la caldera Beretta y gestiona sus alarmas. La falta de encendido o un encendido incompleto requiere diagnóstico antes de sustituirla.
- Type of part
- Beretta
- Status
- Refurbished
- Catalogue reference
- 20005569
- Warranty
- 1 year
VAT included Stock · 1 unit
Beretta boilers compatible with reference 20005569
Beretta with reference 20005569. Eight confirmed compatibilities: Beretta JUNIOR 24 CSI (appliance code 20002341 / E3C) and Beretta CIAO J 24 CSI (appliance code 20008927). There are another 5 models that we are still verifying.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Beretta JUNIOR 24 CSI (appliance code 20002341 / E3C) | Beretta | Contrasted |
| Beretta CIAO J 24 CSI (appliance code 20008927) | Beretta | Contrasted |
| Beretta CIAO J 24 CAI (appliance code 20011982) | Beretta | Contrasted |
| Beretta SIMPLY 24 CSI (appliance code 20057803) | Beretta | Contrasted |
| Beretta Junior 24 CAI (20011592 / 20099549) | Beretta | Contrasted |
| Beretta Junior 24 CSI (20048245) | Beretta | Contrasted |
| Beretta Simply 24 CAI (20057891 / 20099565) | Beretta | Contrasted |
| Beretta Sylber Quadra K 24 A (20012223), Quadra K 24 S (20010832) and Quadra One K 24 S (20008791) | Beretta | Contrasted |
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Beretta Junior 24 CAI GPL (20049560 / 20099564) | Beretta | Unconfirmed |
|---|---|---|
| Beretta Simply 24 CSI GPL (20057804) and Simply 24 CAI GPL (20057893 / 20099566) | Beretta | Unconfirmed |
| Beretta Riello Caldariello 24 KI C, 24 KI DGT, 24 KIS DGT and IN 24 KIS I (20012598, 20041204, 20041084, 20043195) | Beretta | Unconfirmed |
| Beretta Riello Caldariello 24 KIS C (20008661) | Beretta | Unconfirmed |
| Beretta Vokera Compact 24 SE (Rev. 8) and Compact 28 SE (Rev. 7) | Beretta | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the ref. 20005569 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

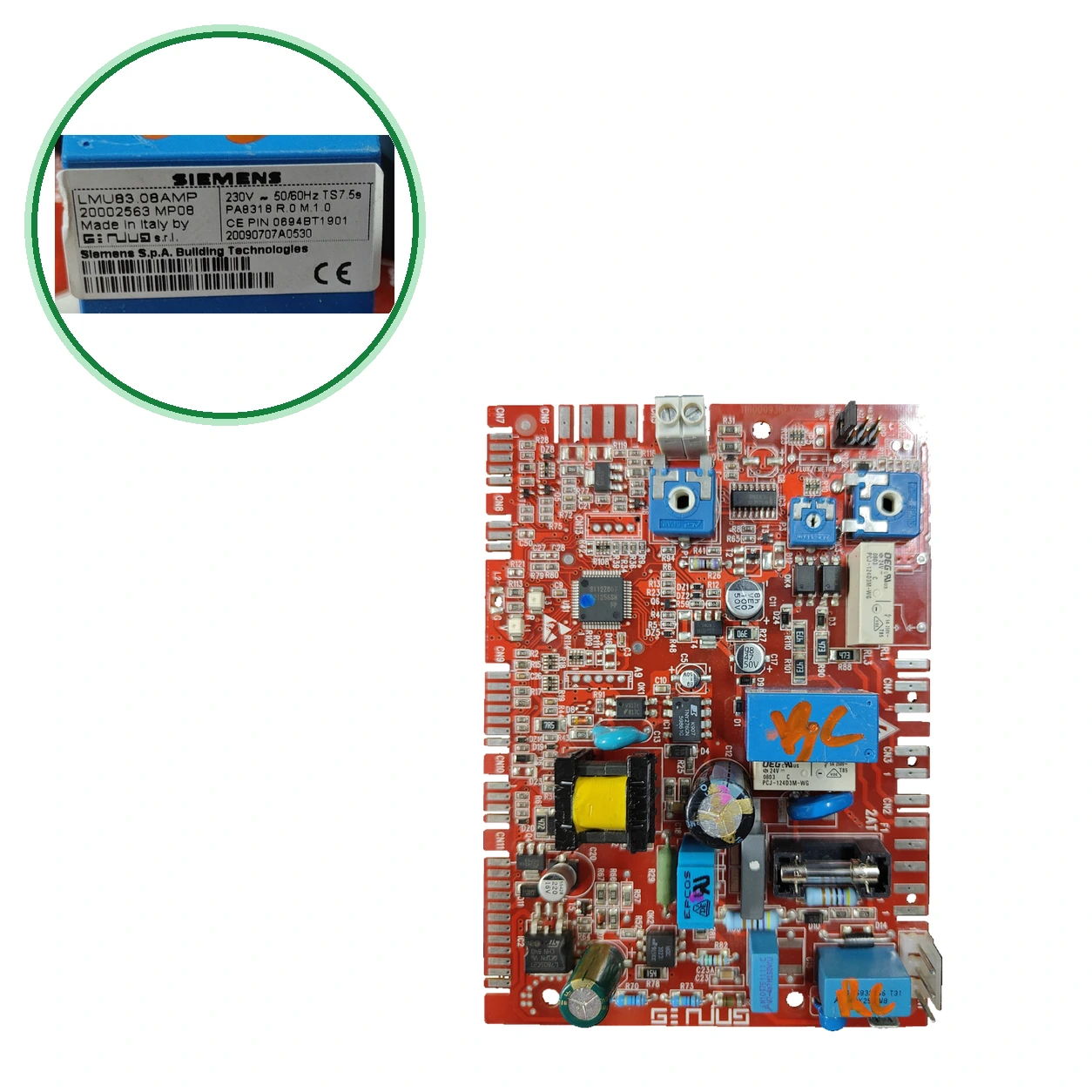

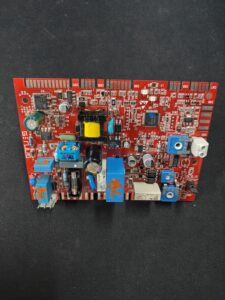

- Look at the PCB: marking 20002563 MP08, printed circuit 11600093REV01 and model Siemens LMU83.08AMP.
- Compara con la referencia de servicio de Beretta, la 20005569; también como 20223988, para Riello, 4366838.
- Look at the appliance code on the rating plate of your boiler: 20002341, 20008927, 20011982 or 20057803.
- Do not rely solely on the model name: check the complete code of the device.
- If they match, call us at 911 17 77 77 with your boiler model and we will reserve it for you.
Beretta 20005569
- Catalogue reference
- 20005569
- Uniclima internal SKU
- PLC393
- Brand
- Beretta
- Type of part
- Beretta
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Model recorded in the inventory
- Siemens LMU83.08AMP; no Siemens documentation was found to decode the exact suffix.
- Module code/marking
- 20002563 MP08 (transcription of; the BOM Beretta identifies the service MP08 as ref. 20005569, without official cross-reference of the marking 20002563).
- Beretta service reference
- 20005569 for the MP08 control board, position 20, in the Junior 24 CSI 20002341/E3C parts list.
- PCB marking
- 11600093REV01; revisión y relación con la referencia de servicio no interpretadas por el fabricante .
- Power supply/frequency transcribed
- 230 V~; 50/60 Hz. The Beretta manual for the complete Junior 24 CSI unit indicates 230-50 and 100 W; that boiler data is not attributed to the PCB.
- TS time
- 7.5 s (inventory transcription; no OEM document was found defining it for this revision).
- PCJ-124D3M-WG relay
- The TE/OEG technical sheet describes a 24 VDC coil and contacts of up to 5 A / 250 VAC; these are specifications of the relay, not of the complete PCB.
- Transcribed capacitors
- 220 μF/16 V; 470 μF/50 V; 1000 μF/35 V. Auxiliary components, without assigning them undocumented functions.
- Additional registered markings
- PA8318 R.0 M.1.0; 0694BT1901; 20090707A0530. They are kept as markings without confirmed OEM meaning.
- compatible with reference Beretta
- JUNIOR 24 CSI · 20002341 (E3C) · Compatibility validated in; the Beretta breakdown identifies PCB MP08 20005569 in position 20.
- compatible with reference Beretta
- CIAO J 24 CSI · 20008927 · The original Beretta parts list assigns 20005569 to the MP08 control board.
- compatible with reference Beretta
- CIAO J 24 CAI · 20011982 · The list of original Beretta parts assigns 20005569 to the MP08 control board.
- compatible with reference Beretta
- SIMPLY 24 CSI · 20057803 · The parts list from Beretta assigns 20005569 to the MP08 control board.
- Technical sheet: Model recorded in the inventory
- Siemens LMU83.08AMP; no Siemens documentation was found to decode the exact suffix.
- Technical sheet: Module code/marking
- 20002563 MP08 (transcription of; the BOM Beretta identifies the service MP08 as ref. 20005569, without official cross-reference of the marking 20002563).
- Technical sheet: Beretta service reference
- 20005569 for the MP08 control board, position 20, in the Junior 24 CSI 20002341/E3C parts list.
- Technical sheet: PCB marking
- 11600093REV01; revisión y relación con la referencia de servicio no interpretadas por el fabricante .
- Technical sheet: Power supply/frequency transcribed
- 230 V~; 50/60 Hz. The Beretta manual for the complete Junior 24 CSI unit indicates 230-50 and 100 W; that boiler data is not attributed to the PCB.
- Technical sheet: Tiempo TS
- 7.5 s (inventory transcription; no OEM document was found defining it for this revision).
- Relé PCJ-124D3M-WG
- The TE/OEG technical sheet describes a 24 VDC coil and contacts of up to 5 A / 250 VAC; these are specifications of the relay, not of the complete PCB.
- Technical sheet: Transcribed condensers
- 220 μF/16 V; 470 μF/50 V; 1000 μF/35 V. Auxiliary components, without assigning them undocumented functions.
- Technical sheet: Additional registered markings
- PA8318 R.0 M.1.0; 0694BT1901; 20090707A0530. They are kept as markings without confirmed OEM meaning.
- References — 20005569
- Beretta: MP08 management PCB, pos. 20, in the BOM of Junior 24 CSI 20002341/E3C. Service reference for that application; no official cross-reference to the silkscreen 20002563/11600093.
- References — 20002563 MP08
- Code/marking transcribed from the plate in .
- References — 11600093REV01
- PCB marking transcribed in; without localized OEM equivalence or substitution.
- References — 20223988
- Several distributors list it as the later code 20005569; equivalence/substitution not confirmed in the official catalog.
- References — 4366838
- Riello BOM: MP08 PCB for Caldariello 24 KIS C 20008661. Distributors cross it with 20005569, but no OEM table was found to confirm that equivalence.
- References — LMU83.08AMP
- Model of the PCB transcribed in; the Siemens documentation located confirms family LMU8/BMU, not the exact suffix.
- Other crossovers — Beretta
- JUNIOR 24 CAI · 20011592 / 20099549; JUNIOR 24 CSI · 20048245; SIMPLY 24 CAI · 20057891 / 20099565 · Listed by various distributors for spare part 20005569. Exact OEM BOM not found for each code/series; verify appliance before selecting.
- Other crossovers — Sylber
- QUADRA K 24 A · 20012223; QUADRA K 24 S · 20010832; QUADRA ONE K 24 S · 20008791 · Commercial cross of distributors for 20005569/MP08; without exact OEM BOM located for this unit.
- Other crossovers — Riello
- CALDARIELLO 24 KIS C · 20008661 · The Riello BOM lists MP08 ref. 4366838. Distributors relate 4366838 to 20005569, but OEM confirmation of equivalence between codes is pending.
- Other crossovers — Riello
- CALDARIELLO 24 KI C · 20012598; 24 KI DGT · 20041204; 24 KIS DGT · 20041084; IN 24 KIS I · 20043195 · Listings by distributors for the cross references 20005569/4366838; without OEM BOM or exact equivalence chain located for these codes.
- Pending applications to verify
- Beretta JUNIOR 24 CSI — compatibilidad anotada; pendiente de confirmar por variante.
- Registered equivalents and substitutions
- Equivalencia comercial pendiente (24/10/2026): relaciona Gruppo Giordano MP08 / 20002563 con Beretta 20223988 y Riello 4366838. Falta confirmar intercambiabilidad de revisión/programación; no añade modelos de caldera.
Before purchasing
- Por confirmar: Beretta Junior 24 CAI GPL (20049560 / 20099564):
- To be confirmed: Beretta Simply 24 CSI GPL (20057804) y Simply 24 CAI GPL (20057893 / 20099566):
- To be confirmed: Riello Caldariello 24 KI C, 24 KI DGT, 24 KIS DGT e IN 24 KIS I (20012598, 20041204, 20041084, 20043195) — con código, solo las series 24 KI, 24 KIS e IN 24 KIS
- To be confirmed: Riello Caldariello 24 KIS C (20008661) — con el código;, solo la serie 24 KIS
- To be confirmed: Vokera Compact 24 SE (Rev. 8) y Compact 28 SE (Rev. 7) — británicas, con la ref. 20005569 (como placa Vokera)
- El catálogo oficial de Beretta no cita 20002563, 11600093 ni LMU83.08AMP: son marcajes de la pieza, confirmados.
- La 20005569 es la placa MP08 Beretta; Confirmación registrada: la Junior 24 CSI y los marcajes. británicas la dan como placa Vokera Compact 24 SE/28 SE: dato aparte, prevalece Beretta. Sin confirmar: 11600093REV01 ni LMU83.08AMP con ella.
Frequently asked questions: beretta 20005569
How do I identify the MP08 20005569 PCB and what codes should I compare?
The board is marked 20002563 MP08, the PCB is 11600093REV01, and the module is the Siemens LMU83.08AMP model. Beretta's service reference is 20005569: the official catalog of the Junior 24 CSI lists it as "Printed circuit board MP08," position 20.
Is it compatible with my Beretta Junior 24 CSI, Ciao J 24 CSI, Ciao J 24 CAI, or Simply 24 CSI?
Sí. Confirmación registrada: la Junior 24 CSI (20002341 / E3C) y el catálogo oficial la incluye (aparatos 20008669 E3L y 20008670 E4L). listan además la Ciao J 24 CSI (20008927), la Ciao J 24 CAI (20011982) y la Simply 24 CSI (20057803). Compara el código de aparato de tu caldera; si dudas, envíanos una foto de la etiqueta desde Contacto o llama al 911 17 77 77.
Is it also compatible with other variants Junior, Simply, Sylber Quadra or Riello Caldariello?
To be confirmed: coinciden en las Junior 24 CAI (20011592, 20099549), Junior 24 CSI 20048245, Simply 24 CAI (20057891, 20099565) y Sylber Quadra K 24 A, K 24 S y One K 24 S. Para las GPL y las Vokera Compact solo hay una o con código. De las Riello Caldariello, la 24 KI C, 24 KI DGT, 24 KIS DGT e IN 24 KIS I tienen código en y la 24 KIS C solo en una; solo la serie. Dudas: escríbenos por Contacto.
Are the 20005569, 20223988, and 4366838 PCBs the same?
s, sí. La 20223988 figura como código nuevo y «ex 20005569»; la 4366838 es el código Riello de la misma MP08 . Ningún documento oficial lo confirma: si tienes una de ellas, llámanos al 911 17 77 77 con el código de tu placa.
What do 20002563 MP08, 11600093REV01, and LMU83.08AMP mean?
20002563 MP08 es el marcaje de la placa: lo cita impreso en la MP08, con «TS 7.5», y una ficha de lo une a LMU83.08AMP. 11600093REV01 marca el circuito impreso. indica que la documentación Siemens confirma la familia LMU8, no el sufijo, y sin confirmación adicional explica la revisión 01.
What does the MP08 PCB do and when is it suspected?
To be confirmed: Según el manual de Beretta de la Junior 24 CSI, la caldera lleva una tarjeta electrónica con microprocesador que controla su funcionamiento y gestiona las alarmas. asocia esta placa con calderas que no encienden o no completan el encendido.
Who should install this PCB?
Un técnico cualificado. La placa trabaja a 230 V~ y gobierna una caldera de gas; indica que las intervenciones en componentes internos son para personal cualificado.
What is the OEM reference of the MP08 PCB for Junior 24 CSI?
The parts list for Beretta assigns 20005569 to the MP08 PCB, position 20, of the Junior 24 CSI unit code 20002341/E3C.
Is 20005569 the same marking as 20002563 or 11600093REV01?
No OEM equivalence was found that matches those identifiers. The inventory lists 20002563 MP08 and 11600093REV01; 20005569 appears as a service reference in the parts breakdown.
What other models have BOM with 20005569?
The consulted lists also show the reference for Ciao J 24 CSI 20008927, Ciao J 24 CAI 20011982, and Simply 24 CSI 20057803.
¿Qué modelos adicionales aparecen en?
Distributors publish more variants of Beretta, Sylber, and Riello under the references MP08; they are shown in a separate table because there is no exact OEM chain for each code/series.
Are the 100 W in the manual the power of the PCB?
No. The manual attributes them to the complete unit Junior 24 CSI. They should not be presented as consumption of this PCB.
Are the 5 A of the relay the capacity of the PCB?
No. The TE/OEG technical sheet describes the PCJ relay subcomponent; that value is not transferred to the PCB or its outputs.
