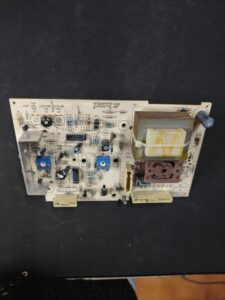

PCB IC08 · R8353 · PCB C.07001 (INECO S.r.l.) for Biasi Minute 20/20
Refurbished Beretta Beretta INECO S.r.l.

PCB IC08 · R8353 · PCB C.07001 (INECO S.r.l.) for Biasi Minute 20/20

Aplicación a la variante exacta pendiente de confirmar. italianas la clasifican como placa de modulación («scheda modulazione»; ). En su serigrafía constan los ajustes MAX.HEAT, MIN.HEAT y SOFT LIGHT ADJ.

Type of part
Beretta
Status
Refurbished
Catalogue reference
R8353
Warranty
1 year
VAT included Stock · 1 unit
Compatibility

Beretta boilers compatible with reference R8353

Beretta con referencia R8353. 0 compatibilidades contrastadas. Hay otros 6 modelos que todavía estamos comprobando.

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Beretta Mynute 20/20BerettaUnconfirmed
Beretta Mynute 20/20 CAPBerettaUnconfirmed
Beretta Mynute 20/20 ESIBerettaUnconfirmed
Beretta Mynute 20/20 MTN and 20/20 CAP MTNBerettaUnconfirmed
Beretta Mynute Residence Vecchia 20KBerettaUnconfirmed
Beretta Biasi Minute 20/20BerettaUnconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if the part number R8353 is the one for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

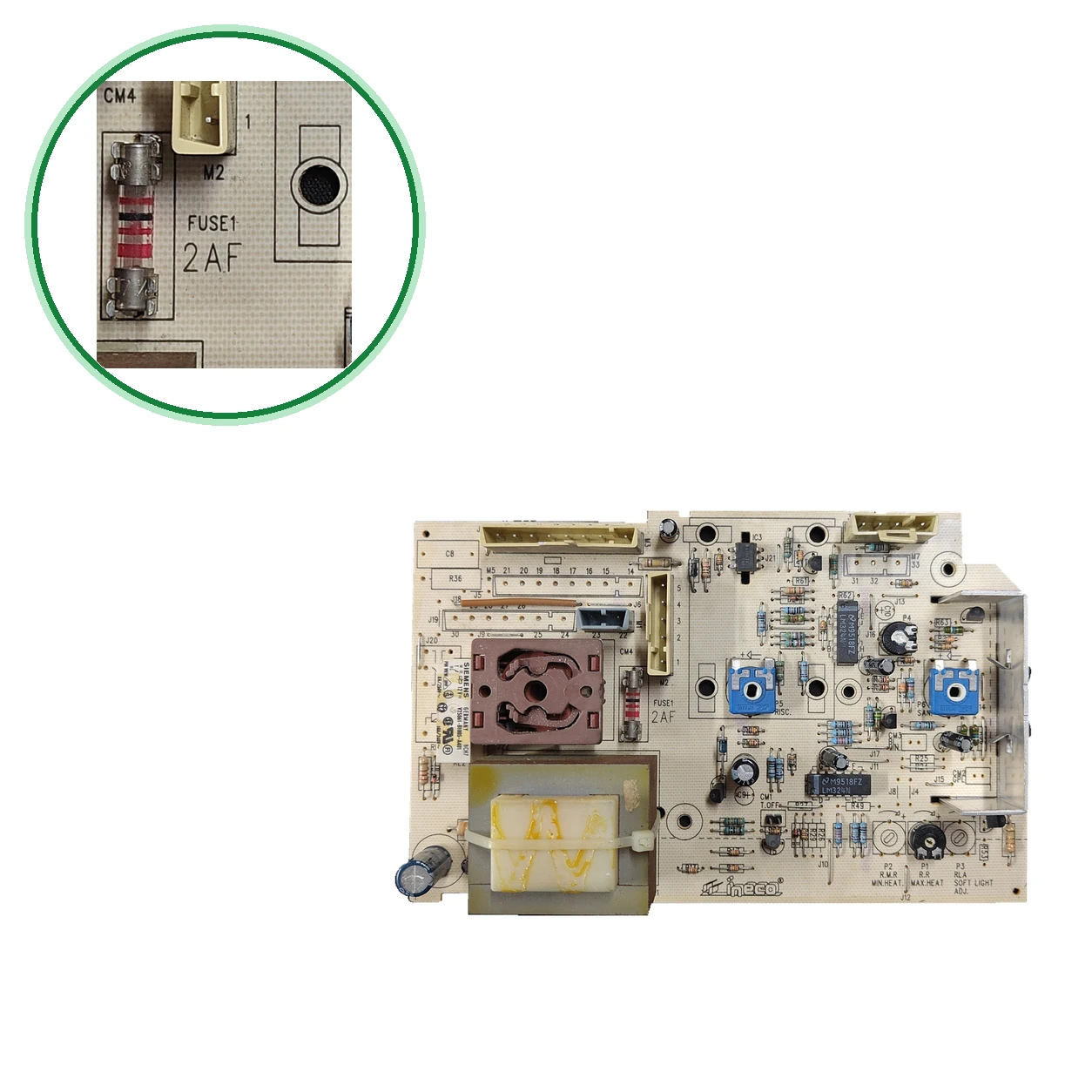

  1. Look for the model IC08 on your PCB, the reference R8353, and the circuit code C.07001. The fuse FUSE1 is marked 2AF.
  2. Compare IC08 and R8353. Do not use the chip codes (LM324N, LM358N, M9518FZ) or the SIEMENS relay as a reference.
  3. Do not confuse it with the IC08 Riello 4364221 (Residence 24 K and 28 K): it is a different code and it is not stated that they are interchangeable.
  4. Mira en la placa de características que tu caldera es una Manaut Minute 20/20, la que ha registrado.
  5. coinciden, llámanos al 911 17 77 77 con el modelo de tu caldera y te la reservamos.
Technical data

Beretta R8353

Catalogue reference
R8353
Uniclima internal SKU
PLC338
Brand
Beretta
Type of part
Beretta
Units in stock
1 unit
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Model of the PCB
IC08
Declared commercial reference
R8353
PCB code
C.07001
compatible with reference
MANAUT MINUTE 20/20
FUSE1
2AF
Integrated circuits transcribed
LM324N; LM358N; LM358P; M9518FZ
LM324N · family function
Quad operational amplifier (Texas Instruments datasheet)
LM358N / LM358P · family function
Dual operational amplifier (Texas Instruments datasheet); both suffixes are retained.
Subcomponent U3 · CNY75GC
Infrared LED optocoupler/phototransistor, DIP-6 400 mil; CTR 160–320 % at IF=10 mA and VCE=5 V
Relay/subcomponent
SIEMENS marking; complete reference not identified
Adjustment legends
P1 MAX. HEAT; P2 MIN. HEAT; P3 SOFT-LIGHT ADJ.; P5 HEATING; P6 DOMESTIC HOT WATER.
Adjustment screen printing
R.R MAX.HEAT; R.M.R MIN.HEAT; R.L.A SOFT LIGHT ADJ.; HEATING; DOMESTIC HOT WATER.
Scope of the legends
These are markings; a procedure or adjustment values are not published without the schematic/manual of this PCB.
Compatibility — Biasi
MINUTE 20/20
Technical sheet: Brand indicated in inventory
INECO S.r.l.
Technical sheet: Model of the PCB
IC08
Technical sheet: Declared commercial reference
R8353
Technical sheet: PCB code
C.07001
Technical sheet: Compatibility indicated
MANAUT MINUTE 20/20
FUSE1
2AF
Technical sheet: Transcribed integrated circuits
LM324N; LM358N; LM358P; M9518FZ
LM324N · family function
Quad operational amplifier (Texas Instruments datasheet)
LM358N / LM358P · family function
Dual operational amplifier (Texas Instruments datasheet); both suffixes are retained.
Technical sheet: Subcomponent U3 · CNY75GC
Infrared LED optocoupler/phototransistor, DIP-6 400 mil; CTR 160–320 % at IF=10 mA and VCE=5 V
Technical sheet: Relay/subcomponent
SIEMENS marking; complete reference not identified
Legends of adjustment
P1 MAX. HEAT; P2 MIN. HEAT; P3 SOFT-LIGHT ADJ.; P5 HEATING; P6 DOMESTIC HOT WATER.
Technical sheet: Adjustment screen printing
R.R MAX.HEAT; R.M.R MIN.HEAT; R.L.A SOFT LIGHT ADJ.; HEATING; DOMESTIC HOT WATER.
Technical sheet: Scope of legends
These are markings; a procedure or adjustment values are not published without the schematic/manual of this PCB.
Pending applications to verify
MANAUT MINUTE 20/20 — compatibilidad anotada; pendiente de confirmar por variante. Declaración comercial -3B, consultada 24/10/2026: Beretta Mynute 20/20, para R8353. Pendiente de confirmación documental del fabricante; no extender a otras versiones. No confundir Beretta con Manaut; Riello 4364221 es una referencia de pieza.
Before purchasing
  • To be confirmed: Beretta Mynute 20/20 — 1 origen firme: y (mismo listado). repite el título y su descripción dice Riello (2 )
  • To be confirmed: Beretta Mynute 20/20 CAP — 1 origen firme: y (mismo listado). repite el título y su descripción dice Riello (2 )
  • Por confirmar: Beretta Mynute 20/20 ESI — 1 origen: · R8353
  • Por confirmar: Beretta Mynute 20/20 MTN y 20/20 CAP MTN — 1 origen: · R8353
  • Por confirmar: Beretta Mynute Residence Vecchia 20K — 1 origen: · R8353
  • No confundir: 4364221 — Placa IC08 de Riello para Residence 24 K y 28 K — Otro código; aparte de la R8353 y no dice que sean intercambiables
  • Do not confuse: LM324N · LM358N · M9518FZ — Integrated circuits on the PCB — These are chip markings, not the PCB reference.
  • El 4364221 aparece junto a R8353, pero otra lo lista como pieza distinta: no lo damos por equivalente.
  • R8353 = scheda IC08 Beretta: la unen al menos. Para la Mynute 20/20 hay 1 origen firme (2 ). No consta si el 4364221 de Riello es equivalente. Sin confirmar: C.07001 ni INECO, que constan en la etiqueta.
  • Aplicaciones registradas pendientes de confirmar por modelo, variante o programación: Manaut Minute 20/20.
Frequently Asked Questions

Frequently asked questions: Beretta R8353

How do I identify this PCB and what does each code indicate?
Busca IC08 (modelo) y R8353 (referencia de recambio Beretta; y la listan como «ricambio originale») y el código de circuito C.07001, que puede leerse también C07001. Sin confirmar: el C.07001: consta en la etiqueta y lo confirma. LM324N, LM358N o M9518FZ son chips, no la placa.
Is it compatible with my Biasi Minute 20/20?
La compatibilidad de esta variante está pendiente de confirmar. Aplicación registrada: esta placa IC08 R8353 para la Manaut Minute 20/20. sin confirmación adicional externa abierta nombra la marca Manaut: italianas escriben Beretta Mynute 20/20. Compara igualmente IC08 y R8353 con tu placa.
Is it compatible with a Beretta Mynute 20/20, 20/20 CAP or 20/20 ESI?
La compatibilidad de esta variante está pendiente de confirmar. Está por confirmar. y (mismo listado) la dan para la Mynute 20/20 y la 20/20 CAP; lo repite en el título de su ficha, pero su descripción cita Riello. Aplicación registrada para la 20/20 ESI;, para las 20/20 MTN. Ninguna llega a. Compara IC08 y R8353 o llámanos al 911 17 77 77; también puedes enviarnos desde Contacto una foto de la etiqueta y de la placa de características.
Is the 4364221 from Riello the same PCB as the R8353?
No lo sabemos. y citan R8353 y 4364221 juntos ( lo llama «Codice Riello 4364221»), pero lista una IC08 con el 4364221 como ficha aparte para Riello Residence 24 K y 28 K y no dice que sean intercambiables. Compara el código impreso en tu placa.
What adjustments does the PCB have and what values are used for regulation?
On the PCB, the labels P1 MAX.HEAT, P2 MIN.HEAT, P3 SOFT-LIGHT ADJ., P5 RISC., and P6 SAN are indicated. These are just markings: we do not publish values or procedures because we have not found the schematic or the manual for this PCB. A technician should review it with the boiler documentation.
Is the IC08 R8353 discontinued?
, que comparten listado, la marcan «fuori produzione», es decir, fuera de producción. Si la tuya falla, compara IC08 y R8353 antes de buscar otra.
Who should install it?
A qualified technician. After installing it, the operation and settings must be checked against the boiler manual.
What codes identify this PCB?
The declared model is IC08; R8353 is the indicated commercial reference and C.07001 is the PCB marking. PLC338 is the internal SKU.
For which boiler is it indicated?
La compatibilidad de esta variante está pendiente de confirmar. MANAUT MINUTE 20/20. Se conservan los modelos exactamente como figuran en el inventario.
What do LM324, LM358, and CNY75GC indicate?
The manufacturer datasheets identify LM324 as a quad operational amplifier, LM358 as a dual operational amplifier, and CNY75GC as an optocoupler. These functions refer to the components, not a BOM of the board.
Do the P1–P6 settings include calibration values?
The transcription provides legends such as MAX.HEAT, MIN.HEAT, SOFT-LIGHT ADJ., RISC., and SAN.; it does not include ranges or adjustment procedures.
