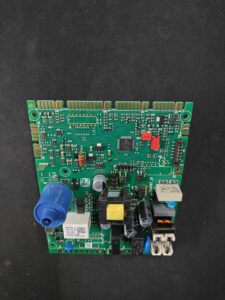

SIT 0585104_15 PCB · 7530197_01 for Biasi Myto Condens INOX 35
Aplicación a la variante exacta pendiente de confirmar. Placa electrónica principal de la caldera. Si la caldera no enciende o no responde al mando, es una de las piezas que debe revisar el técnico.
- Type of part
- Biasi
- Status
- Refurbished
- internal SKU
- PLC341
- Warranty
- 1 year
VAT included Stock · 4 units
Compatible Biasi boilers
Biasi. 0 compatibilidades contrastadas. Hay otros 13 modelos que todavía estamos comprobando.
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Biasi Savio Biasi M261, M262 and T260 | Biasi | Unconfirmed |
|---|---|---|
| Biasi Eiliadens E M261.2025 SV, Evodens E M260.2025 SV/T, Rinnova In E M261.2025 SV/M and M260.1616 SV/T | Biasi | Unconfirmed |
| Biasi Rinnova Cond X 25S | Biasi | Unconfirmed |
| Biasi Activ A 15OV, 20OV and 25OV | Biasi | Unconfirmed |
| Biasi Advance Plus 30S ERP | Biasi | Unconfirmed |
| Biasi Advance Plus 16S, 25S, 25C, 30C and 35C ERP | Biasi | Unconfirmed |
| Biasi Inovia 25S | Biasi | Unconfirmed |
| Biasi Inovia 16S, 25C, 30C and 35C | Biasi | Unconfirmed |
| Biasi MytoCondens INOX 35 | Biasi | Unconfirmed |
| Biasi Myto Condens INOX 24 | Biasi | Unconfirmed |
| Biasi Myto Condens 24/35 | Biasi | Unconfirmed |
| Biasi Savio Biasi M160 and M260 | Biasi | Unconfirmed |
| Biasi Activ A 12OV | Biasi | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

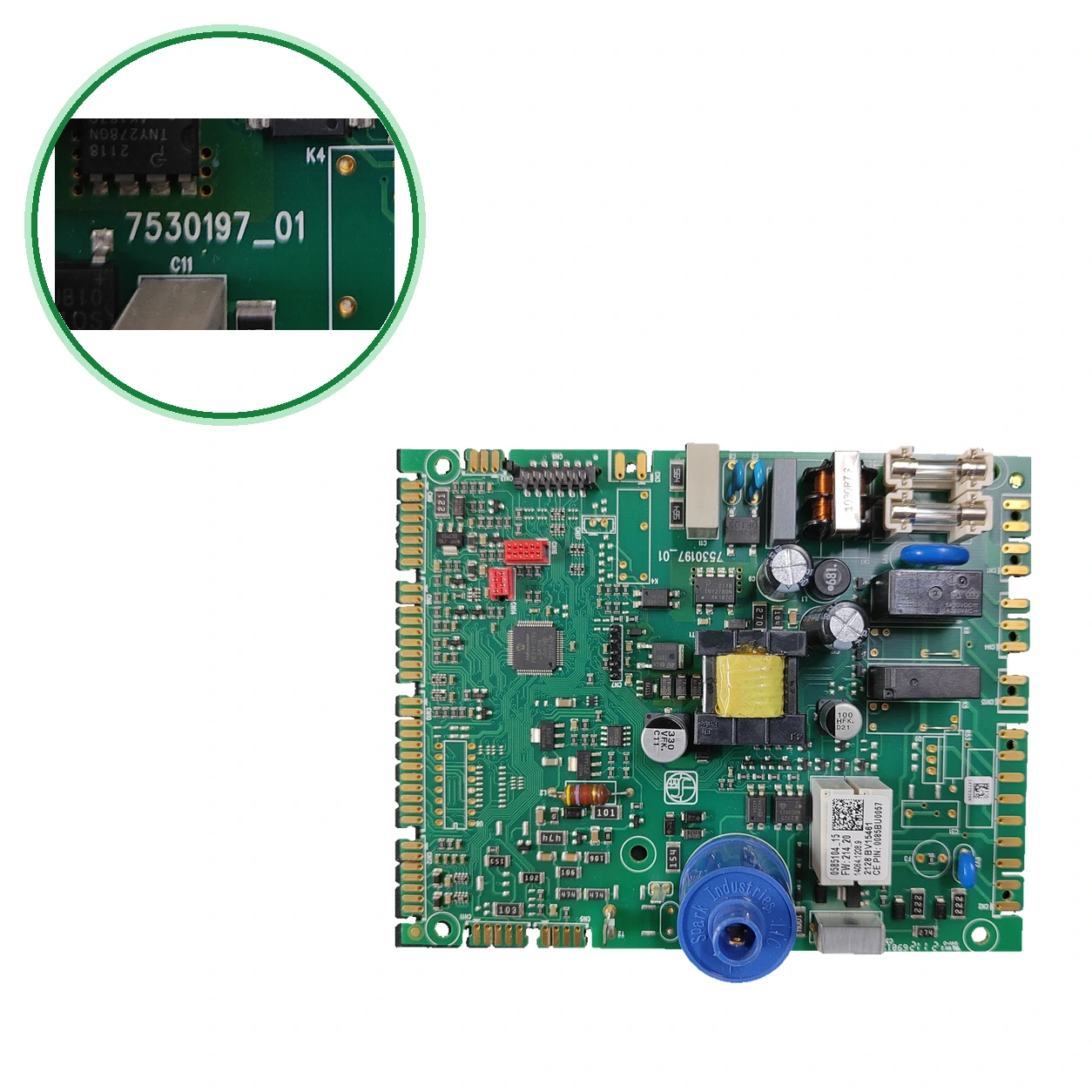

- Look for the designation 0585104_15 (also 0585104-15 or 0585104 15) and the circuit code 7530197_01 on the label.
- Check the firmware FW:214.20 and the codes 0085BU0057, 1530912-01, and 021.017.361 (back side of the circuit).
- suelen citar solo 0585104 o el código Biasi BI2035100: compáralos con los de tu placa.
- Mira en la placa de características de tu caldera si es una Manaut Myto Condens INOX 35, la registrada.
- coinciden, llámanos al 911 17 77 77 con el modelo de tu caldera y te la reservamos.
Symptoms that require diagnosis in the Biasi.
Common symptoms and faults
- 01
The boiler does not ignite or does not respond to the control.
Cause: la relaciona con la placa BI2035100, junto a fallos de encendido y paros inesperados.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Biasi
- Uniclima internal SKU
- PLC341
- Brand
- Biasi
- Type of part
- Biasi
- Units in stock
- 4 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Marked firmware
- FW:214.20
- Inventory — CE PIN
- 0085BU00057
- Inventory — CE P/N read on another label
- 003B0057
- Inventory — Label/plate code read
- 1530912-01
- Inventory — Back cover PCB code
- 021.017.361
- Inventory — Microcontroller subcomponent
- Microchip PIC24FJ256GA106
- Inventory — Relay subcomponent
- FNR-214-20 10 A 250 V~ / 5 A
- Inventory — Blue subcomponent
- Spark Industries Ltd.
- Inventory — Subcomponent condenser
- 100 HFK D21
- Inventory — Marked subcomponent
- 330 VFK
- Inventory — Application indicated in inventory
- MANAUT MYTOCONDENS INOX 35
- Datos adicionales — Firmware
- FW.214 20 · · coincide con la unidad
- Datos adicionales — Versiones de la Myto Condens
- 2010 y 2012 ·, y · BI2035100
- Identification — Marked designation
- 0585104_15
- Identification — Marked code
- 7530197_01
- Identification — Marked code
- 0585104_15
- Identification — Marked code
- CE PIN 0085BU0057
- Firmware marked
- FW:214.20
- Inventory data — CE PIN
- 0085BU00057
- Inventory data — CE P/N read on another label
- 003B0057
- Inventory data — Label/plate code read
- 1530912-01
- Inventory data — Back side PCB code
- 021.017.361
- Inventory data — Microcontroller subcomponent
- Microchip PIC24FJ256GA106
- Inventory data — Relay subcomponent
- FNR-214-20
- Inventory data — Relay subcomponent
- 10 A 250 V~ / 5 A
- Inventory data — Blue subcomponent
- Spark Industries Ltd.
- Inventory data — Subcomponent condenser
- 100 HFK D21
- Inventory data — Marked subcomponent
- 330 VFK
- Inventory data — Application indicated in inventory
- MANAUT MYTOCONDENS INOX 35
- Pending applications to verify
- MANAUT MYTOCONDENS INOX 35 — compatibilidad anotada; pendiente de confirmar por variante.
Before purchasing
- To be confirmed: Savio Biasi M261, M262 y T260: (0585104 / BI2035100); repite su título
- To be confirmed: Eiliadens E M261.2025 SV, Evodens E M260.2025 SV/T, Rinnova In E M261.2025 SV/M y M260.1616 SV/T: (0585104)
- Por confirmar: Biasi Rinnova Cond X 25S: (BI2035100)
- To be confirmed: Biasi Activ A 15OV, 20OV and 25OV: Electrical Deals y (BI2035100); solo cita la 12OV
- Por confirmar: Biasi Advance Plus 30S ERP: Electrical Deals
- To be confirmed: Biasi Advance Plus 16S, 25S, 25C, 30C y 35C ERP: Electrical Deals; sin cita literal
- Por confirmar: Biasi Inovia 25S: Electrical Deals
- To be confirmed: Biasi Inovia 16S, 25C, 30C y 35C: Electrical Deals; sin cita literal
- Solo cita «0585104 15» con FW.214 20, igual que nuestra unidad; las demás citan 0585104 o BI2035100 sin sufijo.
- italianas unen SIT 0585104 con BI2035100; solo cita también el sufijo 15 y el FW.214 20. Confirmación registrada: la Myto Condens INOX 35 y BI2035100 para la Myto Condens.
- Aplicaciones registradas pendientes de confirmar por modelo, variante o programación: Manaut MytoCondens INOX 35; Manaut Myto Condens INOX 24; Manaut Myto Condens 24/35; Savio Biasi M160 y M260; Biasi Activ A 12OV.
Frequently asked questions: Biasi
How do I identify this PCB?
Look for the designation SIT 0585104_15 (also written as 0585104-15 or 0585104 15) and the circuit code 7530197_01. The unit also has firmware FW:214.20, CE PIN 0085BU0057, code 1530912-01, and on the back, 021.017.361.
Is it compatible with my Biasi Myto Condens INOX 35?
La compatibilidad de esta variante está pendiente de confirmar. registrada: para la Manaut MytoCondens INOX 35. da el código BI2035100 para la Myto Condens INOX 24/35 (versiones 2010 y 2012), y italianas unen ese código con la SIT 0585104.
Is it compatible with the Myto Condens INOX 24 or the 24/35?
La compatibilidad de esta variante está pendiente de confirmar. s, sí: y dan la BI2035100 para la INOX 24, para la 24/35. solo la ha registrado para la INOX 35: compara 0585104_15 y 7530197_01 con tu placa, envíanos desde Contacto una foto de la etiqueta o llama al 911 17 77 77.
What is the relationship between 0585104 and BI2035100?
, y dan la misma placa con el código SIT 0585104 y el Savio Biasi BI2035100. añade el kit SIT 2521TU03187 y el código Bongioanni 006872582.
What other boilers use this PCB?
La compatibilidad de esta variante está pendiente de confirmar. s, con BI2035100: Savio Biasi M160 y M260 y Biasi Activ A 12OV ( cada una); Activ A 15OV, 20OV y 25OV, Advance Plus 30S ERP e Inovia 25S (2); el resto de Advance Plus e Inovia, Savio Biasi M261, M262 y T260, y Eiliadens, Evodens y Rinnova In E (1). y titulan la Myto Condens INOX «M260.2025 SM», sin precisar 24 o 35.
What do the codes marked on the plate mean?
0585104_15 is the SIT designation and 7530197_01 is the circuit code. 0085BU0057 is the CE PIN and 003B0057 is the CE P/N from another label; 1530912-01 is the read label code and 021.017.361 is the code on the back of the circuit. FW:214.20 is the firmware.
Can I install it myself?
It must be installed by a qualified technician: the PCB controls the boiler and contains 250 V~ relays.
