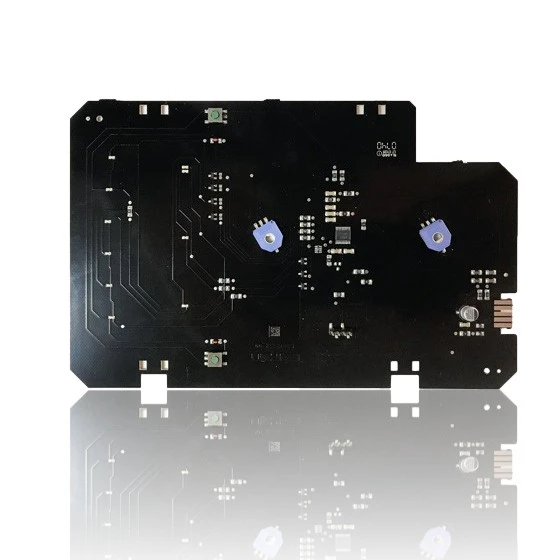

Chaffoteaux Alixia 25 FF FR Control Panel Ref. 60001296
If your boiler does not start or behaves erratically, a technical diagnosis must confirm if you need the Chaffoteaux Alixia 25 FF FR Control Panel. This PCB manages the ignition, burner modulation, pump, and safety features of the boiler. When it malfunctions, you might see fault codes 301 or 302. This panel is compatible with models from the Alixia range, such as the Alixia Green 24 FR BE and the Alixia S 15 FF, among others. A technician must confirm through diagnosis if it needs to be replaced when you notice these symptoms to restore normal operation.
- Type of part
- PCBs (control boards)
- Status
- Refurbished
- Catalogue reference
- 60001296
- Warranty
- 1 year
Chaffoteaux boilers compatible with reference 60001296
PCB with reference 60001296. Nine confirmed compatibilities: ALIXIA 25 FF FR and ALIXIA GREEN 24 FR BE.
Verified compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Chaffoteaux ALIXIA 25 FF FR | Chaffoteaux | Verified |
| Chaffoteaux ALIXIA GREEN 24 FR BE | Chaffoteaux | Verified |
| Chaffoteaux ALIXIA GREEN 29 FR BE | Chaffoteaux | Verified |
| Chaffoteaux ALIXIA S 15 FF | Chaffoteaux | Verified |
| Chaffoteaux ALIXIA S 18 FF | Chaffoteaux | Verified |
| Chaffoteaux ALIXIA S 20 CF | Chaffoteaux | Verified |
| Chaffoteaux ALIXIA S 20 FF | Chaffoteaux | Verified |
| Chaffoteaux ALIXIA S 24 CF | Chaffoteaux | Verified |
| Chaffoteaux ALIXIA S 24 FF | Chaffoteaux | Verified |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the ref. 60001296 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 60001296. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the PCB 60001296
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler does not ignite and shows no signs of life: no display, no pilot light, nothing.
Cause: If the PCB does not supply power to the other components, the boiler remains completely dead even if it receives electricity.
Check the fuse on the PCB and the input voltage to the boiler before declaring the board faulty.
- 02
The remote control or thermostat is not responding, although the boiler's display is functioning normally.
Cause: A fault in the PCB prevents processing the demand signal coming from the remote control or the room thermostat.
Force the manual ignition from the boiler itself to check if the problem lies in the communication with the control.
- 03
Intermittent fault codes appear that change on their own or do not match any real fault of the boiler.
Cause: Components of the PCB that fail intermittently generate incorrect readings from sensors that are actually functioning properly.
Note the exact codes and when they appear; if they change without a pattern, focus more on the PCB than on a specific sensor.
- 04
The boiler turns on but shuts off by itself randomly, without a clear pattern.
Cause: Damaged solder joints or degraded capacitors on the PCB lose stability and interrupt operation without apparent reason.
Check that the connectors on the PCB are properly fitted and free of oxidation before replacing it.
Chaffoteaux fault codes that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| 301 | EEPROM anomaly of the display/control board. | This symptom may be related to the part, but it does not confirm that it is faulty. A technician must check the equipment and its inspection according to the manual before deciding on a repair or replacement. |
| 302 | Communication fault between the main PCB and the control panel (bus GP‑Display/GP‑GIU). | This symptom may be related to the part, but it does not confirm that it is faulty. A technician must check the equipment and its inspection according to the manual before deciding on a repair or replacement. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Chaffoteaux 60001296 PCB.
- Catalogue reference
- 60001296
- Uniclima internal SKU
- PLCPAMANCHAALIX25
- Brand
- Chaffoteaux
- Type of part
- PCBs (control boards)
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Chaffoteaux ALIXIA 25 FF FR Manual (PDF) Document © Chaffoteaux, provided as a technical reference.
Frequently asked questions about the PCB 60001296
Is this PCB compatible with a Chaffoteaux Alixia S 20 FF?
