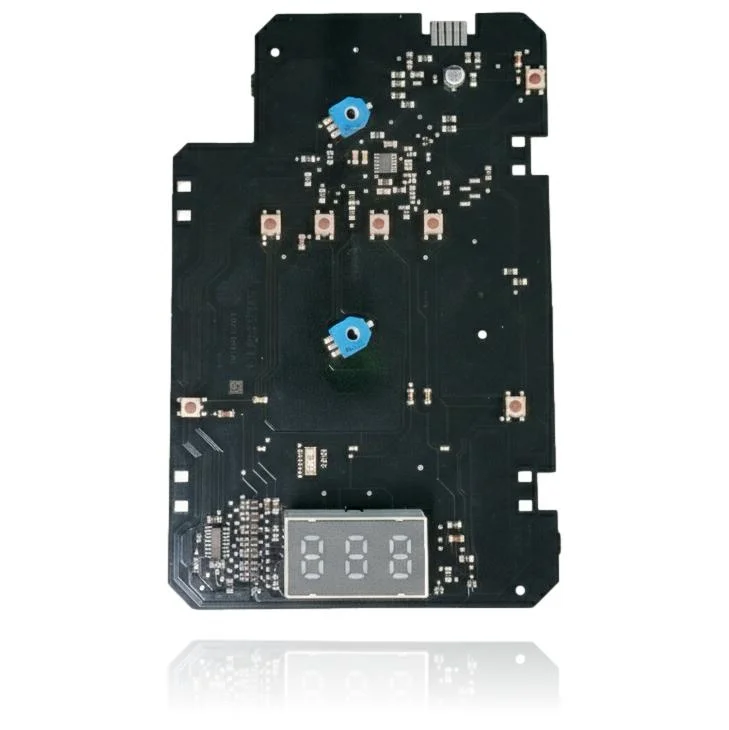

Chaffoteaux Pigma Green 25 Display PCB Ref. 60000817 01
The Chaffoteaux Pigma Green 25 Display PCB Ref. 60000817 controls the ignition, burner modulation, pump, and safety features of the boiler. If it malfunctions, the boiler may fail to start, lock out, or operate erratically, displaying faults such as 3 01: EEPROM display error or 3 02: Communication error. This part is compatible with several boilers, including the INOA 25 CF, PIGMA 25 FF, and URBIA H 25 CF models. It is recommended to replace it when these symptoms or errors are detected.
VAT included
Consult via WhatsAppChaffoteaux boilers compatible with reference 60000817 01
PCB with reference 60000817 01. 12 verified compatibilities: INOA 25 CF and INOA 25 FF.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Chaffoteaux INOA 25 CF | INOA | Contrasted |
| Chaffoteaux INOA 25 FF | INOA | Contrasted |
| Chaffoteaux INOA 30 CF | INOA | Contrasted |
| Chaffoteaux INOA 30 FF | INOA | Contrasted |
| Chaffoteaux INOA 24 VMC | INOA | Contrasted |
| Chaffoteaux PIGMA 25 CF | PIGMA | Contrasted |
| Chaffoteaux PIGMA 25 FF | PIGMA | Contrasted |
| Chaffoteaux PIGMA 25 VMC | PIGMA | Contrasted |
| Chaffoteaux PIGMA 30 FF | PIGMA | Contrasted |
| Chaffoteaux URBIA H 24 VMC | URBIA | Contrasted |
| Chaffoteaux URBIA H 25 CF | URBIA | Contrasted |
| Chaffoteaux URBIA H 25 FF | URBIA | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the ref. 60000817 01 is the part for your boiler.
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 60000817 01. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the PCB 60000817 01 resolves.
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The display does not show any digits, although you can hear that the boiler is trying to start.
Cause: The display board receives power from the main board through its own connector, which can fail without affecting the rest.
Check that the connector between the main PCB and the display PCB is properly seated before replacing the module.
- 02
All segments light up at the same time or meaningless symbols appear on the screen.
Cause: A fault in the display circuit causes segments to activate that do not correspond to the actual data.
Turn off and on the boiler from the main switch to see if the fault repeats the same after the reset, not just once.
- 03
When pressing the buttons on the display, the boiler does not change mode or temperature.
Cause: The integrated keyboard on this display board has lost sensitivity or contact with the circuit.
Check if the fault is in all the buttons or just in some, as this distinguishes a keyboard fault from a complete circuit fault.
- 04
The screen dims or appears very faint, making it difficult to read the values.
Cause: The backlight regulator on this PCB degrades with years of use.
Compare the brightness at different times of the day; if it varies significantly with the ambient heat, note it before giving the fault as definitive.
Fault codes Chaffoteaux that this part resolves
| Code | Fault | Diagnosis and solution |
|---|---|---|
| 3 01 | EEPROM display error | The EEPROM memory of the display PCB is corrupted or unreadable; the boiler blocks the UI. Check voltages/power supply on the display (≈5 V), continuity of the UI–main board harness, and test with a replacement display PCB to confirm. |
| 3 02 | Communication error | Loss of communication between the main PCB (GP) and the interface/display (GIU) due to a fault in the display PCB itself or the bus/harness. Check 5 V and bus signal at the display connector, cable continuity, and, if necessary, temporarily replace the display PCB to isolate the fault. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Chaffoteaux 60000817 01 PCB.
- Catalogue reference
- 60000817 01
- Brand
- Chaffoteaux
- Type of part
- PCBs (control boards)
- Units in stock
- 10 pcs
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Data read on the part and in the manufacturer's documentation
What we have not been able to verify does not appear here.
- Label text
- DISPLAY C&M CAL DIGIT USAB.
- Place of manufacture
- Made in P.R.C. (China)
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Chaffoteaux URBIA H 25 FF Manual (PDF)Document © Chaffoteaux, provided as a technical reference.
Frequently asked questions about the PCB 60000817 01
Is this PCB compatible with the Chaffoteaux Pigma Green 25 FF?
Where is this PCB from the Chaffoteaux Pigma Green manufactured?
Does this PCB also fit the Chaffoteaux Pigma 30 FF?
Does this PCB include a display, like the one on the Chaffoteaux Pigma 25 CF?
