Placa Electrónica Chaffoteaux DISPLAY C&M EVO TOP · 00034202340 Para Pigma Green 30 EU

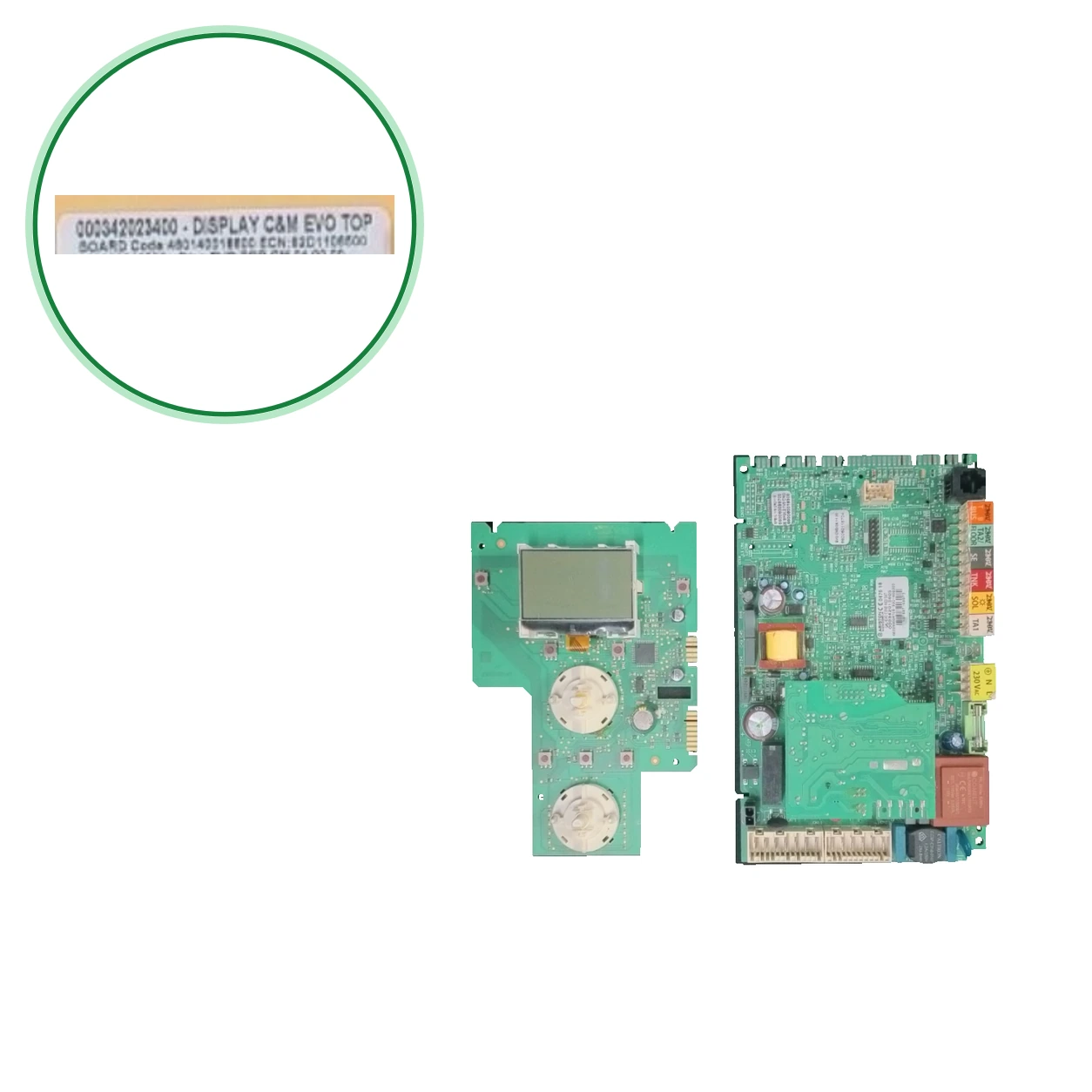

Placa de display marcada DISPLAY C&M EVO TOP, con aplicación registrada para Pigma Green 30 EU. Su correspondencia con el conjunto de placa principal 60001899-03 y display 60001906-0x requiere comprobación. Los fallos 301, 302, 303 o 5P1–5P3 requieren diagnóstico antes de sustituirla.
- Type of part
- Chaffoteaux
- Status
- Refurbished
- internal SKU
- PLCH006X
- Warranty
- 1 year
Compatible Chaffoteaux boilers
Chaffoteaux. Cinco compatibilidades contrastadas: Chaffoteaux Pigma Green 30 EU (cód. 3310400) y Chaffoteaux Inoa Evo Shunt 25 CF FR (cód. 3310296). Hay otros 4 modelos que todavía estamos comprobando.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Chaffoteaux Pigma Green 30 EU (cód. 3310400) | Chaffoteaux | Contrasted |
| Chaffoteaux Inoa Evo Shunt 25 CF FR (cód. 3310296) | Chaffoteaux | Contrasted |
| Chaffoteaux Pharos Green Evo 25 (3310324) y 35 (3310325) | Chaffoteaux | Contrasted |
| Chaffoteaux Pharos Zelios Evo 35 + Exprt Ctrl (cód. 3310328) | Chaffoteaux | Contrasted |
| Chaffoteaux Mira C Green Evo 35 FR BE, 35 3CEP FR BE, 30 Mod FR BE, 30 3CEP Mod FR BE y Mod 25/30 BE | Chaffoteaux | Contrasted |
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Chaffoteaux Pigma Green 25 EU (cód. 3310399) y 35 EU (cód. 3310401) | Chaffoteaux | Unconfirmed |
|---|---|---|
| Chaffoteaux Mira C Evo/Green/Green Evo, Pharos Green Evo 18, Pharos Opti/Zelios Evo y Serelia Evo/Green (el resto) | Chaffoteaux | Unconfirmed |
| Chaffoteaux Mira C 24 VMC FR EU y 25 CF FR BE EU; Serelia 24 VMC FR EU | Chaffoteaux | Unconfirmed |
| Chaffoteaux Pharos Opti 30 y 38 EU, Niagara C Evo 30 FF, Green 25 3CEP EU y 24 VMC FR EU, Urbia Green 35 FR EU, 30 3CEP FR EU y 25 3CEP FR BE EU | Chaffoteaux | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference —. If it is not visible, do not identify the part by its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis in the Chaffoteaux.
Common symptoms and faults
- 01
Códigos 301, 302, 303 o 5P1–5P3 en la Pigma Green 30 EU, o bloqueos ligados a la interfaz o a la lógica de control.
Cause: Fallos para los que indica este conjunto de electrónica.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Chaffoteaux
- Uniclima internal SKU
- PLCH006X
- Brand
- Chaffoteaux
- Type of part
- Chaffoteaux
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
- El taller indica este conjunto para los fallos 301, 302, 303 y 5P1–5P3.
- Un catálogo ruso dice que este display falla muy pocas veces, casi siempre tras una tormenta con rayo y, más raramente, por humedad.
- To be confirmed: Chaffoteaux Pigma Green 25 EU (cód. 3310399) y 35 EU (cód. 3310401) — 25 EU:; 35 EU:
- To be confirmed: Chaffoteaux Mira C Evo/Green/Green Evo, Pharos Green Evo 18, Pharos Opti/Zelios Evo y Serelia Evo/Green (el resto): y catálogo ruso (25 modelos)
- To be confirmed: Chaffoteaux Mira C 24 VMC FR EU y 25 CF FR BE EU; Serelia 24 VMC FR EU:
- To be confirmed: Chaffoteaux Pharos Opti 30 y 38 EU, Niagara C Evo 30 FF, Green 25 3CEP EU y 24 VMC FR EU, Urbia Green 35 FR EU, 30 3CEP FR EU y 25 3CEP FR BE EU:
- No compatible o excluidos: Chaffoteaux Pigma Green FF (25 FF, 30 FF, NG, B/P, LPG) — Lleva otro display: 60000817-01 (despiece de 2011 de )
- No confundir: 60001899-03 — Placa principal del conjunto de la Pigma Green 30 EU (taller); pos. 0815 del despiece de la serie — En el despiece de la serie va aparte del display (pos. 0816)
- No confundir: 60000817-01 — Display de las Pigma Green FF (catálogo de 2011 y italiana) — Otra gama: la Green 30 EU usa la familia 60001906
- Sin confirmar: 00034202340 ni 00334292340 tal cual.
- dan 60001906-02 para la Green 30 EU (que lo clasifica como placa de control; con prefijo CM). Un despiece de la serie lo lista (pos. 0816) sin columna legible para la 30 EU. El código marcado lo confirma; sin confirmación adicional externa lo cita tal cual.
