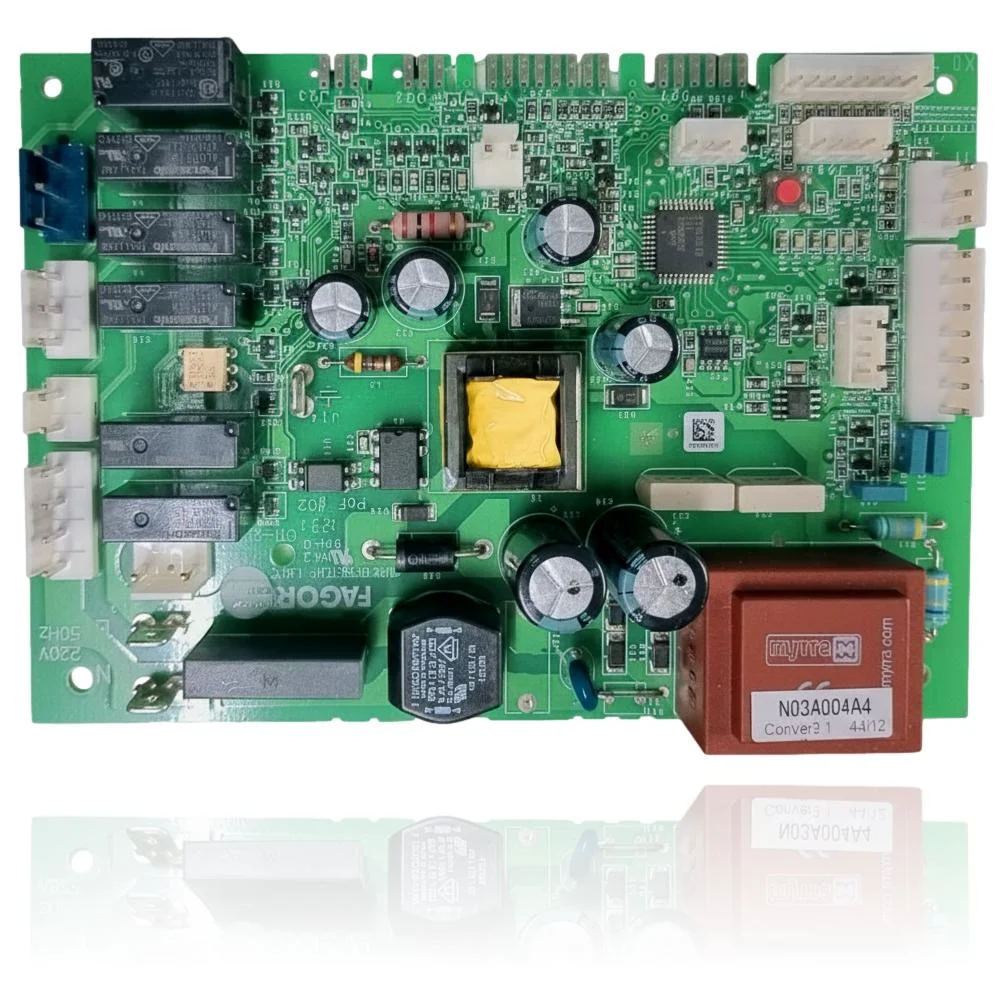

Fagor PCB FE-24NOX Ref. AS0007548
The Fagor FE-24NOX PCB, reference AS0007548, is a control component that manages the ignition, burner modulation, pump, and safety features of the boiler. When it fails, the boiler may not start, become locked, or exhibit erratic behavior, potentially displaying the fault code F5: Control board fault. This PCB is compatible with several models, including the FE-24 NOX and FEB 24 AR, among others. It should be replaced when these symptoms are detected or in the event of any internal fault in the electronic circuit.
VAT included
Consult via WhatsAppFagor boilers compatible with reference AS0007548
PCB with reference AS0007548. Ten verified compatibilities: FE-24 NOX and 1 FE 24 NOX B.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Fagor FE-24 NOx | FE 24 NOX | Contrasted |
| Fagor 1 FE 24 NOx B | FE 24 NOX | Contrasted |
| Fagor 1 FE 24 NOx N | FE 24 NOX | Contrasted |
| Fagor 1 FE 24 NOx-1 B | FE 24 NOX | Contrasted |
| Fagor 1 FE 24 NOx-1 N | FE 24 NOX | Contrasted |
| Fagor 1 FEE 24 NOx-1 B | FEE 24 NOX | Contrasted |
| Fagor 1 FEE 24 NOx-1 N | FEE 24 NOX | Contrasted |
| Fagor FEB 24 AR-1 B | FEB 24 AR | Contrasted |
| Fagor FEB 24 AR-1 N | FEB 24 AR | Contrasted |
| Fagor FE 26 TC-1 N | FE 26 TC | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. AS0007548 is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference AS0007548. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the PCB AS0007548 resolves.
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler is completely dead: no lights, no display, no noise at all.
Cause: The power supply of the PCB does not convert the mains voltage and no current reaches any circuit.
Measure with the multimeter if 230V is reaching the input of the PCB; if there is voltage and it does not turn on, the problem is with the power supply of the board.
- 02
The boiler turns off by itself and takes a long time to restart, as if it needs to cool down.
Cause: The power module heats up and cuts the output until the temperature drops, leaving the PCB without power intermittently.
With the boiler unplugged, touch the area of the power module after a shutdown to see if it is warmer than usual.
- 03
It smells burnt near the electrical panel of the boiler.
Cause: A component of the power supply stage of the PCB has been damaged and is overheating.
If you notice a burnt smell, unplug the boiler and visually inspect the PCB for any dark marks before touching anything else.
- 04
The boiler fuse blows every time an attempt is made to turn it on.
Cause: A short circuit on the PCB, often in the power supply, causes excessive consumption that blows the fuse.
Change the fuse only once and see if it blows again immediately; if it does, do not insist on replacing it, the fault is in the PCB.
- 05
The boiler ignites some days and not others, without a clear pattern.
Cause: An intermittent fault in the power supply provides current sometimes and sometimes not.
Note under what conditions it fails (cold, after a power cut, after being on for a while); this helps to confirm if the source is in the PCB.
Fault codes for Fagor that this part resolves.
| Code | Fault | Diagnosis and solution |
|---|---|---|
| F5 | PCB fault (internal fault of the electronic circuit). | The main PCB (AS0007548) has an internal hardware fault or control program protections/software issue, causing the boiler's self-diagnosis to lock it. Check for the arrival of 230 V and auxiliary voltages on the board (e.g., 5 VDC), fuse/relays, and absence of shorts; if the issue persists, replace the board. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Fagor AS0007548 PCB.
- Catalogue reference
- AS0007548
- Brand
- Fagor
- Type of part
- PCBs (control boards)
- Units in stock
- 20 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Data read on the part and in the manufacturer's documentation
What we have not been able to verify does not appear here.
- Mains voltage (next to the connector)
- 220V 50Hz
- Mains voltage (side screen printing)
- 230V 50Hz
- Embedded power module
- MYRRA N03A004A4, ConVer3.1 44/12
