Nordgas PCB 6SCHEMOD35 · OSCHEMOD35 H0/E2 for Fondital Minorca and Nibir
Aplicación a la variante exacta pendiente de confirmar. Placa de modulación de caldera de condensación Fondital. En Minorca y Nibir, el fallo de encendido E01 puede relacionarse con la tarjeta electrónica; ese código no identifica por sí solo la referencia de la placa averiada.
- Type of part
- Fondital
- Status
- Refurbished
- internal SKU
- PLC436
- Warranty
- 1 year
Fondital boilers compatible
Fondital. 0 compatibilidades contrastadas. Hay otros 8 modelos que todavía estamos comprobando.
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Fondital Leo KC | Fondital | Unconfirmed |
|---|---|---|
| Fondital Tenerife KC | Fondital | Unconfirmed |
| Fondital Minorca KC24 | Fondital | Unconfirmed |
| Fondital Minorca KR | Fondital | Unconfirmed |
| Fondital Minorca KRB | Fondital | Unconfirmed |
| Fondital Nova Florida Nibir KC | Fondital | Unconfirmed |
| Fondital Nova Florida Nibir KR | Fondital | Unconfirmed |
| Fondital Nova Florida Nibir KRB | Fondital | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

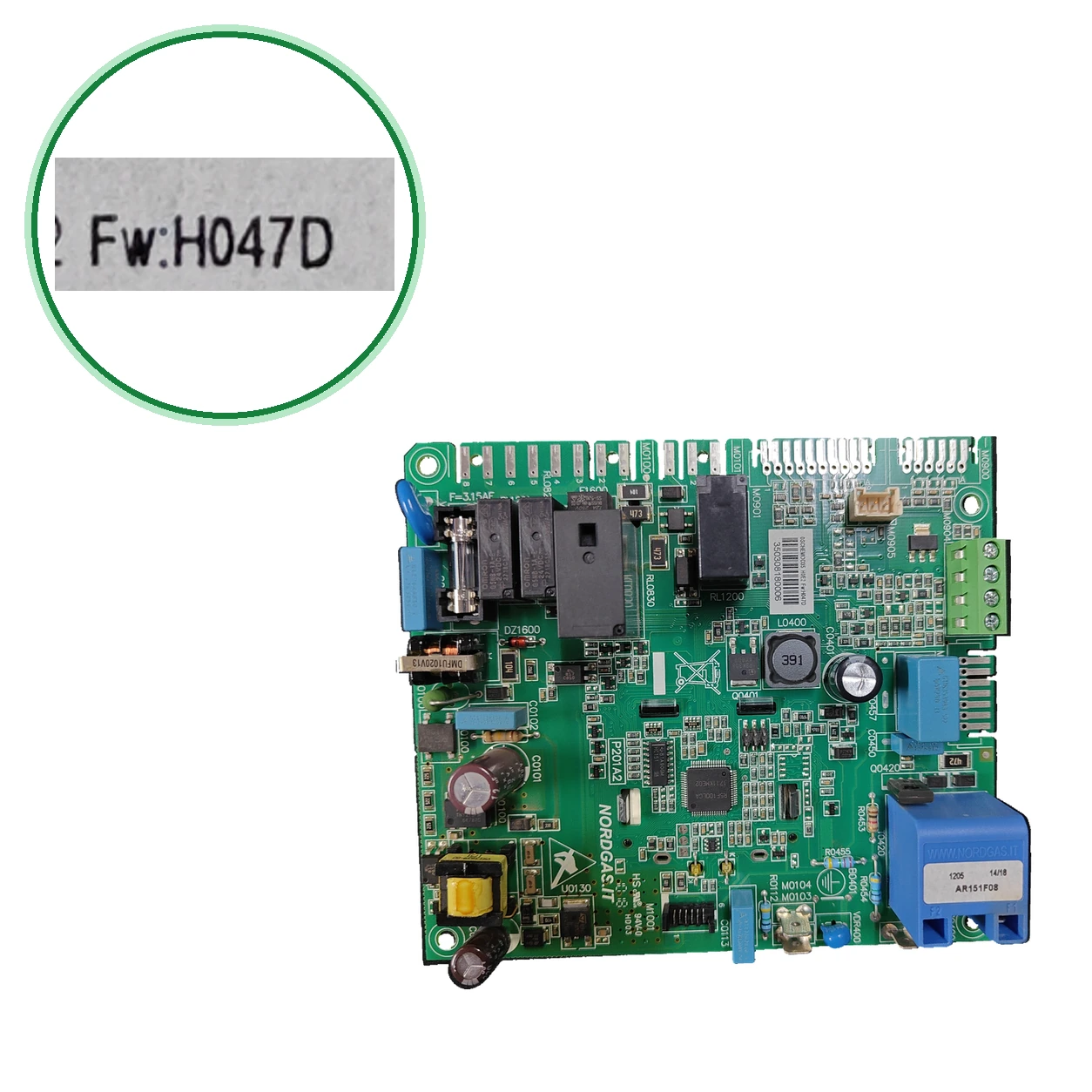

- Look for the marking OSCHEMOD35 H0/E2 on the PCB and, attached, the firmware H047D.
- Compara el código: la lista oficial de Minorca-Nibir pone 6SCHEMOD35; venden la 6SCHEMOD50 («ex 6SCHEMOD35»).
- Do not confuse it with the 6CIRCSTA21 (Minorca-Nibir interconnection) or with the 6SCHEMOD19 from Line Tech.
- Mira el modelo en la placa de características: Minorca o Nibir KC, KR o KRB (registradas) o Leo/Tenerife KC (por confirmar).
- coinciden, llámanos al 911 17 77 77 con el modelo de tu caldera y te confirmamos si la tenemos.
Symptoms that require diagnosis in the Fondital
Common symptoms and faults
- 01
Fault code E01: the burner does not ignite.
Cause: The official manuals for Minorca and Nibir indicate that the cause is a faulty PCB, which should be replaced by qualified personnel. They do not mention this board.
- 02
The burner ignites for a few seconds and then turns off.
Cause: Official manual for Minorca KC-KR-KRB: the card does not detect the flame because phase and neutral are inverted. Check the phase-neutral connection to the network.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Fondital
- Uniclima internal SKU
- PLC436
- Brand
- Fondital
- Type of part
- Fondital
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Firmware
- H047D
- Fuse
- 3.15 A F
- Blue subcomponent marking
- 1205; 14/18; AR151F08
- Complete marking of the attached firmware
- Fw:H047D
- Source of additional data
- Declared information; auxiliary references and applications without equivalent from the accredited manufacturer.
- Inventory — Indicated reference
- 6SCHEMOD35
- Datos según — Denominación oficial
- Condensing modulation board, 1 per boiler · Fondital C 364-00 list, item 80
- Datos según — Fabricante de la PCB
- Nordgas
- Pending applications to verify
- FONDITAL MINORCA KC24; Fondital Minorca KR; Fondital Minorca KRB; Nova Florida Nibir KC; Nova Florida Nibir KR; Nova Florida Nibir KRB — citas de pendientes de confirmar.
- Por confirmar: Fondital Leo KC: y (ex 6SCHEMOD35); lista oficial con 6SCHEMOD50
- To be confirmed: Fondital Tenerife KC: y (ex 6SCHEMOD35); lista oficial con 6SCHEMOD50
- No compatible o excluidos: Fondital Nias, Pictor y Tahiti Condensing Line Tech — Llevan otra placa: 6SCHEMOD19
- No compatible o excluidos: Fondital Libra, Nias y Tahiti Dual Line Tech — Llevan otra placa: 6SCHEMOD17
- Do not confuse: 6CIRCSTA21 — Minorca-Nibir interconnection PCB (item 92 of the same list) — It is another board, not the modulation one.
- Do not confuse: 6SCHEMOD19 — Fondital PCB for Nias, Pictor, and Tahiti Condensing Line Tech — It is from another series of boilers.
- Nuestra etiqueta marca OSCHEMOD35 H0/E2; la lista oficial usa 6SCHEMOD35 y 6SCHEMOD50. Sin confirmar: OSCHEMOD35 H0/E2.
- 6SCHEMOD35 = placa de modulación condensing: lista oficial de Fondital (ítem 80) . Marca: indica «Marca: FONDITAL» y la titulan Fondital; «Ricambio originale Nordgas»; la registra como Nordgas y prevalece.
- Aplicaciones registradas pendientes de confirmar por modelo, variante o programación: Fondital Minorca KC24; Fondital Minorca KR; Fondital Minorca KRB; Nova Florida Nibir KC; Nova Florida Nibir KR; Nova Florida Nibir KRB.
