Bertelli & Partners PCB DIMS22-IM04 · 1.027616 for Immergas Victrix 26 kW

Immergas compatible boilers

Immergas. Three confirmed compatibilities: Immergas Victrix 26 kW and Immergas Victrix 24 kW. There are another 8 models that we are still verifying.

Proven compatibility

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

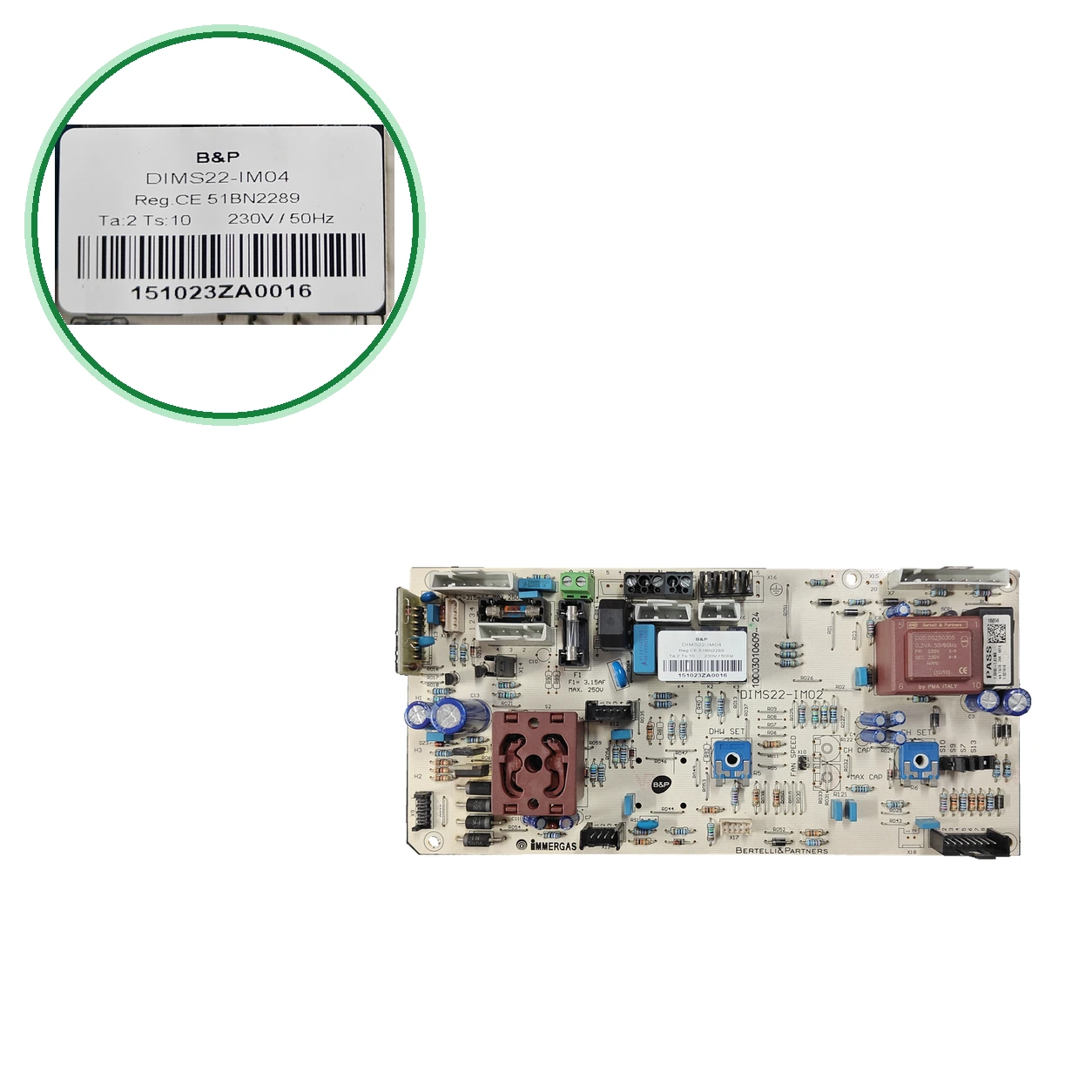

1. Look for the plate DIMS22-IM04 and the circuit code DIMS22-IM02; the label also includes 1.027616, 51BN2289, and 151023ZA0016.
2. Compara con el despiece de tu caldera: el código Immergas suele ser 1.027616 o 1.036495 (algunas añaden 1.025476 y 1.023651).
3. Don't rely solely on 51BN2289: another PCB carries it. Don't confuse it with the HDIMS10-IM01 (3.029202) or with the 1.038586.
4. Check that your model is Victrix 26 kW, 24 kW or Zeus 26 kW; if not, compare the code of your spare parts list.
5. If they match, call us at 911 17 77 77 with the model of your boiler.

Technical sheet: Immergas

Uniclima internal SKU

PLIM0778X

Brand

Immergas

Type of part

Immergas

Units in stock

3 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Power supply marked on module label

230 V / 50 Hz

Ta and Ts marked without unit

Ta:2; Ts:10

F1 fuse marked on PCB

3.15AF; MAX250V

Transformer: rated power

0.2 VA; 50/60 Hz

Transformer: primary/secondary marked

PRI230V; SEC230V

Inventory — Label times

Ta 2 s; Ts 10 s

Inventory — Fuse F1

3.15 A type F; max. 250 V

Inventory — Fuse F2

315 mA; max. 250 V

Inventory — Transformer subcomponent COD.05250305

0.2 VA; 50/60 Hz; primary 230 V terminals 2-5; secondary 230 V terminals 6-8

Inventory — Screen printing adjustments

DHW SET, CH SET, FAN SPEED, MAX CAP

Inventory — Application indicated in inventory

Victrix 26 kW

Inventory — Marked code

51BN2289; 151023ZA0016; 1.027616

Identification — Marked designation

DIMS22-IM04

Identification — Marked code

DIMS22-IM04

Identification — Marked code

DIMS22-IM02

Identification — Marked code

51BN2289

Identification — Marked code

1.027616

Identification — Marked code

COD.05250305

Marked power supply on module label

230 V / 50 Hz

Technical sheet: Ta and Ts marked without unit

Ta:2; Ts:10

Fusible F1 marked on PCB

3.15AF; MAX250V

Transformator: rated power

0.2 VA; 50/60 Hz

Transformer: primary/secondary marked

PRI230V; SEC230V

Inventory data — Label times

Ta 2 s; Ts 10 s

Inventory data — Fuse F1

3.15 A type F; max. 250 V

Inventory data — Fuse F2

315 mA; max. 250 V

Inventory data — Transformer subcomponent COD.05250305

0.2 VA; 50/60 Hz; primary 230 V terminals 2-5; secondary 230 V terminals 6-8

Inventory data — Screen printing adjustments

DHW SET, CH SET, FAN SPEED, MAX CAP

Inventory data — Application indicated in inventory

Victrix 26 kW

Inventory data — Marked code

51BN2289; 151023ZA0016; 1.027616

Pending applications to verify

Victrix 26 kW — compatibilidad anotada; pendiente de confirmar por variante.

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Immergas Victrix Intra 26 kW Plus Manual (PDF) Document © Immergas, provided as a technical reference.
