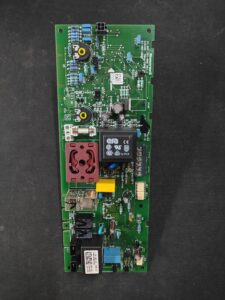

Honeywell S4962CM1004V04 PCB · Junkers 8 708 300 212 for ZW 23-1 AE 23

Honeywell S4962CM1004V04 PCB · Junkers 8 708 300 212 for ZW 23-1 AE 23

The PCB (control board) is identified as the control and ignition unit for the Euroline ZS/ZW 23-1 AE, with gas regulators VK41. A fault warning about 10 seconds after ignition also requires checking the symptoms and the installation.

internal SKU
PLC214
Warranty
1 year
VAT included OUT OF STOCK
Compatibility

Compatible models

Check the listed models, version and part number before ordering the spare part.

Verified compatibility

Boiler modelFamilyVerification
Junkers Euroline ZW 23-1 AE 23JunkersVerified

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Junkers Euroline ZW 23-1 AE 31JunkersUnconfirmed
Junkers Euroline ZW 23-1 KE 23 and KE 31JunkersUnconfirmed
Junkers Euroline ZW 24-1E LH AE 23 and AE 31JunkersUnconfirmed
Junkers ZS 23-1 AE 23JunkersUnconfirmed
Junkers NW 24-1 (AE, KE, ELH AE), NW 24/28-1 KE and NW 24/30-1 AEJunkersUnconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

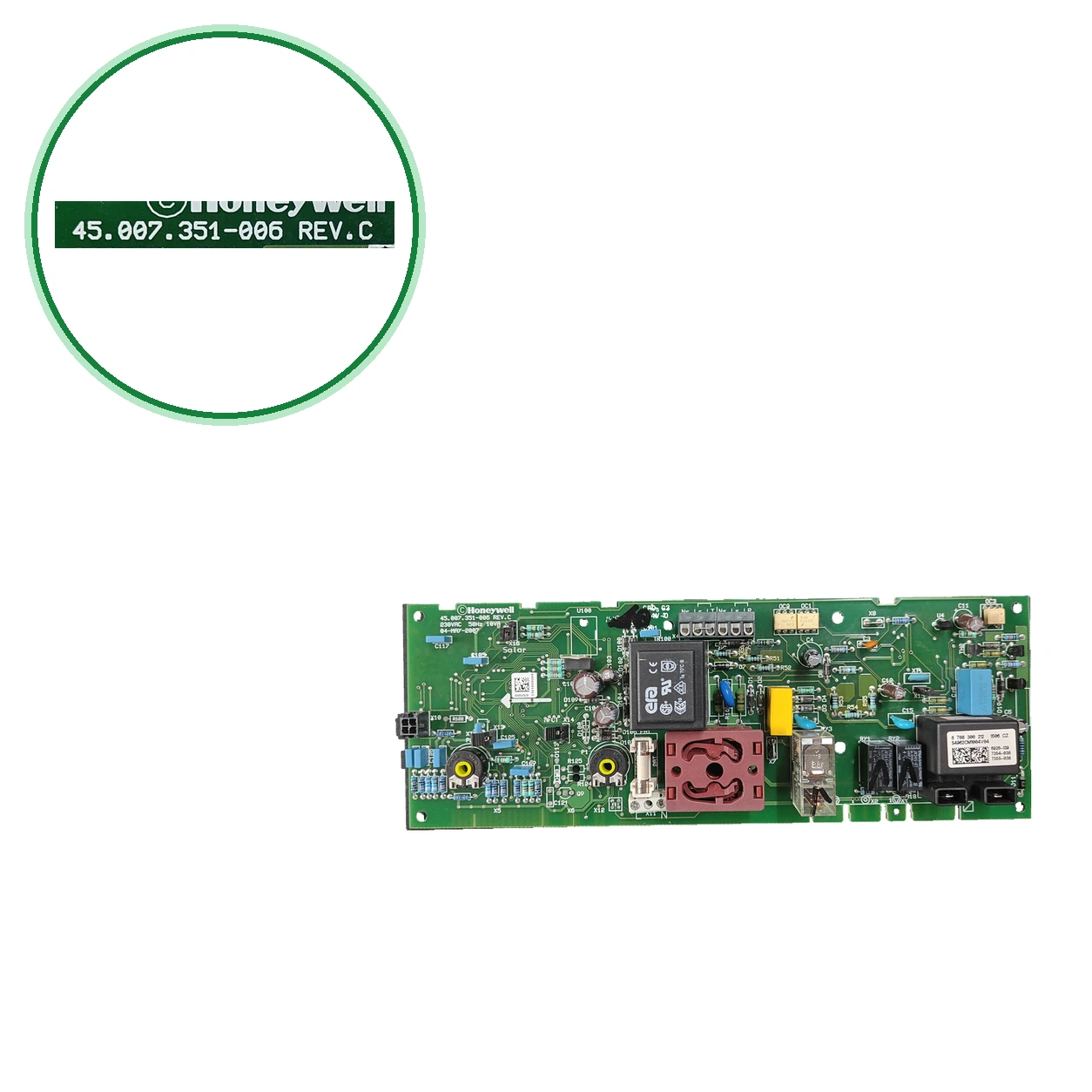

  1. Look for the designation S4962CM1004V04 (Honeywell) and the code 8 708 300 212. The circuit has 45.007.351-006 REV.C.
  2. Also compare 1508 CZ, 6920-139, 7354-038, and 7355-038: another PCB with the same circuit had chips with a different suffix.
  3. To confirm: Do not confuse it with the S4962CM2069 (Junkers 8708300292), which is a different PCB.
  4. Check the data plate of your boiler to confirm that it is a Junkers Euroline ZW 23-1 AE 23.
  5. If they match, call us at 911 17 77 77 with your boiler model and we will reserve it for you.
Diagnosis and fault codes

Symptoms and checks

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    A fault warning and the reset indicator blink about 10 seconds after turning on, and they return after resetting.

    Cause: In a forum case (PCB 45.007.351-006 REV.C, ZW 23-1 KE): the chip 78F9116 was short-circuited on power and the baw56 was also faulty; the author replaced both. It is a unique published case: it is advisable for a technician to measure before replacing the PCB.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Technical data

Uniclima internal SKU
PLC214
Brand
Junkers
Type of part
PCBs (control boards)
Units in stock
0 units
Status
Refurbished
Warranty
1 year
Shipping
We will notify you when it is back
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Marked supply
230VAC 50Hz 10VA
Literal date PCB
04-MAY-2007
Inventory — Low voltage marking
24 V-0
Inventory — Application indicated in inventory
ZW 23-1 AE 23
Inventory — Marked code
8 708 300 212; 1508 CZ; 6920-139; 7354-038; 7355-038
Verified data — Official list
Pos. 4 · PCB 8 708 300 212 · Spare parts list Junkers ZS/ZW 23-1 AE
Verified data — Order code
87083002120 (8 708 300 212 + «0») · Official list +
Verified data — Power supply
230 V · 50 Hz · 10 VA · from the same PCB REV.C
Identification — Marked designation
S4962CM1004V04
Identification — Marked code
8 708 300 212
Identification — Marked code
1508 CZ
Identification — Marked code
6920-139
Identification — Marked code
7354-038
Identification — Marked code
7355-038
Identification — Marked code
45.007.351-006 REV.C
Technical sheet: Marked power supply
230VAC 50Hz 10VA
Technical sheet: PCB
04-MAY-2007
Inventory data — Low voltage marking
24 V-0
Inventory data — Application indicated in inventory
ZW 23-1 AE 23
Inventory data — Marked code
8 708 300 212; 1508 CZ; 6920-139; 7354-038; 7355-038
Registered reference
45.007.351-006
Before purchasing
  • In that thread, the moderator warns that the chip 78F9116 only works if it comes from a board with the same suffix (032).
  • To confirm: Junkers Euroline ZW 23-1 AE 31
  • To confirm: Junkers Euroline ZW 23-1 KE 23 and KE 31; a forum mentions this PCB in a ZW 23-1 KE.
  • To confirm: Junkers Euroline ZW 24-1E LH AE 23 and AE 31; the official list covers the ZW 24-1E LH AE family.
  • To confirm: Junkers ZS 23-1 AE 23; it is compatible with the ZS23-1AE23HRD; for the families ZW, ZS and OW 12-1/23-1 (without exact model).
  • To confirm: Junkers NW 24-1 (AE, KE, ELH AE), NW 24/28-1 KE and NW 24/30-1 AE — (code 87083002120)
  • Do not confuse: S4962CM2069 / 8708300292 — Another PCB for a different Junkers — besides; it is not the 8 708 300 212.
  • To confirm: use the SKU S4962CM1004V04U (with final U); this unit carries S4962CM1004V04.
  • It connects S4962CM1004V04 with 8 708 300 212 and with the ZW 23-1 AE 23; the official Junkers list includes the PCB 8 708 300 212 for the ZS/ZW 23-1 AE family. The other Euroline models remain to be confirmed.
Frequently asked questions

Frequently asked questions

What does each code on this PCB mean and which one should I compare?
S4962CM1004V04 is the Honeywell designation, the "producer code." 8 708 300 212 is the Junkers code: pos. 4 "circuit board" from the official list. 45.007.351-006 REV.C is the circuit code. 1508 CZ, 6920-139, 7354-038, and 7355-038 are also marked, but without additional confirmation, they are explained. First, compare S4962CM1004V04 and 8 708 300 212.
Is it compatible with my Junkers Euroline ZW 23-1 AE 23?
Yes. Confirmed: for the ZW 23-1 AE 23. The official spare parts list from Junkers for the ZS/ZW 23-1 AE includes the PCB 8 708 300 212 and that boiler is listed among its types; and they offer the S4962CM1004V04 for it.
Is it compatible with other Euroline models (ZW 23-1 KE, ZW 23-1 AE 31, ZW 24-1E LH AE)?
To confirm. They offer it for ZW 23-1 AE 31, KE 23, KE 31, and ZW 24-1E LH AE 23 and AE 31, but they are. Compare 8 708 300 212 with your PCB or send us a photo of its label and the boiler's specification plate from Contact. You can also call 911 17 77 77.
Why do some places write 8708300212 and others 87083002120?
It is the same PCB from Junkers; since 2003, the spare part codes have 11 digits, and when ordering, a "0" is added at the end: 8 708 300 212 becomes 87083002120, as they write it.
Is the PCB 45.007.351-006 REV.C the same in all units?
Do not take it for granted. A repair thread from 2011 describes a 45.007.351-006 REV.C from a ZW 23-1 KE with chips marked 6926-139, 7354-032, and 7355-032. This unit has 6920-139, 7354-038, and 7355-038. Without additional confirmation, explain the difference: compare all the markings.
What fault has been described on a PCB 45.007.351-006 REV.C?
In a repair forum (Junkers Euroline ZW 23-1 KE), the PCB displayed a warning and the reset indicator was flashing 10 seconds after turning it on, and it returned after resetting. The author found the 78F9116 chip short-circuited in the power supply and the baw56 faulty, and he replaced them. The thread does not confirm that the issue was resolved: it is a single case published in a forum.
Can I install it myself?
We do not recommend it. The PCB operates at 230 V (50 Hz, 10 VA marked) and controls a gas boiler: it must be installed by a qualified technician.
Currently out of stock. We will notify you when it is back
1-year warranty inspected and tested
14-day return uninstalled parts
Technical support we verify your model
