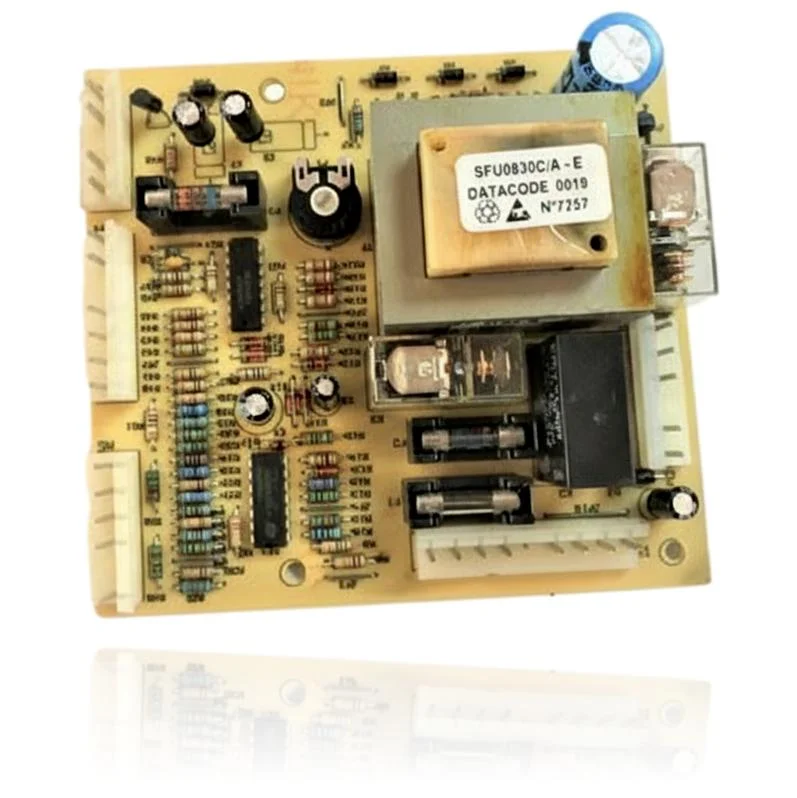

PCB Operation Wiesberg RSSE24 Ref. 95000362
When you turn on the tap or start the heating, the PCB (control board) Wiesberg RSSE24 Ref. 95000362 controls the ignition, the modulation of the burner, the pump, and the safety features of your boiler. If this part fails, you will notice that the boiler does not start, gets locked, or exhibits erratic behavior. It is compatible with the RSSE24 model from Wiesberg, among others. A technician must confirm through diagnosis whether it needs to be replaced when you experience these symptoms, as its malfunction can affect the performance of your heating system.
Wiesberg boilers compatible with reference 95000362
PCB with reference 95000362. A proven compatibility: RSSE24.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Wiesberg RSSE24 | Wiesberg RSSE | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the ref. 95000362 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 95000362. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the PCB 95000362
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler does not ignite at all, not even the pilot light.
Cause: The transformer on the PCB is not delivering the necessary current for the circuit.
Measure the output of the transformer with a multimeter before replacing the PCB.
- 02
The screen flickers or turns off and on by itself intermittently.
Cause: A fault in the internal power supply of the PCB causes micro-cuts in the control circuit.
Check the input wiring to the PCB and make sure the connectors are properly secured before replacing it.
- 03
The burner does not ignite even though the attempt to start can be heard.
Cause: The PCB is not sending the gas opening signal at the right moment in the ignition cycle.
Check the ionization electrode and the gas supply before blaming the PCB.
- 04
The thermostat neither starts nor stops the boiler.
Cause: The input of the PCB that receives the signal from the thermostat is not responding.
Do not bridge contacts or power components directly to test them. Request a technician to check the cause according to the model manual and its revision, without bypassing the protections. The symptom or fault code does not confirm on its own that this part is faulty.
- 05
A fuse blows or there is a burnt smell near the PCB.
Cause: An internal short circuit in the PCB or in the transformer is overloading the circuit.
Disconnect the boiler immediately and visually inspect the PCB for any burnt components before deciding on the replacement.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Wiesberg 95000362 PCB.
- Catalogue reference
- 95000362
- Uniclima internal SKU
- PLCWR24
- Brand
- Wiesberg
- Type of part
- PCBs (control boards)
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Transformer code
- SFU0830C/A-E
- Datacode
- 0019
- Serial number/batch
- N°7257
Frequently asked questions about the PCB 95000362
What code is read on the transformer of the Wiesberg RSS 24 PCB?
Does this PCB work for the Wiesberg RSSE 24 in addition to the RSS 24?
What number does the transformer on this PCB have besides the code SFU0830C/A-E?
