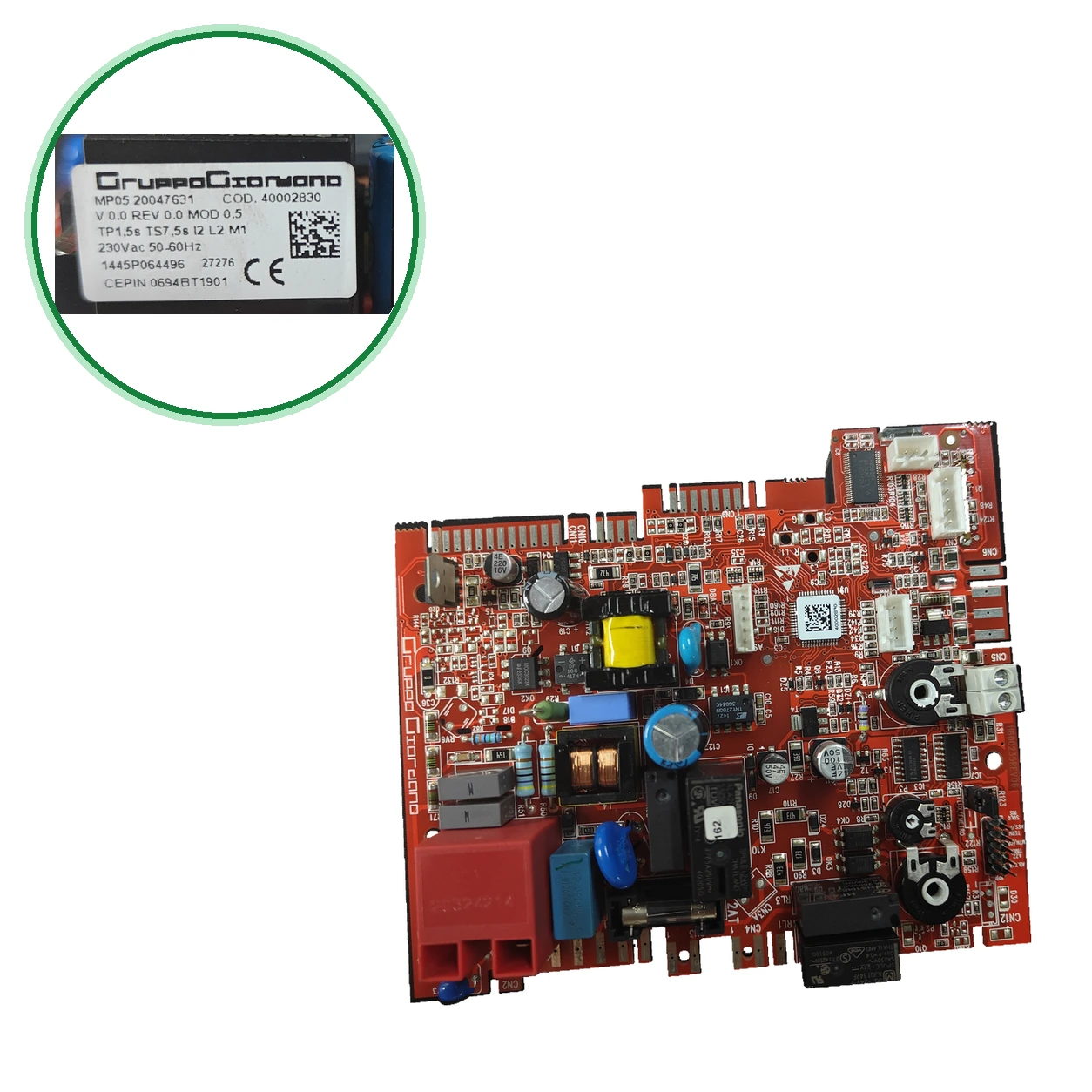

PCB Gruppo Giordano MP05 · 40002830 for Beretta Silver VGR
Aplicación a la variante exacta pendiente de confirmar. La MP05 es una placa de gestión y encendido de caldera: para ella tiempos TP (encendido) de 1,5 s y TS (seguridad) de 7,5 s. Antes de darla por mala, comprueba las piezas que le envían señales.
- Type of part
- PCBs (control boards)
- Status
- Refurbished
- Catalogue reference
- 40002830
- Warranty
- 1 year
VAT included OUT OF STOCK
Boilers Gruppo Giordano compatible with reference 40002830
Placa electrónica con referencia 40002830. 0 compatibilidades contrastadas. Hay otros 8 modelos que todavía estamos comprobando.
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Gruppo Giordano Beretta Mynute S 24 CSI and S 28 CSI | Gruppo Giordano | Unconfirmed |
|---|---|---|
| Gruppo Giordano Beretta Ciao S 24 | Gruppo Giordano | Unconfirmed |
| Giordano Beretta Mynute LX, Ciao LX, and Meteo LX | Gruppo Giordano | Unconfirmed |
| Gruppo Giordano Beretta Mynute Special, S 35, boiler, Sinthesi S, Low NOx; Quadra II 24 | Gruppo Giordano | Unconfirmed |
| Gruppo Giordano Beretta Ciao AT | Gruppo Giordano | Unconfirmed |
| Gruppo Giordano Sylber Lady and Style | Gruppo Giordano | Unconfirmed |
| Giordano Riello Start and Residence External | Gruppo Giordano | Unconfirmed |
| Gruppo Giordano Beretta Silver VGR | Gruppo Giordano | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if reference 40002830 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Look for the marking 20047631 and the PCB 11600235 REV06. The model is MP05.
- REV06 is the revision of the PCB, not the version of the module (V 0.0 · REV 0.0 · MOD 0.5). 1445P064496 and 27276 are markings of unidentified function; do not use them as a reference for spare parts without documentation.
- Los códigos 20049611 y 4R002783 que dan no están enlazados con esta PCB. En una Ciao AT, comprueba que no lleve la otra placa, la 20182422.
- coinciden, llámanos al 911 17 77 77 con el modelo de tu caldera, o envíanos desde Contacto una foto de la etiqueta de la placa.
Symptoms that require diagnosis on the PCB 40002830
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler does not ignite, does not display anything, shows intermittent faults, or does not respond to the thermostat.
Cause: To be confirmed: da estos síntomas para cambiar la placa Beretta 20049611 (Ciao 24 CSI); no son códigos de error ni prueban la avería. Revisa antes el fusible F1 y los conectores.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Technical sheet: Gruppo Giordano 40002830
- Catalogue reference
- 40002830
- Uniclima internal SKU
- PLC403
- Brand
- Gruppo Giordano
- Type of part
- PCBs (control boards)
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- PCB model
- MP05 (according to inventory)
- Reference indicated in inventory
- 40002830 (no public OEM equivalence found)
- Marked code on the part
- 20047631 (marking; not confirmed as spare part reference)
- Additional markings
- 1445P064496 / 27276 (function not identified)
- CE PIN code
- 0694BT1901
- PCB code and revision
- 11600235 · REV06 (separated from the module version)
- Indicated version of module
- V 0.0 · REV 0.0 · MOD 0.5
- Declared timings
- TP 1.5 s · TS 7.5 s
- Marked configuration
- T2 · L2 · M1
- Declared power supply
- 230 V AC · 50/60 Hz
- Fuse F1
- 2 A according to inventory; type T is listed in the previous sheet and was not confirmed in an OEM sheet.
- Classification of PCB
- 94V-0 · UL code E321066 (transcription; not a service reference)
- Transcribed capacitors
- 22 μF/400 V; 47 μF/50 V; 220 μF/16 V; 100 μF/16 V; film 1 μF/250 V K. The first value was already included in the technical sheet; without OEM datasheet of the set.
- Panasonic relay · coil
- 24 V DC (inventory)
- Panasonic relay · contact
- Unresolved discrepancy: transcribe 47/65 A, 250 V~; the previous sheet records 5 A, 250 V. There is no exact relay number to choose a value.
- Another Panasonic marking
- 230 V~; the exact function of this marking is not established.
- PCF8563T integrated circuit
- NXP defines it as a RTC clock/calendar with I²C bus; its specific functional use in this circuit has not been documented.
- Datos del inventario, confirmados; los da igual (1 origen) — Tiempo de encendido (TP)
- 1,5 s · (MP05)
- Datos del inventario, confirmados; los da igual (1 origen) — Tiempo de seguridad (TS)
- 7,5 s · (MP05)
- compatible with reference Beretta
- SILVER VGR · Compatible according to the validated compatibility in the inventory.
- Technical sheet: Model
- MP05 (inventory)
- Technical sheet: Reference indicated in inventory
- 40002830; unaccredited OEM equivalence
- Technical sheet: Marked code
- 20047631; not confirmed as service reference
- Technical sheet: Auxiliary markings
- 1445P064496 / 27276; unidentified function
- Technical sheet: PCB code
- 11600235 · REV06
- Technical sheet: Module version
- V 0.0 · REV 0.0 · MOD 0.5; different from the REV06 of the PCB
- Technical sheet: Power supply / frequency
- 230 V AC · 50/60 Hz (inventory)
- Technical sheet: Timings
- TP 1.5 s · TS 7.5 s (inventory)
- Technical sheet: Configuration
- T2 · L2 · M1 (marked)
- Fusible F1
- 2 A in stock; type T is only listed in the previous sheet.
- Technical sheet: PCB
- 94V-0 · UL E321066 (classification markings)
- Technical sheet: Condensers
- 22 μF/400 V; 47 μF/50 V; 220 μF/16 V; 100 μF/16 V; film 1 μF/250 V K. Without OEM specification of the set.
- Panasonic relay · coil
- 24 V DC
- Technical sheet: Panasonic relay · contacts
- Unconfirmed: inventory 47/65 A at 250 V~ compared to 5 A at 250 V in the previous sheet; exact model missing.
- Technical sheet: Another Panasonic marking
- 230 V~; marking function not determined
- PCF8563T
- NXP confirms RTC/calendar and I²C interface; use on this PCB not documented.
- CE PIN
- 0694BT1901; previous data from the technical sheet, not revalidated here
- Related references — 40002830
- Reference indicated in INVENTARIO ALFONSO · Registered; OEM crosswalk not found
- Related references — 20047631 · MP05
- Retailers describe it as marked with plate MP05 · Does not confirm spare part or revision
- Related references — 20049611 · 4R002783
- Riello appears together in the catalog and in commercial listings MP05 · No proven equivalence with 40002830/PCB REV06.
- Related references — 0098234
- Technical sheet: Gruppo Giordano for Silver VGR · Without crosswalk to PLC403
- Related references — 4002830 · 40002831
- Grafías/códigos distintos en de City D · No normalizar ni asumir equivalencia
- Related references — 1445P064496 · 27276
- Inventory markings · Unidentified OEM function
- Pending applications to verify
- Beretta SILVER VGR — compatibilidad anotada; pendiente de confirmar por variante.
Before purchasing
- To be confirmed: Beretta Mynute S 24 CSI y S 28 CSI — las dan para la 20049611 (MP05); ninguna cita 40002830
- Por confirmar: Beretta Ciao S 24, para la 20049611 (MP05)
- To be confirmed: Beretta Mynute LX, Ciao LX y Meteo LX — Manual de Beretta (PDF en un tercero; tabla rota en el texto; MP05) + (20049611)
- To be confirmed: Beretta Mynute Special, S 35, Boiler, Sinthesi S, Low NOx; Quadra II 24, para la 20049611
- To be confirmed: Beretta Ciao AT — Sin resolver: el manual de Beretta da la Ciao AT con MP05 y la Ciao AT (2021) con BRT14; la listan para la 20049611, sin año
- Por confirmar: Sylber Lady y Style —, para la 20049611
- Por confirmar: Riello Start y Residence Externa —, para la 4R002783
- No compatible o excluidos: Beretta Ciao AT 25 C — Otra placa: 20182422 (Riello 4R109154), una tercera la llama BRT14
- Do not confuse: 0098234 — Another Gruppo Giordano PCB for Silver VGR — We do not have a cross-reference for this; compare with the PCB 11600235 REV06.
- Do not confuse: 1445P064496 · 27276 — Auxiliary markings on the PCB — Function not identified; do not use as a spare part reference without documentation.
- No confundir: 4002830 · 40002831 — Códigos distintos vistos en de City D — No son 40002830: no los des por equivalentes
- 20049611 y 4R002783 para la MP05, pero ninguna cita 40002830 ni la PCB 11600235 REV06.
- El marcaje 20047631 consta con texto en 1 origen; la 20049611, la MP05, también en un manual de Beretta (PDF en un tercero). Sin confirmar: 40002830 ni la PCB 11600235 REV06; de la Silver VGR no hemos localizado: las confirma.
- Aplicaciones registradas pendientes de confirmar por modelo, variante o programación: Beretta Silver VGR.
Frequently asked questions: PCB 40002830
Is it compatible with my Beretta Silver VGR?
La compatibilidad de esta variante está pendiente de confirmar. Aplicación registrada: esta placa para la Beretta Silver VGR. No hemos localizado despiece ni de la Silver VGR. Compara igualmente la PCB 11600235 REV06 con la de tu placa.
Where is the code for this MP05 PCB and what else should I compare?
On the plate, the marking 20047631 and the PCB 11600235 REV06 are present; the model is MP05. Also compare TP 1.5 s · TS 7.5 s and the configuration T2 · L2 · M1. 1445P064496 and 27276 are markings of unidentified function; do not use them as a spare part reference without documentation.
Is it the same PCB as the Beretta 20049611 or the Riello 4R002783?
No lo damos por hecho. 20049611 (Beretta) y 4R002783 (Riello) para la MP05, y da 20047631 como referencia de su MP05 con TP 1,5 s · TS 7,5 s. Pero Sin confirmar: 40002830 ni la PCB 11600235 REV06: la equivalencia no está probada.
Is it compatible with another Beretta, such as Mynute, Ciao, or Meteo?
La compatibilidad de esta variante está pendiente de confirmar. Por confirmar: No lo aseguramos. dan la 20049611 (MP05) para Mynute S, Ciao S 24, Mynute Special, Boiler y Quadra II. Para Mynute LX, Ciao LX y Meteo LX lo indican el manual de Beretta (PDF en un tercero; su tabla sale rota en el texto) . Ninguna cita 40002830; envíanos una foto de la placa y de la caldera desde Contacto o llámanos al 911 17 77 77.
Is it compatible with a Beretta Ciao AT?
La compatibilidad de esta variante está pendiente de confirmar. n resolver. El manual de Beretta da la Ciao AT con MP05 y la Ciao AT (2021) con BRT14, aunque su tabla sale rota. la Ciao AT con la 20049611, sin año; dos dan la 20182422 (otra placa) para la Ciao AT 25 C. Comprueba la placa de tu caldera antes de pedir.
What do 40002830, 20047631, and 11600235 REV06 mean?
40002830 es la referencia de la pieza; no consta en catálogos públicos. 20047631 es el marcaje de la placa MP05. 11600235 REV06 es el circuito impreso y su revisión, distinta de la versión del módulo (V 0.0 · REV 0.0 · MOD 0.5).
When should this PCB be replaced and who should install it?
To be confirmed: estos síntomas para cambiar la placa Beretta 20049611: no enciende, sin display, errores intermitentes o sin respuesta al termostato. Antes revisa el fusible F1 (2 A) y los conectores. Debe montarla un técnico cualificado: trabaja a 230 V CA y controla el encendido de la caldera.
Which boiler is it compatible with?
La compatibilidad de esta variante está pendiente de confirmar. Beretta SILVER VGR, según la compatibilidad validada en el inventario. No se han añadido otros modelos.
Is it the same PCB as the reference Beretta 20049611 or Riello 4R002783?
No se ha demostrado. Un catálogo Riello lista 20049611 junto a 4R002783, y relacionan esos códigos con placas MP05/20047631; no hay cruce OEM con la referencia de inventario 40002830 ni con la PCB 11600235 REV06.
Is it compatible with Beretta City, Mynute, Ciao or Quadra, Sylber Lady/Style or Riello Start/Residence?
La compatibilidad de esta variante está pendiente de confirmar. Las listas comerciales consultadas vinculan algunos MP05 y códigos 20049611/4R002783 a esas familias, pero no acreditan que correspondan a esta variante y revisión. No se deben considerar compatibilidades registradas para PLC403.
Is reference 0098234 a substitute?
No documented equivalence was found. 0098234 appears as a separate catalog reference for a Gruppo Giordano PCB of Silver VGR; it was not linked with 40002830, 20047631, or 11600235 REV06.
What is the value of the relay contact?
La compatibilidad de esta variante está pendiente de confirmar. No está resuelto: el inventario dice 47/65 A a 250 V~ y la ficha anterior guarda 5 A a 250 V. Al no tener el número completo del relé, no se debe usar ninguno como especificación registrada.
What function does the PCF8563T have?
NXP identifies that integrated circuit as a real-time clock/calendar with I²C interface. This describes the integrated circuit, but does not demonstrate its function on this board nor its compatibility with the boiler.
Are there specific fault codes or diagnostic codes for this PCB?
No OEM manual or fault table was found linked to the combination MP05/11600235 REV06; no codes are attributed to another Silver VGR board.
