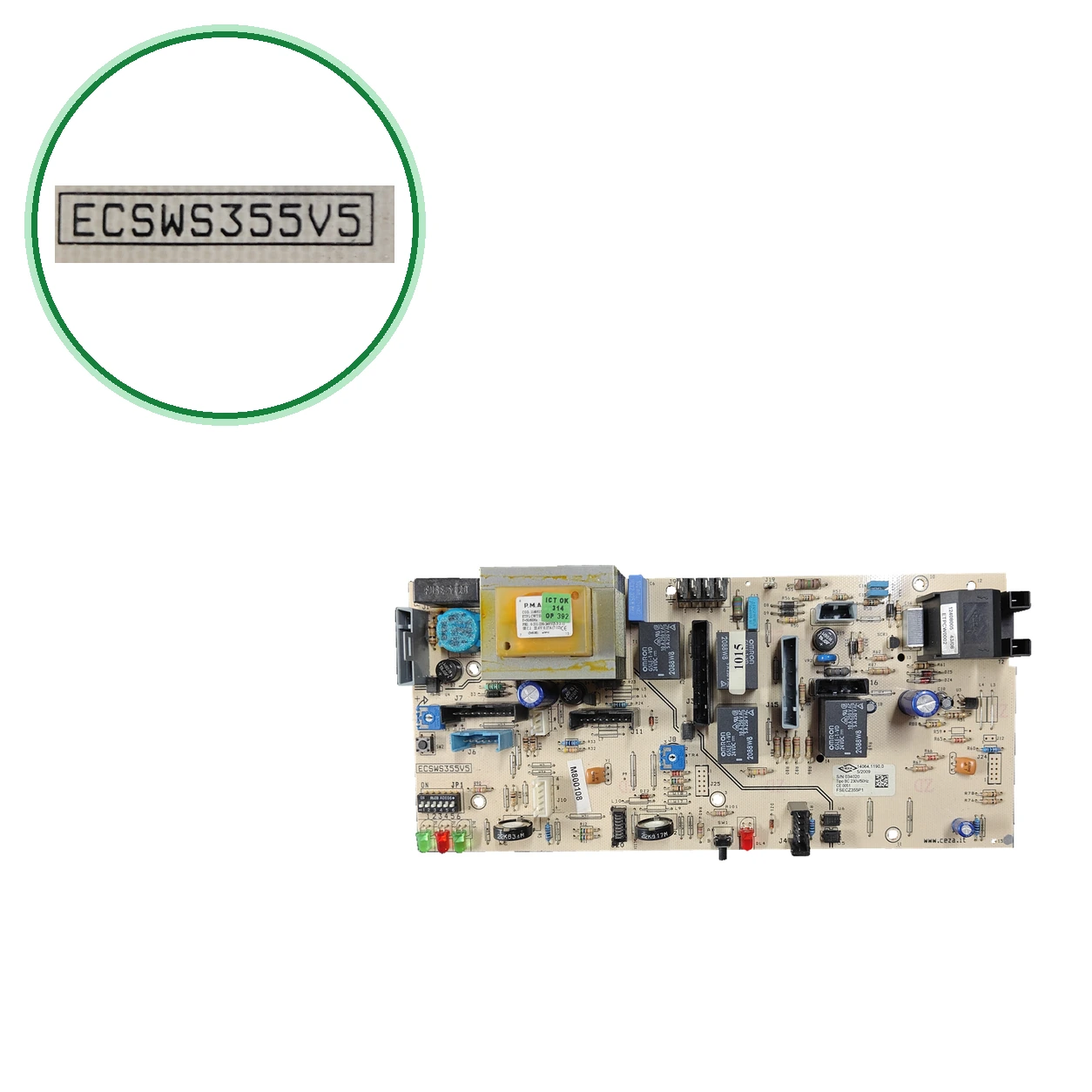

PCB CEZA ECSWS355V5 · FSECZ355P1 for Manaut Minox 3 24 E
Application for the exact variant pending confirmation. PCB of the boiler. It includes a transformer, OMRON relay with a 24 VDC coil, a 6-position DIP switch, and a 16.00 MHz crystal.
- Type of part
- PCBs (control boards)
- Status
- Refurbished
- internal SKU
- PLC336
- Warranty
- 1 year
VAT included Stock · 1 unit
Compatible models
Check the listed models, version and part number before ordering the spare part.
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Manaut Minox 3 24 E | Manaut | Unconfirmed |
|---|
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Look for the codes ECSWS355V5, FSECZ355P1, and 14064.1190.0; the last one is also written as 140641190.

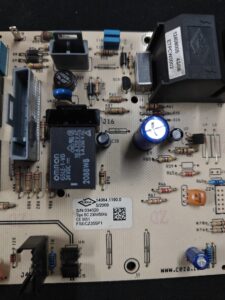

- Check the label (Type BC 230V/50Hz, printed date 5/2009) and the 6-position DIP switch.
- To confirm: Take a look at the last digit: M800109, 14064.1190.1 and BI1885101 for CEZA boards from Savio Biasi, and the title of another one lists m800109 and BI1885101 with Minox 3 24E, Biasi M9024S and Malia 24E. This board has M800108 and 14064.1190.0.
- Another list 288.00.0007 and 288.90.0030 for the Minox 3. That listing does not mention any code for this PCB: always compare the marked ones.
- if they match, call us at 911 17 77 77 with your boiler model, or send us a photo of your PCB label from Contact.
Symptoms and checks
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
06E, 07E or 08E appears: anomaly in an NTC sensor.
Cause: Heating, domestic or outdoor NTC sensor faulty or with defective wiring.
Have a technician check the sensor and its connection.
Error codes requiring diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| 01E | Lockout due to burner ignition fault. | Press the reset button once. If it locks again, have a technician check it: it is usually the ignition or flame detection electrode, and then the gas valve. |
| 06E | NTC sensor anomaly in heating. | Have a technician check the heating sensor and its connection. |
| 07E | Anomaly of the NTC sensor for domestic hot water. | Have a technician check the domestic hot water sensor and its connection. |
| 08E | Anomaly of the external NTC sensor. | Have a technician check the external sensor and its wiring. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Technical data
- Uniclima internal SKU
- PLC336
- Type of part
- PCBs (control boards)
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Type and power supply label
- Type BC 230V/50Hz
- Printed label date
- 5/2009
- Inventory — Indicated reference
- M800108
- Inventory — CE Marking
- 0051
- Inventory — DIP switch subcomponent
- 6 positions
- Inventory — Subcomponent condenser
- 1000 μF / 25 V 470 μF / 400 V
- Inventory — Safety condenser subcomponent
- 100 nF / 275 V~ / X2
- Inventory — Crystal/subcomponent oscillator
- 16.00 MHz
- Inventory — OMRON subcomponent relay
- 24 VDC coil
- Inventory — Relay contacts subcomponent
- 10 A / 250 VAC and 15 A / 250 VAC
- Inventory — Subcomponent transformer
- 12408005; date/batch 43/08; code ETPCW0002
- Inventory — Lower transformer subcomponent
- PMA 314; 081 392
- Inventory — Round component subcomponent
- 2K63J
- Inventory — Application indicated in inventory
- Manaut Minox 3 24 E
- Inventory — Marked serial code
- S/N034020
- Identification — Marked code
- 14064.1190.0
- Identification — Marked code
- FSECZ355P1
- Identification — Marked code
- ECSWS355V5
- Technical sheet: Type and power supply label
- Type BC 230V/50Hz
- Printed label date
- 5/2009
- Inventory data — Indicated reference
- M800108
- Inventory data — CE marking
- 0051
- Inventory data — DIP switch subcomponent
- 6 positions
- Inventory data — Subcomponent condenser
- 1000 μF / 25 V
- Inventory data — Subcomponent condenser
- 470 μF / 400 V
- Inventory data — Safety condenser subcomponent
- 100 nF / 275 V~ / X2
- Inventory data — Crystal/subcomponent oscillator
- 16.00 MHz
- Inventory data — OMRON subcomponent relay
- 24 VDC coil
- Inventory data — Relay contacts subcomponent
- 10 A / 250 VAC and 15 A / 250 VAC
- Inventory data — Subcomponent transformer
- 12408005; date/batch 43/08; code ETPCW0002
- Inventory data — Lower transformer subcomponent
- PMA 314; 081 392
- Inventory data — Round component subcomponent
- 2K63J
- Inventory data — Application indicated in inventory
- Manaut Minox 3 24 E
- Inventory data — Marked serial code
- S/N034020
- Additional markings
- Type of PCB: BC. CE marking: 0051; label dated 5/2009. 6-position DIP. Capacitors: 1000 μF / 25 V; 470 μF / 400 V; safety 100 nF / 275 V~ / X2. Crystal/oscillator: 16.00 MHz. OMRON relay: coil 24 VDC; contacts rated 10 A / 250 VAC and 15 A / 250 VAC. Transformer: 12408005; date/batch 43/08; code ETPCW0002. Lower transformer: PMA 314; 081 392. Round component: 2K63J. Codes: 14064.1190.0; FSECZ355P1; S/N034020.
- Pending applications to verify
- Manaut Minox 3 24 E — compatibility noted; pending confirmation by variant.
Before purchasing
- Do not confuse: m800109 — Code that a title places next to "Malia 24E with 1 PCB"; the same title groups Minox 3 28E / 24E ("type Ceza ST7 main/ignition") and Biasi M9024S. The Italian version provides it with 14064.1190.1 and BI1885101 for Savio Biasi. — Different from M800108. Not confirmed: whether it is the same part nor does it link to ECSWS355V5: compare it with your PCB.
- Do not confuse: 14064.1190.1 — CEZA plate code that Italian puts next to M800109 and BI1885101 for Savio Biasi M94.24CM, M94.28CM, M90B.24A, M90B.28A and 624BM/A, among others. — Only the last digit changes compared to 14064.1190.0, the one for this plate. Not confirmed: if they are the same part: compare that digit.
- Do not confuse: BI1885101 — Biasi reference for a control board or "Ceza" provided for the Biasi M90 (a British reference cites Riva Compact M90E, Riva Plus M90D, and Garda M90F); the title of another places it alongside the Minox 3 24E. — No reference to ECSWS355V5 or M800108: we do not know if it is the same part.
- Do not confuse: 288.00.0007 — Boiler module, multi-brand control board that a list assigns to the Minox 3 24E (also 288.90.0030) — No page links it to ECSWS355V5: compare the marked ones.
- Not confirmed: ECSWS355V5, FSECZ355P1 or 14064.1190.0 with a boiler. M800108 is given as the version of the electronics of a Manaut PCB; only its meta description could be read and that text does not mention the boiler model. It is the only one that references it.
- It is the only reading that cites M800108 (as a Manaut PCB); neither it nor the others link the codes marked with the Minox 3 24 E. Compatibility is confirmed.
- Pending registered applications to confirm by model, variant, or programming: Manaut Minox 3 24 E.
Frequently asked questions
Where is the code for this PCB and what other markings should I compare?
On the PCB are marked ECSWS355V5, FSECZ355P1, and 14064.1190.0. Also compare the label (Type BC 230V/50Hz, printed date 5/2009) and the components: 6-position DIP switch, 16.00 MHz crystal, and 24 VDC OMRON relay.
Is it compatible with my Manaut Minox 3 24 E?
The compatibility of this variant is pending confirmation. Registered: for the Manaut Minox 3 24 E. Compare the markings on your PCB with those of this one: ECSWS355V5, FSECZ355P1, and 14064.1190.0. For other Minox (3 28E, 24-28 A/E) we do not have it registered: send us a photo of your PCB label from Contact.
What do ECSWS355V5, FSECZ355P1, 14064.1190.0, and M800108 mean?
The first three are codes marked on the plate, from the brand CEZA. M800108 is the reference it indicates and corresponds to an electronic version of a Manaut PCB. We have not found a manufacturer's table that explains each code. The prefix FSECZ appears on the CEZA website on another plate (FSECZ095P2, for pellets), which is not this one.
Are m800109, BI1885101, or 14064.1190.1 the same PCB as M800108?
We don't know. Italian part M800109, 14064.1190.1 and BI1885101 together as CEZA PCB for Savio Biasi (M94.24CM, M90B.24A…). The title of another groups Minox 3 28E / 24E, Biasi M9024S and Malia 24E and lists M800109 next to "Malia 24E with 1 PCB". This PCB carries M800108 and 14064.1190.0, and Unconfirmed: ECSWS355V5. Always compare the marked ones.
Are there other PCBs from the Minox 3 24E that could be confused with it?
There can be several. A list provides for the Minox 3 24E the control board 288.00.0007 and the module 288.90.0030, and for the Minox 24 E a ignition board (288.90.0036). Another account lists five different PCBs in its stock of the Minox range. Neither that list nor the other one mentions the codes for this PCB.
What components are mounted on this PCB?
In addition to the 6-position DIP switch, the 16.00 MHz crystal, and the 24 VDC OMRON relay (10 A / 250 VAC and 15 A / 250 VAC contacts), it includes capacitors of 1000 μF / 25 V and 470 μF / 400 V, a safety capacitor of 100 nF / 275 V~ X2, and the transformer 12408005 (batch 43/08, code ETPCW0002). It is used for comparison with your PCB.
Who should install it?
A qualified technician: the PCB operates with mains voltage (Type BC 230V/50Hz, includes transformer) and controls a gas boiler. Before installing it, compare the codes ECSWS355V5, FSECZ355P1, and 14064.1190.0 with yours.
