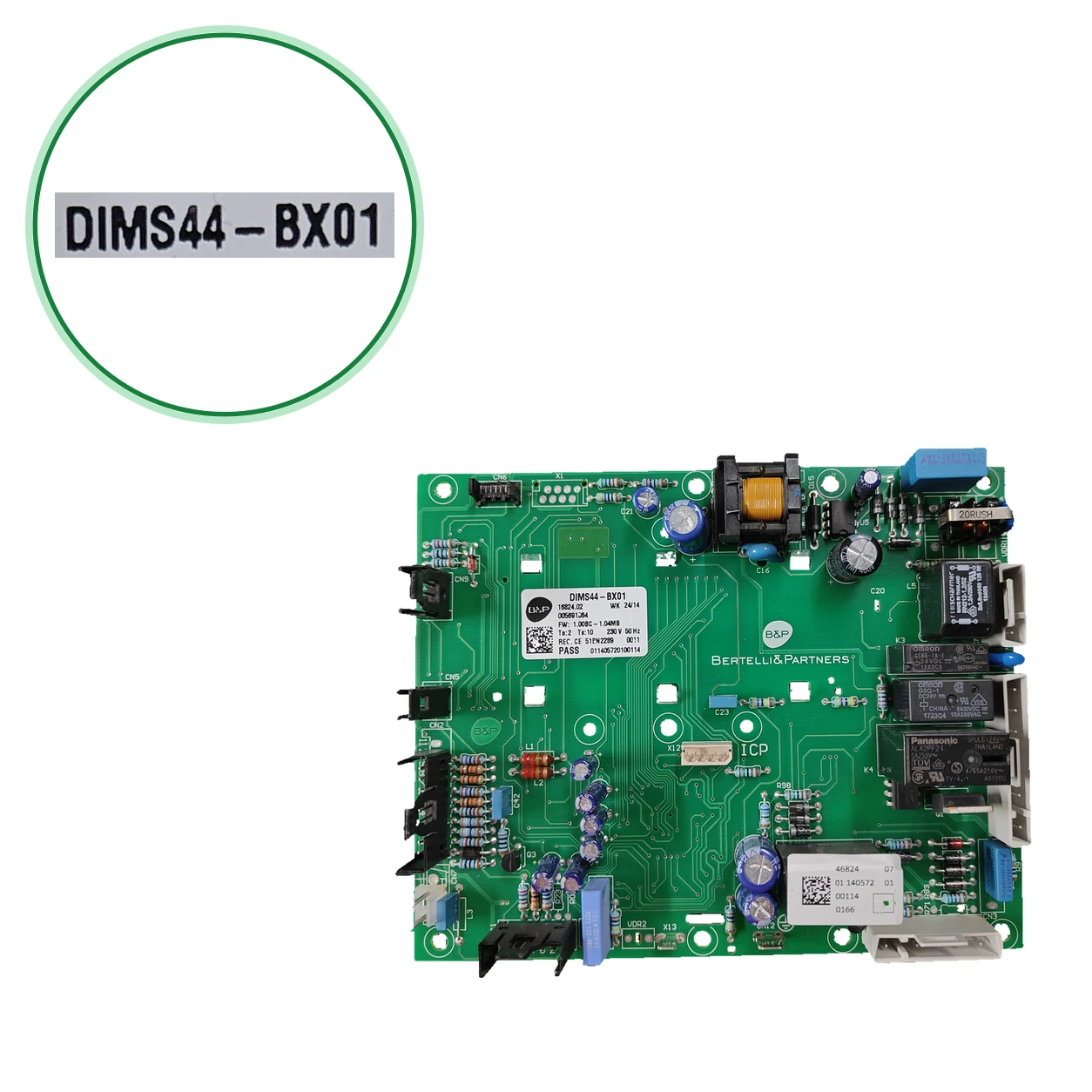

PCB Electrónica B&P DIMS44-BX01 · 16324.02 Para Roca Neonox 20/24 F
Refurbished Bertelli & Partners (B&P) PCBs (control boards)

PCB Electrónica B&P DIMS44-BX01 · 16324.02 Para Roca Neonox 20/24 F

Aplicación a la variante exacta pendiente de confirmar. Por confirmar: italianas clasifican esta placa como placa de encendido («Scheda Accensione») y de encendido y modulación. Se sospecha de ella si la caldera no enciende, no responde al termostato o muestra errores erráticos en el display.

Type of part
PCBs (control boards)
Status
Refurbished
internal SKU
PLC120
Warranty
1 year
VAT included Stock · 2 units
Guide

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference —. If it is not visible, do not identify the part by its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms that require diagnosis on the PCB

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    The boiler does not ignite or does not respond to the thermostat.

    Cause: lo cita entre los síntomas de esta placa; un técnico debe descartar otras causas.

  • 02

    Códigos de error erráticos en el display

    Cause: Lo cita entre los síntomas. Compara con la tabla de errores del manual de tu caldera.

  • 03

    Relés pegados, marcas de quemado, oxidación o pistas cortadas

    Cause: Revisa relés y circuito impreso.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Technical sheet: PCB electrónica Bertelli & Partners (B&P)

Uniclima internal SKU
PLC120
Brand
Bertelli & Partners (B&P)
Type of part
PCBs (control boards)
Units in stock
2 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days
Entrega calculada por destino Delivery time shown at checkout
1-year warranty reviewed and tested
14-day return uninstalled parts
Technical support we verify your model
