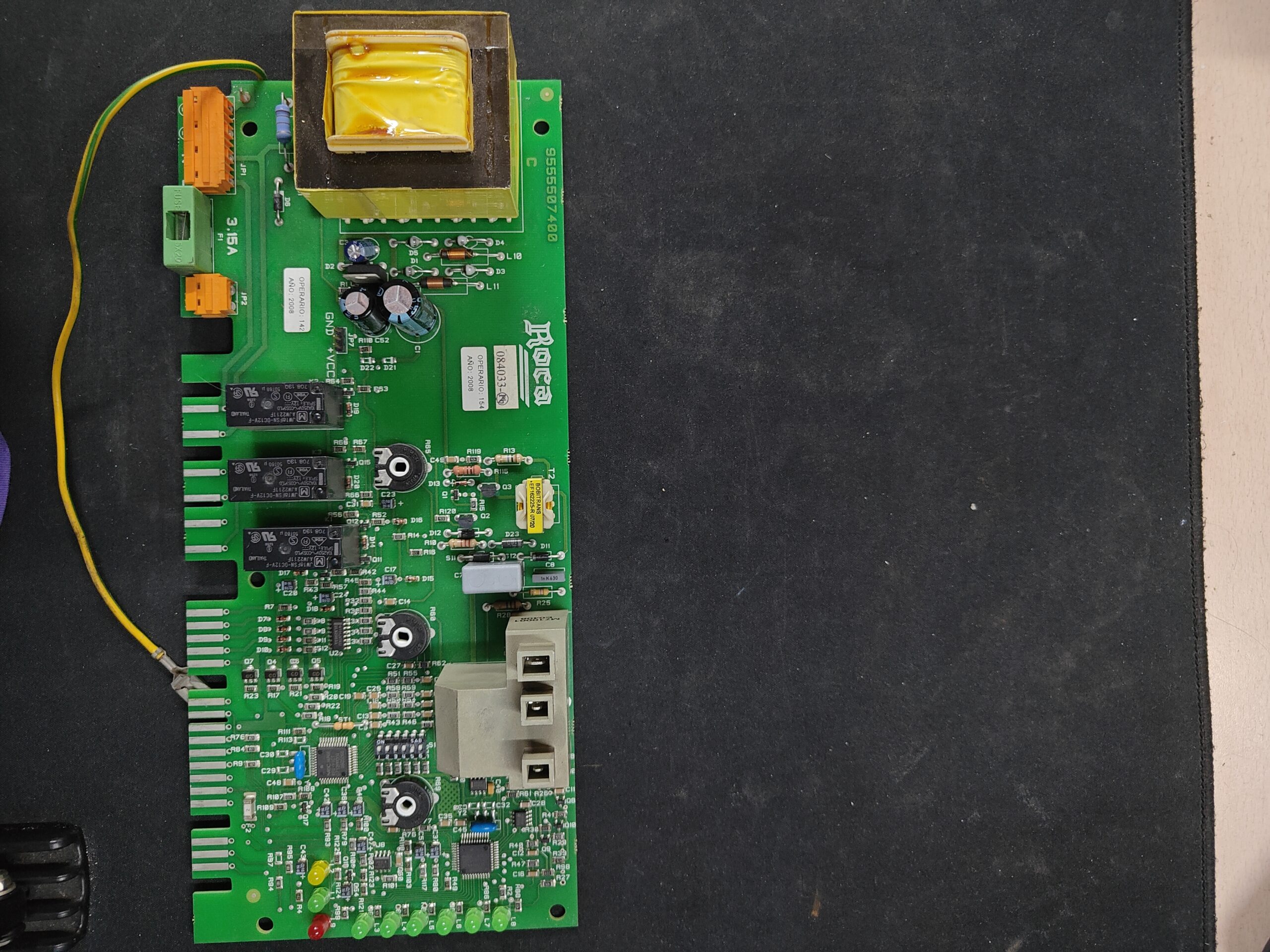

PCB Baxi Roca 9555507400 for Baxi Roca Victoria 20/20 FF boiler

Aplicación a la variante exacta pendiente de confirmar. Placa electrónica de control con transformador BIOTRANS EF162225-R, relé de 12 V y fusible F1 de 3,15 A. La falta de encendido o de respuesta al termostato se ha relacionado con otra placa Roca para Victoria 20/20 F, referencia 122126440; esos síntomas no identifican por sí solos la avería de esta unidad.

Type of part: Baxi Roca
Status: Refurbished
internal SKU: PLC141
Warranty: 1 year

VAT included Stock · 12 units

Compatibility

Compatible Baxi Roca boilers

Baxi Roca. 0 verified compatibilities. There are another 7 models that we are still checking.

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Baxi Roca Victoria 20/20 F	Baxi Roca	Unconfirmed
Roca Victoria 20-20	Baxi Roca	Unconfirmed
Baxi Roca Victoria 24/24 F	Baxi Roca	Unconfirmed
Baxi Roca Victoria 28/28 F	Baxi Roca	Unconfirmed
Baxi Roca Victoria 20/20 F-B	Baxi Roca	Unconfirmed
Roca Victoria 24/24 F-B	Baxi Roca	Unconfirmed
Baxi Roca Victoria 20/20 FF	Baxi Roca	Unconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

Guide

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

Check the code 9555507400 on your PCB and the second marked 084033: they must match those of this spare part.
Check the fuse F1 (3.15 A), the transformer BIOTRANS EF162225-R, and the relay JW1FSN-DC12V-F of 12 V.
No la confundas con la 122126440 ni la 1271002110 (las dan para la Victoria 20/20 F) ni con el cuadro de control 122126750, un modelo anterior con carcasa.
Mira en la placa de características que tu caldera es una Baxi Roca Victoria 20/20 FF, la registrada.
coinciden, llámanos al 911 17 77 77 con el modelo de tu caldera. ¿Dudas? Envíanos desde Contacto una foto de la etiqueta de tu placa.

Technical data

Technical sheet: Baxi Roca

Uniclima internal SKU: PLC141
Brand: Baxi Roca
Type of part: Baxi Roca
Units in stock: 12 units
Status: Refurbished
Warranty: 1 year
Shipping: Delivery time shown at checkout
Return: 14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

F1 fuse marked: 3.15 A
Year on operator label: 2008
Inventory — Transformer subcomponent: BIOTRANS EF162225-R
Inventory — Relay subcomponents: JW1FSN-DC12V-F; contact 10 A 250 V~; coil 12 V
Inventory — Application indicated in inventory: VICTORIA 20/20 FF
Manufacturer information — Relay JW1FSN-DC12V-F: Panasonic JW series: 5 A or 10 A contact 250 V AC depending on the type; nominal coil of 530 mW
Manufacturer information — Network fuse (Victoria 20/20 F): 3.15 A, in the electrical diagram next to the mains connection · Baxi Roca installer manual
Identification — Marked code: 9555507400
Identification — Marked code: 084033
Technical sheet: F1 fuse marking: 3.15 A
Technical sheet: Year on operator label: 2008
Inventory data — Transformer subcomponent: BIOTRANS EF162225-R
Inventory data — Relay subcomponents: JW1FSN-DC12V-F; contact 10 A 250 V~; coil 12 V
Inventory data — Application indicated in inventory: VICTORIA 20/20 FF
Pending applications to verify: VICTORIA 20/20 FF — compatibility cited; pending confirmation by variant.

Before purchasing

To be confirmed: Baxi Roca Victoria 20/20 F: . they give you 122126440 or 1271002110: compare the code
To confirm: Baxi Roca Victoria 20-20: and a Portuguese repair workshop.
To confirm: Baxi Roca Victoria 24/24 F: . do they give you 122126440 or 125568739?
To confirm: Baxi Roca Victoria 28/28 F: . gives 122126440
To confirm: Baxi Roca Victoria 20/20 F-B
To confirm: Baxi Roca Victoria 24/24 F-B
Not compatible or excluded: Baxi Roca Victoria 20/20 T — Since it has a different PCB: 122126440 or 1271002110; neither of them gives the 9555507400.
Do not confuse: 122126440 — Roca PCB or module for the Victoria FT and the 20/20 F version 1 and 2 (: 288.93.0200); one is also provided for the 20/20 FF and another is called control panel — Another code: without additional confirmation it links to 9555507400. Compare the code printed on the PCB, not just the description.
Do not confuse: 122126750 — Control panel with casing (previous model). According to this, it is replaced by 122126440. A distributor's blog lists it for the Neobit 20/20F — Another code: without additional confirmation, it links it to 9555507400.
No confundir: 1271002110 — Placa electrónica que da para la Victoria 20/20 F y 20/20 T; la cita junto al 9555507400 sin explicarla — Otro código: Sin confirmar: que sea el mismo. Compara el código impreso en la placa
Websites mention alongside 9555507400 other codes without explaining them (12.205.03, 072113, 1271002110, 12736-03A, 12.644.01A, PU89I2): we do not consider them as equivalents.
( and a repair workshop) connects 9555507400 with the PCB of the Baxi Roca Victoria 20/20; without a code in the official parts list. The boiler and the markings are confirmed.
Pending confirmation of registered applications by model, variant, or programming: Baxi Roca Victoria 20/20 FF.

Frequently Asked Questions

Frequently asked questions: Baxi Roca

How do I identify the Baxi Roca PCB 9555507400?

Read the code 9555507400 on your PCB; in our unit, 084033 is also read. Compare them before ordering it. They use 9555507400 for the Baxi Roca Victoria 20/20 PCB; none explains 084033.

Is it compatible with my Baxi Roca Victoria 20/20 FF?

La compatibilidad de esta variante está pendiente de confirmar. registrada: para la Victoria 20/20 FF. Además, da el 9555507400 para la «Victoria FF», para la 20/20 F; y y un taller de reparación portugués, para la «Victoria 20-20». Ningún despiece oficial leído trae el código: el manual de instalador de Roca de la 20/20 F dibuja la «placa electrónica» sin código.

Is it suitable for the Victoria 20/20 F, 24/24 F, or 28/28 F?

The compatibility of this variant is pending confirmation. To be confirmed: and they provide it for all three; add the F-B versions of the 20/20 and 24/24. There are 1 or other codes (122126440 or 1271002110 for the 20/20 F; 125568739 for the 24/24 F), so we cannot guarantee it. Send us a photo of your PCB and the rating plate from the Contact section, or call 911 17 77 77.

Is the PCB 122126440 or 1271002110 the same as 9555507400?

We don't know. The 122126440 (: 288.93.0200) for the Victoria FT and the 20/20 F version 1 and 2, and one listed for the 20/20 FF; another is referred to as the control board. It gives the 1271002110 for the 20/20 F and the 20/20 T. None of them connect to the 9555507400: compare the code printed on your PCB. They say that the 122126440 replaces the 122126750, an earlier control board with a casing.

What do 9555507400, 084033, EF162225-R, and JW1FSN-DC12V-F mean?

9555507400 is the code for the Baxi Roca PCB. 084033 is another code marked on the board and without additional confirmation, it explains itself. EF162225-R is the BIOTRANS transformer and JW1FSN-DC12V-F is the 12 V relay (10 A 250 V~ contact), data. The Panasonic technical sheet for the JW series provides contacts of 5 A or 10 A at 250 V AC depending on the type.

What should I check before installing it?

Compare the F1 fuse (3.15 A in our unit) and the 12 V relay with those on your PCB. The wiring diagram in the installer manual for the 20/20 F indicates a 3.15 A fuse next to the mains connection; it does not specify that it is the F1 on the board. Be aware that a fault in another component may render the spare part useless: rule out the source of the fault first.

Who should install it?

A qualified technician: the PCB is installed in a gas boiler connected to the electrical network. We have not read official installation instructions for this PCB; please refer to your boiler's installation manual.
