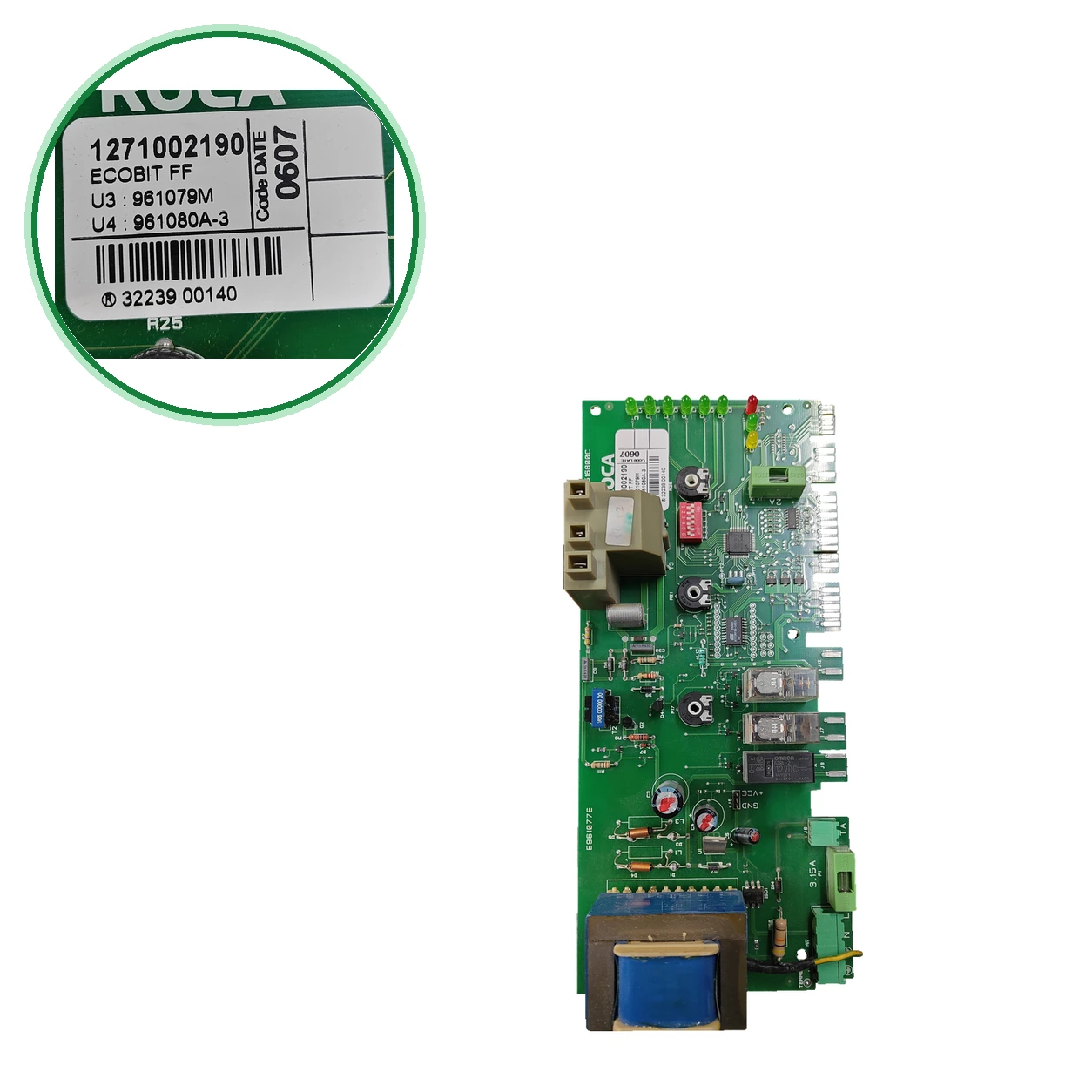

Roca ECOBIT FF PCB · 9555516800C · E961077E

Compatible Baxi Roca boilers

Roca. 0 compatibilidades contrastadas. Hay otros 11 modelos que todavía estamos comprobando.

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

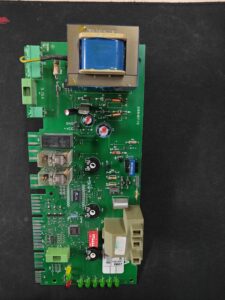

1. Look for the code 9555516800C or 1271002190 on your PCB. The circuit has E961077E and the board is designated ECOBIT FF.
2. Compara también 961079M, 961080A-3 y 0607, marcados en la nuestra, y el número y la posición de relés y conectores: avisa de que una misma referencia tiene versiones distintas.
3. To be confirmed: No la confundas con las placas 122123620 (Neobit 24/24) y 125566966 (Neobit S 24/24 F): son otras.
4. Check the rating plate to ensure your boiler is a Baxi Roca ECOBIT FF. If it is another Baxi Roca 24/24 F, such as the NEOBIT 24/24 F, it is not confirmed: compare the codes.
5. coinciden, llámanos al 911 17 77 77 con el modelo de tu caldera.

Symptoms that require diagnosis in the Baxi Roca

Common symptoms and faults

• 01

  The boiler does not ignite or respond to any commands from the front panel.

  Cause: To be confirmed: de recambios lo relaciona con la placa. Antes de cambiarla, revisa el fusible de la placa (2 A, 5×20).

• 02

  Erratic fault codes appear for no apparent reason.

  Cause: La misma lo atribuye a fallo de la PCB. Consulta el manual de tu modelo.

• 03

  Strange clicking sounds can be heard or there are stuck relays in the internal circuit.

  Cause: Check the relays on the PCB; it uses an OMRON G2RL-2 with a 12 VDC coil.

• 04

  The equipment keeps restarting continuously in heating or domestic hot water.

  Cause: es otro síntoma de PCB dañada. Que lo valore un técnico.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical sheet: Baxi Roca

Uniclima internal SKU

PLC155

Brand

Baxi Roca

Type of part

Baxi Roca

Units in stock

5 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

DIP observed

6 positions

Observed LEDs

Green, yellow, and red; no diagnostic meaning assigned.

Fuse holder

5×20

Inventory — Fuse/screen printing

2 A

Inventory — CI visible

ATTINY26-16SI

Inventory — OMRON G2RL-2 mounted relay

12 VDC coil; contact 8 A/250 V~ AC1

Identification — Marked designation

ECOBIT FF

Identification — Marked code

9555516800C

Identification — Marked code

1271002190

Identification — Marked code

E961077E

Identification — Marked code

961079M

Identification — Marked code

961080A-3

Identification — Marked code

0607

DIP observed

6 positions

LEDs observed

Green, yellow, and red; no diagnostic meaning assigned.

Inventory data — Fuse holder

5×20

Inventory data — Fuse/screen printing

2 A

Inventory data — CI visible

ATTINY26-16SI

Inventory data — OMRON G2RL-2 relay

12 VDC coil; contact 8 A/250 V~ AC1

Pending applications to verify

ECOBIT FF — compatibilidad citada; pendiente de confirmar por variante. Aplicación registrada: para su producto 10360 («Placa Electrónica Roca (9555516800C) [122123660]»): Neobit 24/24 F; Neobit 24/24 F-B; Neobit 28/28 F; Sara 20/20 F; Sara 20/20 F-B; Sara 24/24 F; Sara 24/24 F-B; Sara 28/28 F. Pendiente de contraste con documentación del fabricante para la referencia y variante física; esta declaración comercial no certifica compatibilidad ni intercambiabilidad.
