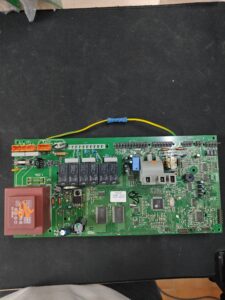

Roca LAURA 30/30 Control Board · Ref. 122420630 · PCB 501500-2
Es la placa electrónica de control («tarjeta» o «cuadro de control») de la caldera Roca LAURA. Se sospecha de ella cuando la caldera no enciende, no responde al panel, muestra errores que cambian solos o se reinicia sin motivo.
- Type of part
- Baxi Roca
- Status
- Refurbished
- internal SKU
- PLC127
- Warranty
- 1 year
Compatible Baxi Roca boilers
Baxi Roca. Three confirmed compatibilities: Baxi Roca LAURA 30/30 and Baxi Roca LAURA 30/30 F. There are 2 other models that we are still verifying.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Baxi Roca LAURA 30/30 | Baxi Roca | Contrasted |
| Baxi Roca LAURA 30/30 F | Baxi Roca | Contrasted |
| Baxi Roca LAURA 35/35 F | Baxi Roca | Contrasted |
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Baxi Roca LAURA 35/35 | Baxi Roca | Unconfirmed |
|---|---|---|
| Baxi Roca LAURA 30 A and 30 AF | Baxi Roca | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

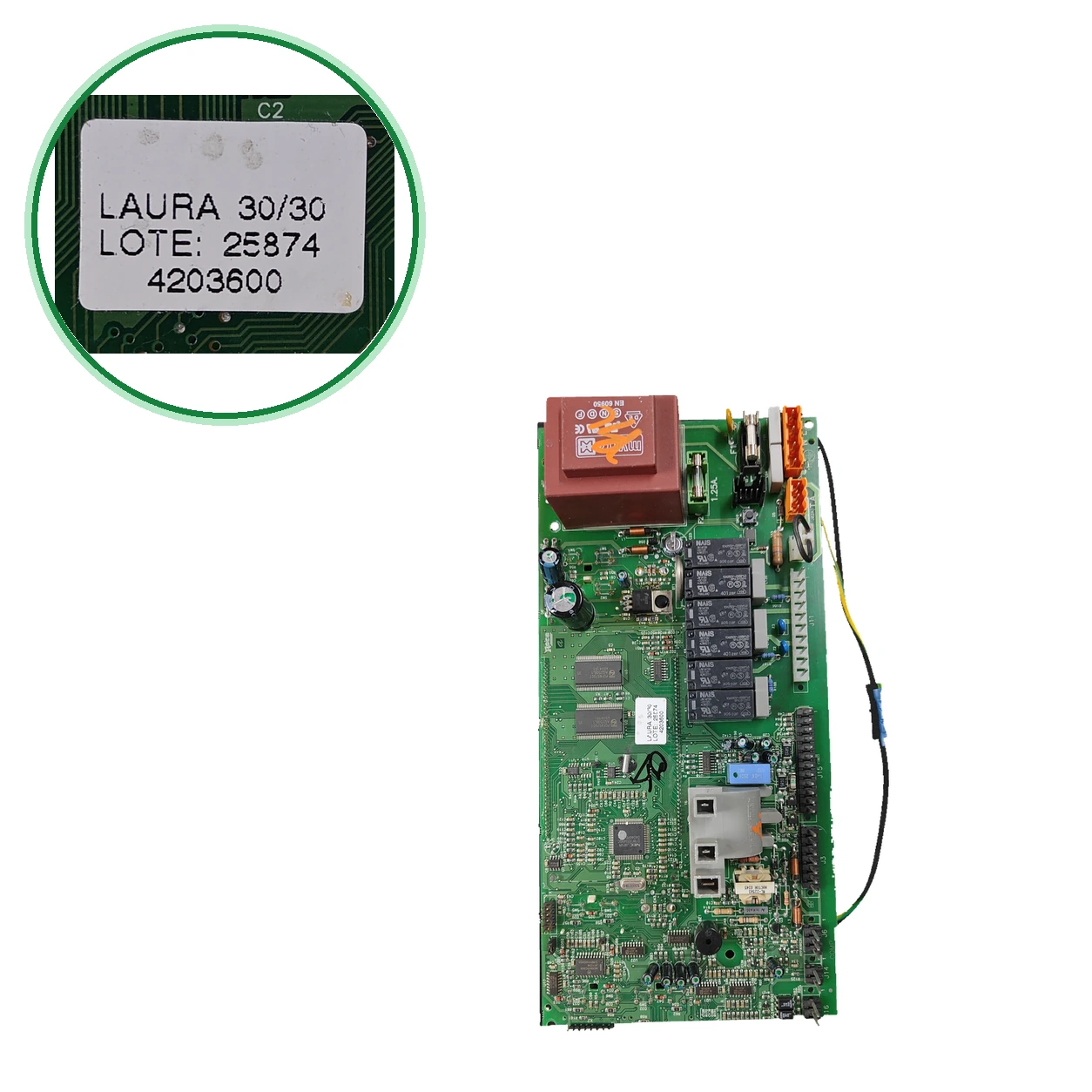

- Look for the codes marked 501500-2, 4203600, and 25874, and the designation LAURA30/30.
- Compara con la referencia Roca 122420630, la que usan para esta placa; la identifica como 122420630/501500-2.
- La 122420030 es la tarjeta de la LAURA 20 en una lista de recambios. La 122420280 aparece en una sola como segunda referencia de esta pieza: compara ese código con el de tu placa.
- Check that your boiler is a LAURA 30/30, 30/30 F or 35/35 F.
- If they match, call us at 911 17 77 77 with your boiler model and we will reserve it for you.
Symptoms that require diagnosis in the Baxi Roca
Common symptoms and faults
- 01
The boiler does not ignite or does not respond to the front panel.
Cause: Por confirmar: lo asocia a la PCB 122420630.
- 02
Erratic fault codes that change by themselves
Cause: To be confirmed: lo asocia a esta PCB; que un técnico lo mida antes de cambiarla.
- 03
Unexpected restarts or crashes without reason
Cause: Por confirmar: lo asocia a esta PCB.
- 04
Stuck relays, burnt tracks or corrosion on the circuit
Cause: To be confirmed: Se observan en el circuito impreso; los cita como señal de avería.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Technical sheet: Baxi Roca
- Uniclima internal SKU
- PLC127
- Brand
- Baxi Roca
- Type of part
- Baxi Roca
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Inventory — Indicated reference
- 122420630/501500-2
- Inventory — CI U2
- PCF8576CT; markings AQ2506-1, KS04161
- Inventory — CI U3
- PCF8576CT; markings AQ2506-1, KS04161
- Inventory — White transformer
- ML-2258
- Inventory — Red transformer
- EN 60950, CE
- Inventory — Marked code
- 4203600; 25874
- Inventory — Indicated model 7
- Label designation: LAURA30/30
- Identification — Marked designation
- LAURA30/30
- Identification — Marked code
- 4203600
- Identification — Marked code
- 25874
- Identification — Marked code
- 501500-2
- Identification — Marked code
- PCF8576CT
- Identification — Marked code
- AQC2506.1
- Identification — Marked code
- KS04161
- Inventory data — Indicated reference
- 122420630/501500-2
- Inventory data — CI U2
- PCF8576CT; markings AQ2506-1, KS04161
- Inventory data — CI U3
- PCF8576CT; markings AQ2506-1, KS04161
- Inventory data — White transformer
- ML-2258
- Inventory data — Red transformer
- EN 60950, CE
- Inventory data — Marked code
- 4203600; 25874
- Inventory data — Indicated model
- Label designation: LAURA30/30
- Pending applications to verify
- cita LAURA 30/30; compatibilidad pendiente de contraste por variante exacta.
- Los síntomas vienen de fichas, no de un manual: que un técnico mida antes de dar por mala la placa.
- Por confirmar: Roca LAURA 35/35 — · ref. 122420630
- Por confirmar: Roca LAURA 30 A y 30 AF — · ref. 122420630
- Do not confuse: 122420030 — PCB of the LAURA 20 S/P GN in its spare parts list — This list does not cover the LAURA 30/30. The code only changes one digit compared to 122420630: compare the complete code.
- La 122420280 sale en una sola como segunda referencia de esta pieza, sin explicar en qué se diferencia de la 122420630: compara el código de tu placa.
- La ref. Roca 122420630 la unen a la Laura 30/30; no hay despiece oficial leído y los códigos marcados en la placa (501500-2, 4203600) no salen en sin confirmación adicional externa.
Frequently asked questions: Baxi Roca
How do I identify this PCB from the Baxi Roca LAURA 30/30?
Is it compatible with my Baxi Roca LAURA 30/30?
Does it also work for the LAURA 30/30 F or the 35/35 F?
What do the codes 122420630, 501500-2, 4203600, and 25874 mean?
What other similar codes might I confuse with this PCB?
What symptoms point to this PCB?
Who should install it?
