Roca Victoria CF PCB · 1271002120 · 12206-09A · 9555507400
Refurbished Baxi Roca Baxi Roca

Roca Victoria CF PCB · 1271002120 · 12206-09A · 9555507400

Aplicación a la variante exacta pendiente de confirmar. Por confirmar: Placa electrónica de las calderas Roca Victoria CF (atmosférica) y Victoria 20/20. Se sospecha de ella si la caldera no da chispa y no muestra ningún código de error, una vez descartadas otras piezas.

Type of part
Baxi Roca
Status
Refurbished
internal SKU
PLC154
Warranty
1 year
VAT included Stock · 1 unit
Compatibility

Compatible Baxi Roca boilers

Roca. 0 compatibilidades contrastadas. Hay otros 5 modelos que todavía estamos comprobando.

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Roca Victoria FFBaxi RocaUnconfirmed
Baxi Roca Victoria 20/20 F and 28/28 FBaxi RocaUnconfirmed
Baxi Roca Victoria 24/24 FBaxi RocaUnconfirmed
Baxi Roca Victoria CF (12206-09A)Baxi RocaUnconfirmed
Baxi Roca Victoria 20/20Baxi RocaUnconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

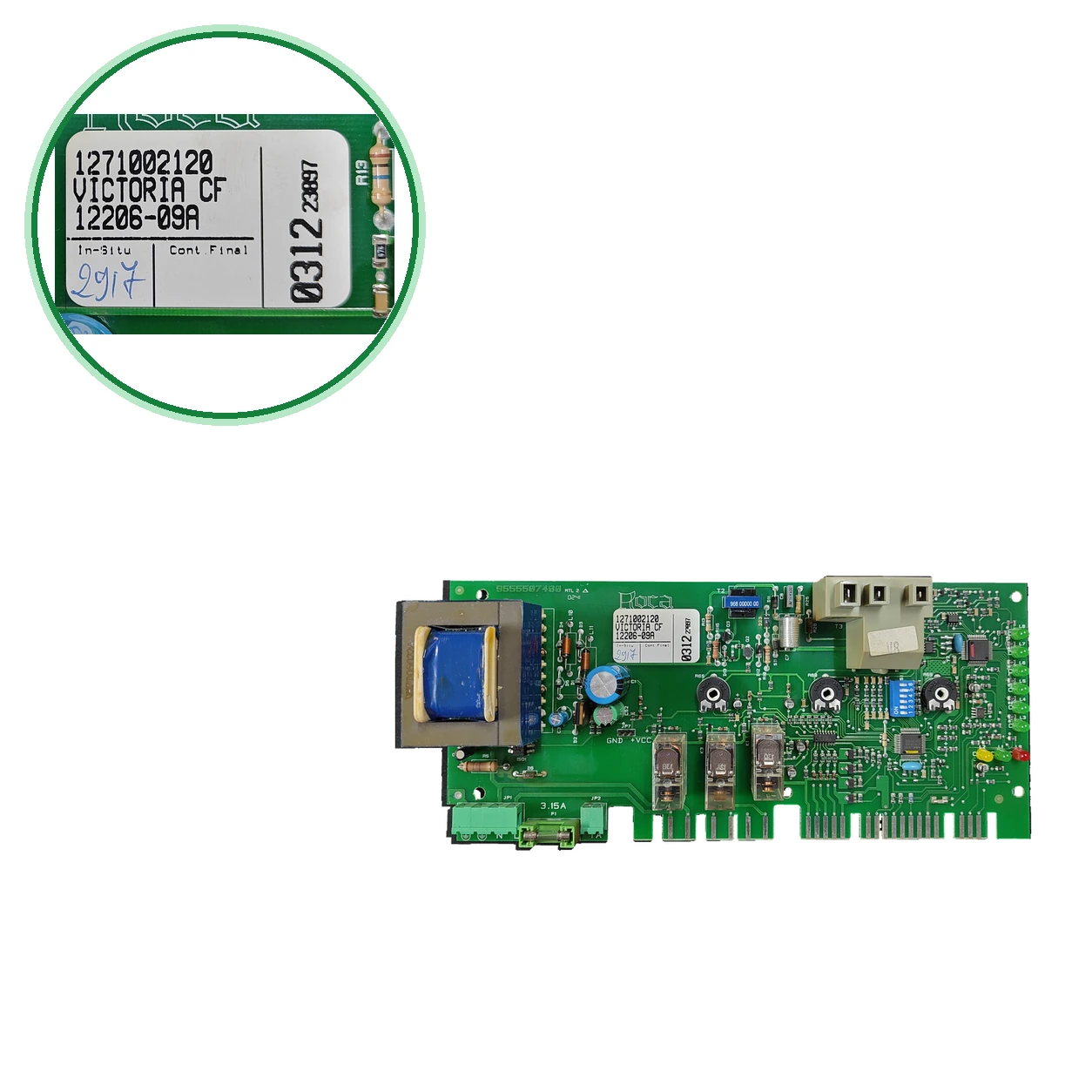

  1. Look for the codes 1271002120, 12206-09A, and 9555507400, and the designation VICTORIA CF. Our unit also shows 0312 and MTL 2.
  2. Compare the fuse F1 (marked 3.15A), the 6-position DIP switch, and the printed power supply GND / +VCC.
  3. To be confirmed: No la confundas con la 1271002110 (Victoria 20/20 F y 20/20 T ) ni con el cuadro de control 122126440 de la Victoria F/T.
  4. Mira en la placa de características de tu caldera que es una Victoria CF o 20/20; las ha registrado.
  5. coinciden, llámanos al 911 17 77 77 con el modelo de tu caldera y te la reservamos.
Diagnosis and fault codes

Symptoms that require diagnosis in the Baxi Roca

Common symptoms and faults

  • 01

    The boiler does not ignite, does not spark, and does not show a fault code (green LED on).

    Cause: In a forum, two PCBs 1271002120 from a Victoria 20/20 have this fault. One user suspects a component on the board (a Sidac, unconfirmed); another suspects the demagnetized flow detector.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Technical sheet: Baxi Roca

Uniclima internal SKU
PLC154
Brand
Baxi Roca
Type of part
Baxi Roca
Units in stock
1 unit
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

F1 fuse marking
3.15A
Inventory — DIP Switch
6 positions
Inventory — Screen printed food
GND / +VCC
Inventory — Marking plate
MTL 2
Inventory — Application indicated in inventory
Roca Victoria 20/20
Identification — Marked designation
VICTORIA CF
Identification — Marked code
1271002120
Identification — Marked code
12206-09A
Identification — Marked code
9555507400
Identification — Marked code
0312
Technical sheet: F1 fuse marking
3.15A
Inventory data — DIP switch
6 positions
Inventory data — Screen printed feeding
GND / +VCC
Inventory data — Label marking
MTL 2
Inventory data — Application indicated in inventory
VICTORIA CF (12206-09A)
Inventory data — Application indicated in inventory
Baxi Roca Victoria 20/20
Pending applications to verify
VICTORIA CF (12206-09A); VICTORIA CF; Roca Victoria 20/20 — modelos/compatibilidades citados; pendientes de confirmar por variante.
Before purchasing
  • The forum hints are user hypotheses, not a diagnosis from the manufacturer: have a technician measure it.
  • To be confirmed: Roca Victoria FF: (1271002120 + 9555507400; su etiqueta también dice 24/24F) y (9555507400 junto a 1271002110)
  • To be confirmed: Roca Victoria 20/20 F y 28/28 F — 1 origen: (9555507400, escrito «Vitoria»). Otra da la 1271002110 para la 20/20 F
  • To be confirmed: Roca Victoria 24/24 F — Discrepancia: e dan la placa 125568739; da 9555507400 (ficha 20/20F) y 1271002120 (ficha FF, etiqueta 24/24F)
  • No confundir: 1271002110 — Placa que vende para las Roca Victoria 20/20 F y 20/20 T — Es otra referencia: esa ficha no cita 1271002120, 12206-09A ni 9555507400. Otra lista 9555507400 junto a 1271002110 sin aclarar la relación: compara el código.
  • No confundir: 122126440 — «Cuadro control Victoria F/T» en la lista de piezas de la Victoria 20/20F GN de — Otro código de cuadro de control; esa lista no cita ninguno de los códigos de esta placa.
  • 1271002120 + 12206-09A (Victoria CF), 9555507400 (Victoria 20/20, F, FF) o ambos juntos (FF). En esta unidad van marcados los tres: compáralos todos.
  • La 1271002120: Victoria CF, 20/20, un foro; FF. La 9555507400: 4 con modelo de caldera (Mixtrónica) y sin modelo. Por confirmar: FF, 20/20 F, 24/24 F y 28/28 F.
  • Aplicaciones registradas pendientes de confirmar por modelo, variante o programación: Roca Victoria CF (12206-09A); Roca Victoria 20/20.
Frequently Asked Questions

Frequently asked questions: Baxi Roca

Where is the code for this PCB and what other markings should I compare?
It is marked on the board itself: our unit has 1271002120, 12206-09A, 9555507400, and 0312, with the designation VICTORIA CF. Also compare the fuse F1 (3.15A), the 6 DIP switches, and the GND / +VCC power supply.
Is it compatible with my Baxi Roca Victoria CF or Victoria 20/20?
La compatibilidad de esta variante está pendiente de confirmar. registrada: para la Victoria CF (12206-09A) y la Victoria 20/20. Además, y anuncian la 1271002120 / 12206-09A para la Victoria CF, y un foro portugués cita la 1271002120 en una Victoria 20/20.
Is it compatible with a Victoria F (20/20F, 24/24F or 28/28F) or FF?
La compatibilidad de esta variante está pendiente de confirmar. No está confirmada. Para la FF hay: (1271002120 + 9555507400) y (9555507400). Para la 20/20 F y la 28/28 F, solo (9555507400). Para la 24/24 F, la 125568739 y da 9555507400 y 1271002120: no está claro. Compara tus códigos o envíanos desde Contacto una foto de la etiqueta de tu pieza y de la placa de características de tu caldera.
Is 1271002120 the same as 1271002110?
En que hemos revisado, ninguna dice que lo sean. Son referencias distintas: vende la 1271002110 para las Victoria 20/20 F y 20/20 T sin citar la 1271002120. Otra ficha lista 9555507400 junto a 1271002110 sin aclarar la relación. Compara el código.
What do 1271002120, 12206-09A, and 9555507400 mean?
Los tres van marcados en la placa. 1271002120 es la referencia de la pieza y 12206-09A su modelo. y los anuncian juntos para la Victoria CF. El 9555507400 es el código del circuito; para la Victoria 20-20, 20/20F y FF. En revisadas, ninguna explica el 0312.
What symptoms point to this PCB?
There are only cases from a forum: two PCBs 1271002120 from a Victoria 20/20 with no spark, no fault code, and with the green LED on. One user suspects a Sidac (not confirmed) and another suspects the demagnetized flow detector.
Who should install it and what should be checked beforehand?
Un técnico cualificado: la caldera funciona con red eléctrica y gas. avisa de que un montaje incorrecto o una avería en otra pieza puede inutilizar la placa al instante; asegúrate antes de comprar. Anota los 6 DIP y mira el fusible F1 (3.15A).
Entrega calculada por destino Delivery time shown at checkout
1-year warranty reviewed and tested
14-day return uninstalled parts
Technical support we verify your model
