Roca Victoria FF Control Board Model 2 (12916-00) · 1271002110 / 9555607400
Aplicación a la variante exacta pendiente de confirmar. Placa electrónica que gobierna la caldera. Es una de las piezas a revisar cuando la caldera no enciende, no arranca, se bloquea o funciona de forma intermitente; esos síntomas requieren diagnóstico antes de sustituirla.
- Type of part
- Baxi Roca
- Status
- Refurbished
- internal SKU
- PLC143
- Warranty
- 1 year
Compatible Baxi Roca boilers
Roca. 0 compatibilidades contrastadas. Hay otros 2 modelos que todavía estamos comprobando.
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Baxi Roca Victoria 20/20 T | Baxi Roca | Unconfirmed |
|---|---|---|
| Roca Victoria FF model 2 (12916-00) | Baxi Roca | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

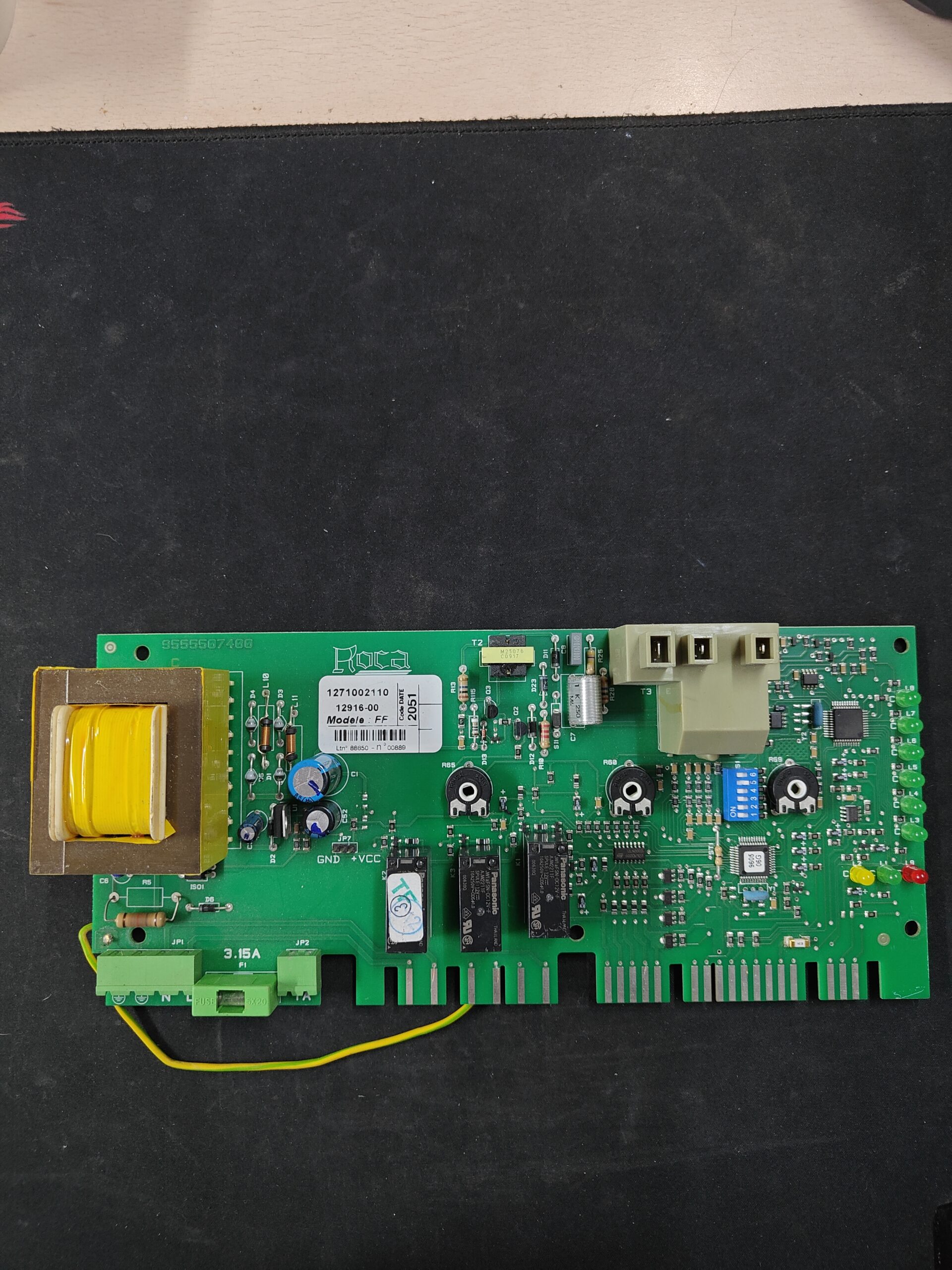

- Check your PCB: it should be marked with 1271002110, 12916-00 and "Modele FF", in addition to the circuit code 9555607400.
- Check the silkscreen: protection 3.15A F1, terminals GND, +VCC, L, N, and TA, relay with a 12 V coil (Spule12V) and a 6-position DIP switch.
- No des por buenas la 9555507400, la 1271002120 ni la 122126440: las citan, pero no coinciden con el marcado de esta placa.
- Anota el modelo exacto de tu caldera en su placa de características: la registrada es la Victoria FF modelo 2 (12916-00).
- coinciden, llámanos al 911 17 77 77 con el modelo de tu caldera y te la reservamos.
Symptoms that require diagnosis in the Baxi Roca
Common symptoms and faults
- 01
The boiler does not ignite, does not start, or gets locked.
Cause: que vende la 1271002110 la ofrece para estos síntomas. Antes de cambiar la placa, revisa el fusible F1 de 3.15 A y descarta que el fallo esté en otra pieza.
- 02
The boiler operates intermittently or shows errors on the screen.
Cause: También son síntomas que esa asocia a esta placa. No hemos leído ninguna tabla oficial de errores de la Victoria FF, así que no damos códigos.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Technical sheet: Baxi Roca
- Uniclima internal SKU
- PLC143
- Brand
- Baxi Roca
- Type of part
- Baxi Roca
- Units in stock
- 2 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Protection screen printing
- 3.15A F1
- Terminal silkscreen
- GND; +VCC; L; N; TA
- Relay: marked coil
- Spule12V
- Inventory — Additional fuse
- 1 A
- Inventory — DIP Switch
- 6 positions
- Inventory — Application indicated in inventory
- VICTORIA FF MODEL 2 (12916-00)
- Inventory — Marked code
- 1271002110; Model FF; Code DATE2051; Ltn88850; n00889; 9555607400
- Identification — Marked designation
- 12916-00
- Identification — Marked code
- 1271002110; Model FF; Code DATE2051; Ltn88850; n00889
- Identification — Marked code
- 9555607400
- Identification — Marked code
- Panasonic JW1FSN-DC12V-F; AJW2211F
- Technical sheet: Protection screen printing
- 3.15A F1
- Technical sheet: Terminal screen printing
- GND; +VCC; L; N; TA
- Technical sheet: Relay: marked coil
- Spule12V
- Inventory data — Additional fuse
- 1 A
- Inventory data — DIP switch
- 6 positions
- Inventory data — Application indicated in inventory
- VICTORIA FF
- Inventory data — Application indicated in inventory
- MODEL 2 (12916-00)
- Inventory data — Marked code
- 1271002110; Model FF; Code DATE2051; Ltn88850; n00889; 9555607400
- Pending applications to verify
- VICTORIA FF modelo 2 (12916-00) — compatibilidad citada; pendiente de confirmar por variante.
- A fault in another part can damage a new PCB: check fuses and connectors before installing it.
- To be confirmed: Roca Victoria 20/20 T — con 1271002110; de pone «Victoria 20 20 T» en el título, en el texto, 1271002110 con «VICTORIA FF». da para la 20/20 F/T otra placa: 12.205.03
- No compatible o excluidos: Roca Victoria 20/20 F — Según lleva otra placa: 122126440. Aplicación registrada: 12.205.03. Aplicación registrada: 1271002110
- No confundir: 9555507400 — Placa Roca que junto a 1271002110 o a Victoria FF — Difiere en un dígito del 9555607400 marcado en esta placa; compáralos antes de dar la equivalencia por buena
- No confundir: 1271002120 — Código que entre paréntesis junto a 9555507400 — Difiere en un dígito del 1271002110 marcado en esta placa
- y ponen junto a 1271002110 otros códigos sin explicarlos (12736-03A, 12736-04A, 12.644.01A); un blog italiano cita la «scheda victoria FF 12736-03A». No los damos por equivalentes. pone 12.644.04A con 9555507400, no con 1271002110.
- To be confirmed: 1271002110 se une a la Roca Victoria FF . No hemos podido leer un despiece oficial y el circuito 9555607400 no figura; para la 20/20 F, dan otra placa.
- Aplicaciones registradas pendientes de confirmar por modelo, variante o programación: Roca Victoria FF modelo 2 (12916-00).
Frequently asked questions: Baxi Roca
How do I recognize this Baxi Roca Victoria FF PCB?
Is it compatible with my Baxi Roca Victoria FF model 2 (12916-00)?
Is it compatible with the Baxi Roca Victoria 20/20 F or the 20/20 T?
What is the difference between 9555607400, 9555507400, and 1271002120?
What are 12736-03A, 12736-04A, and 12.644.01A?
What should I check when replacing the PCB?
Who should install this PCB?
