Saunier Duval Display PCB Ref. SDHV19

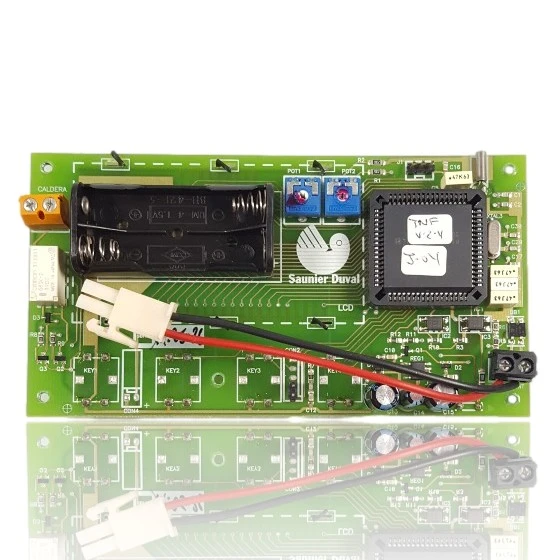

Saunier Duval presents the Saunier Duval Display Board Ref. SDHV19, a control PCB that manages the ignition, burner modulation, pump, and safety features of the boiler. When this part fails, the boiler may not start, become locked, or operate erratically, which can manifest through fault codes such as F.70, F.707, F.363, F.18, or F.20. It is compatible with boilers from the SDHV range, such as models 10, 14, 14T, 16, 19, and 8, among others. Its replacement is recommended when recurrent faults or communication issues occur.
Saunier Duval boilers compatible with reference SDHV19
PCB with reference SDHV19. Six confirmed compatibilities: 10 and 14.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Saunier Duval 10 | SDHV | Contrasted |
| Saunier Duval 14 | SDHV | Contrasted |
| Saunier Duval 14T | SDHV | Contrasted |
| Saunier Duval 16 | SDHV | Contrasted |
| Saunier Duval 19 | SDHV | Contrasted |
| Saunier Duval 8 | SDHV | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the reference SDHV19 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference SDHV19. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the SDHV19 PCB.
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler is completely off: no lights, no display, and no attempt to start.
Cause: The PCB distributes power to the other components of the boiler; if it fails, everything becomes unresponsive.
Check that 230V is reaching the input of the PCB and that the internal fuse is not blown.
- 02
A different fault code appears with each attempt to start, without repeating.
Cause: The control electronics manage the ignition and safety; if it fails, it generates inconsistent warnings.
Note each code before changing the PCB: in the SDHV series, several point to the flame sensor or the pressure switch, not to the control board.
- 03
The boiler pump does not start even though the thermostat requests heating.
Cause: The PCB sends the electrical signal to the pump; if the driver for that output fails, the pump does not receive power.
Before changing the PCB, measure with a multimeter if there is voltage at the pump connector when there is demand.
- 04
The pump never stops, even when the boiler is idle.
Cause: A stuck relay on the PCB keeps the pump output continuously activated.
Disconnect the connector of the pump with the boiler at rest: if there is still voltage at that point, the relay on the PCB is stuck.
Fault codes Saunier Duval that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| F.70 | Invalid boiler identification. | It usually appears after simultaneously replacing the display (UI) and the main PCB without reconfiguring the product code/DSN or with incorrect coding resistance. Verify by entering the service menu and readjusting the product code; if it persists, check/replace the display with the correct reference. |
| F.707 | It is not possible to establish any communication between the display and the PCB. | eBUS communication fault between the display board and the main PCB (cable/connectors or display module faulty). Check 5 V and eBUS signal at the connector, inspect/replace the cable, and test with another screen. |
| F.363 | EEPROM of the display: error during read/write test. | Memory of the display board damaged or with corrupted data. Verify by retrying the test from service; if it reappears, replace the display. |
| F.18 | User interface fault (display). | Fault in the display/interface board. Confirm power supplies and bus; test with a known-good display or replace the module. |
| F.20 | Software incompatibility (incorrect user interface or main PCB; incorrect product code). | Non-corresponding or incorrectly coded display/UI causes incompatibility with the PCB. Verify and correct the product code/DSN; if it does not match, install the correct display. |
| 12 | User interface fault (display/remote control). | In older models with numerical codes, error 12 points to the interface/display module. Check power supply and wiring and test with another display; if the issue persists, replace the display PCB. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Saunier Duval SDHV19 PCB.
- Catalogue reference
- SDHV19
- Uniclima internal SKU
- PEDBCSDHV19
- Brand
- Saunier Duval
- Type of part
- PCBs (control boards)
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- voltage
- 3.3V
Frequently asked questions about the SDHV19 PCB.
For which models of the SDHV series is this PCB compatible?
