EPIQ PCB for Saunier Duval Isofast C 28 E · PCB 900000460ed02 · Ref. aux. 05724800
EPIQ control board for boiler, with PCB 900000460ed02 and registered reference 105302 F. The application to a specific boiler and configuration must be confirmed before installation.
- Type of part
- Saunier Duval
- Status
- Refurbished
- internal SKU
- PLC002
- Warranty
- 1 year
VAT included Stock · 6 units
Compatible Saunier Duval boilers
Saunier Duval. 0 confirmed compatibilities. There are another 12 models that we are still verifying.
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Saunier Duval Isomax C 28 E2 | Saunier Duval | Unconfirmed |
|---|---|---|
| Saunier Duval Isofast 24EF | Saunier Duval | Unconfirmed |
| Saunier Duval Xtrafast 96 | Saunier Duval | Unconfirmed |
| Saunier Duval Xtrafast 120 | Saunier Duval | Unconfirmed |
| Saunier Duval Isofast C 28 E (C28E) | Saunier Duval | Unconfirmed |
| Saunier Duval Isofast C 28 E NOx | Saunier Duval | Unconfirmed |
| Saunier Duval Isofast F 28 E | Saunier Duval | Unconfirmed |
| Saunier Duval Isofast C 35 E | Saunier Duval | Unconfirmed |
| Saunier Duval Isofast F 35 E | Saunier Duval | Unconfirmed |
| Saunier Duval Isofast C 24 E V | Saunier Duval | Unconfirmed |
| Saunier Duval Isomax C 28 E | Saunier Duval | Unconfirmed |
| Saunier Duval Isomax F 28 E | Saunier Duval | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

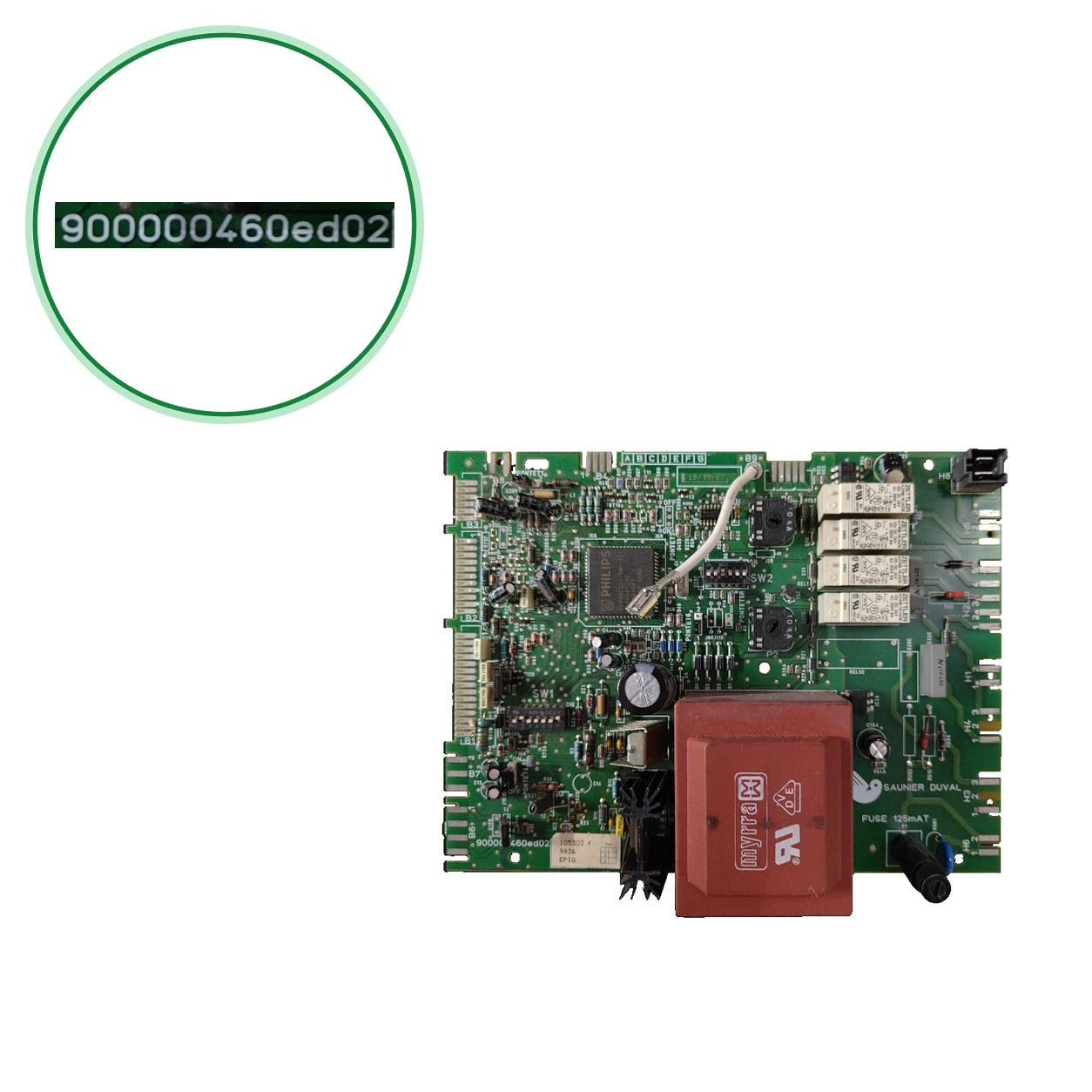

- Check the codes marked on the board: 1053021 and EP1G. Recorded data: the PCB 900000460ed02 and the reference 105302 F; compare them with those on your board.
- Compare the fuse (125 mAT), the 4 relays, the 2 potentiometers, and the connectors with the photos.
- Compare the complete review: this unit has registered 105302 F. Do not automatically equate it with 105303 H or 105304 D even though it shares PCB 900000460ed02.
- Look for 05724800 (or the old 57248; also 5724800) in the spare parts list of your boiler.
- if they match, call us at 911 17 77 77 with your boiler model. Any questions? Send us a photo of the PCB and the rating plate from the Contact section.
