Sime Brahma PCB 62306.87C · 6230687C for Format 25/60 BF and ZIP BF
Refurbished Sime Sime BRAHMA S.P.A

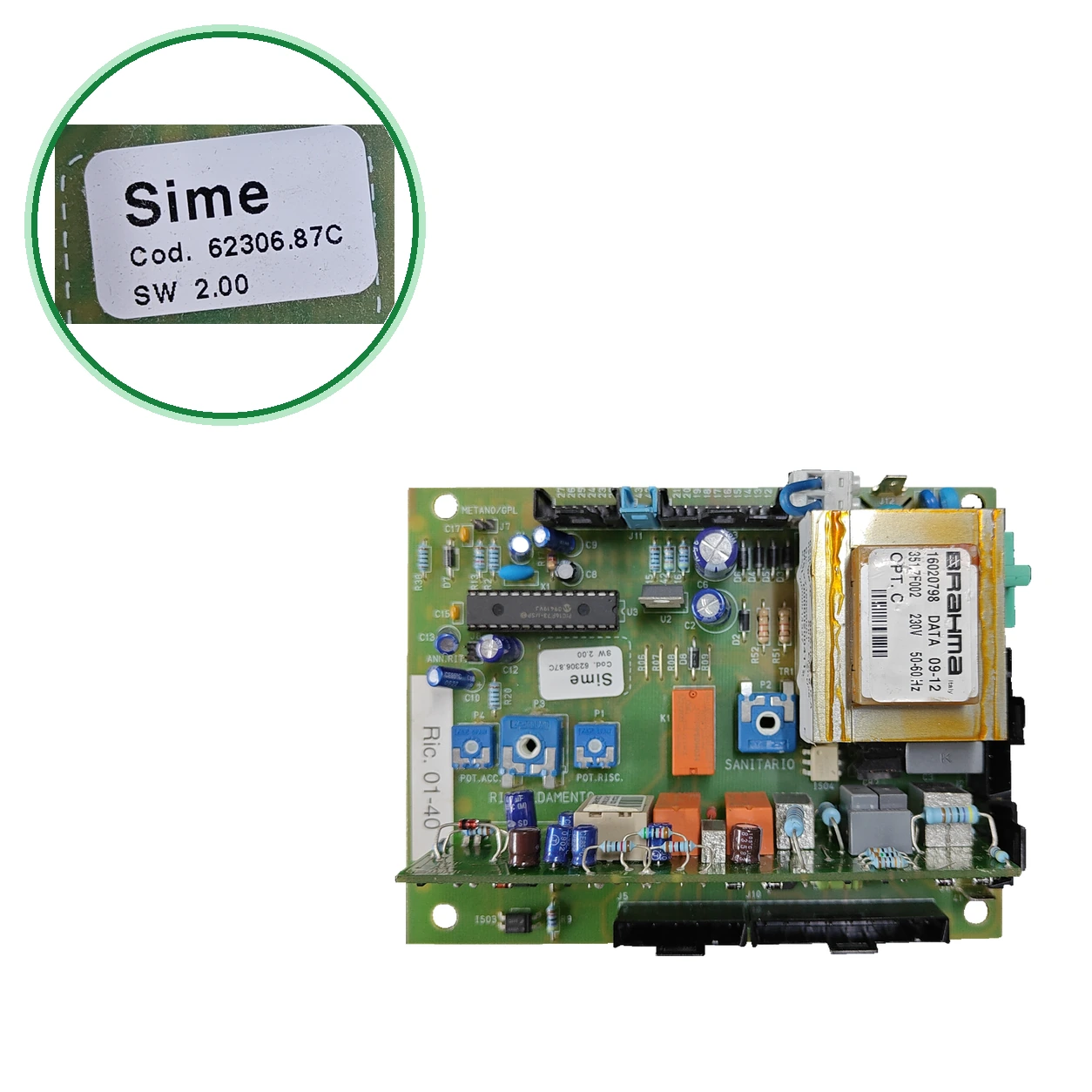

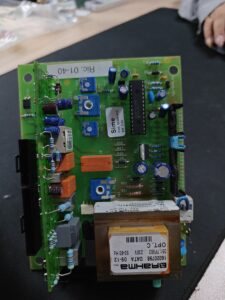

Sime Brahma PCB 62306.87C · 6230687C for Format 25/60 BF and ZIP BF

Placa de regulación y encendido para calderas Sime. Proporciona 24 V al modulador y gestiona las sondas, la válvula de gas, los termostatos y el presostato de agua.

Type of part
Sime
Status
Refurbished
internal SKU
PLC429
Warranty
1 year
VAT included Stock · 1 unit
Compatibility

Compatible Sime boilers

Sime. Nine confirmed compatibilities: SIME FORMAT 25/60 BF and SIME FORMAT T25-30/60 BF. There are another 5 models that we are still verifying.

Proven compatibility

Boiler modelFamilyVerification
SIME FORMAT 25/60 BFSimeContrasted
SIME FORMAT T25-30/60 BFSimeContrasted
SIME FORMAT ZIP BFSimeContrasted
SIME FORMAT 30/60 BFSimeContrasted
SIME FORMAT 25 BFSimeContrasted
SIME FORMAT 25/60 OFSimeContrasted
SIME FORMAT 25 OF CCLSimeContrasted
SIME FORMAT ZIP 30 BF, ZIP 35 BF and ZIP 4-25 BFSimeContrasted
SIME METRO ZIP 25 BFSimeContrasted

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

SIME FORMAT ZIP 25 OF and ZIP 4-25 BF ITSimeUnconfirmed
SIME FORMEL 25/60 V, FORMEL 25-60 C and WALL 25-60 VSimeUnconfirmed
SIME METRO 25 BFSimeUnconfirmed
SIME PLANET DEWY 25 BF T, 30 BF T and 30/50 BFSimeUnconfirmed
SIME FORMAT C 80 and 100SimeUnconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Look for the BRAHMA S.P.A label on the PCB: it should say 6230687C (Sime reference 62306.87C) and variant 028. The circuit must have 8409851 R.03 and the software, SW 2.00.
  2. Si lleva 6230685, 6230686 o 6230688, las dan como códigos anteriores de esta. Con 6230687B o 6230630A, compara antes.
  3. Check the model of your boiler on the rating plate and compare it with the verified compatibility list in this sheet.
  4. If they match, call us at 911 17 77 77 with the model of your boiler.
Diagnosis and fault codes

Symptoms that require diagnosis in the sime

Common symptoms and faults

  • 01

    Boiler that does not ignite, restarts by itself or shows faults.

    Cause: To be confirmed: lo atribuye a esta PCB y dice ver relés pegados o marcas de quemaduras.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Sime

Uniclima internal SKU
PLC429
Brand
Sime
Type of part
Sime
Units in stock
1 unit
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Sime commercial reference
62306.87C
Reference of the PCB label
6230687C
Variant of the PCB
028
Software version
SW 2.00
Gas configuration indicated on the PCB
METHANE/LPG
Electrolytic capacitor
470 µF; 35 V; 85 °C
Transformer reference
16020798
Transformer model
351.7F002
Transformer power supply and frequency
230 V; 50-60 Hz
Transformer option
OPT. C
Date indicated on the transformer
09-12
Microcontroller
PIC16F73-I/SP; marking 09419VJ
PCB code and revision
8409851; R.03
Source of additional data
Declared information; auxiliary references and applications without equivalent from the accredited manufacturer.
Inventory — PCB
code 62306.87C; software SW 2.00
Inventory — Label PCB
6230687C; variant 028; BRAHMA S.P.A Electrical Appliance
Inventory — Transformer/subcomponent
351.7F002; OPT. C; 230 V; 50-60 Hz
Inventory — PCB
8409851; revision R.03
Official manual data Sime (Format 25-30/60 BF) — Power supply
230 V; the transformer provides 24 V to the components · Sime installation manual
Pending applications to verify
SIME FORMAT T25-30/60 BF; SIME FORMAT 25/60 BF; SIME FORMAT ZIP BF — citados; pendientes de verificación documental.
Before purchasing
  • Sime manual (Format BF): Orange LED = heating sensor (SM); flashing green = fan or flue pressure switch; red = ignition lockout or thermostats.
  • Por confirmar: SIME FORMAT ZIP 25 OF y ZIP 4-25 BF IT —
  • Por confirmar: SIME FORMEL 25/60 V, FORMEL 25-60 C y WALL 25-60 V —
  • Por confirmar: SIME METRO 25 BF — (Clim. Ibérica)
  • To be confirmed: SIME PLANET DEWY 25 BF T, 30 BF T y 30/50 BF — (Clim. Ibérica); otras 3 citan solo la familia
  • To confirm: SIME FORMAT C 80 and 100 — 2 unreliable web listings; one lists 6230685A as the main PCB.
  • Not compatible or excluded at source: SIME FORMAT DGT 25 BF — It has a different PCB: 6301440 (official breakdown 8109200)
  • No confundir: 6230687B — Código que junto a 6230687 — No consta qué cambia: compara las letras finales antes de pedirla
  • No confundir: 6230630A — Otra placa Sime que como «Format ZIP BF principal» — Es otro código: compara la etiqueta
  • 6230687 en 2 despieces y 1 manual oficiales de Sime; 6230687C . Dos listados la dan para Format C 80/100 y los despieces listan 6098304 y 6098308, no el 16020798: manda.
Frequently Asked Questions

Frequently asked questions: sime

Where is the code for this PCB and what else do I need to compare?
The label from BRAHMA S.P.A indicates 6230687C (reference Sime 62306.87C) and variant 028. Also compare the circuit, 8409851 R.03, and the software, SW 2.00.
Is it compatible with my Sime Format 25/60 BF, T25-30/60 BF or ZIP BF?
To be confirmed: Sí. Confirmada: para las tres. Los despieces oficiales de Sime de la Format 25/60 BF (8097417, pos. 078) y de la Format ZIP 25 BF F/B (8098457, pos. 076) listan la 6230687 como «Scheda elettronica regolaz. acc». Además, cita 6230687 y 6230687C para la T25-30BF.
What other Sime boilers use this PCB?
Verified boilers: Format 25 BF, Format 30/60 BF, 25/60 OF, 25 OF CCL, ZIP 30, 35 y 4-25 BF, y Metro ZIP 25 BF. Por confirmar, con: ZIP 25 OF, ZIP 4-25 BF IT, Formel 25/60 V, Formel 25-60 C, Wall 25-60 V, Metro 25 BF y Planet Dewy 25 BF T, 30 BF T y 30/50 BF. Format C 80 y 100: por confirmar, solo 2 listados poco fiables. La Format DGT 25 BF lleva otra placa, la 6301440, según su despiece oficial.
What do 62306.87C, 6230687C, 6230687, 8409851, and 16020798 mean?
62306.87C es la referencia comercial de Sime; 6230687C, la de la etiqueta; 6230687, el código del despiece oficial, sin la C. 8409851 es el circuito. 16020798 es la referencia del transformador de nuestra unidad (modelo 351.7F002), pero lo usan como nombre de la placa. Los despieces oficiales de Sime 8097417 y 8098457 no listan el 16020798; listan 6098304 y 6098308.
Does it replace a PCB 6230685, 6230686, 6230688, or 6230683?
To be confirmed: las dan como códigos anteriores («ex») de la 6230687: la 6230685 en 8, la 6230688 en 7, la 6230686 en 4 y la 6230683 en 4. La copia del catálogo Sime alojada en pone la 6230683 en la fila de Planet Dewy BF T, y vende la 6230686 aparte para Format ZIP OF. S.M. confirma la 6230687 en sustitución de la 6230685.
What should be checked when installing it?
Compare the connectors with the manual of your boiler. The Format 25-30/60 BF has J2 6278622, J3 6278621, J5 6278625, J6 6278620, and J10 6278623; the Format 25 BF - 30 BF has J1 6260966, J2 6260962, J3 6260968, and J5 6260957. The trimmer POT. RISC. regulates the maximum heating power.
Who should install it?
To be confirmed: Un técnico cualificado. La placa trabaja con 230 V (manual de Sime) y gobierna el encendido; tampoco aconseja cambiarla sin conocimientos técnicos avanzados.
Entrega calculada por destino Delivery time shown at checkout
1-year warranty reviewed and tested
14-day return uninstalled parts
Technical support we verify your model
Sime Brahma PCB 62306.87C · 6230687C for Format 25/60 BF and ZIP BF
