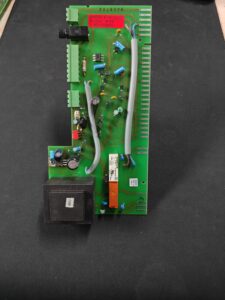

Wolf GU/GG-EK Regulation Board · 2799110 · PCB 0438702 · GG-EK-18/24
Placa de regulación de las calderas Wolf GU-EK y GG-EK de 18 y 24. En GU EK 18, una anomalía del bloqueo entre encendidos requiere diagnóstico y no confirma por sí sola la avería de la placa.
- Type of part
- Wolf
- Status
- Refurbished
- internal SKU
- PLCWOL-18
- Warranty
- 1 year
Wolf compatible boilers
Wolf. Five confirmed compatibilities: Wolf CG-EK-18 and Wolf GG-EK-18. There are 3 other models that we are still verifying.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Wolf CG-EK-18 | Wolf | Contrasted |
| Wolf GG-EK-18 | Wolf | Contrasted |
| Wolf GG-EK-24 | Wolf | Contrasted |
| Wolf GU-EK-18 | Wolf | Contrasted |
| Wolf GU-EK-24 | Wolf | Contrasted |
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Wolf GU-1EK | Wolf | Unconfirmed |
|---|---|---|
| Wolf GG-1EK | Wolf | Unconfirmed |
| Wolf NG 2P | Wolf | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

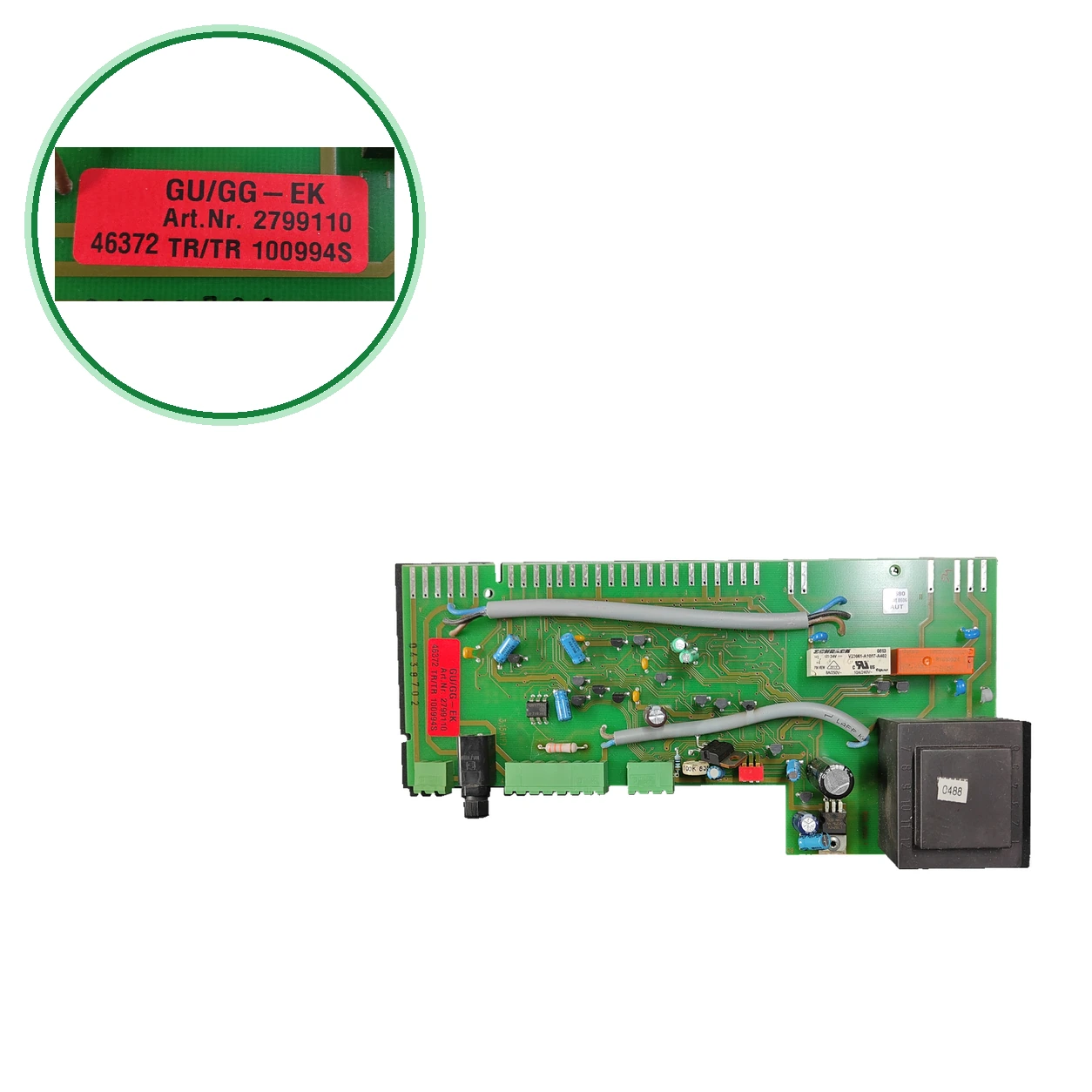

- Look at the PCB: it should have the circuit code 0438702 and the label "46372 TR/TR 100994S". The model of the PCB is GU/GG-EK.
- Compare the reference Wolf: 2799110, or the current one 8601911 (the official list states that it replaces 2799110).
- Do not confuse it with the ignition control board (8601907 in GU-EK, 8601909 in GG-EK) or with the "Regelung komplett" assembly (8600077, 8600078).
- Check on the rating plate that your boiler is a Wolf CG-EK-18, GG-EK-18, GG-EK-24, or GU-EK-18/24.
- If they match, call us at 911 17 77 77 with the model of your boiler.
Symptoms that require diagnosis in the wolf
Common symptoms and faults
- 01
The boiler does not respect the 3-minute lockout between ignitions (Taktsperre).
Cause: In a 2021 thread, a user of a GU EK 18 mentions that the control board failed (already replaced) and that the Taktsperre was "out of service." A 2022 message describes ignitions every 1 to 2.5 minutes, without mentioning the control board. These are testimonies: have a technician check it.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Wolf
- Uniclima internal SKU
- PLCWOL-18
- Brand
- Wolf
- Type of part
- Wolf
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Type of component
- Electronic control board
- Commercial reference
- 2799110
- Marking of the spare part label
- 46372 TR/TR 100994S
- Fuse indicated on the PCB
- 3.15 A (F)
- Fuse holder marking
- 10 A / 380 V
- Blue capacitor
- 1 µF, 100 V
- Source of additional data
- Declared information; auxiliary references and applications without equivalent from the accredited manufacturer.
- Inventory — Component type 7
- Control board / electronic control board
- Inventory — Alternative visible condenser read 8
- 0.1 μF, 100 V
- Inventory — Alternative plate marking read 9
- 043802
- Datos adicionales · por confirmar — Tipo de pieza
- Regulation PCB, position 0050 · Official spare parts list Wolf
- Datos adicionales · por confirmar — Nombre de la PCB
- Wolf GU/GG-EK
- Datos adicionales · por confirmar — Tipo
- TR/TR 100994S
- Pending applications to verify
- CG-EK-18; GG-EK-18; GG-EK-24 — citados; pendientes de confirmar.
- Registered equivalents and substitutions
- WOLF 2021, p. 245, fila 50: la placa 8601911 sustituye la referencia 2799110. Se registra 2799110 → 8601911; no implica que la placa antigua cubra todas las aplicaciones de la sustituta.
- Por confirmar: Wolf GU-1EK: (para la 8601911)
- To be confirmed: Wolf GG-1EK — y (solo GG1EK-18) dan la 8601911; da la 8601913 para GG-1E/1EK-18/24: discrepancia sin resolver
- Por confirmar: Wolf NG 2P: (para la 8601911)
- Do not confuse: 8601907 — Ignition control board (Gasfeuerungsautomat) of the GU-EK; replaces 2799100 — It is another board of the same regulation, not the regulation board.
- Do not confuse: 8601909 — Ignition control board of the GG-EK; replaces 2799105 — It is another board, not the regulation one.
- Do not confuse: 8600077 · 8600078 — Complete "Regelung komplett" assembly from the GU-EK and GG-EK/1EK — Another position on the list; it does not specify if the assembly includes the PCB.
- La 2799110 como placa de regulación Wolf GU/GG-EK la dan la lista oficial y más. 0438702 lo confirma; no aparece fuera. Contradicción: da la 8601911 por obsoleta y fuera de las nomenclaturas Wolf; prevalece la lista oficial.
Frequently asked questions: wolf
How do I identify this Wolf GU/GG-EK PCB and what do its codes mean?
Is it compatible with my Wolf GG-EK-24, GG-EK-18 or CG-EK-18?
Is it compatible with a Wolf GU-EK-18 or GU-EK-24?
What is the difference between 2799110 and 8601911?
Does it get confused with other PCBs from the same boiler?
What symptoms point to this PCB?
Can I install it myself?
