Wilo pump INTMTSL15/6.7 HE-215W07 · Ariston 60000591 for CLASS 35 EVO
Refurbished Ariston Ariston Wilo

Wilo pump INTMTSL15/6.7 HE-215W07 · Ariston 60000591 for CLASS 35 EVO

Bomba que hace circular el agua por el circuito de la caldera. Su identificación como bomba 6M 2V para calderas Ariston mixtas y de sistema está pendiente de confirmar.

Type of part
Ariston
Status
Refurbished
internal SKU
BOM080
Warranty
1 year
VAT included Stock · 1 unit
Compatibility

Compatible Ariston boilers

Ariston. Eight confirmed compatibilities: Ariston CLASS 35 EVO and Ariston Clas HE 24, 30, and 38. There are another 6 models that we are still verifying.

Proven compatibility

Boiler modelFamilyVerification
Ariston CLASS 35 EVOAristonContrasted
Ariston Clas HE 24, 30 and 38AristonContrasted
Ariston Genus HE 24, 30 and 38AristonContrasted
Ariston E Combi 24 and 30 FFAristonContrasted
Ariston E Combi 38 FFAristonContrasted
Ariston E System 24 and 30AristonContrasted
Ariston Clas HE 18, 24 and 30 System; Genus HE 24 and 30 SystemAristonContrasted
Ariston Clas Premium Evo 24AristonContrasted

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Ariston Clas HE Evo 30 and 38; Clas HE Evo System 18, 24 and 30; E System Evo 24 and 30AristonUnconfirmed
Ariston Genus 35 FF and 36 FF; Genus Premium 24, 30, and 35; Genus Premium System 12, 18, and 24AristonUnconfirmed
Ariston Clas Premium Evo System 35AristonUnconfirmed
Ariston Clas Premium Evo 35 kWAristonUnconfirmed
Ariston Clas Premium Evo 30, Clas Premium Evo System 24, and Genus Evo 35 FFAristonUnconfirmed
Ariston Pigma Evo 35 FF and Pigma Evo System 35 FFAristonUnconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

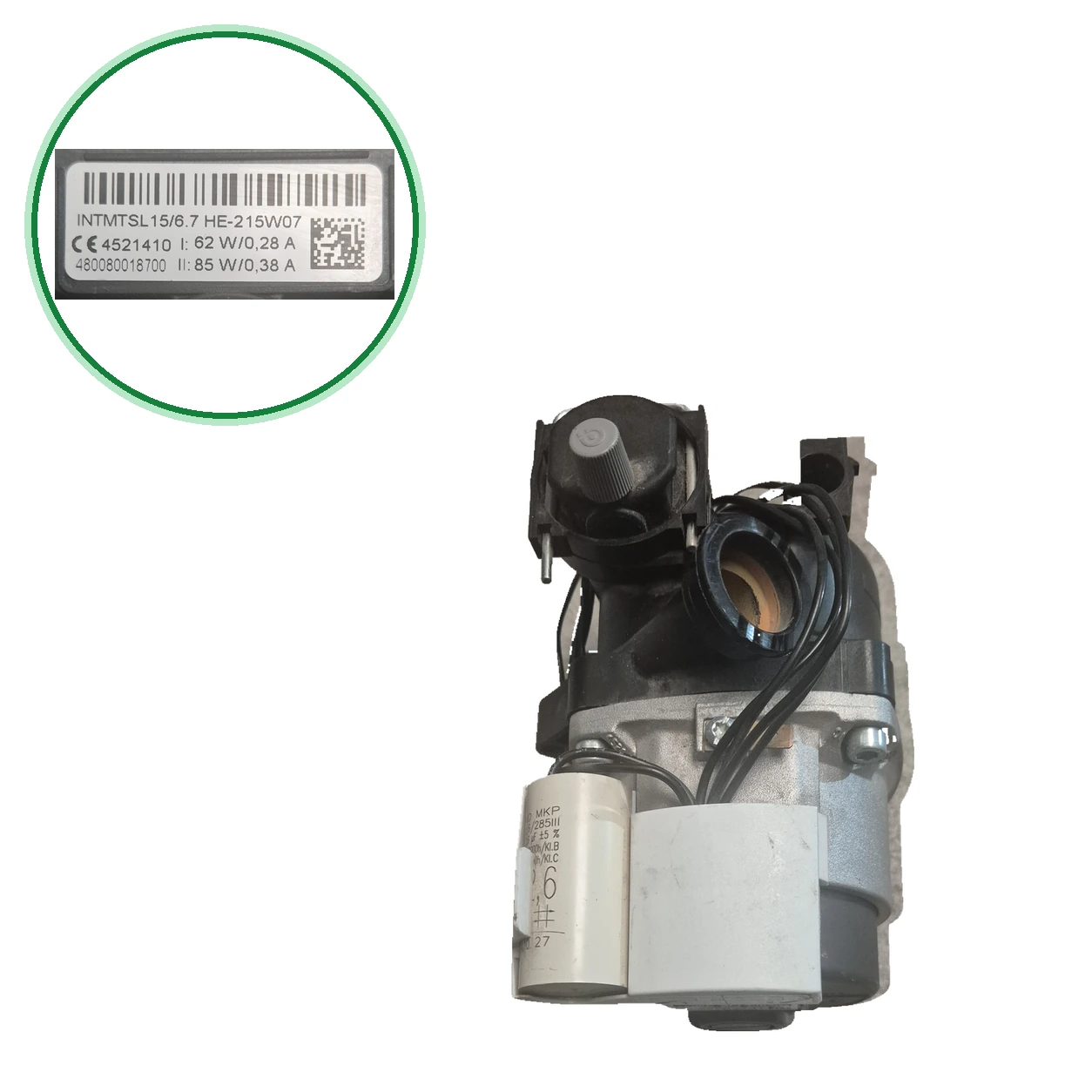

  1. Check the label of the pump: it should say INTMTSL15/6.7 HE-215W07 (Wilo), 480080018700 and 62 W / 85 W.
  2. Compare with your Ariston breakdown: 60000591 (or 60000591-01). As a substitute, 65120952; 60001584 and 65104319 appear as previous codes.
  3. Don't confuse it with the 65104319-02 (pump 5M 2V): the official breakdown from Ariston lists it separately. This is the 6M 2V.
  4. If they match, call us at 911 17 77 77 with your boiler model and we will confirm if we have it available.
Technical data

Ariston

Uniclima internal SKU
BOM080
Brand
Ariston
Type of part
Ariston
Units in stock
1 unit
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Commercial reference
480080018700
Code next to the CE marking
4521410
Voltage
230 V
Frequency
50 Hz
Speed I
62 W / 0.28 A
Speed II
85 W / 0.38 A
Thermal class
TF95
Conformity marking
CE
VDE marked
VDE
Type of condenser
MKP
Capacitor tolerance
±5 %
Source of additional data
Declared information; auxiliary references and applications without equivalent from the accredited manufacturer.
Inventory — Subcomponent condenser
marked 6/285III tolerance ±5 % partial markings 00V/K1.B and 00V/K1.C 1.6, unit not visible marked 10.27
Confirmed data — Absorbed power
62 W (speed I) · 85 W (speed II) · Confirmed
Confirmed data — Absorbed current
0.28 A (speed I) · 0.38 A (speed II) · Confirmed
Additional data (to be confirmed) — Direction of rotation
To confirm: Schedule
Pending applications to verify
Registered application: Chaffoteaux Pigma Green without power or version; commercial application pending breakdown. The physical match validates the price reference, not all boilers.
Before purchasing
  • To confirm: Ariston Clas HE Evo 30 and 38; Clas HE Evo System 18, 24 and 30; E System Evo 24 and 30 — (60000591-01)
  • To confirm: Ariston Genus 35 FF and 36 FF; Genus Premium 24, 30 and 35; Genus Premium System 12, 18 and 24 — official sheet of 60000591 +
  • To confirm: Ariston Clas Premium Evo System 35; 60000591 in the official breakdown of the series.
  • To confirm: Ariston Clas Premium Evo 35 kW; 60000591 in the official breakdown of the series.
  • To confirm: Ariston Clas Premium Evo 30, Clas Premium Evo System 24, and Genus Evo 35 FF — (60000591)
  • To confirm: Ariston Pigma Evo 35 FF and Pigma Evo System 35 FF — (60000591)
  • Not compatible or excluded: Ariston Clas HE Evo 24; E Combi Evo 24, 30, and 38 — gives the 65104319-02 (pump 5M 2V)
  • Do not confuse: 65104319-02 — Ariston Pump 5M 2V Wilo (official breakdown) — Another variant: ours is the 6M 2V (60000591)
  • Do not confuse: INTMTSL15/8-7 HE-2 — Italian marking for 60000591-01 — Does not match that of this unit: INTMTSL15/6.7 HE-215W07
  • Do not confuse: 60002375 — Wilo Yonos pump from the official spare parts list of the Clas Premium Evo 35 — Another pump from that spare parts list; ours is the 6M 2V.
  • To confirm: The 65104319-02 is the pump 5M 2V (official breakdown). The 65104319 as the previous code for the 65120952; another says it became the 65104319-02. INTMTSL15/8-7 HE-2 as marked on the 60000591-01; this unit has INTMTSL15/6.7 HE-215W07.
  • To confirm: No document mentions the CLASS 35 EVO. The official parts list lists 60000591 as pump 6M 2V; they link it to the marking INTMTSL 15/6.7 HE-2. The marking (15/8-7 in another) and 65120952 (5M 2V in another) differ.
Frequently Asked Questions

Frequently asked questions: Ariston

Where is the code for this pump and which one should I compare?
On the Wilo motor label: model INTMTSL15/6.7 HE-215W07, reference 480080018700 and 4521410 next to the CE marking. In an Ariston parts list, look for 60000591 (or 60000591-01). As a substitute, use 65120952.
Is it compatible with my Ariston CLASS 35 EVO?
Yes. Confirmed: for the CLASS 35 EVO. Without additional confirmation that we have read, this model is named; the official parts list for the Clas Premium Evo 35 kW and System 35 includes 60000591. For another model, call us at 911 17 77 77 with the data plate.
What is the difference between 60000591, 65120952, and 60001584?
60000591 (-01) is the official breakdown code from Ariston: pump 6M 2V Wilo. The 65120952 (Wilo Para MTSL/7-50/SC-12) is its replacement, and four give the 60001584 as the previous code for that. From Madrid, the 65120952 is described as 5M 2V: always compare the marking.
Can I install the 65104319-02 (5M 2V) in its place?
To confirm: Do not take it for granted. The official breakdown from Ariston for Genus Evo and Clas Evo lists separately the 60000591-01 (6M 2V Wilo) and the 65104319-02 (5M 2V Wilo). The 65104319-02 is for the Clas HE Evo 24 and E Combi Evo. This pump is the 6M.
What does INTMTSL15/6.7 HE-215W07 mean?
INTMTSL 15/6.7 HE-2 is the Wilo designation for this pump 6M 2V. The Italian version writes INTMTSL15/8-7 HE-2, which does not match the label. Without additional confirmation, explain the suffix 15W07 or the 4521410.
In which other boilers is 60000591 used?
Between 4 and they provide for Clas HE 24, 30 and 38, Genus HE 24, 30 and 38, E Combi 24, 30 and 38 FF and E System 24 and 30. The official Ariston sheet for 60000591 lists Genus and Genus Premium. Compare the code of your spare parts list before ordering it.
What should be checked when installing it and who should do it?
To confirm: the Italian requests to compare the Ariston code, Wilo model, power supply, connector, and hydraulic group. It operates at 230 V: if you don't have experience, it's better for a technician to install it.
