Grundfos UPS15-60 A0-AC-BC pump Beretta – Ref. 97948280

Boilers Beretta compatible with reference 97948280

Beretta with reference 97948280. A confirmed compatibility: Junior Green 25 CSI (JUNIOR GREEN25C.S.I.). There are 2 other models that we are still verifying.

Proven compatibility

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if reference 97948280 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

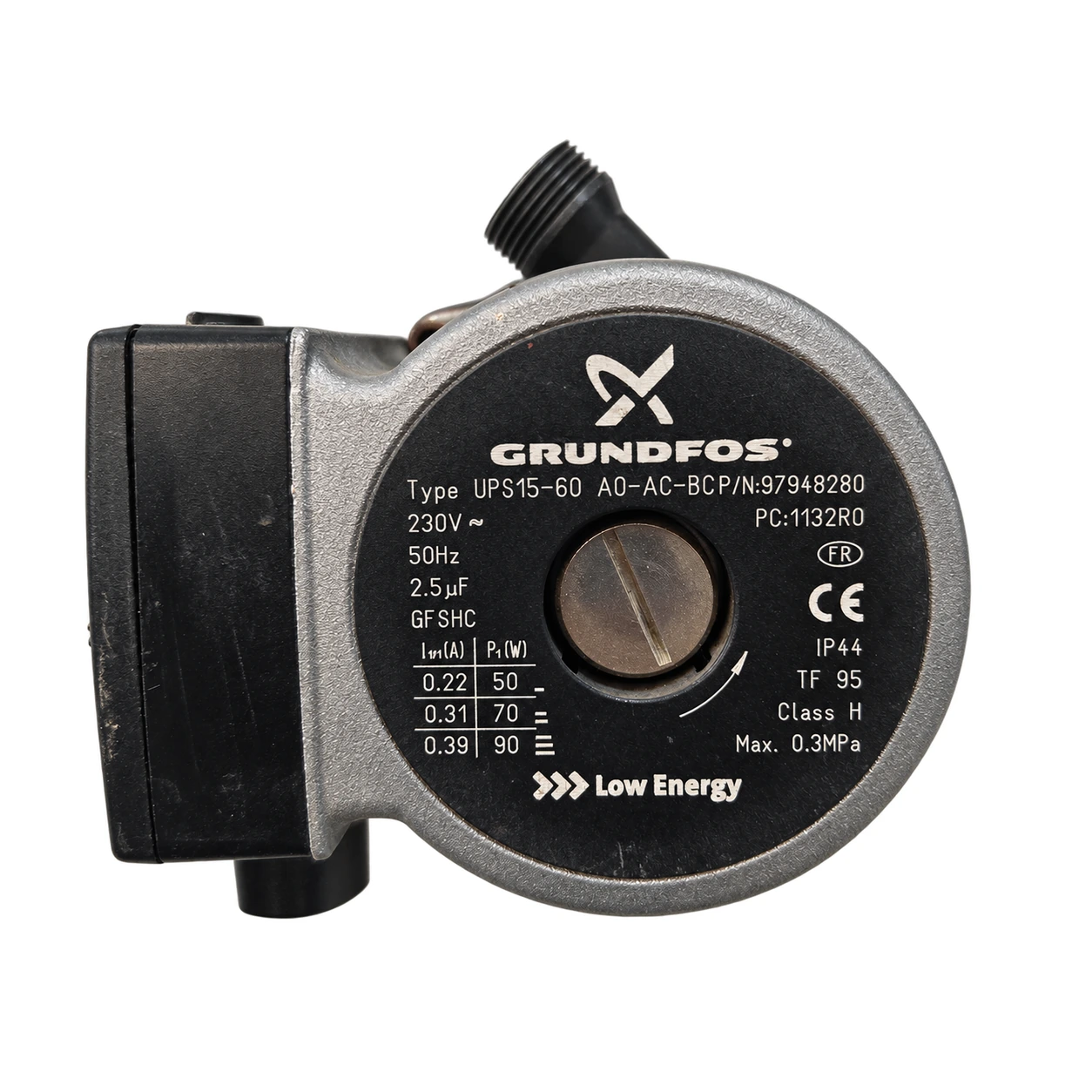

1. Look at the motor label: it should say Grundfos UPS15-60 A0-AC-BC. Also note the complete number (in this case, 97948280).
2. Compare the power of the three speeds: 50, 70, and 90 W.
3. Note the model and version of your boiler, which are listed on its label (for example, Junior Green 25 CSI or Ciao Green 25 CSI ErP), and if your pump has a Beretta code (20039926 or 20194913).
4. Send us a photo of the label of your pump and the PCB of your boiler from Contact.

Symptoms that require diagnosis in the Beretta 97948280

Common symptoms and faults

• 01

  The radiators do not heat up even though the boiler turns on.

  Cause: Check that the pump is running and that the circuit has pressure; bleed the air from the radiators.

• 02

  The pump makes noise or vibrates.

  Cause: Bleed the air from the circuit and try another speed; if it continues, there may be internal wear.

• 03

  It runs but does not start after a period of inactivity.

  Cause: The rotor may be stuck due to scale or sludge: have a technician check it.

• 04

  It is leaking water from the pump.

  Cause: Check the seals of the connections; if the leak comes from the body of the pump, it needs to be replaced.

• 05

  The boiler locks out due to overheating.

  Cause: There may be a circulation issue: check the pump before replacing other parts.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Beretta 97948280

Catalogue reference

97948280

Uniclima internal SKU

BOM036

Brand

Beretta

Type of part

Beretta

Units in stock

0 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Power supply

230 V~, 50 Hz

Protection

IP44

Marked capacitor

2.5 µF

Current / power I

0.22 A / 50 W

Current / power II

0.31 A / 70 W

Current / power III

0.39 A / 90 W

Set temperature

TF95

Marked class

H

Maximum pressure marked

0.3 MPa

Additional text

Low Energy / GF SHC

Inventory — Type of spare part

Pumps

Inventory — Condenser

2.5 μF

Inventory — Current/Power

0.22 A/50 W; 0.31 A/70 W; 0.39 A/90 W

Inventory — Application indicated in inventory

JUNIOR GREEN25C.S.I.

Verified data — Pump

Grundfos UPS15-60 A0-AC-BC

Verified data — Speed I

50 W · 0.22 A

Verified data — Speed II

70 W · 0.31 A

Verified data — Speed III

90 W · 0.39 A

Verified data — Power supply

230 V · 50 Hz

Verified data — Condenser

2.5 µF

Verified data — Protection

IP44 · insulation class H

Verified data — Thermal class

TF95

Verified data — Maximum pressure

0.3 MPa (3 bar)

Verified data — Marked

Low Energy

Verified data — Connections and distance between outlets

Without confirmed data: compare them with your pump.

Identification — Marked designation

UPS15-60 AO-AC-BC

Identification — Marked code

97948280

Technical sheet: Power supply

230 V~, 50 Hz

Technical sheet: Protection

IP44

Technical sheet: Marked capacitor

2.5 µF

Technical sheet: Current / power I

0.22 A / 50 W

Technical sheet: Current / power II

0.31 A / 70 W

Technical sheet: Current / power III

0.39 A / 90 W

Technical sheet: Marked temperature

TF95

Technical sheet: Marked class

H

Technical sheet: Maximum marked pressure

0.3 MPa

Technical sheet: Additional text

Low Energy / GF SHC

Inventory data — Type of spare part

Pumps

Inventory data — Condenser

2.5 μF

Inventory data — Current/Power

0.22 A/50 W; 0.31 A/70 W; 0.39 A/90 W

Inventory data — Application indicated in inventory

JUNIOR GREEN25C.S.I.

Pending applications to verify

• Ciao Green 25 RSI (20062776): . • Ciao Green 29 CSI (20062778): . • Junior Green 25 RSI (20039447): . • Ciao Green 25 CSI GPL (20066454): official list +; missing 1. • CONFLICT Junior Green 25 CSI: it gives another pump, the 20194913 (UPM3 15-60 AO-AC AZJ). (excerpt) it puts that pump in the ErP modulating version of the Ciao Green 25 CSI. Check the boiler's PCB. • The list of 32 boilers (Ciao, Mynute, Quadra, Exclusive…) is from the 20194913: it is not suitable for this pump. Documented applications of another reference; link with this unit pending: BERETTA (ref. 20039926; needs to be linked to this label) • Junior Green 25 CSI: • Ciao Green 25 CSI (MTN 20035994): official list +

Registered equivalents and substitutions

Do not confuse with the Beretta 20194913 (Grundfos UPM3 15-60 AO-AC AZJ): it is for the Junior Green 25 CSI and (excerpt), for the ErP modulating version of the Ciao Green 25 CSI. Not confirmed: that one replaces the other. The codes 20039446, 20039447, 20035994, 20066454, 20062776, 20062778, and 20097285 mentioned are for boilers, not for pumps.
