Grundfos UPS15-50 AO /BC pump Beretta – Ref. 59945507
Refurbished Beretta Beretta Grundfos

Grundfos UPS15-50 AO /BC pump Beretta – Ref. 59945507

Bomba circuladora Grundfos que mueve el agua por el circuito de calefacción. Tiene aplicación registrada para Beretta Kompakt 22 C.S.I., cuyo circulador lleva el código R10021792. La posible aplicación de este P/N a calderas Roca queda pendiente de confirmar y no identifica un modelo concreto.

Type of part
Beretta
Status
Refurbished
Catalogue reference
59945507
Warranty
1 year
VAT included OUT OF STOCK
Compatibility

Boilers Beretta compatible with reference 59945507

Beretta with reference 59945507. A verified compatibility: Kompakt 22 C.S.I. (KOMPACT 22 C.S.I.). There are 8 other models that we are still checking.

Proven compatibility

Boiler modelFamilyVerification
Beretta Kompakt 22 C.S.I. (KOMPACT 22 C.S.I.)BerettaContrasted

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Beretta Boilers Baxi RocaBerettaUnconfirmed
Beretta Kompakt 22 C.A.I.BerettaUnconfirmed
Beretta Super Exclusive 24 C.A.I. and Minute 24 CAINBerettaUnconfirmed
Beretta Super Kompakt 24 C.S.I., R.S.I. and C.A.I.; Kompakt C.A.I.; Idra Green 21 R.S.I.; Super Exclusive 28 C.S.I. and R.S.I., Mix 28 R.S.I., Mix 30 C.S.I. EV, Micromix 32 C.S.I., Sinthesi 25 C.S.I. and Eco Mix 24 C.S.I.; Mynute 20/20, 24 and 28 C.S.I.; Meteo 28 C.A.I. and Meteo Mix 28 C.S.I.BerettaUnconfirmed
Beretta Super Exclusive Mix 26 C.S.I. EV; Meteo 24 C.A.I.; Beretta Rain 28 C.S.I., Rain Box 28 C.S.I. and 24 C.A.I.; Ciao 24 and 28 C.A.I. and C.S.I.; Mynute 24 and 28 C.A.I.BerettaUnconfirmed
Beretta Kompakt 24 C.A.I. and C.S.I., Kompakt 28 R.A.I. and R.S.I.BerettaUnconfirmed
Beretta Idra Exclusive, Idra Meteo, Mynute 13/20 and 20/20, Super MeteoBerettaUnconfirmed
Beretta Vokera Syntesi and LineaBerettaUnconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if reference 59945507 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

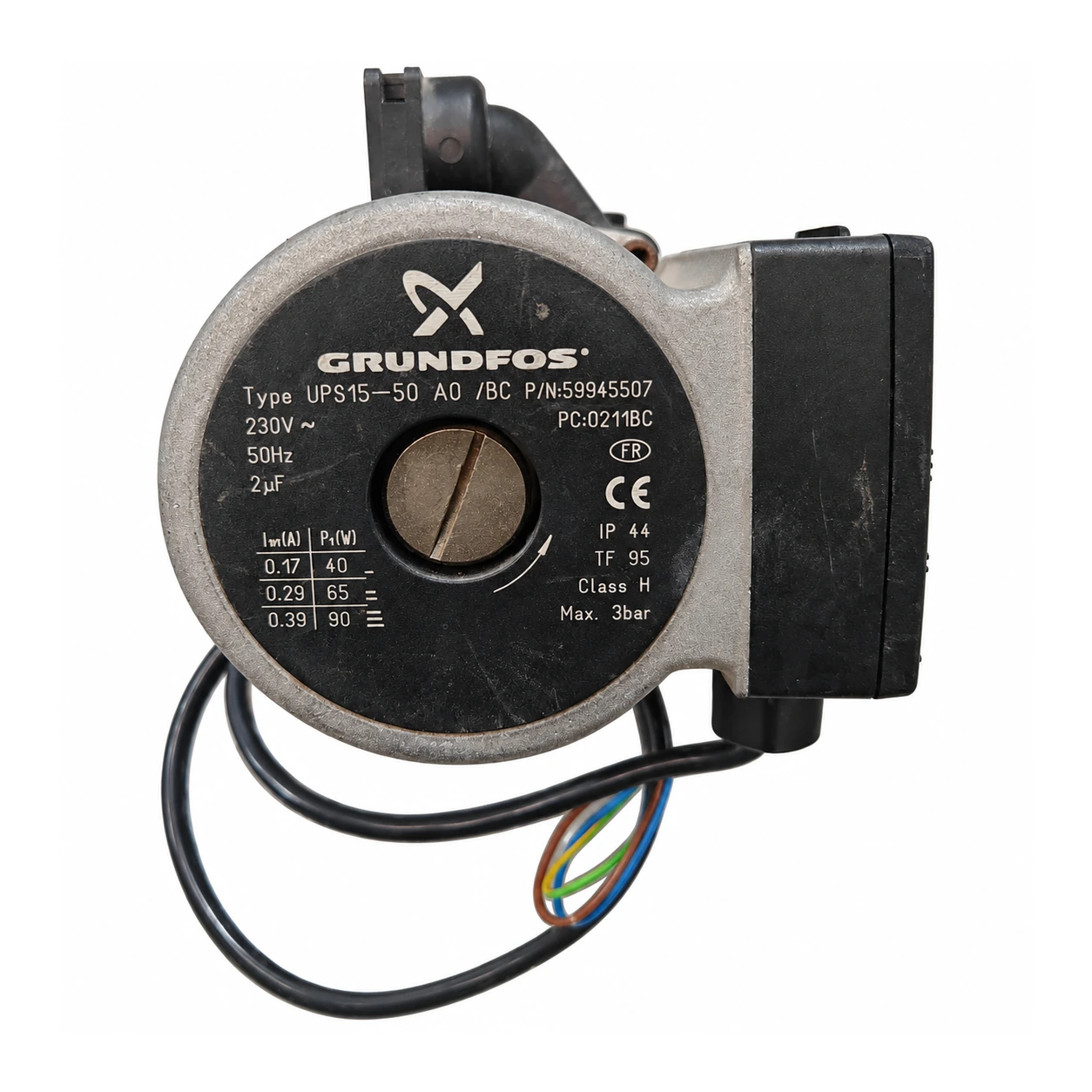

  1. Look at the motor label: it should say Grundfos UPS15-50 AO /BC, the P/N 59945507 and the code 0211BC.
  2. Compare the power of the three speeds: 40, 65, and 90 W.
  3. Note if your pump has a Beretta code and the exact model of your boiler, which is listed on its label.
  4. Send us a photo of the label of your pump and the PCB of your boiler from Contact.
Diagnosis and fault codes

Symptoms that require diagnosis in the Beretta 59945507

Common symptoms and faults

  • 01

    The radiators are not heating or are heating little.

    Cause: Check that the pump is running and that the circuit has pressure; bleed the air from the radiators.

  • 02

    The pump sounds or vibrates more than usual.

    Cause: Bleed the air and try another speed; if the noise persists, there may be internal wear.

  • 03

    The motor hums but the rotor does not turn.

    Cause: It usually happens after a period of inactivity, due to scale or sludge: have a technician check it.

  • 04

    It is leaking water from the pump.

    Cause: Check the seals of the connections; if the leak comes from the body of the pump, it needs to be replaced.

  • 05

    The boiler locks out due to excessive temperature.

    Cause: There may be a circulation issue: check the pump before replacing other parts.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Technical sheet: Beretta 59945507

Catalogue reference
59945507
Uniclima internal SKU
BOM038
Brand
Beretta
Type of part
Beretta
Units in stock
0 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Marked supply
230 V ~
Marked frequency
50 Hz
Marked capacitor
2 uF
Escalon I, I1/P1
0.17 A / 40 W
Escalon II, I1/P1
0.29 A / 65 W
Escalon III, I1/P1
0.39 A / 90 W
Marked protection
IP44
TF marked
95
Marked class
H
Maximum marked, no filling
3 bar
Inventory — Type of spare part
Pumps
Inventory — Condenser
2 μF
Inventory — I1/P1
0.17 A/40 W; 0.29 A/65 W; 0.39 A/90 W
Inventory — Application indicated in inventory
KOMPACT 22 C.S.I.
Verified data — Pump
Grundfos UPS15-50 AO /BC
Verified data — Speed I
40 W · 0.17 A
Verified data — Speed II
65 W · 0.29 A
Verified data — Speed III
90 W · 0.39 A
Verified data — Power supply
230 V · 50 Hz
Verified data — Condenser
2 µF
Verified data — Protection
IP44 · insulation class H
Verified data — Thermal class
TF95
Verified data — Maximum pressure
3 bar
Verified data — Distance between outlets
No data for this P/N: compare it with your pump.
Identification — Marked designation
UPS15-50 AO /BC
Identification — Marked code
59945507
Identification — Marked code
0211BC
Technical sheet: Marked power supply
230 V ~
Technical sheet: Marked frequency
50 Hz
Technical sheet: Marked capacitor
2 uF
Escalon I, I1/P1
0.17 A / 40 W
Escalon II, I1/P1
0.29 A / 65 W
Escalon III, I1/P1
0.39 A / 90 W
Technical sheet: Marked protection
IP44
TF marked
95
Technical sheet: Marked class
H
Maximo marcado, no llenado
3 bar
Inventory data — Type of spare part
Pumps
Inventory data — Condenser
2 μF
Inventory data — I1/P1
0.17 A/40 W; 0.29 A/65 W; 0.39 A/90 W
Inventory data — Application indicated in inventory
KOMPACT 22 C.S.I.
Pending applications to verify
Por confirmar: • Kompakt 22 CAI / CSI (almacén): (ficha 280.94.0004, que no identifica la bomba). • Calderas Roca, sin modelo: (para esta P/N). • Kompakt 24 CAI / CSI y 28 RAI / RSI: solo, y para la 59945504, no para esta. • Idra Exclusive (y Turbo), Idra Meteo, Mynute 13/20 y 20/20, Super Meteo (Turbo y Turbo AG): (quizá con origen común), pero para la R6094, sin /BC. • Minute 24 CAIN, Meteo 24-28, Super Exclusive y Vokera Syntesi, Linea y Rain:, sin bomba identificada.
Registered equivalents and substitutions
Sin confirmar: una equivalencia. • 59945504: mismo tipo UP 15-50 AO /BC, otro P/N, para Kompakt 24 y 28. • Beretta R6094 (= BE.6094 y MPN 6094; ex R6025 y R9775; Riello 4363770 ): es la UPS 15-50 AO sin /BC; sin confirmación adicional la une a 59945507. • R10024975: solo en Uniclima, que lo usa en fichas de dos bombas distintas.
Before purchasing
  • To confirm: Baxi Roca boilers (without model), for this same P/N.
  • To confirm: Kompakt 22 C.A.I. — R10021792 or BE10021792: official breakdown from Beretta and (MTN and GLP); no reference 59945507.
  • To confirm: Super Exclusive 24 C.A.I. and Minute 24 CAIN — R10021792 or BE10021792: the first one, 3 the second; none quote 59945507.
  • To confirm: Super Kompakt 24 C.S.I. R.S.I. and C.A.I. Kompakt C.A.I. Idra Green 21 R.S.I. Super Exclusive 28 C.S.I. and R.S.I. Mix 28 R.S.I. Mix 30 C.S.I. EV, Micromix 32 C.S.I. Sinthesi 25 C.S.I. and Eco Mix 24 C.S.I. Mynute 20/20, 24 and 28 C.S.I. Meteo 28 C.A.I. and Meteo Mix 28 C.S.I. code R10021792; no quote 59945507
  • To confirm: Super Exclusive Mix 26 C.S.I. EV; Meteo 24 C.A.I. Beretta Rain 28 C.S.I. Rain Box 28 C.S.I. and 24 C.A.I. Ciao 24 and 28 C.A.I. and C.S.I. Mynute 24 and 28 C.A.I. — by boiler, code R10021792 or BE10021792; no quote 59945507.
  • To confirm: Kompakt 24 C.A.I. and C.S.I. Kompakt 28 R.A.I. and R.S.I. but for another P/N of the same type (59945504)
  • To confirm: Idra Exclusive, Idra Meteo, Mynute 13/20 and 20/20, Super Meteo, but for the R6094 (UPS 15-50 AO, without /BC)
  • To confirm: Vokera Syntesi and Linea, without identifying the pump model.
  • Do not confuse: 59945504 — Grundfos UP 15-50 AO /BC sold for the Kompakt 24 and 28 — Same type, different P/N: Not confirmed: that they are the same pump.
  • Do not confuse: R6094 (BE.6094) — Grundfos UPS 15-50 AO from Beretta for Idra, Mynute, and Super Meteo — Without «/BC»: without additional confirmation, it relates to this pump.
  • Registered confirmation: the pump (P/N 59945507) for the Beretta Kompakt 22 C.S.I. The official breakdown lists R10021792 as the circulator for that boiler; none mention P/N 59945507, which only appears in (for Baxi Roca boilers).
Frequently Asked Questions

Frequently asked questions: beretta 59945507

Is it compatible with my Beretta Kompakt 22 C.S.I.?
Yes. Confirmation registered: this pump for the Beretta Kompakt 22 C.S.I. and the official breakdown from Beretta indicates that the circulator R10021792 is suitable for that boiler, which is also listed (one sells it as "UP 15-50 A0 /BC"). The P/N 59945507 is for Baxi Roca boilers, without a specific model.
Is it the same as 59945504?
It is not listed. The 59945504 is a Grundfos UP 15-50 AO /BC sold for the Kompakt 24 and 28; this is a UPS15-50 AO /BC with a different P/N. Not confirmed: whether they are the same pump.
Does it have a Beretta code?
To confirm: The label does not include it. The official breakdown for the Kompakt 22 C.S.I. and C.A.I. lists R10021792 for its circulator; and it is equivalent to 20104311 / R20104311 and BE10021792. The breakdown does not mention the pump nor cites 59945507. It also associates R2950 with the "UP 15-50/BC" of the Kompakt 22.
Is it the Beretta R6094?
It is not listed. The R6094 is a Grundfos UPS 15-50 AO, without “/BC”, for Idra, Mynute, and Super Meteo. Without additional confirmation, it is associated with P/N 59945507.
What other boilers use the circulator R10021792?
To confirm: Kompakt 22 C.A.I.: official breakdown. Super Exclusive 24 C.A.I.. Minute 24 CAIN: 3. Others list it for Super Kompakt 24, Idra Green 21, Super Exclusive 28, Mynute C.S.I. and Meteo 28 C.A.I. None mention the P/N 59945507.
What codes are on the label and which one should I compare?
Designation UPS15-50 AO /BC, P/N 59945507 and code 0211BC, as well as 40/65/90 W, 2 µF, IP44 and class H. Compare designation and P/N. Do not explain 0211BC or link it with R10021792 without additional confirmation.
And what if my boiler is a Kompakt 22 C.A.I.?
only the C.S.I. has been confirmed. For the C.A.I., the official breakdown provides the circulator R10021792 or BE10021792, but there is no reference 59945507. Send us a photo of the PCB and your pump from Contact, or call 911 17 77 77.
What part number appears on the unit?
P/N Grundfos 59945507; the visible type is UPS15-50 AO /BC.
What power ratings are verified?
40 W, 65 W and 90 W, with currents of 0.17 A, 0.29 A and 0.39 A respectively.
