Grundfos UPS15-50 J1 pump CIAO Immergas – Ref. 59725011

Immergas compatible boilers

Immergas. A proven compatibility: Eolo Star 23. There are 5 other models that we are still verifying.

Proven compatibility

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

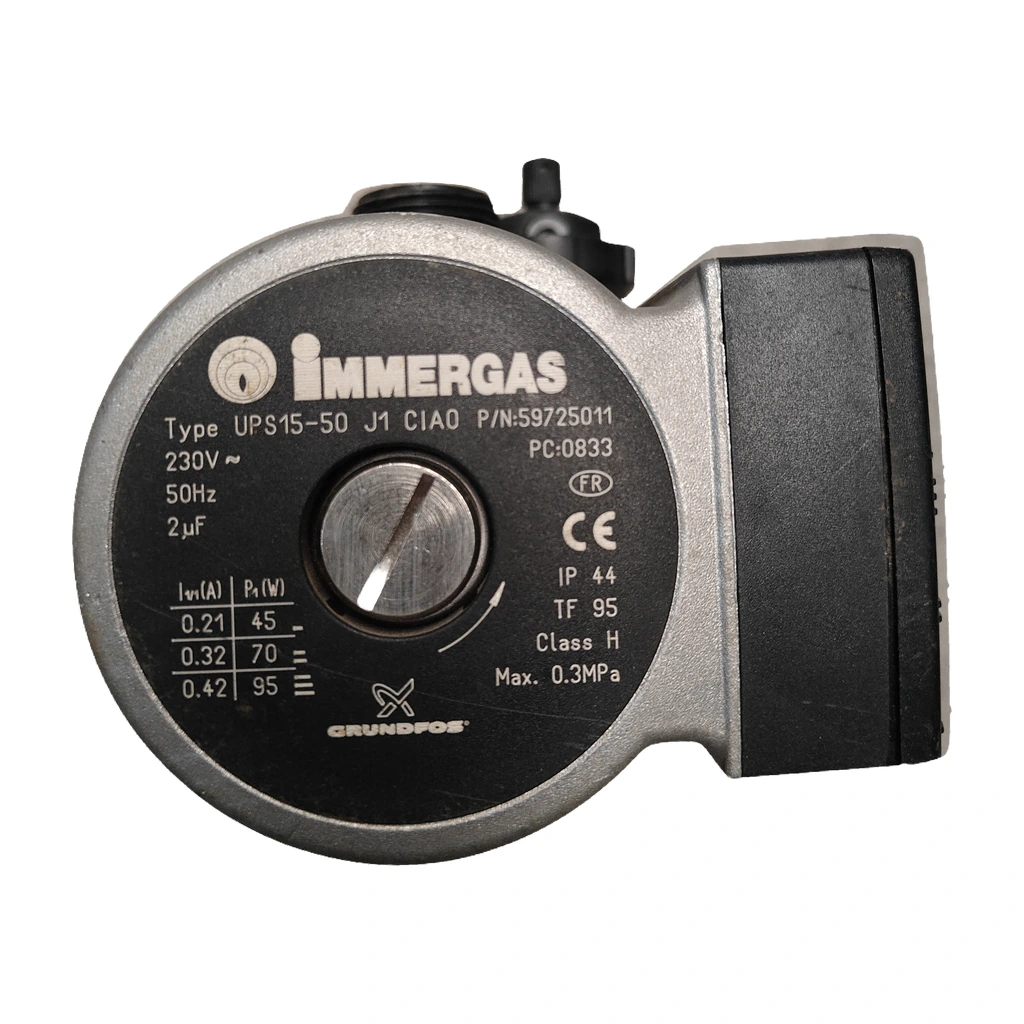

1. Look at the motor label: it should say Grundfos UPS15-50 J1 CIAO and the P/N 59725011 (on the plate it may appear as 597/2501M).
2. Compare the power ratings: this one indicates 45, 70, and 95 W. If yours shows different figures, it is not the same pump.
3. In the official breakdown of the Eolo Star 23, the circulator 15-50 is 1.024171 (standard); the Export copy gives 1.015561. If your pump or the breakdown of your boiler has an Immergas code, note it down.
4. If your boiler is an Immergas Eolo Star 23, confirmed: this pump is for it. For another model, send us a photo of your pump's label and the boiler's control board from Contact.

Symptoms that require diagnosis in Immergas.

Common symptoms and faults

• 01

  The radiators remain cold with the burner on.

  Cause: Bleed the radiators and check that the pump is running.

• 02

  The pump hums but does not rotate.

  Cause: The rotor may be stuck after the summer: have a technician try to unlock it before replacing it.

• 03

  Metallic noise or vibration when requesting heating.

  Cause: There may be air or low pressure in the circuit: check the pressure gauge and bleed.

• 04

  It is leaking from the body of the pump.

  Cause: Check if the water is coming from the pump or from a nearby gasket.

• 05

  The boiler stops due to overheating.

  Cause: There may be a circulation issue: check that the pump starts and that there is no air in the circuit.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical sheet: Immergas

Uniclima internal SKU

BOM050

Brand

Immergas

Type of part

Immergas

Units in stock

0 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Commercial reference of the part

597/2501M

P/N printed on the PCB

59725011

PCB marking

0833

Electrical supply

230 V~

Frequency

50 Hz

Condenser

2 µF

Speed I: current / power

0.21 A / 45 W

Speed II: current / power

0.32 A / 70 W

Speed III: current / power

0.42 A / 95 W

Degree of protection

IP44

TF

95

Insulation class

H

Maximum pressure

0.3 MPa

Conformity marking

CE

Source of additional data

Declared information; auxiliary references and applications without equivalent from the accredited manufacturer.

Inventory — Marked code

59725011; 0833

Verified data — Pump

Grundfos UPS15-50 J1 CIAO

Verified data — P/N

59725011

Verified data — Code on the PCB

597/2501M

Verified data — Speed I

45 W · 0.21 A

Verified data — Speed II

70 W · 0.32 A

Verified data — Speed III

95 W · 0.42 A

Verified data — Power supply

230 V · 50 Hz

Verified data — Condenser

2 µF

Verified data — Protection

IP44 · class H

Verified data — Temperature class

TF95

Verified data — Maximum pressure

0.3 MPa (3 bar)

Pending applications to verify

• Eolo Star 23 (noted by the warehouse): with different codes: (Eolo Star 23 kW, for 1.024171 / 3.022577) and (for 1015561). The TecnoAti catalog was only released in extract. • Nike Star: for 1.024171. provides the Nike Star 23 kW for 1015561. • Nike Star 55A: 1 origin (for 1015561). • Eolo Mini (and Eolo Mini 24 3E): (for 1.024171 with P/N 59725011;). • Nike Mini: 1 origin. • NOT VALID Beretta Ciao (24 CSI and the rest of the range): it carries the 20002906 (UPS15-50 A0 B/BC), not the J1 CIAO. • Baxi Roca: Unconfirmed: one model. (fragment) provides Baxi Roca another pump (UPS15-50 AO/BC, P/N 59945507); cites for Baxi Roca the generic UPS 15-50 J1 of 130 mm, not the CIAO.

Registered equivalents and substitutions

Cadena Immergas: 1.020573 → 1.024171 → 3.022577, Grundfos UPS 15-50 («3.022577 ex 1.024171, ex 1.020573»; «3022577 (ex 1024171)»; cruza 1.024171 / 3.022577). agrupa «NIKE STAR - 1.020573 / 1.024171». 1015561 (1.015561): lo vende como UPS15-50 J1 CIAO y como Grundfos UPS 15-50, pero sin confirmación adicional lo une con 1.024171 ni con 59725011. Cruces de cabezal sin verificar (Yandex Market): 39818450, 7828741, 0020207146 y AA10010018. los condiciona al sentido de giro (CCW) y a los datos eléctricos.
