Grundfos UPS 15-50 AO 130 Immergas – Ref. 59895542

Boilers Immergas compatible with reference 59895542

Immergas with reference 59895542. Two confirmed compatibilities: Eolo Star 23 kW (Eolo Star23) and Nike Star 23 kW. There are three other models that we are still verifying.

Proven compatibility

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if reference 59895542 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

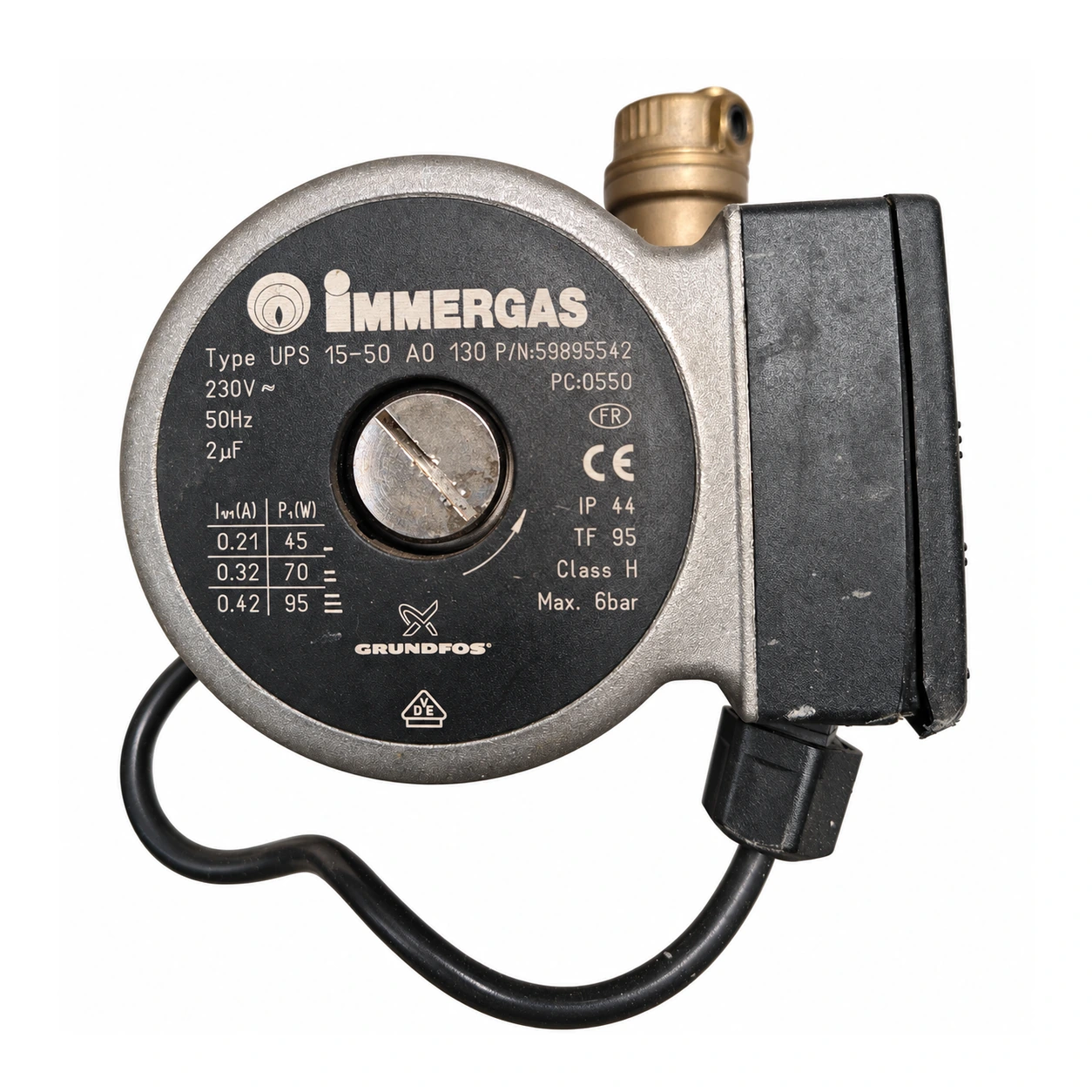

1. Check the label on your pump motor: it should say Grundfos UPS 15-50 AO 130.
2. Compare the powers: 45, 70, and 95 W (0.21 / 0.32 / 0.42 A).
3. Check the model and power on your boiler's label: the Eolo Star and Nike Star of 24 kW have a different pump.
4. If your boiler is an Immergas Eolo Star 23, confirmed: for this pump. Another model? Send us a photo of your pump's label and the boiler's PCB from Contact.

Symptoms that require diagnosis in the immergas 59895542

Common symptoms and faults

• 01

  Cold radiators even though the burner is on.

  Cause: Check that the pump is running and that the boiler has pressure.

• 02

  Noise or buzzing when requesting heating.

  Cause: There may be air or the rotor may be rubbing: bleed the radiators and check the pump.

• 03

  The pump hums but does not rotate after the summer.

  Cause: The rotor may be stuck due to limescale or dirt: have a technician check it.

• 04

  It is leaking water from the pump.

  Cause: Check the seals of the connections and the body of the pump.

• 05

  The boiler locks out or shuts down due to overheating.

  Cause: There may be a circulation issue: check that the pump is working and that there are no closed valves.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical sheet: Immergas 59895542

Catalogue reference

59895542

Uniclima internal SKU

BOM047

Brand

Immergas

Type of part

Immergas

Units in stock

0 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Power supply

230 V~, 50 Hz

Protection

IP44

Marked capacitor

2 uF

Current / power I

0.21 A / 45 W

Current / power II

0.32 A / 70 W

Current / power III

0.42 A / 95 W

Set temperature

TF95

Marked class

H

Maximum pressure marked

6 bar

Inventory — Type of spare part

Pumps

Inventory — Condenser

2 μF

Inventory — Speed 1

I1/1 0.21 A; P1 45 W

Inventory — Insulation

class H

Inventory — Application indicated in inventory

EOLO STAR23

Inventory — Marked code

0550

Verified data — Pump

Grundfos UPS 15-50 AO 130

Verified data — Speed I

45 W · 0.21 A

Verified data — Speed II

70 W · 0.32 A

Verified data — Speed III

95 W · 0.42 A

Verified data — Power supply

230 V · 50 Hz

Verified data — Condenser

2 µF

Verified data — Protection

IP44 · class H

Verified data — Water temperature

Up to 95 °C (TF95)

Verified data — Maximum pressure

6 bar

Verified data — Distance between outlets

130 mm according to the Grundfos technical sheet of the UPS 15-50 N 130; not confirmed for the AO.

Verified data — Consumption in the Eolo Star 23

43 W according to the official brochure, without indicating the speed.

Verified data — Speed in new installations

La máxima (monotube and modulating) · Official Immergas technical sheet

Identification — Marked designation

UPS15-50 AO 130

Identification — Marked code

59895542

Technical sheet: Power supply

230 V~, 50 Hz

Technical sheet: Protection

IP44

Technical sheet: Marked capacitor

2 uF

Technical sheet: Current / power I

0.21 A / 45 W

Technical sheet: Current / power II

0.32 A / 70 W

Technical sheet: Current / power III

0.42 A / 95 W

Technical sheet: Marked temperature

TF95

Technical sheet: Marked class

H

Technical sheet: Maximum marked pressure

6 bar

Inventory data — Type of spare part

Pumps

Inventory data — Condenser

2 μF

Inventory data — Speed 1

I1/1 0.21 A; P1 45 W

Inventory data — Insulation

class H

Inventory data — Application indicated in inventory

EOLO STAR23

Inventory data — Marked code

0550

Pending applications to verify

• Eolo Star 23 kW (warehouse): official Immergas brochure (“Grundfos UPS 15-50 AO”) + 1 source (with the 1.015561 “UPS15-50 J1 CIAO”). Fó-Ka (Eolo Star 23 kW Export) only in extract. 1 source missing. • Nike Star 23 kW and Nike Star 55A: 1 source (for the 1.015561). • NOT VALID: Eolo Star 24 3E, Nike Star 24 3E and other 24 kW boilers from the list, which use the 1.027103 (40/60/85 W). sells for the Eolo Star 24 3E the 96974112 (“UPS 15-50 AO HB”).

Registered equivalents and substitutions

El folleto oficial de la Eolo Star 23 da como circulador la «Grundfos UPS 15-50 AO», el modelo de esta etiqueta. Si es la 1.015561: Immergas la sustituye por el kit 3.021396, que vale también para 1.020573 (investigación de la #33). Mismas potencias y condensador que la #41 (UPS15-50 J1 CIAO, P/N 597/2501M, también anotada para la Eolo Star 23), pero otro modelo, otro P/N y otra presión máxima (6 frente a 3 bar). Sin confirmar: que sean la misma pieza.
