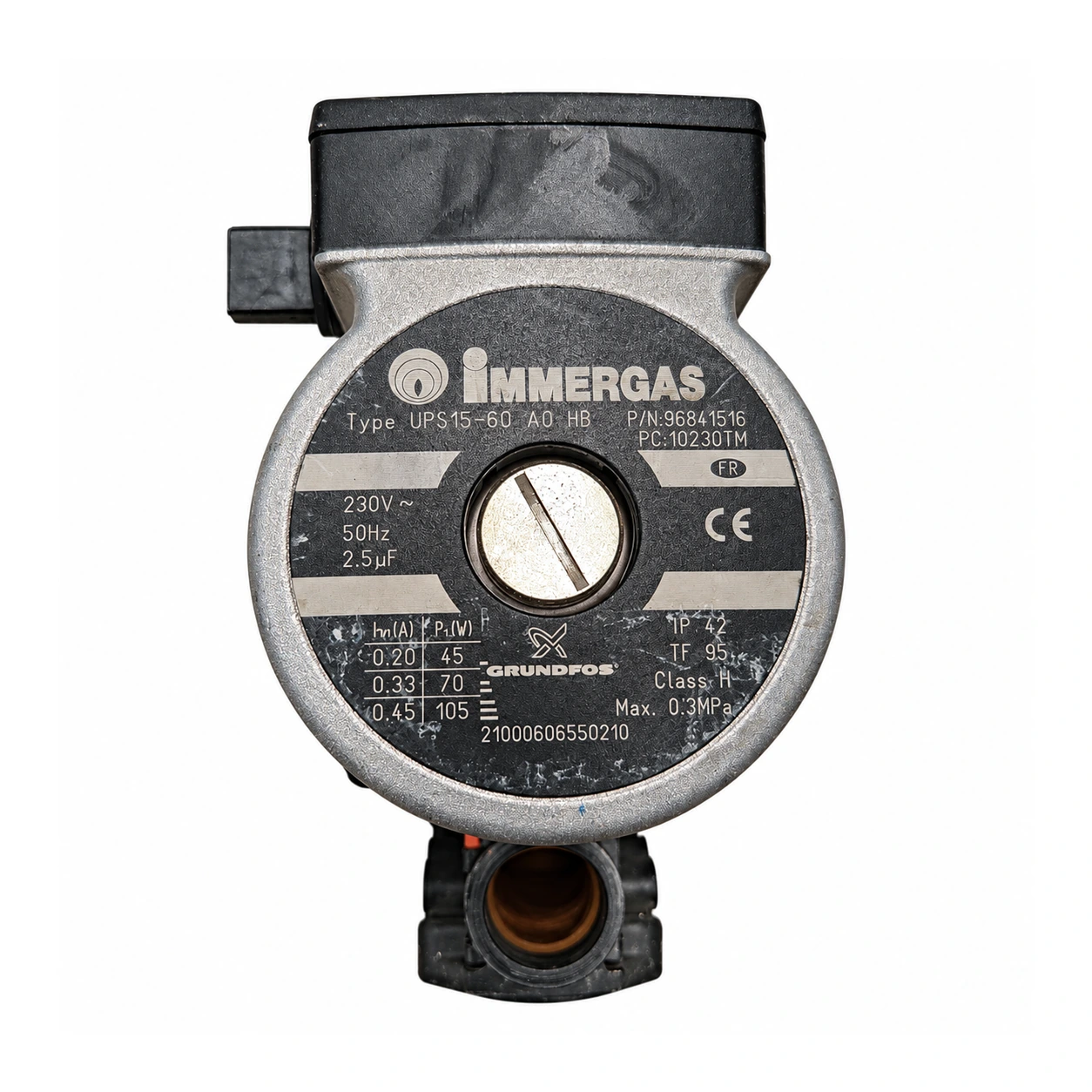

Grundfos UPS15-60 A0 HB pump Immergas – Ref. 96841516

It is the circulator that moves the heating water between the boiler and the radiators. Confirmed: for the Immergas Victrix X 25. Not confirmed: still that boiler with this pump or its Immergas code.

Type of part: Immergas
Status: Refurbished
Catalogue reference: 96841516
Warranty: 1 year

VAT included OUT OF STOCK

Compatibility

boilers Immergas compatible with reference 96841516

Immergas with reference 96841516. A confirmed compatibility: Immergas Victrix X 25 (VITRI X 25). There are 4 other models that we are still verifying.

Proven compatibility

Boiler model	Family	Verification
Immergas Victrix X 25 (VITRI X 25)	Immergas	Contrasted

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Immergas Nike Major 24	Immergas	Unconfirmed
Immergas Eolo Major 24 (Eolo 24 Maior)	Immergas	Unconfirmed
Immergas Victrix 20 (Combi and Plus)	Immergas	Unconfirmed
Immergas Victrix X 24 and Victrix 26	Immergas	Unconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

Guide

How to check if reference 96841516 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

Check that the label says Grundfos UPS15-60 A0 HB and that the pump has 3 speeds.
Look for an Immergas code on the pump in the format 1.0xxxxx or 3.0xxxxx.
Compare the data: 45/70/105 W, 0.20/0.33/0.45 A and capacitor of 2.5 µF.
Send us a photo of the pump label and another of the boiler control board from Contact.

Diagnosis and fault codes

Symptoms that require diagnosis in the immergas 96841516

Common symptoms and faults

01
The radiators remain cold even though the boiler turns on.
Cause: Check that the pump starts when requesting heating, at what speed it is, and that the circuit has pressure.
02
The pump makes noise or vibrates.
Cause: Bleed the air from the circuit; if the noise persists, the rotor or the bearings may be worn out.
03
It doesn't start after the summer.
Cause: The rotor may be stuck due to limescale: with the boiler powered off, check if the shaft rotates.
04
It is leaking water from the pump.
Cause: Check the seals of the connections; if the leak comes from the body or the motor, it needs to be replaced.
05
The boiler locks out due to overheating.
Cause: It usually indicates that the water is not circulating: confirm that the pump is running and that there is no air in the circuit.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Technical sheet: Immergas 96841516

Catalogue reference: 96841516
Uniclima internal SKU: BOM046
Brand: Immergas
Type of part: Immergas
Units in stock: 0 units
Status: Refurbished
Warranty: 1 year
Shipping: Delivery time shown at checkout
Return: 14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Power supply: 230 V; 50 Hz
Marked capacitor: 2.5 µF
P1 speeds I/II/III: 45/70/105 W
Current I/II/III: 0.20/0.33/0.45 A
Protection: IP42; TF95; Class H
Maximum pressure marked: 0.3 MPa
Inventory — Type of spare part: Pumps
Inventory — Condenser: 2.5 μF
Inventory — Speed 1: I1/1 0.20 A; P1 45 W
Inventory — Application indicated in inventory: -VITRI X 25
Inventory — Marked code: 21000606550210; 10230TM
Verified data — Pump: Grundfos UPS15-60 A0 HB
Verified data — Speed I: 45 W · 0.20 A
Verified data — Speed II: 70 W · 0.33 A
Verified data — Speed III: 105 W · 0.45 A
Verified data — Power supply: 230 V · 50 Hz
Verified data — Condenser: 2.5 µF
Verified data — Protection: IP42 · insulation class H
Verified data — Water temperature: Up to 95 °C (TF95)
Verified data — Maximum pressure: 0.3 MPa (3 bar)
Verified data — Marked codes: 21000606550210 · 10230TM
Verified data — Connections: No data for this unit: check them in your pump.
According to the official manuals of Immergas — Circulator of the Nike 24 Maior @: UPS 15-60 AO · 3 speeds · Immergas Nike Maior manual
According to the official manuals of Immergas — Circulator of the Victrix 20 and 27: Grundfos 15-60 AO · Immergas Victrix manual (20 and 27)
Condensing unit: The circulator is already included · Immergas manuals
Identification — Marked designation: UPS15-60 A0 HB
Identification — Marked code: 96841516
Identification — Marked code: 21000606550210
Identification — Marked code: 10230TM
Technical sheet: Power supply: 230 V; 50 Hz
Technical sheet: Marked capacitor: 2.5 µF
P1 speeds I/II/III: 45/70/105 W
Technical sheet: Current I/II/III: 0.20/0.33/0.45 A
Technical sheet: Protection: IP42; TF95; Class H
Technical sheet: Maximum marked pressure: 0.3 MPa
Inventory data — Type of spare part: Pumps
Inventory data — Condenser: 2.5 μF
Inventory data — Speed 1: I1/1 0.20 A; P1 45 W
Inventory data — Application indicated in inventory: -VITRI X 25
Inventory data — Marked code: 21000606550210; 10230TM
Pending applications to verify: • «VITRI X 25» (almacén). Sin confirmar: una Victrix X 25. Confirmar el modelo en la placa. Solo si la bomba es la 1.012932: • Nike Major 24 (Nike 24 Maior); solo en extracto. • Eolo Major 24 (Eolo 24 Maior). • Victrix 20 (Combi y Plus). • Victrix X 24 y Victrix 26, solo motor: . NO VÁLIDAS (llevan otra bomba): • Victrix Zeus 25 (3.028381): lista oficial Immergas, grupo bomba 3.027670 (motor 1.039582). • Victrix Omnia 25: UPM3S 15-60 ICHS. Indicio sin abrir: un extracto da la 1.047247 para la Victrix Omnia y la Victrix Tera 24.
Registered equivalents and substitutions: Sin equivalencias documentadas para 96841516. Si es la 1.012932: la da fuera de producción y la agrupa con otros 10 códigos Immergas en su ficha 1.A090P (UPS 15-60 130). La 1.010636 está sustituida por el kit 3.032819 (UPMO 15-70), que es otra bomba.

Before purchasing

To confirm: Immergas Nike Major 24 (Nike 24 Maior) — with 1.012932; official Immergas manual: UPS 15-60 AO (without code)
To confirm: Immergas Eolo Major 24 (Eolo 24 Maior), if your pump is 1.012932.
To confirm: Immergas Victrix 20 (Combi and Plus) — with 1.012932; official Immergas manual for the series: Grundfos 15-60 AO
To confirm: Immergas Victrix X 24 and Victrix 26 — Only the motor; if your pump is 1.012932.
Not compatible or excluded at source: Immergas Victrix Zeus 25 (3.028381) — It uses another one: pump group 3.027670
Not compatible or excluded at source: Immergas Victrix Omnia 25 — Uses another: Grundfos UPM3S 15-60
No compatible o excluidos: Immergas Victrix Tera 24 — Lleva otra: 1.047247 (Italia)
Do not confuse: 1.010636 — Circulator 15-60 from Immergas Avio and Zeus — provides 45/75/110 W; this one, 45/70/105 W. Another one is replaced by kit 3.032819 (UPMO 15-70).
Do not confuse: UPS15-50 A0 HB and UPS15-50 A0 HB L — Immergas pumps from the same A0 HB family — They are UPS 15-50; this is a UPS15-60, of up to 105 W. The official manual of the Nike 21 Maior S @ mentions a UPS 15-50 AO.
Registered confirmation: this pump (ref. 96841516, UPS15-60 A0 HB) for the Immergas Victrix X 25. Not confirmed: neither that reference nor that boiler. The official manuals from Immergas provide a nearly identical designation (UPS 15-60 AO) for the Nike 24 Maior @ and for the Victrix 20 and 27, only as a circulating model.

Frequently Asked Questions

Frequently asked questions: immergas 96841516

Is it compatible with my Immergas Victrix X 25?

Yes. Confirmation registered: this pump (ref. 96841516) for the Immergas Victrix X 25. The Victrix Zeus 25 and Omnia 25 use a different pump. For another boiler, please send us a photo of its data plate from Contact and we will check it.

Is the Immergas 1.012932?

It is possible, but not confirmed. They list 1.012932 as Grundfos UPS 15-60, and none link it with 96841516 or with the designation A0 HB. Check if your pump has an Immergas code and we can verify it.

What is the difference from 1.010636?

To confirm: it gives 45/75/110 W, and this label indicates 45/70/105 W. Additionally, another one is replaced by kit 3.032819, with another pump (UPMO 15-70).

Can I change it myself?

Better with a technician: you need to cut the power, drain the circuit, and bleed it at the end. Before that, check that the model, speeds, and connections match.

What circulator do the Immergas Nike 24 Maior and the Victrix 20 and 27 use?

The official manuals from Immergas provide a UPS 15-60 AO circulator for the Nike 24 Maior @ and a Grundfos 15-60 AO for the Victrix 20 and 27. It is almost the same designation as this pump (UPS15-60 A0 HB), but the manuals do not provide an Immergas code, do not mention the HB variant, and the one for the Victrix does not reference the X 25: that is why those boilers still need to be consulted.

Does the pump have a capacitor?

The label indicates a capacitor of 2.5 µF. The official manuals of Immergas (Nike Maior @ and Victrix 20 and 27) state that the circulator already comes with a capacitor. Check that your pump's capacitor is 2.5 µF before installing it.

Is it compatible with the Immergas Nike 21 Maior S @?

It is not the one that comes as standard: the official manual for that boiler mentions a UPS 15-50 AO circulator and this pump is a UPS15-60. Compare the designation of your pump with that of this one, UPS15-60 A0 HB.

What is the reference for this pump?

UPS15-60 AO HB

What power supply does it need?

230 V at 50 Hz.
