Grundfos UPS15-60 ICHS pump Immergas – Ref. 3.020418

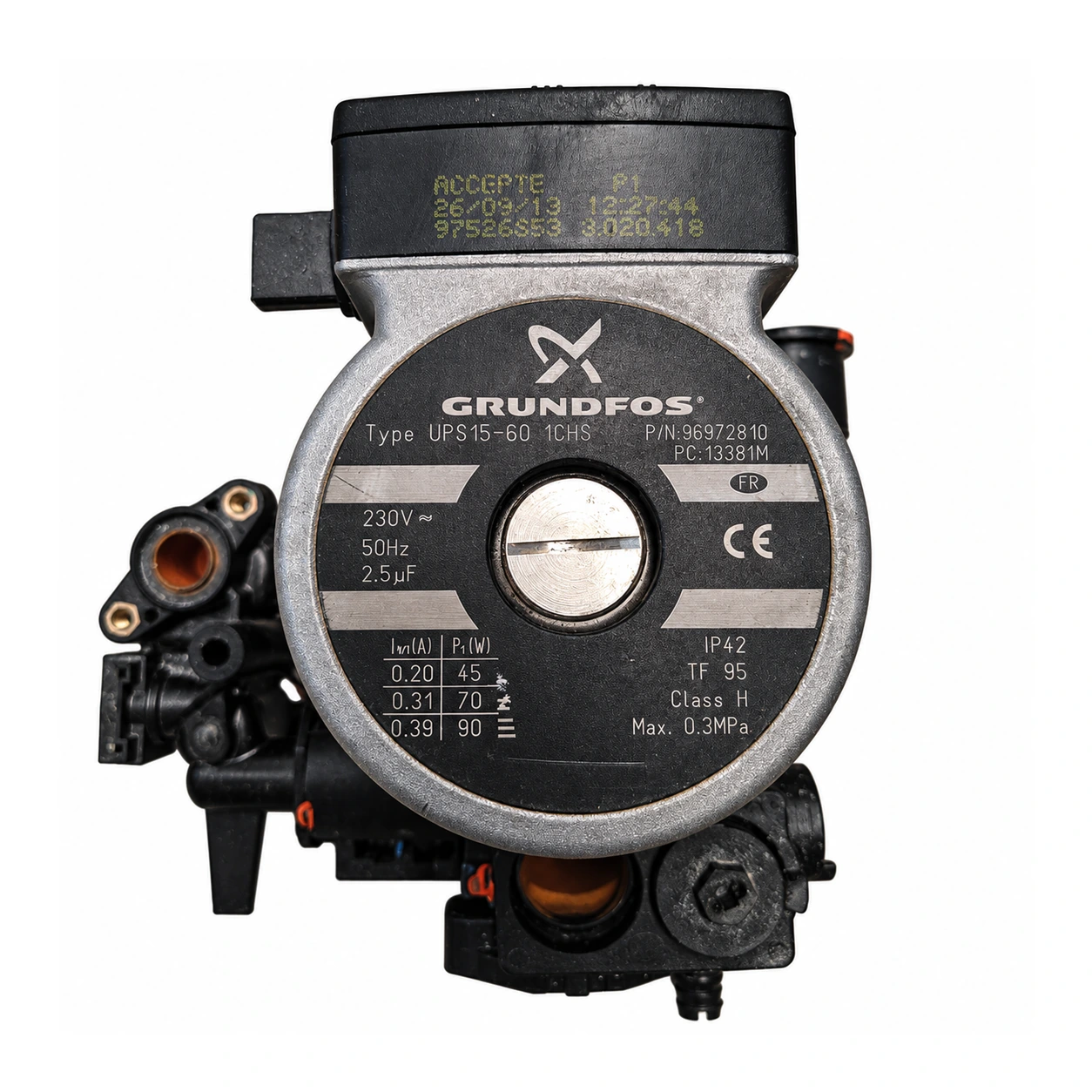

Circulador Grundfos UPS15-60 ICHS con código Immergas 3.020418 y P/N 96972810 en la etiqueta. Aplicación registrada para la familia Immergas Victrix, sin modelo concreto identificado. En esa familia también existen otras bombas, como la 1.047247; compara las referencias y la etiqueta antes de comprar.
- Type of part
- Immergas
- Status
- Refurbished
- Catalogue reference
- 96972810
- Warranty
- 1 year
VAT included OUT OF STOCK
boilers Immergas compatible with reference 96972810
Immergas with reference 96972810. A verified compatibility: Immergas VITRIX (Victrix).
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Immergas VITRIX (Victrix) | Immergas | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if reference 96972810 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Look at the label on your pump motor: it should say Grundfos UPS15-60 ICHS.
- Look for code 3.020418 or P/N 96972810 (3.020417 is another code from Immergas).
- Compare the consumptions: 45, 70, and 90 W at 230 V.
- If they match, call us at 911 17 77 77 with the model of your Victrix.
Technical sheet: Immergas 96972810
- Catalogue reference
- 96972810
- Uniclima internal SKU
- BOM049
- Brand
- Immergas
- Type of part
- Immergas
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Power supply
- 230 V; 50 Hz
- Marked capacitor
- 2.5 µF
- P1 speeds I/II/III
- 45/70/90 W
- Current I/II/III
- 0.20/0.31/0.39 A
- Protection
- IP42; TF95; Class H
- Maximum pressure marked
- 0.3 MPa
- Inventory — Type of spare part
- Pumps
- Inventory — PC
- 1338M
- Inventory — Condenser
- 2.5 μF
- Inventory — Intensity/power
- 0.20 A/45 W; 0.31 A/70 W; 0.39 A/90 W
- Inventory — Application indicated in inventory
- VITRIX
- Inventory — Marked code
- 1338IM; 3.020418
- Verified data — Pump
- Grundfos UPS15-60 ICHS
- Verified data — P/N
- 96972810
- Verified data — Consumption 1
- 45 W · 0.20 A
- Verified data — Consumption 2
- 70 W · 0.31 A
- Verified data — Consumption 3
- 90 W · 0.39 A
- Verified data — Speeds
- Three: I (45 W), II (70 W) and III (90 W) · Workshop data
- Verified data — Power supply
- 230 V · 50 Hz
- Verified data — Condenser
- 2.5 µF
- Verified data — Protection
- IP42 · class H
- Verified data — Thermal class
- TF95
- Verified data — Maximum pressure
- 0.3 MPa (3 bar)
- Verified data — Distance between outlets
- Without data: measure your pump before buying.
- Identification — Marked designation
- UPS15-60 ICHS
- Identification — Marked code
- 96972810
- Identification — Marked code
- 1338IM
- Identification — Marked code
- 3.020418
- Technical sheet: Power supply
- 230 V; 50 Hz
- Technical sheet: Marked capacitor
- 2.5 µF
- P1 speeds I/II/III
- 45/70/90 W
- Technical sheet: Current I/II/III
- 0.20/0.31/0.39 A
- Technical sheet: Protection
- IP42; TF95; Class H
- Technical sheet: Maximum marked pressure
- 0.3 MPa
- Inventory data — Type of spare part
- Pumps
- Inventory data — PC
- 1338M
- Inventory data — Condenser
- 2.5 μF
- Inventory data — Intensity/power
- 0.20 A/45 W; 0.31 A/70 W; 0.39 A/90 W
- Inventory data — Application indicated in inventory
- VITRIX
- Inventory data — Marked code
- 1338IM; 3.020418
- Pending applications to verify
- • VITRIX (almacén, sin modelo). sin confirmación adicional pone 3.020418 en una caldera. Pedir modelo y matrícula. NO VÁLIDAS (les dan otra bomba): • Victrix Zeus 25, Zeus Superior 25, Tera 24, Tera 24 Plus Met, Omnia y Mythos HP: UPM4S 15-60 CIL3, 1.047247 . • Victrix Maior y Zeus Superior: UPM3 15-70, 3.025935; Victrix Maior TT y Zeus Superior: UPM4 15-75, 1.046466. • Victrix Extra y Tera: 3.033519. • Victrix TT 24 / Tera 24 ERP: 3.032702; Victrix TT 24 ERP: 3.023221 . • Victrix Pro 55 2ERP: 1.033966 (UPM2 15-70 AOS); Pro 68 2ERP: 1.034021; Pro 100: 1.038000 .
- Registered equivalents and substitutions
- Other UPS 15-60 from Immergas that are not this part: • 1.A090 (1 speed, 130 mm): replaced by 3.032819 (Star Mini, Zeus Min, Victrix 50, Maior 32 kW). • 1.010636 (Avio/Zeus): only extract.
Before purchasing
- Italian units provide another pump for several Victrix: 1.047247 (UPM4S 15-60) for Zeus 25, Tera 24, Tera 24 Plus Met, and Omnia (for the Omnia, the official Immergas manual describes a UPM3 circulator, so the citation remains in doubt); 3.025935 (UPM3 15-70) for Maior and Zeus Superior; 1.046466 (UPM4 15-75) for Maior TT; 3.033519 for Extra.
- Another spare part for other Victrix models, 3.032702 (TT 24 and Tera 24 ERP), 3.023221 (TT 24 ERP), 1.033966, 1.034021, and 1.038000 (Pro 55, 68, and 100). Confirmation registered: this pump for Victrix: check that your label says UPS15-60 ICHS and 3.020418.
- A list of spare parts for the Victrix Intra 26 KW (REV.2011) includes 3.020418 as the hydraulic group ("Gruppo idraulico"), 3.020417 as the pump group (position 3), and a circulator 15-50, 1.1630 (position 115). Registered confirmation: this pump for Victrix: check your label.
- Not compatible or excluded by default: Mythos HP — Uses another one: 1.047247 (UPM4S 15-60)
- Do not confuse: 1.047247 — Grundfos UPM4S 15-60 from various Victrix, according to — Another model (UPM4S) and another code.
- Do not confuse: 1.A090 — Grundfos UPS 15-60 single speed from Immergas, according to — single speed, replaced by 3.032819; this label provides three power ratings (45/70/90 W)
- Do not confuse: 3.020417 — Pump group (position 3) from the spare parts list of the Victrix Intra 26 KW (REV.2011), according to — Another code from Immergas; it is not stated that it is equivalent to the 3.020418 from this label.
- Do not confuse: 1.1630 — Circulator 15-50 (position 115) from the same list, as — It is a 15-50, not a UPS 15-60 with three consumptions.
- Registered confirmation: the Immergas Victrix and the label data: it links P/N 96972810 with UPS 15-60 ICHS; none of what we could read mentions 3.020418 as a pump (a spare parts list refers to it as a hydraulic group). Several documents could not be read.
Frequently asked questions: immergas 96972810
Is it suitable for my boiler?
Yes, if it is an Immergas Victrix: Confirmed: for those boilers. Check that the label on your pump says UPS15-60 ICHS, 3.020418 and P/N 96972810. Any questions? Send us a photo of the label and the PCB of your boiler from Contact, or call 911 17 77 77.
Is it compatible with my Immergas Victrix?
Yes: Confirmation registered: this pump for Immergas Victrix boilers, without specifying the model. Italian brands offer various models with other pumps, such as 1.047247 (UPM4S 15-60) for Zeus, Tera, and Omnia; for the Omnia, that reference is only from and is in doubt, because the official manual of the IE Victrix Omnia describes a UPM3 circulator. Check the label on your pump: it should say UPS15-60 ICHS and 3.020418.
What are 3.020418 and 96972810?
The 3.020418 is the Immergas code marked on the label and 96972810 is the P/N from Grundfos; Confirmation registered: both. The Polish used pumps list gives 96972810 as Grundfos UPS 15-60 ICHS. Without additional confirmation that we have been able to read, it cites 3.020418 as a pump (a spare parts list refers to it as a hydraulic group): compare your label with these codes.
Does it have three speeds?
Yes. It has three speeds (I, II, and III) of 45, 70, and 90 W, according to the confirmed data.
What electrical and pressure data does it have?
230 V · 50 Hz; 0.20 A (45 W), 0.31 A (70 W) and 0.39 A (90 W) depending on the speed; 2.5 µF capacitor; IP42 protection, class H and thermal class TF95; maximum pressure of 0.3 MPa (3 bar).
Does 3.020418 appear in any spare parts list?
In one: the spare parts list for the Victrix Intra 26 KW (REV.2011), a hosted PDF, mentions 3.020418 as "Gruppo idraulico" (hydraulic group). The PDF does not state who publishes it, so we do not cite it as an official Immergas document. The pump group (position 3) is 3.020417 and in position 115 it has a circulator 15-50 (1.1630). It is a single document and for a specific model. Registered confirmation: this pump for Victrix: compare your label (UPS15-60 ICHS and 3.020418).
What is the reference for this pump?
UPS15-60 ICHS
What does the part include?
The set shown in the photographs of this sheet.
