Baxi Roca Ecobit Pump – Ref. 70.075.01

Compatible Baxi Roca boilers

Baxi Roca. A proven compatibility: Baxi Roca Neobit 24/24F. There are another 1 models that we are still verifying.

Proven compatibility

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

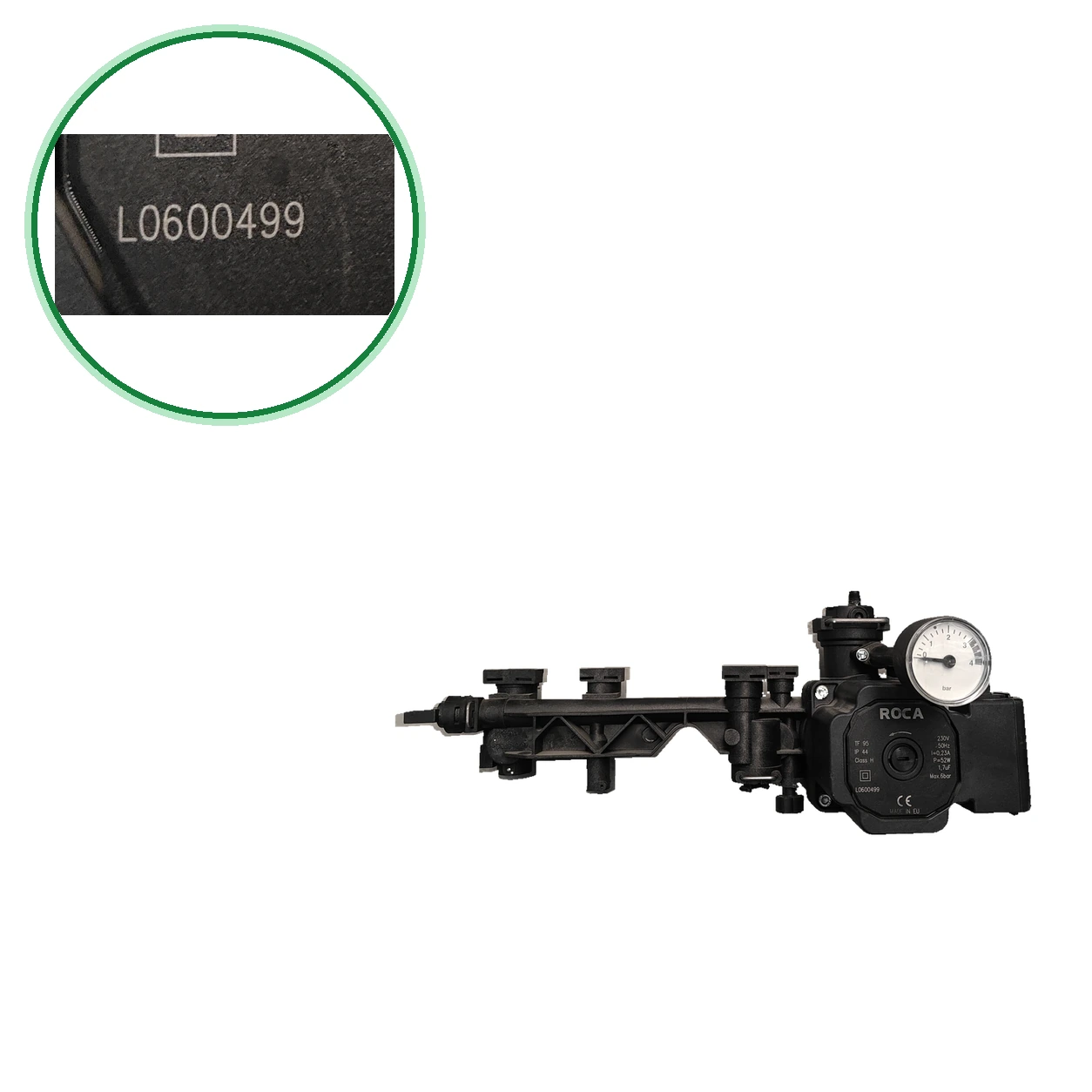

1. Look at the motor label: search for the brand Baxi Roca and the type L0600499 or the number 70.075.01.
2. Check the data: 52 W, 0.23 A, 50 Hz, and capacitor of 1.7 µF. If your pump is 60 Hz, it is a different one.
3. Check if your part is just the pump or if it also includes the hydraulic body and the pressure gauge.
4. If your boiler is the Neobit 24/24F, confirmed: this pump is for it. For another boiler, send us a photo of your pump's label and the boiler's control board from the Contact section, and we will confirm if it is your spare part.

Symptoms that require diagnosis in the Baxi Roca

Common symptoms and faults

• 01

  The radiators do not heat up even though the boiler turns on.

  Cause: Check that the pump is running and bleed the air from the circuit.

• 02

  Noise or vibrations when starting the heating.

  Cause: Bleed the circuit and check the pressure on the manometer.

• 03

  It vibrates but does not spin after a long stop.

  Cause: The rotor may be jammed: have a technician check it.

• 04

  It is leaking water from the pump or from the hydroblock.

  Cause: Check the seals and connections.

• 05

  The boiler locks out due to lack of circulation.

  Cause: Check that the pump starts and inspect its capacitor.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical sheet: Baxi Roca

Uniclima internal SKU

BOM042

Brand

Baxi Roca

Type of part

Baxi Roca

Units in stock

0 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Commercial reference

70.075.01

Code marked on the pump

L0600499

Thermal protection

TF 95

Degree of protection

IP44

Insulation class

H

Nominal voltage

230 V

Frequency

50 Hz

Nominal current

0.23 A

Power

52 W

Condenser

1.7 μF

Maximum pump pressure

6 bar

Integrated manometer scale

0–4 bar

Verified data — Pump

Baxi Roca Ecobit · type L0600499

Verified data — Power

52 W · 0.23 A

Verified data — Power supply

230 V · 50 Hz

Verified data — Condenser

1.7 µF

Verified data — Protection

IP44 · insulation class H

Verified data — Thermal protection

TF 95

Verified data — Maximum pressure

6 bar

Verified data — Pressure gauge

0–4 bar, integrated into our unit · Confirmed

Pending applications to verify

• Neobit 24/24F (noted by the warehouse): for this part. and they provide the pump 122070370 (50 Hz); at 60 Hz, the 122070430. • Sara 24/24F: for this part. and the breakdown provides the 122070370. • Nora 24/24F: for this part. and they provide the 122070370. • Neobit Plus 24/24: another pump (7801352); not evaluated.

Registered equivalents and substitutions

No documented equivalents. Candidate: Baxi Roca 122070370 (R122070370; 280.93.0003), the 50 Hz pump from Neobit, Sara and Nora 24/24F according to (Sara, also in the breakdown). Without additional confirmation, it matches with 70.075.01 nor publishes its W and A for comparison. Do not confuse with 122070430 (same family, 60 Hz), the hydroblock body 122153440, or the hydroblock kit 122700810.
