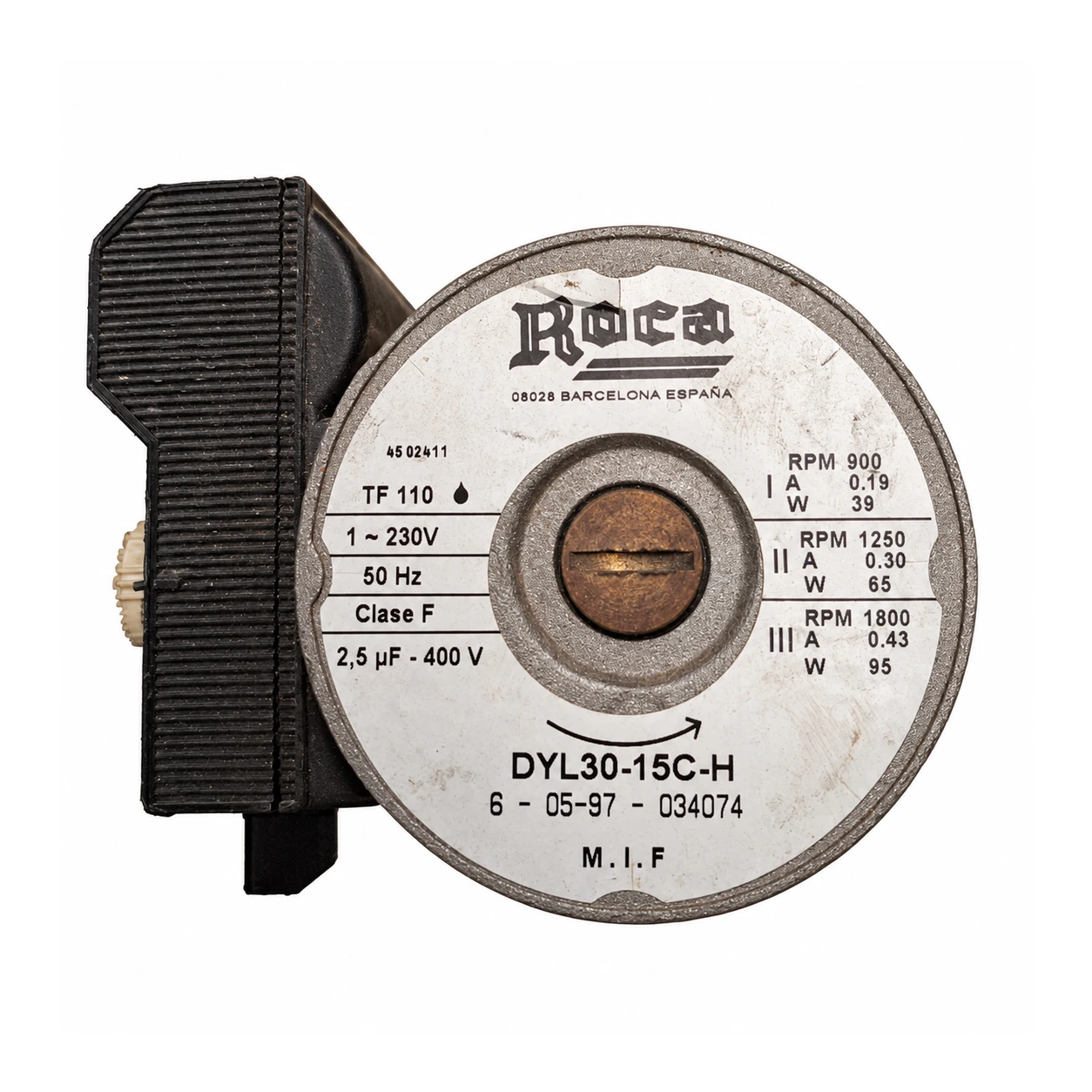

Baxi Roca DYL30-15C-H Circulating Pump · 4502411 For Baxi Roca RS 20/20
The circulation pump circulates the heating water through the boiler and the circuit. It is checked when the water does not circulate properly through the system.
- Type of part
- Baxi Roca
- Status
- Refurbished
- Catalogue reference
- 4502411
- Warranty
- 1 year
VAT included OUT OF STOCK
Boilers Baxi Roca compatible with reference 4502411
Baxi Roca with reference 4502411. A verified compatibility: Baxi Roca RS 20/20.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Roca Baxi Roca RS 20/20 | Baxi Roca | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if reference 4502411 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Look for the pump designation DYL30-15C-H and the code 4502411.
- Compare also 1~230 V 50 Hz, the 2.5 µF 400 V capacitor, and the three speeds (39, 65, and 95 W).
- Do not confuse it with the Baxi Roca pumps 122075100, 122075040 or 7803038, with the 122075140 from the R-20/20F or with the MYL-30: they have different codes and no technical sheet links them to the DYL30-15C-H.
- Another code marked on our unit is 6 - 05-97 - 034074 (confirmed). 6-09-99-017092 for the same designation; if your pump does not carry 4502411 or 6 - 05-97 - 034074, please contact us through Contact.
- Any questions? Send us a photo of the label of your pump and the data plate of the boiler from Contact.
Roca 4502411
- Catalogue reference
- 4502411
- Uniclima internal SKU
- BOM005
- Brand
- Baxi Roca
- Type of part
- Baxi Roca
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Power supply
- 1~230 V, 50 Hz
- Marked capacitor
- 2.5 uF - 400 V
- Speed / current / power I
- 900 RPM / 0.19 A / 39 W
- Speed / current / power II
- 1250 RPM / 0.30 A / 65 W
- Speed / current / power III
- 1800 RPM / 0.43 A / 95 W
- Set temperature
- TF110
- Marked class
- F
- Inventory — Type of spare part
- Pumps
- Inventory — Condenser
- 2.5 μF; 400 V
- Inventory — Application indicated in inventory
- -RS 20/20
- Inventory — Marked code
- 6 - 05-97 - 034074
- Additional data — Power
- 39 to 95 W · from (Salmson DYL30-15C-H)
- Additional data — Distance between outlets
- 130 mm
- Additional data — Speeds
- Technical sheet: 3
- Identification — Marked designation
- DYL30-15C-H
- Identification — Marked code
- 4502411
- Technical sheet: Power supply
- 1~230 V, 50 Hz
- Technical sheet: Marked capacitor
- 2.5 uF - 400 V
- Speed / current / power I
- 900 RPM / 0.19 A / 39 W
- Technical sheet: Speed / current / power II
- 1250 RPM / 0.30 A / 65 W
- Speed / current / power III
- 1800 RPM / 0.43 A / 95 W
- Technical sheet: Marked temperature
- TF110
- Technical sheet: Marked class
- F
- Inventory data — Type of spare part
- Pumps
- Inventory data — Condenser
- 2.5 μF; 400 V
- Inventory data — Application indicated in inventory
- -RS 20/20
- Inventory data — Marked code
- 6 - 05-97 - 034074
Before purchasing
- Do not confuse: 122075100 / 122075040 / 7803038 — Baxi Roca pumps for the RS 20/20 and RS20/20F (122075100 = 122075040, replaced by 7803038) — Other codes: no technical sheet links them with DYL30-15C-H or 4502411.
- Do not confuse: 122075140 — Baxi Roca circulation pump from row 12 of the Baxi Roca R-20/20F parts list — Another code: without additional confirmation it links to DYL30-15C-H
- Do not confuse: MYL-30 (119113009) — Baxi Roca discontinued circulation pump, connections 1"1/2 with fittings for 1" pipe — Another model and another code: it is for Baxi Roca LAIA, LIDIA, and NGO-50.
- Our unit also has marked 6 - 05-97 - 034074 (confirmed). 6-09-99-017092 for the same designation DYL30-15C-H.
- Four domains connect DYL30-15C-H with this pump: and it is listed as Baxi Roca and as Salmson; it only connects 4502411. No documentation links it with the RS 20/20 (the one that does not bring its codes; the one that is from the R-20/20F): that is from the workshop.
Frequently asked questions: Baxi Roca 4502411
Where is the code for the Baxi Roca DYL30-15C-H pump and what else should I compare?
The pump is marked with the designation DYL30-15C-H and the code 4502411. Provide 4502411 as another identifier for that same pump. Also compare 1~230 V 50 Hz, the capacitor of 2.5 µF 400 V, and the three speeds (39, 65, and 95 W).
Is it compatible with my Baxi Roca RS 20/20 boiler?
Yes. Confirmation registered: this pump for the Baxi Roca RS 20/20. Without additional external confirmation, it is referred to as DYL30-15C-H. It is compatible with RS 20/20 part number 122075100 (and lists 122075040 as equivalent); it provides 122075040 for RS20/20F. If yours has a different one, compare the designation DYL30-15C-H and the code 4502411; if they do not match, send us a photo via Contact. Our unit also has the markings 6 - 05-97 - 034074 (confirmed).
Is it the same as the Baxi Roca pump 122075100, 122075040 or 7803038?
It does not appear. 122075100 = 122075040 and 7803038 as a substitute; 7803038 is given as the original code for a 2-way, 3-speed pump that replaces 122075100 and 122075040. Neither technical sheet connects them with DYL30-15C-H or 4502411: do not consider them equivalent without comparing the label.
What do DYL30-15C-H, 4502411, and the number 6 - 05-97 - 034074 mean?
DYL30-15C-H is the model designation marked on the pump, 4502411 is the marked code, and 6 - 05-97 - 034074 is another code marked on this unit, confirmed. Another number, 6-09-99-017092, is provided for the same designation. Without additional confirmation read, explain the letters of the model.
How many speeds and what power does the DYL30-15C-H have?
To confirm: It has three speeds. The label on our unit indicates 900 rpm · 0.19 A · 39 W, 1250 rpm · 0.30 A · 65 W, and 1800 rpm · 0.43 A · 95 W (TF110, class F). It ranges from 39 to 95 W and has 130 mm between flanges for the same designation: measure the distance between the flanges of your pump.
Is the DYL30-15C-H from Roca or Salmson?
To confirm: Our sheet registers it as Baxi Roca, and it is sold as Baxi Roca pump. It is sold under the same designation as "circolatore Salmson." The brand difference does not change the designation DYL30-15C-H, which is what needs to be compared.
Who should install this circulation pump?
A qualified technician. The pump operates at 1~230 V and 50 Hz and is part of the water circuit of a gas boiler: the replacement requires cutting off the power supply and handling the hydraulic circuit.
What is the reference for this pump?
4502411 · DYL30-15C-H
What power supply does it need?
230 V at 50 Hz.
